In Part 1 we created the functionality for our lottery dApp. In Part 2, we'll be integrating the API3 QRNG into our contract and deploying it onto the Ethereum Goerli public testnet. Alternatively, you may use another supported chain in place of Goerli by following the same steps and substituting accordingly.
We'll be using the Airnode Request-Response Protocol (RRP) to get the random numbers onto the blockchain for the lottery. API3 QRNG is an Airnode first-party oracle serving these random numbers from the Australian National University for blockchain and Web3 use-cases. Check our API3 docs to learn more about API3 and get an overview of Airnode.
As mentioned in Part 1, Hardhat is an Ethereum development environment that allows us to deploy smart contracts to public Ethereum networks, and in this case, spin up a locally running Ethereum blockchain instance for testing our deployed contract. We can do this by configuring Hardhat to "fork" the Ethereum Goerli testnet, which will simulate the state of the public network locally by fetching the data and exposing it transparently. We'll also need to connect to an Ethereum archive node to use this feature. We'll be using Alchemy below as our blockchain RPC node provider.
We're going to use sensitive credentials in the next steps. We'll be using the DotEnv package to store those credentials as environment variables separately from our application code.
npm install dotenvNext, make a .env file at the root of your project.
Make an Alchemy account. Click the "CREATE APP" button and select the Goerli testnet from the dropdown menu, as the rest of the available testnets are deprecated or will soon be deprecated. Insert your newly-generated Goerli RPC endpoint URL to your .env file:
.
RPC_URL="{PUT RPC URL HERE}"
Then add the following to the top of your hardhat.config.js file to load your RPC_URL variable.
require("dotenv").config();By adding the following to our module.exports in the hardhat.config.js file, we tell Hardhat to make a copy of the Goerli network for use in local testing:
module.exports = {
solidity: "0.8.9",
networks: {
hardhat: { // Hardhat local network
chainId: 5, // Force the ChainID to be 5 (Goerli) in testing
forking: { // Configure the forking behavior
url: process.env.RPC_URL, // Using the RPC_URL from the .env file
},
},
},
};Turn contract into an Airnode Requester
As a requester, our Lottery.sol contract will make requests to an Airnode, specifically the API3 QRNG, using the Request-Response Protocol (RRP). It may be helpful to take a little time familiarize yourself if you haven't already.
npm install @api3/airnode-protocol2. Import the Airnode Protocol into contract
At the top of Lottery.sol, below the solidity version, import the Airnode RRP Contract from the npm registry:
// SPDX-License-Identifier: UNLICENSED
pragma solidity ^0.8.9;
import "@api3/airnode-protocol/contracts/rrp/requesters/RrpRequesterV0.sol";
contract Lottery is RrpRequesterV0{We need to set the public address of the Airnode RRP contract on the blockchain that we're using. We can do this in the constructor by making it an argument for deployment:
constructor(uint256 _endTime, address _airnodeRrpAddress)
RrpRequesterV0(_airnodeRrpAddress)
{
require(_endTime > block.timestamp, "End time must be in the future");
endTime = _endTime; // store the end time of the lottery
}At the top of the test/Lottery.js file, import the Airnode protocol package:
const airnodeProtocol = require("@api3/airnode-protocol");We need to pass the address of the RRP contract into the constructor. We can do that by adding the following to our "Deploys" test:
it("Deploys", async function () {
const Lottery = await ethers.getContractFactory("Lottery"); // Create a factory object to deploy instances of our lottery smart contract
accounts = await ethers.getSigners(); // Get list of Ethereum accounts (signers) in the node we're connected to (Hardhat Network)
nextWeek = Math.floor(Date.now() / 1000) + 604800;
let { chainId } = await ethers.provider.getNetwork(); // Get the chainId we are using in hardhat
const rrpAddress = airnodeProtocol.AirnodeRrpAddresses[chainId]; // Get the AirnodeRrp address for the chainId
lotteryContract = await Lottery.deploy(nextWeek, rrpAddress); // Deploy contract, pass address into the constructor
expect(await lotteryContract.deployed()).to.be.ok;
});Run npx hardhat test to check that your code passes all 3 tests before moving on.
Airnode Parameters need to be stored in our contract. In Lottery.sol, add the following to the global variables:
address public constant airnodeAddress = 0x9d3C147cA16DB954873A498e0af5852AB39139f2; // ANU's Airnode address
bytes32 public constant endpointId = 0xfb6d017bb87991b7495f563db3c8cf59ff87b09781947bb1e417006ad7f55a78; // ANU's uint256 endpointId
address payable public sponsorWallet; // We will store the sponsor wallet here laterThe airnodeAddress and endpointID of a particular Airnode can be found in the documentation of the API provider, which in this case is API3 QRNG.
2. Set the sponsor wallet
To pay for the fulfillment of Airnode requests, normally we'll need to sponsor the requester, our Lottery.sol contract. In this case, if we use the contract address itself as the sponsorAddress, it automatically sponsors itself.
We'll need to make our contract "Ownable". That will allow us to restrict access for setting the sponsorWallet to the contract owner (the wallet/account that deployed the contract). Note that sponsorWallet is different than a sponsorAddress.
First, import the Ownable contract at the top of Lottery.sol:
import "@api3/airnode-protocol/contracts/rrp/requesters/RrpRequesterV0.sol";
import "@openzeppelin/contracts/access/Ownable.sol";
contract Lottery is RrpRequesterV0, Ownable {Then we can make our setSponsorWallet function and attach the onlyOwner modifier to restrict access:
function setSponsorWallet(address payable _sponsorWallet) external onlyOwner {
sponsorWallet = _sponsorWallet;
}We'll be deriving our sponsorWallet used for funding Airnode transactions using functions from the @api3/airnode-admin package/CLI tool.
npm install @api3/airnode-adminThen we can import it into our tests/Lottery.js file:
const airnodeAdmin = require("@api3/airnode-admin");We'll hardcode the ANU QRNG's Xpub and Airnode Address to derive our sponsorWalletAddress.
Add the following test underneath the "Deploys" test:
it("Sets sponsor wallet", async function () {
const sponsorWalletAddress = await airnodeAdmin.deriveSponsorWalletAddress(
"xpub6DXSDTZBd4aPVXnv6Q3SmnGUweFv6j24SK77W4qrSFuhGgi666awUiXakjXruUSCDQhhctVG7AQt67gMdaRAsDnDXv23bBRKsMWvRzo6kbf", // ANU Xpub
"0x9d3C147cA16DB954873A498e0af5852AB39139f2", // ANU Airnode Address
lotteryContract.address // used as sponsorAddress
);
await expect(
lotteryContract.connect(accounts[1]).setSponsorWallet(sponsorWalletAddress) // we deployed the lottery contract with the first account
).to.be.reverted; // onlyOwner should be able to call this function
await lotteryContract.setSponsorWallet(sponsorWalletAddress);
expect(await lotteryContract.sponsorWallet()).to.equal(sponsorWalletAddress);
});run npx hardhat test to test your code.
In the Lottery.sol contract, add the following function:
function getWinningNumber() external payable {
// require(block.timestamp > endTime, "Lottery has not ended"); // not available until end time has passed
require(msg.value >= 0.01 ether, "Please top up sponsor wallet"); // user needs to send 0.01 ether with the transaction
bytes32 requestId = airnodeRrp.makeFullRequest(
airnodeAddress,
endpointId,
address(this), // Use the contract address as the sponsor. This will allow us to skip the step of sponsoring the requester
sponsorWallet,
address(this), // Return the response to this contract
this.closeWeek.selector, // Call this function with the response
"" // No params
);
pendingRequestIds[requestId] = true; // Store the request id in the pending request mapping
emit RequestedRandomNumber(requestId); // Emit an event that the request has been made
sponsorWallet.call{value: msg.value}(""); // Send funds to sponsor wallet
}We'll leave line 2 commented out for ease of testing. In lines 4-12 we're making a request to the API3 QRNG for a single random number. In line 15 we transfer the ether to the sponsor wallet that will pay the gas fees for Airnode to return the random number on-chain.
1. Map pending request IDs
In line 13 we are storing the requestId in a mapping. This will allow us to check whether or not the request is pending. Let's add the following under our mappings:
mapping (bytes32 => bool) public pendingRequestIds;In line 14 we emit an event that the request has been made and a request ID has been generated. Solidity events are logged as transactions to the Ethereum Virtual Machine, and inform the application that a change has been made on the blockchain. We need to describe our event at the top of our contract:
contract Lottery is RrpRequesterV0, Ownable {
event RequestedRandomNumber(bytes32 indexed requestId);Rewrite fulfill function
Let's overwrite the closeWeek function:
function closeWeek(
bytes32 requestId,
bytes calldata data // Airnode returns the requestId and the payload to be decoded later
)
external
onlyAirnodeRrp // Only AirnodeRrp can call this function
{
require(pendingRequestIds[requestId], "No such request made");
delete pendingRequestIds[requestId]; // If the request has been responded to, remove it from the pendingRequestIds mapping
uint256 _randomNumber = abi.decode(data, (uint256)) % MAX_NUMBER; // Decode the random number from the data and modulo it by the max number
emit ReceivedRandomNumber(requestId, _randomNumber); // Emit an event that the random number has been received
// require(block.timestamp > endTime, "Lottery is open"); // will prevent duplicate closings. If someone closed it first it will increment the end time and not allow
// The rest we can leave unchanged
winningNumber[week] = _randomNumber;
address[] memory winners = tickets[week][_randomNumber];
week++;
endTime += 7 days;
if (winners.length > 0) {
uint256 earnings = pot / winners.length;
pot = 0;
for (uint256 i = 0; i < winners.length; i++) {
payable(winners[i]).call{value: earnings}(""); // send earnings to each winner
}
}
}In the first line set the function to take in the request ID and the payload. In line 3 we add a modifier to restrict this function to only be accessible by Airnode RRP.
On line 5 and 6 we handle the request ID. If the request ID is not in the pendingRequestIds mapping, we throw an error, otherwise we delete the request ID from the pendingRequestIds mapping.
In line 8 we decode and typecast the random number from the payload. We don't need to import anything to use abi.decode(). Then we use the modulo operator (%) to ensure that the random number is between 0 and the max number.
Line 11 will prevent duplicate requests from being fulfilled. If more than 1 request is made, the first one to be fulfilled will increment the endTime and the rest will revert. We will leave it commented out for now to make testing easy.
In line 12 we emit an event that the random number has been received. We need to describe our event at the top of our contract under our other event:
event ReceivedRandomNumber(bytes32 indexed requestId, uint256 randomNumber);We will be using Hardhat-Deploy to deploy and manage our contracts on different chains. First lets install the hardhat-deploy package:
npm install -D hardhat-deployThen at the top of your hardhat.config.js file add the following:
require("hardhat-deploy");Now we can create a folder named deploy in the root to house our deployment scripts. Hardhat-Deploy will run all of our deployment scripts in order each time we run npx hardhat deploy.
In our deploy folder, create a file named 1_deploy.js. We'll be using hardhat and the Airnode Protocol package so lets import them at the top:
const hre = require("hardhat"); // Instance of Hardhat Runtime Environment
const airnodeProtocol = require("@api3/airnode-protocol");Hardhat deploy scripts should be done through a module.exports function. We will use the Airnode Protocol package to retrieve the RRP Contract address needed as an argument to deploy our lottery contract. We'll use hre.getChainId(), a function included in Hardhat-Deploy, to get the chain ID, which we'd set to 5 in hardhat.config.js.
Finally, we'll deploy the contract using hre.deployments. We pass in our arguments, a "from" address, and set logging to true.
module.exports = async () => {
const airnodeRrpAddress = airnodeProtocol.AirnodeRrpAddresses[await hre.getChainId()]; // Retrieve the RRP address for the current chain
nextWeek = Math.floor(Date.now() / 1000) + 9000; // Constructor takes in an `endTime` param.
const lotteryContract = await hre.deployments.deploy("Lottery", {
args: [nextWeek, airnodeRrpAddress], // Constructor arguments
from: (await getUnnamedAccounts())[0], // From account that owns contract
log: true,
});
console.log(`Deployed Lottery Contract at ${lotteryContract.address}`);
};Finally, lets name our script at the bottom of our 1_deploy.js file:
module.exports.tags = ["deploy"];Let's try it out! We should test on a local blockchain first to make things easy. First lets start up a local blockchain. We use the --no-deploy flag to prevent Hardhat-Deploy from running the deployment scripts each time you spin up a local node:
npx hardhat node --no-deployThen, in a separate terminal, we can deploy to our chain (localhost), specified by the --network parameter:
npx hardhat --network localhost deployIf everything worked well, we should see a message in the console that says our contract address. We can also check the terminal running the chain for more detailed logging.
Be sure to leave your blockchain running, as we will be using it throughout the rest of this tutorial.
We can couple another script with our deployment script so that the setSponsorWallet function is called after each deployment. We will start by creating a file in the deploy folder called 2_set_sponsorWallet.js.
We will be using hardhat again, but we'll be using the Airnode Admin package in this script. We'll import them at the top:
const hre = require("hardhat"); // Instance of Hardhat Runtime Environment
const airnodeAdmin = require("@api3/airnode-admin");Now lets make our module.exports function that sets the sponsor wallet. First we'll use Ethers to get a wallet. We can use hre.deployments.get to retrieve past deployments thanks to Hardhat-Deploy. Next, we instantiate our deployed contract within our script. Our deployed contract is ready to be interacted with!
Lets derive our sponsor wallet so that we can pass it into our setSponsorWallet function. We can use the deriveSponsorWalletAddress function from the Airnode Admin package. It take an Airnode provider's Xpub, and Airnode address, and finally the address of the sponsor which in our case is the contract itself.
Now we can then make the transaction to set the sponsor wallet.
module.exports = async () => {
const [account] = await hre.ethers.getSigners(); // Get the first account from Ethers
const Lottery = await hre.deployments.get("Lottery"); // Get the deployed contract
const lotteryContract = new hre.ethers.Contract( // Instantiate contract
Lottery.address,
Lottery.abi, // Interface of the contract
account
);
const sponsorWalletAddress = await airnodeAdmin.deriveSponsorWalletAddress(
"xpub6DXSDTZBd4aPVXnv6Q3SmnGUweFv6j24SK77W4qrSFuhGgi666awUiXakjXruUSCDQhhctVG7AQt67gMdaRAsDnDXv23bBRKsMWvRzo6kbf", // QRNG xpub
"0x9d3C147cA16DB954873A498e0af5852AB39139f2", // QRNG Airnode address
lotteryContract.address // Sponsor address
);
const tx = await lotteryContract.setSponsorWallet(sponsorWalletAddress); // Set the sponsor wallet
await tx.wait();
console.log(`Sponsor wallet set to: ${sponsorWalletAddress}`);
};Now lets add a Hardhat-Deploy tag to our script so that it runs after each deployment:
module.exports.tags = ["setup"];Lets try it out!
npx hardhat --network localhost deployIn this step, we will be testing our contract by deploying it to a live testnet blockchain, allowing others to access an instance that's not running locally. This will allow our random number requests will be answered by the ANU QRNG Airnode.
We need to write a script that will connect to our deployed contract and enter the lottery. We'll start by creating a file in the scripts folder named enter.js. If you look inside of the boilerplate deploy.js file, you'll see Hardhat recommends a format for scripts:
const hre = require("hardhat"); // Instance of Hardhat Runtime Environment
async function main() {
// Your script logic here...
}
main().catch((error) => {
console.error(error);
process.exitCode = 1;
});Inside the main funtion, we can put our "enter" script:
const guess = 55; // The number we chose for our lottery entry
const [account] = await hre.ethers.getSigners();
const Lottery = await hre.deployments.get("Lottery");
const lotteryContract = new hre.ethers.Contract(
Lottery.address,
Lottery.abi,
account
);
const ticketPrice = await lotteryContract.ticketPrice(); // Get the price of a ticket
const tx = await lotteryContract.enter(
// Enter the lottery
guess, // Pass in our guess
{ value: ticketPrice } // Include the ticket price in Eth in the transaction
);
await tx.wait(); // Wait for the transaction to be mined
const entries = await lotteryContract.getEntriesForNumber(guess, 1); // Get a list of entries for our guess. Our address should be inside
console.log(`Guesses for ${guess}: ${entries}`);We can try it out by running the script against our local deployment:
npx hardhat --network localhost run scripts/enter.jsNext, we need a way for people to call Airnode for a random number when the lottery is closed. We will start by creating a file in the scripts folder named close.js and adding the boilerplate script code from the last step to it.
In our main function, we will instantiate our contract again. We will call the getWinningNumber function in our contract to make a random number request. This function emits an event that we can listen to for our requestID that we will use to listen for a response.
When we do hear a response, we can call winningNumber(1) to retrieve the winning random number for week 1!
const Lottery = await hre.deployments.get("Lottery");
const lotteryContract = new hre.ethers.Contract(
Lottery.address,
Lottery.abi,
(await hre.ethers.getSigners())[0]
);

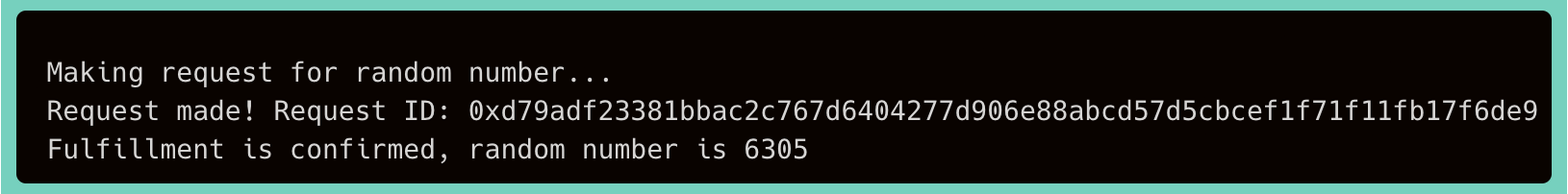

console.log("Making request for random number...");
const receipt = await lotteryContract.getWinningNumber({
// We'll use the tx receipt to get the requestID
value: ethers.utils.parseEther("0.01"), // Top up the sponsor wallet
});
// Retrieve request ID from event
const requestId = await new Promise((resolve) =>
hre.ethers.provider.once(receipt.hash, (tx) => {
const log = tx.logs.find((log) => log.address === lotteryContract.address);
const parsedLog = lotteryContract.interface.parseLog(log);
resolve(parsedLog.args.requestId);
})
);
console.log(`Request made! Request ID: ${requestId}`);
// Wait for the fulfillment transaction to be confirmed and read the logs to get the random number
await new Promise((resolve) =>
hre.ethers.provider.once(
lotteryContract.filters.ReceivedRandomNumber(requestId, null),
resolve
)
);
const winningNumber = await lotteryContract.winningNumber(1); // Get the winning number
console.log(
`Fulfillment is confirmed, random number is ${winningNumber.toString()}`
);If we test this against our local chain, we should receive a request ID but no response. That's because the ANU Airnode can't access requests on our local chain.
npx hardhat --network localhost run scripts/close.jsYou can kill the request process after the request Id is printed.
In this next step, we will be pointing Hardhat towards the Goerli testnet, which will provide a shared staging environment that mimics mainnet without using real money. This means we'll need a wallet with some Goerli ETH funds on it. Even if you have a wallet, it is highly recommended that you create a new wallet for testing purposes.
Never use a real wallet with real funds on it for development!
First, lets generate the wallet. We will use the Airnode Admin CLI to generate a mnemonic, but feel free to create a wallet in any way you see fit.
npx @api3/airnode-admin generate-mnemonic
# Output
This mnemonic is created locally on your machine using "ethers.Wallet.createRandom" under the hood.
Make sure to back it up securely, e.g., by writing it down on a piece of paper:
genius session popular ... # Our mnemonic
The Airnode address for this mnemonic is: 0x1a942424D880... # The public address to our wallet
The Airnode xpub for this mnemonic is: xpub6BmYykrmWHAhSFk... # The Xpub of our walletWe'll be using the mnemonic and Airnode address (Public Address). Lets add our mnemonic to the .env file so that we can use it safely:
MNEMONIC="genius session popular ..."Next, we'll configure Hardhat to use the Goerli network and our mnemonic. Inside the networks object in our hardhat.config.js file, modify the module.exports to add a network entry:
module.exports = {
solidity: "0.8.9",
networks: {
hardhat: { // Hardhat local network
chainId: 5, // Force the ChainID to be 5 (Goerli)
forking: {
url: process.env.RPC_URL,
}
},
goerli: {
url: process.env.RPC_URL, // Reuse our Goerli RPC URL
accounts: { mnemonic: process.env.MNEMONIC } // Use our wallet mnemonic
}
}
};Now we can run all of our commands with the added --network goerli flag without needing to change any code.
If you attempted to run any commands against Goerli, chances are that they failed. Thats because we are using our newly generated wallet that doesn't even have the funds to pay for the transaction. We can get some free Goerli ETH for testing by using a Goerli faucet. This faucet requires an Alchemy account, and this faucet requires a Twitter or Facebook account.
We'll paste the public address (Not Mnemonic!) from our wallet generation step into either or both faucets:
We can test our accounts in Hardhat by using tasks. Inside of the hardhat.config.js file, underneath our imports and above our exports, add the following:
task(
"balance",
"Prints the balance of the first account",
async (taskArgs, hre) => {
const [account] = await hre.ethers.getSigners(); // Get an array of all accounts
const balance = await account.getBalance(); // Get balance for account
console.log(
`${account.address}: (${hre.ethers.utils.formatEther(balance)} ETH)` // Print the balance in Ether
);
}
);Now we can run the balance task and see the balance of our account:
npx hardhat --network goerli balanceIf you followed the faucet steps correctly (and the faucet is currently operating), you should see the balance of our account is greater than 0 ETH. If not, you may need to wait a little bit longer or try a different faucet.
0x0EDA9399c969...: (0.5 ETH)We have everything configured to deploy onto a public chain. Lets start with the deployment command:
npx hardhat --network goerli deployKeep in mind things will move much slower on the Goerli network.
Next we will enter our lottery:
npx hardhat --network goerli run ./scripts/enter.js And finally, close our lottery:
npx hardhat --network goerli run ./scripts/close.js
