+## Overview
+
+LoopBack 4 has an authentication package `@loopback/authentication` which allows
+you to secure your application's API endpoints with custom authentication
+strategies and an `@authenticate` decorator.
+
+This tutorial showcases how `authentication` was added to the
+[loopback4-example-shopping](https://github.com/strongloop/loopback4-example-shopping)
+application by **creating** and **registering** a custom authentication strategy
+based on the `JSON Web Token (JWT)` approach.
+
+Here is a brief summary of the `JSON Web Token (JWT)` approach.
+
+
+
+In the **JSON Web Token (JWT)** authentication approach, when the user provides
+the **correct** credentials to a **login** endpoint, the server creates a JWT
+token and returns it in the response. The token is of type **string** and
+consists of 3 parts: the **header**, the **payload**, and the **signature**. The
+**header** and **payload** are digitally signed with **secret**, and the parts
+are separated by a period.
+
+For example:
+
+```ts
+// {base64UrlEncode-header}.{base64UrlEncode-payload}.{encrypted-signature}
+eyJhbXVCJ9.eyJpZCI6Ij.I3wpRNCH4;
+// actual parts have been reduced in size for viewing purposes
+```
+
+{% include note.html content="The payload can contain anything
+the application developer wants, but at the very least contains the user id. It should never contain the user password." %}
+
+After logging in and obtaining this token, whenever the user attempts to access
+a protected endpoint, the token must be provided in the **Authorization**
+header. The server verifies that the token is valid and not expired, and then
+permits access to the protected endpoint.
+
+Please see [JSON Web Token (JWT)](https://en.wikipedia.org/wiki/JSON_Web_Token)
+for more details.
+
+To view and run the completed `loopback4-example-shopping` application, follow
+the instructions in the [Try it out](#try-it-out) section.
+
+To understand the details of how JWT authentication can be added to a LoopBack 4
+application, read the
+[Adding JWT Authentication to a LoopBack 4 Application](#adding-jwt-authentication-to-a-loopback-4-application)
+section.
+
+## Try it out
+
+If you'd like to see the final results of this tutorial as an example
+application, follow these steps:
+
+1. Start the application:
+
+ ```sh
+ git clone https://github.com/strongloop/loopback4-example-shopping.git
+ cd loopback4-example-shopping
+ npm install
+ npm run docker:start
+ npm start
+ ```
+
+ Wait until you see:
+
+ ```sh
+ Recommendation server is running at http://127.0.0.1:3001.
+ Server is running at http://[::1]:3000
+ Try http://[::1]:3000/ping
+ ```
+
+1. In a browser, navigate to [http://[::1]:3000](http://127.0.0.1:3000) or
+ [http://127.0.0.1:3000](http://127.0.0.1:3000), and click on `/explorer` to
+ open the `API Explorer`.
+
+1. In the `UserController` section, click on `POST /users`, click on
+ `'Try it out'`, specify:
+
+ ```json
+ {
+ "email": "user1@example.com",
+ "password": "thel0ngp@55w0rd",
+ "firstName": "User",
+ "lastName": "One"
+ }
+ ```
+
+ and click on `'Execute'` to **add** a new user named `'User One'`.
+
+1. In the `UserController` section, click on `POST /users/login`, click on
+ `'Try it out'`, specify:
+
+ ```json
+ {
+ "email": "user1@example.com",
+ "password": "thel0ngp@55w0rd"
+ }
+ ```
+
+ and click on `'Execute'` to **log in** as `'User One'`.
+
+ A JWT token is sent back in the response.
+
+ For example:
+
+ ```json
+ {
+ "token": "some.token.value"
+ }
+ ```
+

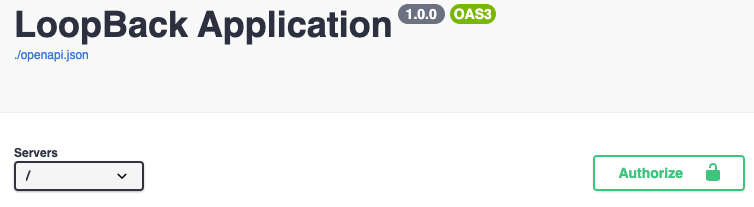

+1. Scroll to the top of the API Explorer, and you should see an `Authorize`
+ button. This is the place where you can set the JWT token.
+
+
+

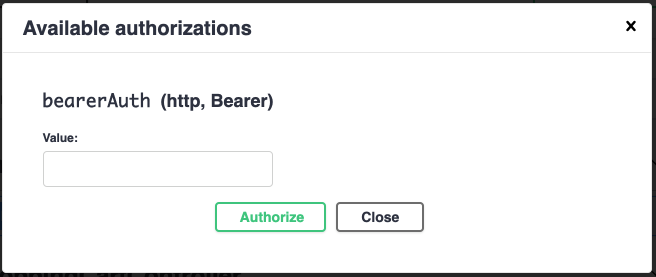

+1. Click on the `Authorize` button, and a dialog opens up.
+
+
+
+1. In the `bearerAuth` value field, enter the token string you obtained earlier,
+ and press the `Authorize` button. This JWT token is now available for the
+ `/users/me` endpoint we will interact with next. Press the `Close` button to
+ dismiss the dialog.
+
+
+

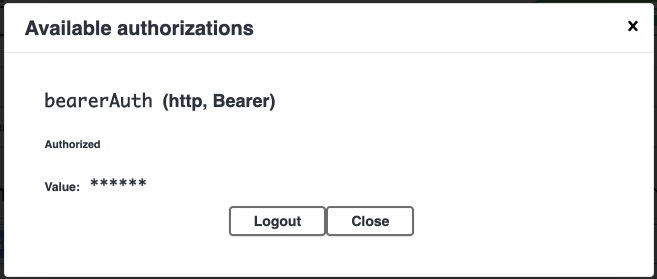

+ {% include note.html content="The Logout button allows you to enter a new value; if needed.
+ " %}
+

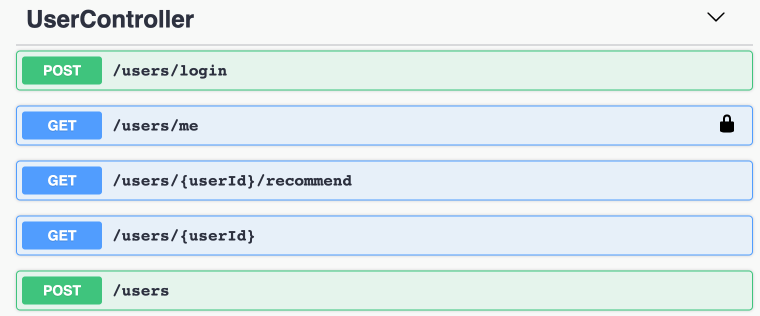

+1. Scroll down to the `UserController` section to find `GET /users/me`
+
+
+
+ Notice it has a **lock** icon and the other endpoints in this section do not.
+ This is because this endpoint specified an operation-level
+ `security requirement object` in the OpenAPI specification. (For details, see
+ the
+ [Specifying the Security Settings in the OpenAPI Specification](#specifying-the-security-settings-in-the-openapi-specification)
+ section.)
+
+1. Expand the `GET /users/me` section, and click on `Try it out`. There is no
+ data to specify, so simply click on `Execute`. The JWT token you specified
+ earlier was automatically placed in the `Authorization` header of the
+ request.
+
+ If authentication succeeds, the
+ [user profile](https://github.com/strongloop/loopback-next/blob/master/packages/security/src/types.ts)
+ of the currently authenticated user will be returned in the response. If
+ authentication fails due to a missing/invalid/expired token, an
+ [HTTP 401 UnAuthorized](https://developer.mozilla.org/en-US/docs/Web/HTTP/Status/401)
+ is thrown.
+
+ The response contains a unique value in the `id` field (generated by the
+ database) and `name` field with the full user name:
+
+ ```json
+ {"id": "5dd6acee242760334f6aef65", "name": "User One"}
+ ```
+
+## Adding JWT Authentication to a LoopBack 4 Application
+
+In this section, we will demonstrate how `authentication` was added to the
+[loopback4-example-shopping](https://github.com/strongloop/loopback4-example-shopping)
+application using the
+[JSON Web Token (JWT)](https://en.wikipedia.org/wiki/JSON_Web_Token) approach.
+
+### Installing @loopback/authentication
+
+The `loopback4-example-shopping` application **already** has the
+`@loopback/authentication` dependency set up in its **package.json**
+
+It was installed as a project dependency by performing:
+
+```sh
+npm install --save @loopback/authentication
+```
+
+### Adding the AuthenticationComponent to the Application
+
+The core of authentication framework is found in the
+[AuthenticationComponent](https://github.com/strongloop/loopback-next/blob/master/packages/authentication/src/authentication.component.ts),
+so it is important to add the component in the `ShoppingApplication` class in
+[loopback4-example-shopping/packages/shopping/src/application.ts](https://github.com/strongloop/loopback4-example-shopping/blob/master/packages/shopping/src/application.ts).
+
+```ts
+import {AuthenticationComponent} from '@loopback/authentication';
+
+export class ShoppingApplication extends BootMixin(
+ ServiceMixin(RepositoryMixin(RestApplication)),
+) {
+ constructor(options?: ApplicationConfig) {
+ super(options);
+
+ // ...
+
+ // Bind authentication component related elements
+ this.component(AuthenticationComponent);
+
+ // ...
+ }
+ // ...
+}
+```
+
+### Securing an Endpoint with the Authentication Decorator
+
+Securing your application's API endpoints is done by decorating controller
+functions with the
+[Authentication Decorator](https://loopback.io/doc/en/lb4/Decorators_authenticate.html).
+
+The decorator's syntax is:
+
+```ts
+@authenticate(strategyName: string, options?: object)
+```
+
+In the `loopback4-example-shopping` application, there is only one endpoint that
+is secured.
+
+In the `UserController` class in the
+[loopback4-example-shopping/packages/shopping/src/controllers/user.controller.ts](https://github.com/strongloop/loopback4-example-shopping/blob/master/packages/shopping/src/controllers/user.controller.ts),
+a user can print out his/her user profile by performing a `GET` request on the
+`/users/me` endpoint which is handled by the `printCurrentUser()` function.
+
+```ts
+ // ...
+
+ @get('/users/me', {
+ responses: {
+ '200': {
+ description: 'The current user profile',
+ content: {
+ 'application/json': {
+ schema: UserProfileSchema,
+ },
+ },
+ },
+ },
+ })
+ @authenticate('jwt')
+ async printCurrentUser(
+ @inject(SecurityBindings.USER)
+ currentUserProfile: UserProfile,
+ ): Promise {
+ currentUserProfile.id = currentUserProfile[securityId];
+ delete currentUserProfile[securityId];
+ return currentUserProfile;
+ }
+
+ // ...
+```
+
+{% include note.html content="Since this controller method is obtaining SecurityBindings.USER via [method injection](https://loopback.io/doc/en/lb4/Dependency-injection.html#method-injection) (instead of [constructor injection](https://loopback.io/doc/en/lb4/Dependency-injection.html#constructor-injection) and this method is decorated with the @authenticate decorator, there is no need to specify @inject(SecurityBindings.USER, {optional:true}). See [Using the Authentication Decorator](https://loopback.io/doc/en/lb4/Loopback-component-authentication.html#using-the-authentication-decorator) for details.
+" %}
+
+The `/users/me` endpoint is decorated with
+
+```ts
+@authenticate('jwt')
+```
+
+and authentication will only succeed if a valid JWT token is provided in the
+`Authorization` header of the request.
+
+Basically, the
+[AuthenticateFn](https://github.com/strongloop/loopback-next/blob/master/packages/authentication/src/providers/auth-action.provider.ts)
+action in the custom sequence `MyAuthenticationSequence` (discussed in a later
+section) asks
+[AuthenticationStrategyProvider](https://github.com/strongloop/loopback-next/blob/master/packages/authentication/src/providers/auth-strategy.provider.ts)
+to resolve the registered authentication strategy with the name `'jwt'` (which
+is `JWTAuthenticationStrategy` and discussed in a later section). Then
+`AuthenticateFn` calls `JWTAuthenticationStrategy`'s `authenticate(request)`
+function to authenticate the request.
+
+If the provided JWT token is valid, then `JWTAuthenticationStrategy`'s
+`authenticate(request)` function returns the user profile. `AuthenticateFn` then
+places the user profile on the request context using the `SecurityBindings.USER`
+binding key. The user profile is available to the `printCurrentUser()`
+controller function in a variable `currentUserProfile: UserProfile` through
+dependency injection via the same `SecurityBindings.USER` binding key. The user
+profile is returned in the response.
+
+If the JWT token is missing/expired/invalid, then `JWTAuthenticationStrategy`'s
+`authenticate(request)` function fails and an
+[HTTP 401 UnAuthorized](https://developer.mozilla.org/en-US/docs/Web/HTTP/Status/401)
+is thrown.
+
+If an **unknown** authentication strategy **name** is specified in the
+`@authenticate` decorator:
+
+```ts
+@authenticate('unknown')
+```
+
+then
+[AuthenticationStrategyProvider](https://github.com/strongloop/loopback-next/blob/master/packages/authentication/src/providers/auth-strategy.provider.ts)'s
+`findAuthenticationStrategy(name: string)` function cannot find a registered
+authentication strategy by that name, and an
+[HTTP 401 UnAuthorized](https://developer.mozilla.org/en-US/docs/Web/HTTP/Status/401)
+is thrown.
+
+So, be sure to specify the correct authentication strategy name when decorating
+your endpoints with the `@authenticate` decorator.
+
+### Creating a Custom Sequence and Adding the Authentication Action
+
+In a LoopBack 4 application with REST API endpoints, each request passes through
+a stateless grouping of actions called a
+[Sequence](https://loopback.io/doc/en/lb4/Sequence.html).
+
+Authentication is **not** part of the default sequence of actions, so you must
+create a custom sequence and add the authentication action.
+
+The custom sequence `MyAuthenticationSequence` in
+[loopback4-example-shopping/packages/shopping/src/sequence.ts](https://github.com/strongloop/loopback4-example-shopping/blob/master/packages/shopping/src/sequence.ts)
+implements the
+[SequenceHandler](https://github.com/strongloop/loopback-next/blob/master/packages/rest/src/sequence.ts)
+interface.
+
+```ts
+export class MyAuthenticationSequence implements SequenceHandler {
+ constructor(
+ @inject(SequenceActions.FIND_ROUTE) protected findRoute: FindRoute,
+ @inject(SequenceActions.PARSE_PARAMS)
+ protected parseParams: ParseParams,
+ @inject(SequenceActions.INVOKE_METHOD) protected invoke: InvokeMethod,
+ @inject(SequenceActions.SEND) protected send: Send,
+ @inject(SequenceActions.REJECT) protected reject: Reject,
+ @inject(AuthenticationBindings.AUTH_ACTION)
+ protected authenticateRequest: AuthenticateFn,
+ ) {}
+
+ async handle(context: RequestContext) {
+ try {
+ const {request, response} = context;
+ const route = this.findRoute(request);
+
+ //call authentication action
+ await this.authenticateRequest(request);
+
+ // Authentication successful, proceed to invoke controller
+ const args = await this.parseParams(request, route);
+ const result = await this.invoke(route, args);
+ this.send(response, result);
+ } catch (error) {
+ //
+ // The authentication action utilizes a strategy resolver to find
+ // an authentication strategy by name, and then it calls
+ // strategy.authenticate(request).
+ //
+ // The strategy resolver throws a non-http error if it cannot
+ // resolve the strategy. When the strategy resolver obtains
+ // a strategy, it calls strategy.authenticate(request) which
+ // is expected to return a user profile. If the user profile
+ // is undefined, then it throws a non-http error.
+ //
+ // It is necessary to catch these errors and add HTTP-specific status
+ // code property.
+ //
+ // Errors thrown by the strategy implementations already come
+ // with statusCode set.
+ //
+ // In the future, we want to improve `@loopback/rest` to provide
+ // an extension point allowing `@loopback/authentication` to contribute
+ // mappings from error codes to HTTP status codes, so that application
+ // don't have to map codes themselves.
+ if (
+ error.code === AUTHENTICATION_STRATEGY_NOT_FOUND ||
+ error.code === USER_PROFILE_NOT_FOUND
+ ) {
+ Object.assign(error, {statusCode: 401 /* Unauthorized */});
+ }
+
+ this.reject(context, error);
+ return;
+ }
+ }
+}
+```
+
+The authentication action/function is injected via the
+`AuthenticationBindings.AUTH_ACTION` binding key, is given the name
+`authenticateRequest` and has the type
+[AuthenticateFn](https://github.com/strongloop/loopback-next/blob/master/packages/authentication/src/types.ts).
+
+Calling
+
+```ts
+await this.authenticateRequest(request);
+```
+
+before
+
+```ts
+// ...
+const result = await this.invoke(route, args);
+this.send(response, result);
+// ...
+```
+
+ensures that authentication has succeeded before a controller endpoint is
+reached.
+
+To add the custom sequence `MyAuthenticationSequence` in the application, we
+must code the following in
+[loopback4-example-shopping/packages/shopping/src/application.ts](https://github.com/strongloop/loopback4-example-shopping/blob/master/packages/shopping/src/application.ts):
+
+```ts
+export class ShoppingApplication extends BootMixin(
+ ServiceMixin(RepositoryMixin(RestApplication)),
+) {
+ constructor(options?: ApplicationConfig) {
+ super(options);
+
+ // ...
+
+ // Set up the custom sequence
+ this.sequence(MyAuthenticationSequence);
+
+ // ...
+ }
+}
+```
+
+### Creating a Custom JWT Authentication Strategy
+
+When creating a custom authentication strategy, it is necessary to implement the
+[AuthenticationStrategy](https://github.com/strongloop/loopback-next/blob/master/packages/authentication/src/types.ts)
+interface.
+
+A custom JWT authentication strategy `JWTAuthenticationStrategy` in
+[loopback4-example-shopping/packages/shopping/src/authentication-strategies/jwt-strategy.ts](https://github.com/strongloop/loopback4-example-shopping/blob/master/packages/shopping/src/authentication-strategies/jwt-strategy.ts)
+was implemented as follows:
+
+```ts
+import {inject} from '@loopback/context';
+import {HttpErrors, Request} from '@loopback/rest';
+import {AuthenticationStrategy, TokenService} from '@loopback/authentication';
+import {UserProfile} from '@loopback/security';
+
+import {TokenServiceBindings} from '../keys';
+
+export class JWTAuthenticationStrategy implements AuthenticationStrategy {
+ name: string = 'jwt';
+
+ constructor(
+ @inject(TokenServiceBindings.TOKEN_SERVICE)
+ public tokenService: TokenService,
+ ) {}
+
+ async authenticate(request: Request): Promise {
+ const token: string = this.extractCredentials(request);
+ const userProfile: UserProfile = await this.tokenService.verifyToken(token);
+ return userProfile;
+ }
+
+ extractCredentials(request: Request): string {
+ if (!request.headers.authorization) {
+ throw new HttpErrors.Unauthorized(`Authorization header not found.`);
+ }
+
+ // for example: Bearer xxx.yyy.zzz
+ const authHeaderValue = request.headers.authorization;
+
+ if (!authHeaderValue.startsWith('Bearer')) {
+ throw new HttpErrors.Unauthorized(
+ `Authorization header is not of type 'Bearer'.`,
+ );
+ }
+
+ //split the string into 2 parts: 'Bearer ' and the `xxx.yyy.zzz`
+ const parts = authHeaderValue.split(' ');
+ if (parts.length !== 2)
+ throw new HttpErrors.Unauthorized(
+ `Authorization header value has too many parts. It must follow the pattern: 'Bearer xx.yy.zz' where xx.yy.zz is a valid JWT token.`,
+ );
+ const token = parts[1];
+
+ return token;
+ }
+}
+```
+
+It has a **name** `'jwt'`, and it implements the
+`async authenticate(request: Request): Promise`
+function.
+
+An extra function `extractCredentials(request: Request): string` was added to
+extract the JWT token from the request. This authentication strategy expects
+every request to pass a valid JWT token in the `Authorization` header.
+
+`JWTAuthenticationStrategy` also makes use of a token service `tokenService` of
+type `TokenService` that is injected via the
+`TokenServiceBindings.TOKEN_SERVICE` binding key. It is used to verify the
+validity of the JWT token and return a user profile.
+
+This token service is explained in a later section.
+
+### Registering the Custom JWT Authentication Strategy
+
+To register the custom authentication strategy `JWTAuthenticationStrategy` with
+the **name** `'jwt'` as a part of the authentication framework, we need to code
+the following in
+[loopback4-example-shopping/packages/shopping/src/application.ts](https://github.com/strongloop/loopback4-example-shopping/blob/master/packages/shopping/src/application.ts).
+
+```ts
+import {registerAuthenticationStrategy} from '@loopback/authentication';
+
+export class ShoppingApplication extends BootMixin(
+ ServiceMixin(RepositoryMixin(RestApplication)),
+) {
+ constructor(options?: ApplicationConfig) {
+ super(options);
+ // ...
+ registerAuthenticationStrategy(this, JWTAuthenticationStrategy);
+ // ...
+ }
+}
+```
+
+### Creating a Token Service
+
+The token service `JWTService` in
+[loopback4-example-shopping/packages/shopping/src/services/jwt-service.ts](https://github.com/strongloop/loopback4-example-shopping/blob/master/packages/shopping/src/services/jwt-service.ts)
+implements an **optional** helper
+[TokenService](https://github.com/strongloop/loopback-next/blob/master/packages/authentication/src/services/token.service.ts)
+interface.
+
+```ts
+import {inject} from '@loopback/context';
+import {HttpErrors} from '@loopback/rest';
+import {promisify} from 'util';
+import {TokenService} from '@loopback/authentication';
+import {UserProfile} from '@loopback/security';
+import {TokenServiceBindings} from '../keys';
+
+const jwt = require('jsonwebtoken');
+const signAsync = promisify(jwt.sign);
+const verifyAsync = promisify(jwt.verify);
+
+export class JWTService implements TokenService {
+ constructor(
+ @inject(TokenServiceBindings.TOKEN_SECRET)
+ private jwtSecret: string,
+ @inject(TokenServiceBindings.TOKEN_EXPIRES_IN)
+ private jwtExpiresIn: string,
+ ) {}
+
+ async verifyToken(token: string): Promise {
+ if (!token) {
+ throw new HttpErrors.Unauthorized(
+ `Error verifying token: 'token' is null`,
+ );
+ }
+
+ let userProfile: UserProfile;
+
+ try {
+ // decode user profile from token
+ const decryptedToken = await verifyAsync(token, this.jwtSecret);
+ // don't copy over token field 'iat' and 'exp', nor 'email' to user profile
+ userProfile = Object.assign(
+ {id: '', name: ''},
+ {id: decryptedToken.id, name: decryptedToken.name},
+ );
+ } catch (error) {
+ throw new HttpErrors.Unauthorized(
+ `Error verifying token: ${error.message}`,
+ );
+ }
+
+ return userProfile;
+ }
+
+ async generateToken(userProfile: UserProfile): Promise {
+ if (!userProfile) {
+ throw new HttpErrors.Unauthorized(
+ 'Error generating token: userProfile is null',
+ );
+ }
+
+ // Generate a JSON Web Token
+ let token: string;
+ try {
+ token = await signAsync(userProfile, this.jwtSecret, {
+ expiresIn: Number(this.jwtExpiresIn),
+ });
+ } catch (error) {
+ throw new HttpErrors.Unauthorized(`Error encoding token: ${error}`);
+ }
+
+ return token;
+ }
+}
+```
+
+`JWTService` generates or verifies JWT tokens using the `sign` and `verify`
+functions of [jsonwebtoken](https://www.npmjs.com/package/jsonwebtoken).
+
+It makes use of `jwtSecret` and `jwtExpiresIn` **string** values that are
+injected via the `TokenServiceBindings.TOKEN_SECRET` and the
+`TokenServiceBindings.TOKEN_EXPIRES_IN` binding keys respectively.
+
+The `async generateToken(userProfile: UserProfile): Promise` function
+takes in a user profile of type
+[UserProfile](https://github.com/strongloop/loopback-next/blob/master/packages/security/src/types.ts),
+generates a JWT token of type `string` using: the **user profile** as the
+payload, **jwtSecret** and **jwtExpiresIn**.
+
+The `async verifyToken(token: string): Promise` function takes in a
+JWT token of type `string`, verifies the JWT token, and returns the payload of
+the token which is a user profile of type `UserProfile`.
+
+To bind the JWT `secret`, `expires in` values and the `JWTService` class to
+binding keys, we need to code the following in
+[loopback4-example-shopping/packages/shopping/src/application.ts](https://github.com/strongloop/loopback4-example-shopping/blob/master/packages/shopping/src/application.ts):
+
+```ts
+export class ShoppingApplication extends BootMixin(
+ ServiceMixin(RepositoryMixin(RestApplication)),
+) {
+ constructor(options?: ApplicationConfig) {
+ super(options);
+
+ // ...
+ this.setUpBindings();
+ // ...
+ }
+
+ setUpBindings(): void {
+ // ...
+
+ this.bind(TokenServiceBindings.TOKEN_SECRET).to(
+ TokenServiceConstants.TOKEN_SECRET_VALUE,
+ );
+
+ this.bind(TokenServiceBindings.TOKEN_EXPIRES_IN).to(
+ TokenServiceConstants.TOKEN_EXPIRES_IN_VALUE,
+ );
+
+ this.bind(TokenServiceBindings.TOKEN_SERVICE).toClass(JWTService);
+
+ // ...
+ }
+}
+```
+
+In the code above, `TOKEN_SECRET_VALUE` has a value of `'myjwts3cr3t'` and
+`TOKEN_EXPIRES_IN_VALUE` has a value of `'600'`.
+
+`JWTService` is used in two places within the application:
+`JWTAuthenticationStrategy` in
+[loopback4-example-shopping/packages/shopping/src/authentication-strategies/jwt-strategy.ts](https://github.com/strongloop/loopback4-example-shopping/blob/master/packages/shopping/src/authentication-strategies/jwt-strategy.ts),
+and `UserController` in
+[loopback4-example-shopping/packages/shopping/src/controllers/user.controller.ts](https://github.com/strongloop/loopback4-example-shopping/blob/master/packages/shopping/src/controllers/user.controller.ts).
+
+### Creating a User Service
+
+The user service `MyUserService` in
+[loopback4-example-shopping/packages/shopping/src/services/user-service.ts](https://github.com/strongloop/loopback4-example-shopping/blob/master/packages/shopping/src/services/user-service.ts)
+implements an **optional** helper
+[UserService](https://github.com/strongloop/loopback-next/blob/master/packages/authentication/src/services/user.service.ts)
+interface.
+
+```ts
+export class MyUserService implements UserService {
+ constructor(
+ @repository(UserRepository) public userRepository: UserRepository,
+ @inject(PasswordHasherBindings.PASSWORD_HASHER)
+ public passwordHasher: PasswordHasher,
+ ) {}
+
+ async verifyCredentials(credentials: Credentials): Promise {
+ const foundUser = await this.userRepository.findOne({
+ where: {email: credentials.email},
+ });
+
+ if (!foundUser) {
+ throw new HttpErrors.NotFound(
+ `User with email ${credentials.email} not found.`,
+ );
+ }
+ const passwordMatched = await this.passwordHasher.comparePassword(
+ credentials.password,
+ foundUser.password,
+ );
+
+ if (!passwordMatched) {
+ throw new HttpErrors.Unauthorized('The credentials are not correct.');
+ }
+
+ return foundUser;
+ }
+
+ convertToUserProfile(user: User): UserProfile {
+ // since first name and lastName are optional, no error is thrown if not provided
+ let userName = '';
+ if (user.firstName) userName = `${user.firstName}`;
+ if (user.lastName)
+ userName = user.firstName
+ ? `${userName} ${user.lastName}`
+ : `${user.lastName}`;
+ return {id: user.id, name: userName};
+ }
+}
+```
+
+The `async verifyCredentials(credentials: Credentials): Promise` function
+takes in a credentials of type
+[Credentials](https://github.com/strongloop/loopback4-example-shopping/blob/master/packages/shopping/src/repositories/user.repository.ts),
+and returns a **user** of type
+[User](https://github.com/strongloop/loopback4-example-shopping/blob/master/packages/shopping/src/models/user.model.ts).
+It searches through an injected user repository of type `UserRepository`.
+
+The `convertToUserProfile(user: User): UserProfile` function takes in a **user**
+of type `User` and returns a user profile of type
+[UserProfile](https://github.com/strongloop/loopback-next/blob/master/packages/security/src/types.ts).
+A user profile, in this case, is the minimum set of user properties which
+identify an authenticated user.
+
+`MyUserService` is used in by `UserController` in
+[loopback4-example-shopping/packages/shopping/src/controllers/user.controller.ts](https://github.com/strongloop/loopback4-example-shopping/blob/master/packages/shopping/src/controllers/user.controller.ts).
+
+To bind the `MyUserService` class, and the password hashing utility it uses, to
+binding keys, we need to code the following in
+[loopback4-example-shopping/packages/shopping/src/application.ts](https://github.com/strongloop/loopback4-example-shopping/blob/master/packages/shopping/src/application.ts):
+
+```ts
+export class ShoppingApplication extends BootMixin(
+ ServiceMixin(RepositoryMixin(RestApplication)),
+) {
+ constructor(options?: ApplicationConfig) {
+ super(options);
+
+ // ...
+
+ this.setUpBindings();
+
+ // ...
+ }
+
+ setUpBindings(): void {
+ // ...
+
+ // Bind bcrypt hash services - utilized by 'UserController' and 'MyUserService'
+ this.bind(PasswordHasherBindings.ROUNDS).to(10);
+ this.bind(PasswordHasherBindings.PASSWORD_HASHER).toClass(BcryptHasher);
+
+ this.bind(UserServiceBindings.USER_SERVICE).toClass(MyUserService);
+
+ // ...
+ }
+}
+```
+
+### Adding Users
+
+In the `UserController` class in the
+[loopback4-example-shopping/packages/shopping/src/controllers/user.controller.ts](https://github.com/strongloop/loopback4-example-shopping/blob/master/packages/shopping/src/controllers/user.controller.ts),
+users can be added by performing a `POST` request to the `/users` endpoint which
+is handled by the `create()` function.
+
+Because user credentials like password are stored outside of the main user
+profile, we need to create a new model (a
+[Data Transfer Object](https://en.wikipedia.org/wiki/Data_transfer_object)) to
+describe data required to create a new user. The class inherits from `User`
+model to include all user profile properties, and adds a new property `password`
+allowing clients to specify the password too.
+
+```ts
+@model()
+export class NewUserRequest extends User {
+ @property({
+ type: 'string',
+ required: true,
+ })
+ password: string;
+}
+```
+
+The controller method `UserController.create` then has to remove additional
+properties like `password` before passing the data to Repository (and database).
+
+```ts
+export class UserController {
+ constructor(
+ // ...
+ @repository(UserRepository) public userRepository: UserRepository,
+ @inject(PasswordHasherBindings.PASSWORD_HASHER)
+ public passwordHasher: PasswordHasher,
+ @inject(TokenServiceBindings.TOKEN_SERVICE)
+ public jwtService: TokenService,
+ @inject(UserServiceBindings.USER_SERVICE)
+ public userService: UserService,
+ ) {}
+
+ // ...
+
+ @post('/users')
+ async create(
+ @requestBody({
+ content: {
+ 'application/json': {
+ schema: getModelSchemaRef(NewUserRequest, {
+ title: 'NewUser',
+ }),
+ },
+ },
+ })
+ newUserRequest: NewUserRequest,
+ ): Promise {
+ // ensure a valid email value and password value
+ validateCredentials(_.pick(newUserRequest, ['email', 'password']));
+
+ // encrypt the password
+ const password = await this.passwordHasher.hashPassword(
+ newUserRequest.password,
+ );
+
+ // create the new user
+ const savedUser = await this.userRepository.create(
+ _.omit(newUserRequest, 'password'),
+ );
+
+ // set the password
+ await this.userRepository
+ .userCredentials(savedUser.id)
+ .create({password});
+
+ return savedUser;
+ }
+
+ // ...
+```
+
+A user of type
+[User](https://github.com/strongloop/loopback4-example-shopping/blob/master/packages/shopping/src/models/user.model.ts)
+is added to the database via the user repository if the user's email and
+password values are in an acceptable format.
+
+### Issuing a JWT Token on Successful Login
+
+In the `UserController` class in the
+[loopback4-example-shopping/packages/shopping/src/controllers/user.controller.ts](https://github.com/strongloop/loopback4-example-shopping/blob/master/packages/shopping/src/controllers/user.controller.ts),
+a user can `log in` by performing a `POST` request, containing an `email` and
+`password`, to the `/users/login` endpoint which is handled by the `login()`
+function.
+
+```ts
+export class UserController {
+ constructor(
+ // ...
+ @repository(UserRepository) public userRepository: UserRepository,
+ @inject(PasswordHasherBindings.PASSWORD_HASHER)
+ public passwordHasher: PasswordHasher,
+ @inject(TokenServiceBindings.TOKEN_SERVICE)
+ public jwtService: TokenService,
+ @inject(UserServiceBindings.USER_SERVICE)
+ public userService: UserService,
+ ) {}
+
+ // ...
+
+ @post('/users/login', {
+ responses: {
+ '200': {
+ description: 'Token',
+ content: {
+ 'application/json': {
+ schema: {
+ type: 'object',
+ properties: {
+ token: {
+ type: 'string',
+ },
+ },
+ },
+ },
+ },
+ },
+ },
+ })
+ async login(
+ @requestBody(CredentialsRequestBody) credentials: Credentials,
+ ): Promise<{token: string}> {
+ // ensure the user exists, and the password is correct
+ const user = await this.userService.verifyCredentials(credentials);
+
+ // convert a User object into a UserProfile object (reduced set of properties)
+ const userProfile = this.userService.convertToUserProfile(user);
+
+ // create a JSON Web Token based on the user profile
+ const token = await this.jwtService.generateToken(userProfile);
+
+ return {token};
+ }
+}
+```
+
+The user service returns a user object when the email and password are verified
+as valid; otherwise it throws an
+[HTTP 401 UnAuthorized](https://developer.mozilla.org/en-US/docs/Web/HTTP/Status/401).
+The user service is then called to create a slimmer user profile from the user
+object. Then this user profile is used as the payload of the JWT token created
+by the token service. The token is returned in the response.
+
+### Specifying the Security Settings in the OpenAPI Specification
+
+In the shopping cart application, only one endpoint, `GET /users/me` is secured
+with a custom JWT authentication strategy. In order to be able to `set` and
+`use` a JWT token in the `API Explorer` (as opposed to using a REST API client),
+it is necessary to specify
+[security scheme object](https://github.com/OAI/OpenAPI-Specification/blob/master/versions/3.0.1.md#security-scheme-object)
+and
+[security requirement object](https://github.com/OAI/OpenAPI-Specification/blob/master/versions/3.0.1.md#securityRequirementObject)
+information in the application's OpenAPI specification.
+
+In
+[loopback4-example-shopping/packages/shopping/src/utils/security-spec.ts](https://github.com/strongloop/loopback4-example-shopping/blob/master/packages/shopping/src/utils/security-spec.ts)
+we defined the following:
+
+```ts
+import {SecuritySchemeObject, ReferenceObject} from '@loopback/openapi-v3';
+
+export const OPERATION_SECURITY_SPEC = [{bearerAuth: []}];
+export type SecuritySchemeObjects = {
+ [securityScheme: string]: SecuritySchemeObject | ReferenceObject;
+};
+export const SECURITY_SCHEME_SPEC: SecuritySchemeObjects = {
+ bearerAuth: {
+ type: 'http',
+ scheme: 'bearer',
+ bearerFormat: 'JWT',
+ },
+};
+```
+
+`SECURITY_SCHEME_SPEC` is a map of security scheme object definitions that are
+defined globally for the application. For our purposes, it only contains a
+single security scheme object that contains the
+[bearerAuth](https://github.com/OAI/OpenAPI-Specification/blob/master/versions/3.0.1.md#jwt-bearer-sample)
+definition.
+
+`OPERATION_SECURITY_SPEC` is an **operation-level**
+[security requirement object](https://github.com/OAI/OpenAPI-Specification/blob/master/versions/3.0.1.md#securityRequirementObject)
+that references the `bearerAuth` security scheme object definition. It is used
+by the `/users/me` endpoint in
+[loopback4-example-shopping/packages/shopping/src/controllers/user.controller.ts](https://github.com/strongloop/loopback4-example-shopping/blob/master/packages/shopping/src/controllers/user.controller.ts).
+
+Notice the line
+
+```
+security: OPERATION_SECURITY_SPEC,
+```
+
+in the code below:
+
+```ts
+@get('/users/me', {
+ security: OPERATION_SECURITY_SPEC,
+ responses: {
+ '200': {
+ description: 'The current user profile',
+ content: {
+ 'application/json': {
+ schema: UserProfileSchema,
+ },
+ },
+ },
+ },
+})
+@authenticate('jwt')
+async printCurrentUser(
+ @inject(SecurityBindings.USER)
+ currentUserProfile: UserProfile,
+): Promise {
+ currentUserProfile.id = currentUserProfile[securityId];
+ delete currentUserProfile[securityId];
+ return currentUserProfile;
+}
+```
+
+[loopback4-example-shopping/packages/shopping/src/application.ts](https://github.com/strongloop/loopback4-example-shopping/blob/master/packages/shopping/src/application.ts)
+contributes the `security scheme object` definitions to the OpenAPI
+specification in the following manner:
+
+```ts
+import {SECURITY_SCHEME_SPEC} from './utils/security-spec';
+
+export class ShoppingApplication extends BootMixin(
+ ServiceMixin(RepositoryMixin(RestApplication)),
+) {
+ constructor(options?: ApplicationConfig) {
+ super(options);
+
+ this.api({
+ openapi: '3.0.0',
+ info: {title: pkg.name, version: pkg.version},
+ paths: {},
+ components: {securitySchemes: SECURITY_SCHEME_SPEC},
+ servers: [{url: '/'}],
+ });
+// ...
+```
+
+Later, when you visit
+[http://[::1]:3000/openapi.json](http://[::1]:3000/openapi.json) while the
+application is running, search for the text `bearerAuth`. You should find these
+two occurrences:
+
+```json
+"components": {
+ "securitySchemes": {
+ "bearerAuth": {
+ "type": "http",
+ "scheme": "bearer",
+ "bearerFormat": "JWT"
+ }
+ },
+```
+
+and
+
+```json
+"/users/me": {
+ "get": {
+ "x-controller-name": "UserController",
+ "x-operation-name": "printCurrentUser",
+ "tags": [
+ "UserController"
+ ],
+ "security": [
+ {
+ "bearerAuth": []
+ }
+ ],
+```
+
+Later, when you visit [http://[::1]:3000/explorer/](http://[::1]:3000/explorer/)
+while the application is running, you should see an `Authorize` button at the
+top.
+
+
+
+as well as a **lock** icon on the `GET /users/me` endpoint in the
+`UserController` section
+
+
+
+### How to Specify A Single OpenAPI Specification Security Requirement Object For All Endpoints
+
+Currently, the `loopback4-example-shopping` application does not implement this,
+but there is a way to specify the same OpenAPI specification security
+requirement object to **all** endpoints of your application.
+
+The security scheme object definition is still defined in `components` section,
+but the `security` property value is set at the **top** level instead of the
+**operation** level.
+
+```json
+"components": {
+ "securitySchemes": {
+ "bearerAuth": {
+ "type": "http",
+ "scheme": "bearer",
+ "bearerFormat": "JWT"
+ }
+ },
+ // ...
+},
+"security": [
+ {
+ "bearerAuth": []
+ }
+ ]
+```
+
+To accomplish this, we only need to make some minor changes to the code examples
+provided earlier.
+
+In
+[loopback4-example-shopping/packages/shopping/src/utils/security-spec.ts](https://github.com/strongloop/loopback4-example-shopping/blob/master/packages/shopping/src/utils/security-spec.ts),
+we simply rename `OPERATION_SECURITY_SPEC` to `SECURITY_SPEC`.
+
+```ts
+import {SecuritySchemeObject, ReferenceObject} from '@loopback/openapi-v3';
+
+export const SECURITY_SPEC = [{bearerAuth: []}];
+export type SecuritySchemeObjects = {
+ [securityScheme: string]: SecuritySchemeObject | ReferenceObject;
+};
+export const SECURITY_SCHEME_SPEC: SecuritySchemeObjects = {
+ bearerAuth: {
+ type: 'http',
+ scheme: 'bearer',
+ bearerFormat: 'JWT',
+ },
+};
+```
+
+In
+[loopback4-example-shopping/packages/shopping/src/controllers/user.controller.ts](https://github.com/strongloop/loopback4-example-shopping/blob/master/packages/shopping/src/controllers/user.controller.ts),
+we remove the line:
+
+```
+security: SECURITY_SPEC_OPERATION,
+```
+
+from the `/users/me` endpoint:
+
+```ts
+@get('/users/me', {
+ responses: {
+ '200': {
+ description: 'The current user profile',
+ content: {
+ 'application/json': {
+ schema: UserProfileSchema,
+ },
+ },
+ },
+ },
+})
+@authenticate('jwt')
+async printCurrentUser(
+ @inject(SecurityBindings.USER)
+ currentUserProfile: UserProfile,
+): Promise {
+ currentUserProfile.id = currentUserProfile[securityId];
+ delete currentUserProfile[securityId];
+ return currentUserProfile;
+}
+```
+
+In
+[loopback4-example-shopping/packages/shopping/src/application.ts](https://github.com/strongloop/loopback4-example-shopping/blob/master/packages/shopping/src/application.ts),
+we simply add the line
+
+```
+security: SECURITY_SPEC
+```
+
+to the call to `this.api({...})`. This basically means the security requirement
+object definition, `bearerAuth`, will be applied to all endpoints.
+
+```ts
+import {SECURITY_SCHEME_SPEC, SECURITY_SPEC} from './utils/security-spec';
+
+export class ShoppingApplication extends BootMixin(
+ ServiceMixin(RepositoryMixin(RestApplication)),
+) {
+ constructor(options?: ApplicationConfig) {
+ super(options);
+
+ this.api({
+ openapi: '3.0.0',
+ info: {title: pkg.name, version: pkg.version},
+ paths: {},
+ components: {securitySchemes: SECURITY_SCHEME_SPEC},
+ servers: [{url: '/'}],
+ security: SECURITY_SPEC
+ });
+// ...
+```
+

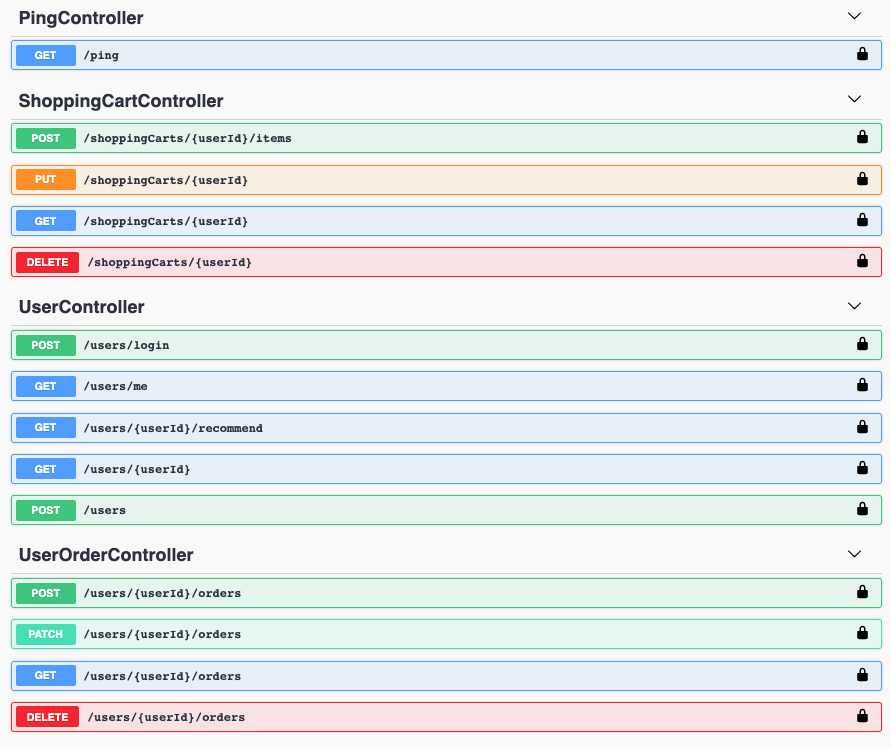

+Visiting [http://[::1]:3000/explorer/](http://[::1]:3000/explorer/) while the
+application is running, you should still see an `Authorize` button at the top as
+before.
+
+
+
+But now, **all** the endpoints have the lock icon.
+
+
+
+This means that you can set the JWT token once via the
+`Authorize button/dialog`, and the token will be available to all the endpoints
+your interact with.
+
+There are plans to allow contributions to the OpenAPI specification via an
+extensionPoint/extensions pattern (
+[Issue #3854](https://github.com/strongloop/loopback-next/issues/3854) );
+including having authentication strategies automatically contribute security
+scheme/requirement object information (
+[Issue #3669](https://github.com/strongloop/loopback-next/issues/3669) ).
+
+### Summary
+
+We've gone through the steps that were used to add JWT `authentication` to the
+`loopback4-example-shopping` application, and add
+`security scheme/requirement object` settings to its OpenAPI specification.
+
+The final `ShoppingApplication` class in
+[loopback4-example-shopping/packages/shopping/src/application.ts](https://github.com/strongloop/loopback4-example-shopping/blob/master/packages/shopping/src/application.ts)
+should look like this:
+
+```ts
+import {BootMixin} from '@loopback/boot';
+import {ApplicationConfig, BindingKey} from '@loopback/core';
+import {RepositoryMixin} from '@loopback/repository';
+import {RestApplication} from '@loopback/rest';
+import {ServiceMixin} from '@loopback/service-proxy';
+import {MyAuthenticationSequence} from './sequence';
+import {
+ RestExplorerBindings,
+ RestExplorerComponent,
+} from '@loopback/rest-explorer';
+import {
+ TokenServiceBindings,
+ UserServiceBindings,
+ TokenServiceConstants,
+} from './keys';
+import {JWTService} from './services/jwt-service';
+import {MyUserService} from './services/user-service';
+
+import path from 'path';
+import {
+ AuthenticationComponent,
+ registerAuthenticationStrategy,
+} from '@loopback/authentication';
+import {PasswordHasherBindings} from './keys';
+import {BcryptHasher} from './services/hash.password.bcryptjs';
+import {JWTAuthenticationStrategy} from './authentication-strategies/jwt-strategy';
+import {SECURITY_SCHEME_SPEC} from './utils/security-spec';
+
+/**
+ * Information from package.json
+ */
+export interface PackageInfo {
+ name: string;
+ version: string;
+ description: string;
+}
+export const PackageKey = BindingKey.create('application.package');
+
+const pkg: PackageInfo = require('../package.json');
+
+export class ShoppingApplication extends BootMixin(
+ ServiceMixin(RepositoryMixin(RestApplication)),
+) {
+ constructor(options?: ApplicationConfig) {
+ super(options);
+
+ this.api({
+ openapi: '3.0.0',
+ info: {title: pkg.name, version: pkg.version},
+ paths: {},
+ components: {securitySchemes: SECURITY_SCHEME_SPEC},
+ servers: [{url: '/'}],
+ });
+
+ this.setUpBindings();
+
+ // Bind authentication component related elements
+ this.component(AuthenticationComponent);
+
+ registerAuthenticationStrategy(this, JWTAuthenticationStrategy);
+
+ // Set up the custom sequence
+ this.sequence(MyAuthenticationSequence);
+
+ // Set up default home page
+ this.static('/', path.join(__dirname, '../public'));
+
+ // Customize @loopback/rest-explorer configuration here
+ this.configure(RestExplorerBindings.COMPONENT).to({
+ path: '/explorer',
+ });
+ this.component(RestExplorerComponent);
+
+ this.projectRoot = __dirname;
+ // Customize @loopback/boot Booter Conventions here
+ this.bootOptions = {
+ controllers: {
+ // Customize ControllerBooter Conventions here
+ dirs: ['controllers'],
+ extensions: ['.controller.js'],
+ nested: true,
+ },
+ };
+ }
+
+ setUpBindings(): void {
+ // Bind package.json to the application context
+ this.bind(PackageKey).to(pkg);
+
+ this.bind(TokenServiceBindings.TOKEN_SECRET).to(
+ TokenServiceConstants.TOKEN_SECRET_VALUE,
+ );
+
+ this.bind(TokenServiceBindings.TOKEN_EXPIRES_IN).to(
+ TokenServiceConstants.TOKEN_EXPIRES_IN_VALUE,
+ );
+
+ this.bind(TokenServiceBindings.TOKEN_SERVICE).toClass(JWTService);
+
+ // // Bind bcrypt hash services
+ this.bind(PasswordHasherBindings.ROUNDS).to(10);
+ this.bind(PasswordHasherBindings.PASSWORD_HASHER).toClass(BcryptHasher);
+
+ this.bind(UserServiceBindings.USER_SERVICE).toClass(MyUserService);
+ }
+}
+```
+
+## Running the Completed Application
+
+To run the completed application, follow the instructions in the
+[Try it out](#try-it-out) section.
+
+For more information, please visit
+[Authentication Component](https://loopback.io/doc/en/lb4/Loopback-component-authentication.html).
