Upgrade PlantUML version to 1.2023.10 #2311

lesterong · 2023-06-20T12:52:30Z

What is the purpose of this pull request?

Others, please explain: Dependency Update

Overview of changes:

Upgrade PlantUML to version 1.2023.10 (Fixes Upgrade PlantUML version #1792)
Update corresponding images generated by PlantUML
Adjusted the annotations example in user guide due to the change in theme to the latest PlantUML version

Left: Before
Middle: After
Right: After, annotation positions adjusted

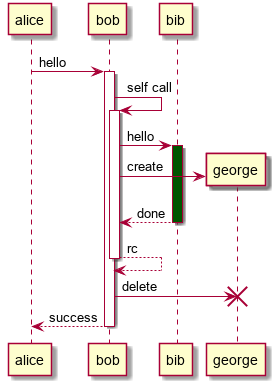

Top: Before
Middle: After
Bottom: After, annotation positions adjusted

Anything you'd like to highlight/discuss:

There is a slight layout shift as the default theme has now changed in this version of PlantUML.
There is also a change in the diagram generated by class.puml as PlantUML has changed how they handle namespaces. This behaviour can be disabled using set separator none.

Left: Before
Right: After

This update seems to have broken the usecase.puml diagram as it no longer allows for two elements with the same name, though this can be fixed by providing an alias.

There seems to be a change in font and font size as well, so the Gantt Chart text no longer fits in the box.

Proposed commit message: (wrap lines at 72 characters)
Bump PlantUML to 1.2023.10

Checklist: ☑️

Updated the documentation for feature additions and enhancements
Added tests for bug fixes or features
Linked all related issues
No unrelated changes

Migration Guide

The PlantUML plugin has been updated from 1.2020.7 to 1.2023.10.

Changes
(For detailed changes, please view them on plantuml website)

The default theme has been updated in this version of PlantUML. To use the old theme, use the skin rose directive.

There is a slight shift in the layout with the new default theme, and the position of annotations on PlantUML diagrams may have to be updated.
PlantUML now separates namespaces by default. This behavior can be disabled using the set separator none command.

PlantUML no longer allows for two elements with the same name. A possible workaround is to provide an alias to one of the elements, so their names do not conflict.

'alias as c provided
rectangle checkout as c {
  (checkout) .> (payment) : include
}

PlantUML does not render underlines in class diagrams using the Creole syntax. A possible workaround is to use the HTML syntax to define underlines. For example, <u>Class Name</u> will render an underline, but not __Class Name__.

The font used in Gantt Charts has been updated. As a result, some of the text may appear outside of the bars.

damithc · 2023-06-20T15:55:07Z

Before should_ be like this (as per https://markbind.org/userGuide/components/imagesAndDiagrams.html#diagrams)?

lesterong · 2023-06-20T16:23:38Z

Before should_ be like this (as per https://markbind.org/userGuide/components/imagesAndDiagrams.html#diagrams)?

Thanks @damithc, you are right 🙂 . I have since updated my comment to be clearer and better reflect the changes.

itsyme · 2023-06-29T01:51:58Z

hi @lesterong! thanks for the work! perhaps it would be good to check out how the cs2103 website would look after the bump as it is one of our most content heavy websites which is heavily used. feel free to ping me if you need any help!

yucheng11122017 · 2023-06-29T06:32:12Z

Hi @lesterong thanks so much for the work! It looks p good.
Minor nit: Do you know why the text in docs/userGuide/diagrams/gantt.png "Hire test writers" is outside the box? Is it because of an sizing issue?

lesterong · 2023-06-29T06:35:19Z

Hi @lesterong thanks so much for the work! It looks p good. Minor nit: Do you know why the text in docs/userGuide/diagrams/gantt.png "Hire test writers" is outside the box? Is it because of an sizing issue?

Hi @yucheng11122017, yes that is correct. It appears that PlantUML is now using a different font, and it no longer fits in the bar. I tried increasing the length of the 'Hire test writers' bar, and the text fits in the bar as expected.

yucheng11122017

LGTM!
Minor point for anyone reviewing: the images in the deploy preview are still the old ones since absolute links are used instead of relative ones.
May need to update this as well

lesterong · 2023-06-29T06:54:21Z

LGTM! Minor point for anyone reviewing: the images in the deploy preview are still the old ones since absolute links are used instead of relative ones. May need to update this as well

hi @yucheng11122017, what about the usecase.puml diagram? It is broken after the dependency upgrade as seen here.

lesterong · 2023-06-29T15:09:26Z

hi @lesterong! thanks for the work! perhaps it would be good to check out how the cs2103 website would look after the bump as it is one of our most content heavy websites which is heavily used. feel free to ping me if you need any help!

hi @itsyme, great idea! Upon some initial testing, I also found that the new version of PlantUML seems to be having some issues rendering the underlines if they are specified using the Creole syntax (__text__) in class diagrams. Using the HTML syntax (<u>text</u>) appears to work fine.

@startuml
skinparam classAttributeIconSize 0
skinparam shadowing false
hide circle
hide empty members
class a as "__adam:Student__"
class e as "__eve:Student__"
class h as "__h1:Hall__"
class d1 as "__history:Degree__"
class d2 as "__english:Degree__"
a -- d1
a -right- h
e -left- h
e -- "major" d2
@enduml

Before

After

Using the Creole syntax with object diagrams seems to work fine as well.

tlylt · 2023-07-01T14:14:00Z

LGTM! Minor point for anyone reviewing: the images in the deploy preview are still the old ones since absolute links are used instead of relative ones. May need to update this as well

hi @yucheng11122017, what about the usecase.puml diagram? It is broken after the dependency upgrade as seen here.

though this can be fixed by providing an alias.

Does it work if you apply the fix that you mentioned?

lesterong · 2023-07-01T17:50:25Z

Does it work if you apply the fix that you mentioned?

Hi @tlylt, yes it does. For example, we can provide an alias c to checkout.

@startuml
left to right direction
skinparam packageStyle rectangle
actor customer
actor clerk
'alias provided for checkout
rectangle checkout as c {
  customer -- (checkout)
  (checkout) .> (payment) : include
  (help) .> (checkout) : extends
  (checkout) -- clerk
}
@enduml

The diagram generated will be as follows:

Let me know if this is the desired workaround.

tlylt · 2023-07-02T01:17:15Z

Does it work if you apply the fix that you mentioned?

Hi @tlylt, yes it does. For example, we can provide an alias c to checkout.
@startuml
left to right direction
skinparam packageStyle rectangle
actor customer
actor clerk
'alias provided for checkout
rectangle checkout as c {
  customer -- (checkout)
  (checkout) .> (payment) : include
  (help) .> (checkout) : extends
  (checkout) -- clerk
}
@enduml
The diagram generated will be as follows:

Let me know if this is the desired workaround.

Yes, that would suffice. Could you draft up a migration guide for this PlantUML update in the PR description, highlighting the noticeable changes and the required settings/changes needed to handle cases such as the above? This would greatly help current users and will be included in the release note.

lesterong · 2023-07-02T08:08:25Z

Yes, that would suffice. Could you draft up a migration guide for this PlantUML update in the PR description, highlighting the noticeable changes and the required settings/changes needed to handle cases such as the above? This would greatly help current users and will be included in the release note.

Hi @tlylt, I have drafted up a migration guide in the PR description, do take a look and let me know if there are any changes to be made! 🙂

tlylt · 2023-07-04T14:21:56Z

Hi @tlylt, I have drafted up a migration guide in the PR description, do take a look and let me know if there are any changes to be made! 🙂

Thanks @lesterong, looks good to me. Could you help with:

add in relevant screenshots into the migration guide so that it is clearer what important visual changes are there
I saw that in the latest plantuml version, there's a possibility to download a version without GraphViz. Could you investigate this further and double check on https://plantuml.com/graphviz-dot to find out if this GraphViz dependency should still be mentioned and any new updated information should be included in our documentation? I briefly looked through and it seems like there are now 1. an alternative and 2. doesn't seem to need it on Windows anymore

lesterong · 2023-07-08T18:01:44Z

Thanks @lesterong, looks good to me. Could you help with:

add in relevant screenshots into the migration guide so that it is clearer what important visual changes are there

I saw that in the latest plantuml version, there's a possibility to download a version without GraphViz. Could you investigate this further and double check on https://plantuml.com/graphviz-dot to find out if this GraphViz dependency should still be mentioned and any new updated information should be included in our documentation? I briefly looked through and it seems like there are now 1. an alternative and 2. doesn't seem to need it on Windows anymore

Hi @tlylt, I have added in some screenshots for the migration guide, do take a look and let me know if there are any changes to be made!

As for the GraphViz dependency, I'm still playing around and testing with the version that uses Smetana (a Java port of Dot). Here's the link to PlantUML's Smetana page for reference.

tlylt · 2023-07-08T23:47:15Z

As for the GraphViz dependency, I'm still playing around and testing with the version that uses Smetana (a Java port of Dot). Here's the link to PlantUML's Smetana page for reference.

Do help to check if the use of Smetana has any limitations or undesirable changes. If it's all good, we can consider passing in that directive when we invoke Plantuml to have the layout engine use Smetana by default

lesterong · 2023-07-09T09:47:53Z

As for the GraphViz dependency, I'm still playing around and testing with the version that uses Smetana (a Java port of Dot). Here's the link to PlantUML's Smetana page for reference.

Do help to check if the use of Smetana has any limitations or undesirable changes. If it's all good, we can consider passing in that directive when we invoke Plantuml to have the layout engine use Smetana by default

Hello @tlylt, I did some more testing with Smetana and it seems like there are still some issues with Smetana, particularly with arrows and nested layouts.

For example, the state.puml does not render correctly using Smetana.

With GraphViz Dot

With Smetana

Another example would be the component.puml diagram.

With GraphViz Dot

With Smetana

Similar issues are also reported in PlantUML's repo:

tlylt · 2023-07-09T23:16:00Z

Hello @tlylt, I did some more testing with Smetana and it seems like there are still some issues with Smetana, particularly with arrows and nested layouts.

Thanks for checking, @lesterong! In that case, I see no reason to update our setup to use Smetana by default. Could you help me with adding a side note on that alternative (and the issues around it - just the high level description in a few sentences) in https://markbind-master.netlify.app/userguide/components/imagesanddiagrams#diagrams ?

Other than that will get this PR merged soon 👍

lesterong · 2023-07-10T17:33:32Z

Hello @tlylt, I did some more testing with Smetana and it seems like there are still some issues with Smetana, particularly with arrows and nested layouts.

Thanks for checking, @lesterong! In that case, I see no reason to update our setup to use Smetana by default. Could you help me with adding a side note on that alternative (and the issues around it - just the high level description in a few sentences) in https://markbind-master.netlify.app/userguide/components/imagesanddiagrams#diagrams ?

Other than that will get this PR merged soon 👍

Great @tlylt! I have added a bullet point on Smetana here. Do take a look and let me know if there are any changes required!

tlylt

LGTM. @damithc do you have any comments/concerns with the diagrams generated by the new version? If not will be merging this PR in.

damithc

LGTM. Thanks for the good work @lesterong and for the reviews (@tlylt @yucheng11122017). Just a minor comment only.

docs/userGuide/diagrams/usecase.puml

tlylt · 2023-07-11T23:33:00Z

I saw that in the latest plantuml version, there's a possibility to download a version without GraphViz. Could you investigate this further and double check on plantuml.com/graphviz-dot to find out if this GraphViz dependency should still be mentioned and any new updated information should be included in our documentation? I briefly looked through and it seems like there are now 1. an alternative and 2. doesn't seem to need it on Windows anymore

@lesterong sorry I think this item is not completely done:

Installation under Windows
Starting from 1.2020.21
If you use a recent version (that is at least version 1.2020.21), you don't need to manually install GraphViz anymore !
A minimalistic graphviz dot.exe is packed into PlantUML and will be automagically unzipped in some temporary folder if needed (that is, if no installed GraphViz is available).
This is really the prefered option under Windows.
Caveat: Before 1.2020.25, there was an error message during graph generation, so please use 1.2020.25 or more recent.

from https://plantuml.com/graphviz-dot#:~:text=Installation%20under%20Windows

On top of the alternative layout engine, the new version also brings the possibility of omitting the Graphviz installation on Windows machines. Could you verify?

Also, curious how did you generate and update the images in UG? I think this process is not captured in our DG.

For the above, we may need to update the docs if necessary (hopefully this is the last thing to do in this PR :)

lesterong · 2023-07-12T15:59:33Z

On top of the alternative layout engine, the new version also brings the possibility of omitting the Graphviz installation on Windows machines. Could you verify?

My apologies, I will check on it by this weekend with a Windows PC, and update on it.

Also, curious how did you generate and update the images in UG? I think this process is not captured in our DG.

For the above, we may need to update the docs if necessary (hopefully this is the last thing to do in this PR :)

I generated the diagrams using the PlantUML plugin in IntelliJ.

tlylt · 2023-07-12T16:11:05Z

I generated the diagrams using the PlantUML plugin in IntelliJ.

Hmm...best to generate them via MarkBind as well, to verify that it's actually working.

lesterong · 2023-07-12T16:13:48Z

I generated the diagrams using the PlantUML plugin in IntelliJ.

Hmm...best to generate them via MarkBind as well, to verify that it's actually working.

I did serve the site locally to test as well, I used the plugin mainly for convenience. But I will double check on this to be sure! 👍🏼

lesterong · 2023-07-15T13:07:22Z

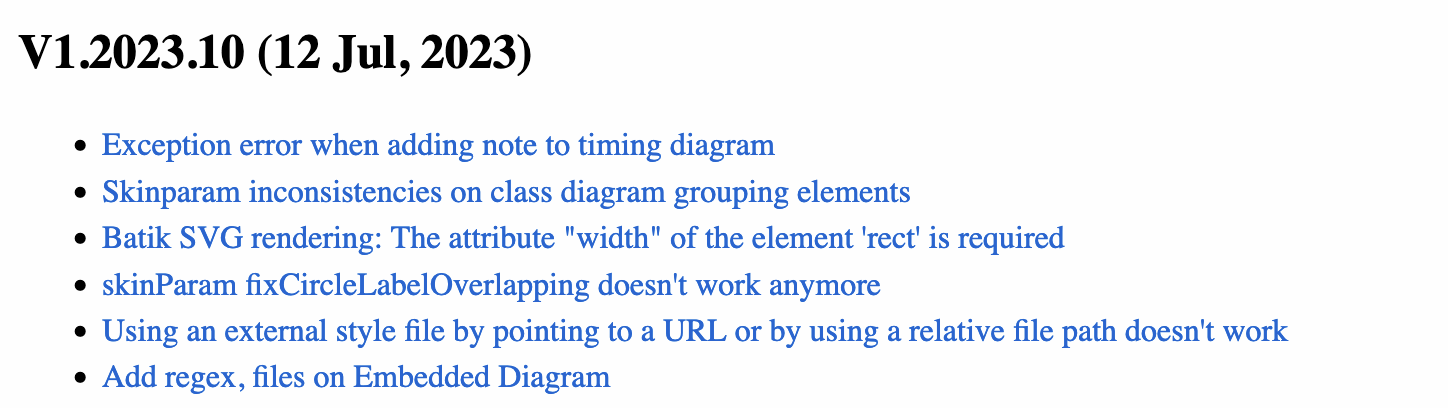

As of 12 July 2023, it seems like PlantUML has just released V1.2023.10. Do I upgrade to that version, or leave it at V1.2023.9? The change log from PlantUML is linked here.

tlylt · 2023-07-15T13:38:51Z

As of 12 July 2023, it seems like PlantUML has just released V1.2023.10. Do I upgrade to that version, or leave it at V1.2023.9? The change log from PlantUML is linked here.

Sure @lesterong if it doesn't take too much time (need to verify that things still work), ideally I would like the PR to be ready soon or by tmr, to make the cut for v5 release.

Meaning if it is going to take longer than that, would be great if you could wrap up this PR first and keep that as a follow-up item.

lesterong · 2023-07-15T13:41:51Z

As of 12 July 2023, it seems like PlantUML has just released V1.2023.10. Do I upgrade to that version, or leave it at V1.2023.9? The change log from PlantUML is linked here.

Sure @lesterong if it doesn't take too much time (need to verify that things still work), ideally I would like the PR to be ready soon or by tmr, to make the cut for v5 release.

Meaning if it is going to take longer than that, would be great if you could wrap up this PR first and keep that as a follow-up item.

No worries, I'll get it up by tomorrow afternoon 🙂. I'm currently testing it on Windows.

lesterong · 2023-07-15T15:10:31Z

On top of the alternative layout engine, the new version also brings the possibility of omitting the Graphviz installation on Windows machines. Could you verify?

Hi @tlylt, I have verified that on Windows, PlantUML works without a Graphviz installation. I used a Windows 11 machine without a Graphviz Dot installation, and tested it using markbind serve -d on the docs. With 2023.1.10, it now generates a the correct image instead of the error image.

I have also re-tested generating all the .puml files (both within markbind docs and the se-edu book) with version 2023.1.10 instead of 2023.1.9 using markbind serve -d, and I do not see any other issues.

For the above, we may need to update the docs if necessary (hopefully this is the last thing to do in this PR :)

With that said, do I go ahead and update the user and developer guides to specify that a Graphviz installation is not required for Windows?

tlylt · 2023-07-15T15:18:03Z

I have also re-tested generating all the .puml files (both within markbind docs and the se-edu book) with version 2023.1.10 instead of 2023.1.9 using markbind serve -d, and I do not see any other issues.

For the above, we may need to update the docs if necessary (hopefully this is the last thing to do in this PR :)

With that said, do I go ahead and update the user and developer guides to specify that a Graphviz installation is not required for Windows?

Thank you. Could you update the docs to mention that & in dev docs add in the steps you took to generate and update the puml images properly (basically how-to guide for upgrading puml) ? (Under Development -> Workflow -> Dependency management, add at the end of that)

lesterong · 2023-07-15T15:22:01Z

I have also re-tested generating all the .puml files (both within markbind docs and the se-edu book) with version 2023.1.10 instead of 2023.1.9 using markbind serve -d, and I do not see any other issues.

For the above, we may need to update the docs if necessary (hopefully this is the last thing to do in this PR :)

With that said, do I go ahead and update the user and developer guides to specify that a Graphviz installation is not required for Windows?

Thank you. Could you update the docs to mention that & in dev docs add in the steps you took to generate and update the puml images properly (basically how-to guide for upgrading puml) ? (Under Development -> Workflow -> Dependency management, add at the end of that)

Sure. I will do up a draft by tonight, so we can get it sorted out by tomorrow. 👍🏼

damithc · 2023-07-15T15:38:29Z

Thank you. Could you update the docs to mention that & in dev docs add in the steps you took to generate and update the puml images properly (basically how-to guide for upgrading puml) ? (Under Development -> Workflow -> Dependency management, add at the end of that)

Guys, is this regarding the UML diagrams used to illustrate the image annotation feature? In that case, we can just keep using the same images as before (i.e., they don't need to be updated every time PlantUML is updated) because that feature has nothing to do with PlantUML, right?

lesterong · 2023-07-15T15:41:53Z

Thank you. Could you update the docs to mention that & in dev docs add in the steps you took to generate and update the puml images properly (basically how-to guide for upgrading puml) ? (Under Development -> Workflow -> Dependency management, add at the end of that)

Guys, is this regarding the UML diagrams used to illustrate the image annotation feature? In that case, we can just keep using the same images as before (i.e., they don't need to be updated every time PlantUML is updated) because that feature has nothing to do with PlantUML, right?

Correct me if I'm wrong, but I believe @tlylt is referring to all the diagrams in the user guide, not just the annotation diagrams, i.e. all the png images that has been updated in this PR.

tlylt · 2023-07-15T16:02:17Z

Thank you. Could you update the docs to mention that & in dev docs add in the steps you took to generate and update the puml images properly (basically how-to guide for upgrading puml) ? (Under Development -> Workflow -> Dependency management, add at the end of that)

Guys, is this regarding the UML diagrams used to illustrate the image annotation feature? In that case, we can just keep using the same images as before (i.e., they don't need to be updated every time PlantUML is updated) because that feature has nothing to do with PlantUML, right?

@damithc we reused two UML diagrams for image annotation, which resulted in this coupling. I think would be good to decouple it for the reason you mentioned.

@lesterong could you undo the annotation.md changes and copy the two original UML images used (and rename them) and put them in docs/images (so that they are tgt with annotateSampleImage.png). Update the link in annotation page accordingly.

lesterong · 2023-07-15T17:07:51Z

@lesterong could you undo the annotation.md changes and copy the two original UML images used (and rename them) and put them in docs/images (so that they are tgt with annotateSampleImage.png). Update the link in annotation page accordingly.

Hi @tlylt, I have reverted the changes in annotations.md, added two images annotateSampleObject.png and annotateSampleSequence.png, and updated annotations.md to point to the two images.

Thank you. Could you update the docs to mention that & in dev docs add in the steps you took to generate and update the puml images properly (basically how-to guide for upgrading puml) ? (Under Development -> Workflow -> Dependency management, add at the end of that)

I have also updated the user guide and developer guides to point out that Graphviz is optional in Windows:

Updated user guide imagesAndDiagrams.md

Updated developer guide settingUp.md

Not sure if it's better to split up the Java and Graphviz into two separate bullet points, or is this sufficient?

And also added a section on updating PlantUML in the workflows page

Do take a look and let me know if there are any changes to be made. Thanks!

tlylt · 2023-07-16T01:01:29Z

And also added a section on updating PlantUML in the workflows page

@lesterong this change is not pushed? I don't see it anywhere.

lesterong · 2023-07-16T01:04:23Z

My apologies, will push it now

tlylt

LGTM, thank you @lesterong 🚀

lesterong added 3 commits June 19, 2023 21:33

Update plantuml jar file

6c5291d

Update images generated by puml

194db26

Adjust annonations to fit new diagrams

fd8370d

yucheng11122017 approved these changes Jun 29, 2023

View reviewed changes

tlylt self-requested a review July 1, 2023 14:09

Fix usecase puml diagram

66e158e

itsyme mentioned this pull request Jul 2, 2023

CI Test for Windows failing sometimes on tests with setTimeout #2238

Open

Merge branch 'master' into upgrade-plantuml-version

f9e2d16

Add description about Smetana

64cfb29

tlylt approved these changes Jul 10, 2023

View reviewed changes

damithc approved these changes Jul 11, 2023

View reviewed changes

docs/userGuide/diagrams/usecase.puml Outdated Show resolved Hide resolved

Update usecase diagram

7f98993

lesterong force-pushed the upgrade-plantuml-version branch from d029a52 to 7f98993 Compare July 11, 2023 10:58

tlylt removed this from the v5.0.0 milestone Jul 11, 2023

lesterong force-pushed the upgrade-plantuml-version branch from 35d5c82 to bae6901 Compare July 15, 2023 13:57

Bump PlantUML to 1.2023.10

603c18d

lesterong force-pushed the upgrade-plantuml-version branch from bae6901 to 603c18d Compare July 15, 2023 14:01

lesterong changed the title ~~Upgrade PlantUML version to 1.2023.9~~ Upgrade PlantUML version to 1.2023.10 Jul 15, 2023

Update docs for Graphviz Windows

8b11e20

Decouple annotation images

0a23fa4

Merge branch 'master' into upgrade-plantuml-version

9ef0ffc

update docs

774f8ad

Add documentation on updating PlantUML

05c4f52

tlylt approved these changes Jul 16, 2023

View reviewed changes

tlylt added this to the v5.0.0 milestone Jul 16, 2023

tlylt merged commit db46352 into MarkBind:master Jul 16, 2023

WillCWX pushed a commit to WillCWX/markbind that referenced this pull request Jul 29, 2023

Upgrade PlantUML version to 1.2023.10 (MarkBind#2311)

ff46013

Upgrade PlantUML version to 1.2023.10 #2311

Upgrade PlantUML version to 1.2023.10 #2311

Uh oh!

Conversation

lesterong commented Jun 20, 2023 • edited Loading Uh oh! There was an error while loading. Please reload this page.

Uh oh!

Migration Guide

Uh oh!

damithc commented Jun 20, 2023

Uh oh!

lesterong commented Jun 20, 2023

Uh oh!

itsyme commented Jun 29, 2023 • edited Loading Uh oh! There was an error while loading. Please reload this page.

Uh oh!

Uh oh!

yucheng11122017 commented Jun 29, 2023

Uh oh!

lesterong commented Jun 29, 2023

Uh oh!

yucheng11122017 left a comment

Choose a reason for hiding this comment

Uh oh!

lesterong commented Jun 29, 2023

Uh oh!

lesterong commented Jun 29, 2023

Uh oh!

tlylt commented Jul 1, 2023

Uh oh!

lesterong commented Jul 1, 2023

Uh oh!

tlylt commented Jul 2, 2023

Uh oh!

lesterong commented Jul 2, 2023

Uh oh!

tlylt commented Jul 4, 2023

Uh oh!

lesterong commented Jul 8, 2023

Uh oh!

tlylt commented Jul 8, 2023

Uh oh!

lesterong commented Jul 9, 2023

Uh oh!

tlylt commented Jul 9, 2023

Uh oh!

lesterong commented Jul 10, 2023

Uh oh!

tlylt left a comment

Choose a reason for hiding this comment

Uh oh!

damithc left a comment

Choose a reason for hiding this comment

Uh oh!

Uh oh!

tlylt commented Jul 11, 2023

Uh oh!

lesterong commented Jul 12, 2023

Uh oh!

tlylt commented Jul 12, 2023

Uh oh!

lesterong commented Jul 12, 2023

Uh oh!

lesterong commented Jul 15, 2023

Uh oh!

tlylt commented Jul 15, 2023 • edited Loading Uh oh! There was an error while loading. Please reload this page.

Uh oh!

Uh oh!

lesterong commented Jul 15, 2023

Uh oh!

lesterong commented Jul 15, 2023 • edited Loading Uh oh! There was an error while loading. Please reload this page.

Uh oh!

Uh oh!

tlylt commented Jul 15, 2023 • edited Loading Uh oh! There was an error while loading. Please reload this page.

Uh oh!

Uh oh!

lesterong commented Jul 15, 2023

Uh oh!

damithc commented Jul 15, 2023

Uh oh!

lesterong commented Jul 15, 2023

Uh oh!

lesterong commented Jun 20, 2023 •

edited

Loading

itsyme commented Jun 29, 2023 •

edited

Loading

tlylt commented Jul 15, 2023 •

edited

Loading

lesterong commented Jul 15, 2023 •

edited

Loading

tlylt commented Jul 15, 2023 •

edited

Loading

tlylt commented Jul 15, 2023 •

edited

Loading
