Editorial and formatting changes by giocorti · Pull Request #8 · MobilityData/transit

giocorti · 2018-11-02T21:23:25Z

This PR makes the following editorial and formatting changes to the GTFS specification.

Standardized the choice of certain words
- passenger/customer --> rider
- Except for “customer service”
- Blank --> empty
- Feed vs dataset
- Field vs field value
- Transit Organization --> transit agency
- Note: organization is still used for the group that publishes the feed
- Itinerary --> Journey (this matches Fares proposal)
Made editorial changes to enhance clarity and legibility including removing unnecessary and repetitive language. Major rewrites of:
- parent_station
- stop_timezone
- arrival_time and departure_time
- Monday,...,Sunday
- timepoint
- exact_times
Formatting changes
- Added code ticks to denote fields and other code values
- Standardized Enum option formatting
- Added hyperlinks to all .txt files and websites
- Put field types in alphabetical order.
- Different type setting for examples
Defined or redefined the following term:
- Dataset
- Field Value
- Record
- ID
- Added referencing ID

As you can see, I made a lot of changes and I'm sure we'll need to discuss some of them. Let me know what you think.

antrim

Review in progress.

antrim · 2018-11-02T21:41:59Z

gtfs/spec/en/reference.md

@@ -2,13 +2,13 @@

 **Revised August 22, 2018. See [Revision History](../../CHANGES.md) for more details.**


Future process reminder for us: We need to remember to update the revision history when pull requests are ultimately approved.

gtfs/spec/en/reference.md

antrim · 2018-11-02T21:44:33Z

gtfs/spec/en/reference.md

-* **Field conditionally required** - This field or file is **required** under certain conditions, which are outlined in the field or file *Details*. Outside of these conditions, this field or file is optional.
-* **Dataset unique** - The field contains a value that maps to a single distinct entity within the column. For example, if a route is assigned the ID **1A**, then no other route may use that route ID. However, you may assign the ID **1A** to a location because locations are a different type of entity than routes.
+* **Feed** - Successive datasets comprise a feed.
+* **Dataset** - A complete set of files defined by this specification reference. Datasets should be published at a public, permanent URL, including the zip file name. (e.g., www.agency.org/gtfs/gtfs.zip). For more information see GTFS best practices.


Put the "Dataset" definition above "Feed" since the "Feed" definition refers to it.

I agree with the definition, but isn't this a change to the existing spec? We should strive to avoid addition to the spec in this PR IMHO.

Agreed, I'm not sure the "Feed" definition will be universally agreed-upon. We should probably vote on that separately.

I'd expand the example to the full URL - https://www.agency.org/gtfs/gtfs.zip

I could see how this would be debated, but I also am having a hard time seeing alternative definitions that are usable. The definitions we have proposed are based on existing usage, albeit quite inconsistent usage.

schema.org's uses of the terms "data feed" and "dataset" seem to match what we are doing:

https://schema.org/DataFeed

https://schema.org/Dataset

Basically, I think that we should be bold in this case. The terms "dataset" and "feed" have been consistently applied in this proposed spec modification. We could revert, but it hurts to leave this inconsistency in the Spec.

An idea: Prior to the pull request shall we bring the question to a somewhat broader group to see if they agree with our change?

antrim · 2018-11-02T21:46:20Z

gtfs/spec/en/reference.md

+* **Field** - A specific type of information for records in a .txt file. Represented, in a table, as a column.
+* **Record** - A basic data structure comprised of a number of different fields describing a single entity (e.g. transit agency, stop, route, etc.). Represented, in a table, as a row.
+* **Field Value** - An individual entry in a field. Represented, in a table, as a single cell.
+* **Required** - The field must be included in the dataset, and a value must be provided for each field. Some required fields permit an empty string as a value (denoted in this specification as "empty"). To enter an empty string, just omit any text between the commas for that field. Note that `0` is interpreted as "a string of value 0", and is not an empty string. See the field definition for details.


I think this is unnecessary:
"Note that 0 is interpreted as "a string of value 0", and is not an empty string. See the field definition for details."

"for each field" ? You mean for each "field value", no?

Some required fields permit an empty string as a value

I don't think so. I would call them optional. But maybe I'm missing something

"for each field" ? You mean for each "field value", no?

It should be "field value", good catch.

Some required fields permit an empty string as a value

I don't think so. I would call them optional. But maybe I'm missing something

transfers in fare_attributes.txt and transfer_type in transfers.txt are both listed as required and permit empty field values as an enum option.

Oh no. Why.

We should change that. It make no sense IMHO. @barbeau @antrim Thoughts? We should discuss that on Thursday.

IMHO and a value must be provided for each field should be and a value must be provided in that field for each record.

Good catch. We could test fixing that but through a different pull request / discussion.

gtfs/spec/en/reference.md

antrim

@giocorti : I have finished my review. Looks good! I have requested minor changes, and opened a few questions for discussion.

@barbeau @LeoFrachet Do you have any comments? Or should we discuss a few of the questions I raised in an internal meeting?

gtfs/spec/en/reference.md

LeoFrachet · 2018-11-05T18:30:03Z

gtfs/spec/en/reference.md

+* **Field** - A specific type of information for records in a .txt file. Represented, in a table, as a column.
+* **Record** - A basic data structure comprised of a number of different fields describing a single entity (e.g. transit agency, stop, route, etc.). Represented, in a table, as a row.
+* **Field Value** - An individual entry in a field. Represented, in a table, as a single cell.
+* **Required** - The field must be included in the dataset, and a value must be provided for each field. Some required fields permit an empty string as a value (denoted in this specification as "empty"). To enter an empty string, just omit any text between the commas for that field. Note that `0` is interpreted as "a string of value 0", and is not an empty string. See the field definition for details.


"for each field" ? You mean for each "field value", no?

Some required fields permit an empty string as a value

I don't think so. I would call them optional. But maybe I'm missing something

gtfs/spec/en/reference.md

LeoFrachet · 2018-11-05T18:55:22Z

@giocorti Amazing job, thanks! I only reviewed until end of stops.txt, but great job.

They are many small things to tighten up. But we're going somewhere.

gtfs/spec/en/reference.md

LeoFrachet · 2018-11-06T19:10:33Z

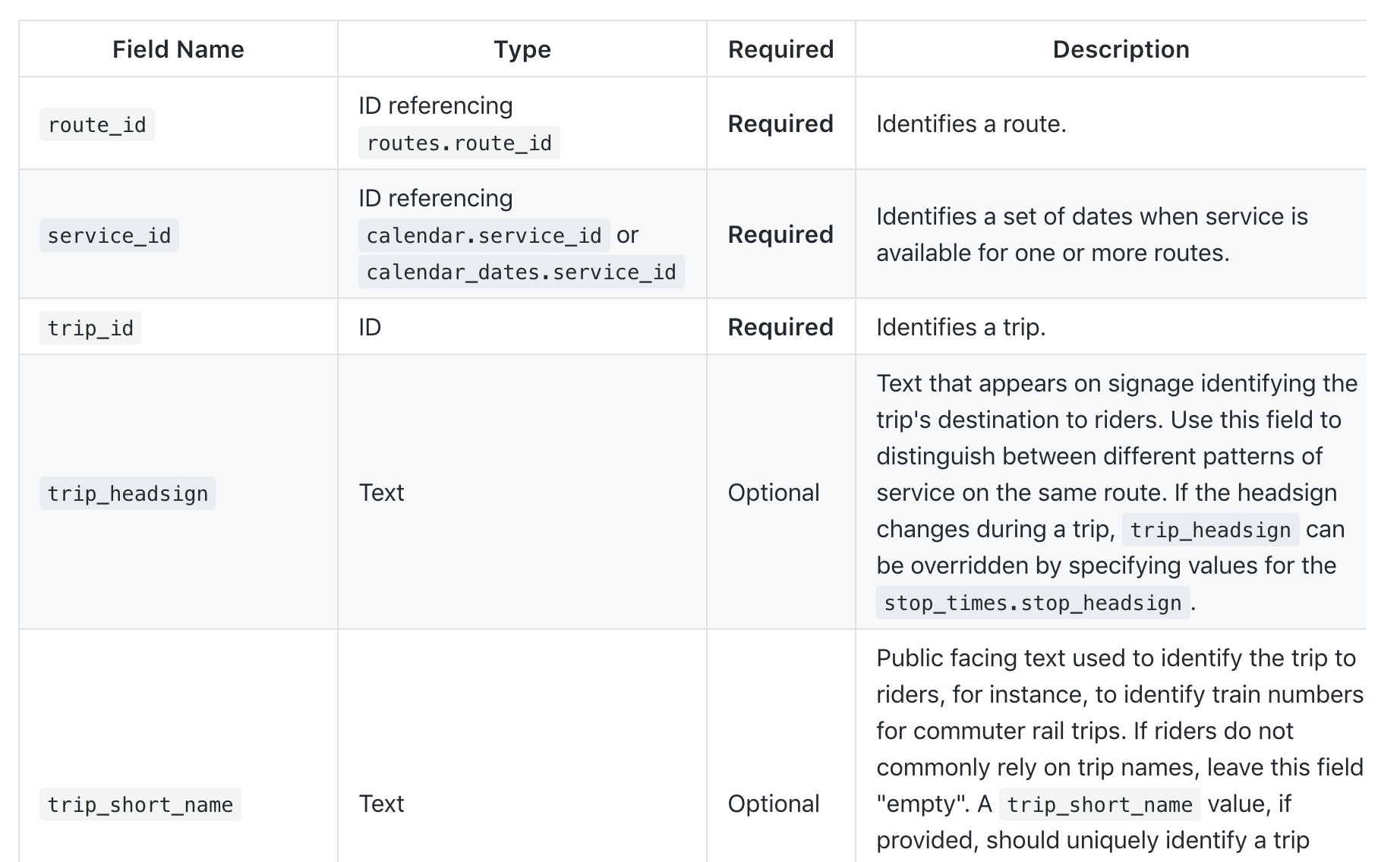

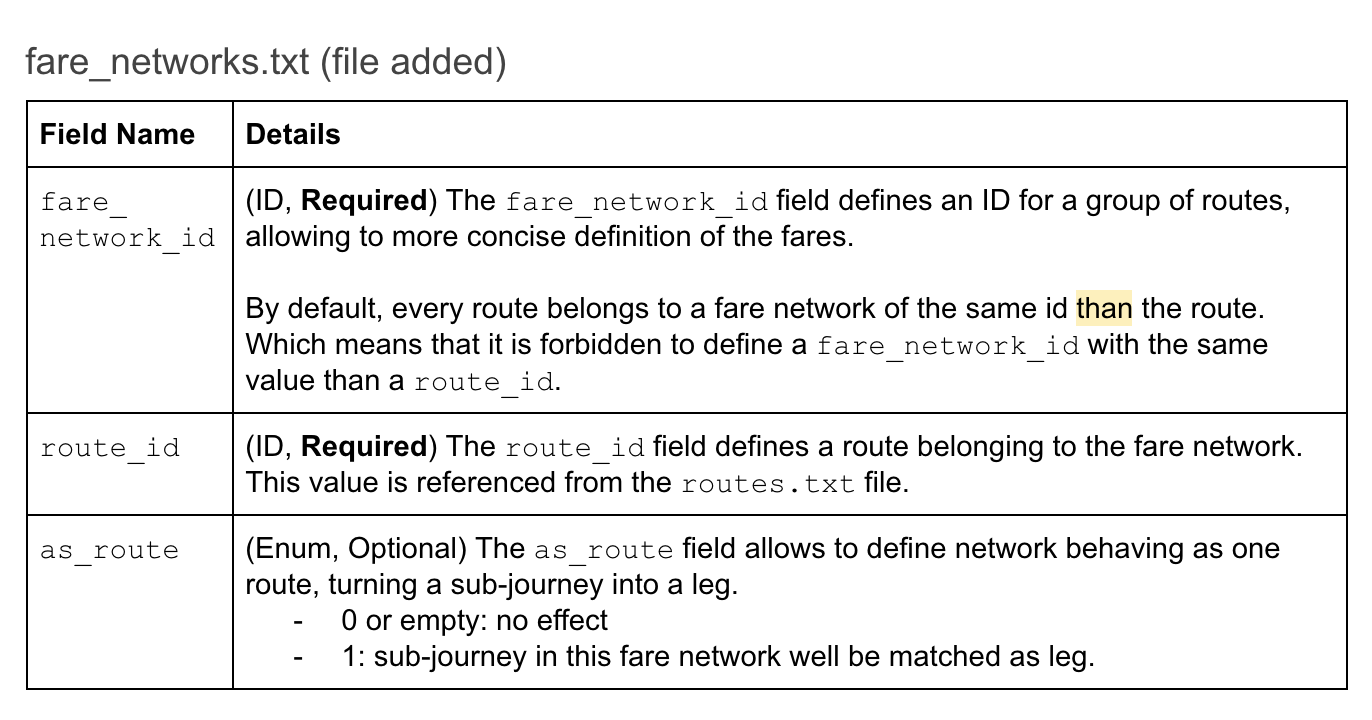

I must confess that in all the proposals I'm writing, I put only two columns (Field name and description), and I just always start the description by the type and the cardinality:

It's more compact than with 4 columns. But I dunno. Some of you (IIRC) were in favor of the 4 columns.
@antrim @barbeau

LeoFrachet · 2018-11-06T19:39:50Z

@giocorti Could you also handle this request please Giovanni: google#90

barbeau · 2018-11-06T19:56:25Z

@giocorti There is also a good discussion of frequencies.txt and frequency-based trips in google#47, including by @antrim and myself. Could you please take a look at that and see if it makes sense to pull any of that proposed content into this PR?

barbeau · 2018-11-06T19:59:17Z

Some of you (IIRC) were in favor of the 4 columns.

IIRC GitHub's Markdown renderer shows columns with equal width no matter the content, so 2 columns ends up wasting a lot of space when viewing on GitHub. Also, generally, I think 4 columns is easier to digest for newcomers to the spec, so I'd suggest keeping that.

Idea - in the HTML-rendered site, we could offer a "collapsed" view for pros that shows only two columns in the format the Leo is using. I think that would be relatively straightforward (?) if we encode the info in 4 columns in Markdown.

giocorti · 2018-11-09T18:35:08Z

I've reviewed all the suggestions and made the changes summarized below. Thanks for all the input! LMK what you think.

Minor editorial changes
Empty fields are now considered to have no value
Rewrote “Optional" definition
Rewrote “field” definition
Removed "feed" (This may be changed after more discussion)
URLs not hidden
Defined “Service Day”
Reformatted enum and examples using <br> and <hr>
Added code ticks to “Field Name” column
Rewrote transfer_duration
Moved google fares example to an internal .md file
Rewrote frequencies.txt and exact_times descriptions

LeoFrachet · 2018-11-16T21:01:48Z

I'm rereading it completely before pushing it to the public repo.

gtfs/spec/en/reference.md

LeoFrachet · 2018-11-16T21:10:12Z

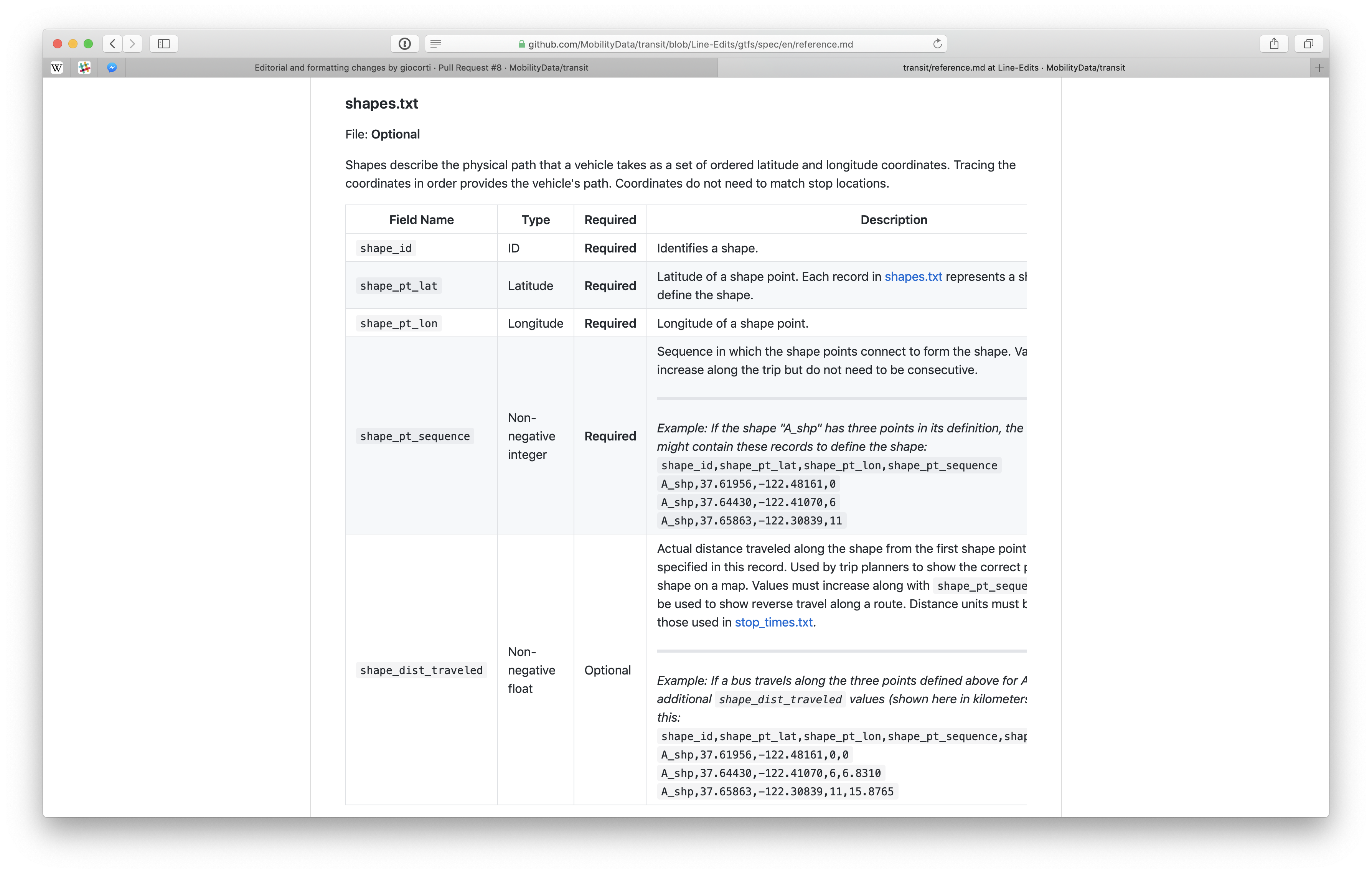

For shape, the text is cut because of the quote. Would there be a way to solve it?

LeoFrachet · 2018-11-16T21:11:45Z

LGTM, with the three small comments above.

giocorti · 2018-11-16T21:20:14Z

For shape, the text is cut because of the quote. Would there be a way to solve it?

My browser allows side to side scrolling on the shapes.txt table. Certainly not ideal but, as far as I can tell, its best we can do if we want to keep the last example.

LeoFrachet · 2018-11-16T21:28:43Z

LGTM !
