Verk

Verk is a job processing system backed by Redis. It uses the same job definition of Sidekiq/Resque.

The goal is to be able to isolate the execution of a queue of jobs as much as possible.

Every queue has its own supervision tree:

• A pool of workers;
• A QueueManager that interacts with Redis to get jobs and enqueue them back to be retried if necessary;
• A WorkersManager that will interact with the QueueManager and the pool to execute jobs.

Verk will hold one connection to Redis per queue plus one dedicated to the ScheduleManager and one general connection for other use cases like deleting a job from retry set or enqueuing new jobs.

The ScheduleManager fetches jobs from the retry set to be enqueued back to the original queue when it's ready to be retried.

It also has one GenEvent manager called EventManager.

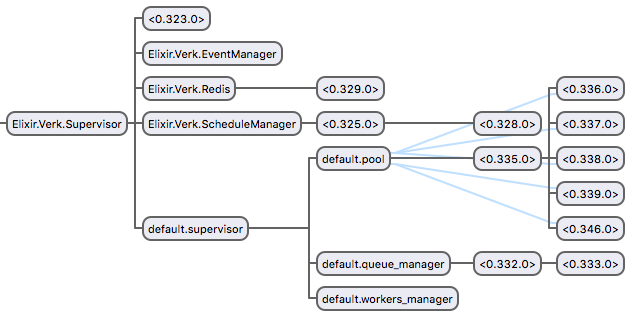

The image below is an overview of Verk's supervision tree running with a queue named default having 5 workers.

Feature set:

• Retry mechanism with exponential backoff
• Dynamic addition/removal of queues
• Reliable job processing (RPOPLPUSH and Lua scripts to the rescue)
• Error and event tracking

Installation

First, add Verk to your mix.exs dependencies:

def deps do
  [{:verk, "~> 0.12"}]
end

and run $ mix deps.get. Now, list the :verk application as your application dependency:

def application do
  [applications: [:verk]]
end

Finally add Verk.Supervisor to your supervision tree:

defmodule Example.App do
  use Application

  def start(_type, _args) do
    import Supervisor.Spec
    tree = [supervisor(Verk.Supervisor, [])]
    opts = [name: Simple.Sup, strategy: :one_for_one]
    Supervisor.start_link(tree, opts)
  end
end

Verk was tested using Redis 2.8+

Workers

A job is defined by a module and arguments:

defmodule ExampleWorker do
  def perform(arg1, arg2) do
    arg1 + arg2
  end
end

This job can be enqueued using Verk.enqueue/1:

Verk.enqueue(%Verk.Job{queue: :default, class: "ExampleWorker", args: [1,2], max_retry_count: 5})

This job can also be scheduled using Verk.schedule/2:

perform_at = Timex.shift(Timex.DateTime.now, seconds: 30)
Verk.schedule(%Verk.Job{queue: :default, class: "ExampleWorker", args: [1,2]}, perform_at)

Configuration

Example configuration for verk having 2 queues: default and priority

The queue default will have a maximum of 25 jobs being processed at a time and priority just 10.

config :verk, queues: [default: 25, priority: 10],
              max_retry_count: 10,
              poll_interval: 5000,
              start_job_log_level: :info,
              done_job_log_level: :info,
              fail_job_log_level: :info,
              node_id: "1",
              redis_url: "redis://127.0.0.1:6379"

The configuration for releases is still a work in progress.

Queues

It's possible to dynamically add and remove queues from Verk.

Verk.add_queue(:new, 10) # Adds a queue named `new` with 10 workers

Verk.remove_queue(:new) # Terminate and delete the queue named `new`

Reliability

Verk's goal is to never have a job that exists only in memory. It uses Redis as the single source of truth to retry and track jobs that were being processed if some crash happened.

Verk will re-enqueue jobs if the application crashed while jobs were running. It will also retry jobs that failed keeping track of the errors that happened.

The jobs that will run on top of Verk should be idempotent as they may run more than once.

Error tracking

One can track when jobs start and finish or fail. This can be useful to build metrics around the jobs. The QueueStats handler does some kind of metrics using these events: https://github.com/edgurgel/verk/blob/master/lib/verk/queue_stats.ex

Verk has an Event Manager that notifies the following events:

• Verk.Events.JobStarted
• Verk.Events.JobFinished
• Verk.Events.JobFailed

One can define an error tracking handler like this:

defmodule TrackingErrorHandler do
  use GenEvent

  def init(parent) do
    {:ok, parent}
  end
  def handle_event(%Verk.Events.JobFailed{job: job, failed_at: failed_at, stacktrace: trace}, state) do
    MyTrackingExceptionSystem.track(stacktrace: trace, name: job.class)
    { :ok, state }
  end
  def handle_event(_, state) do
    # Ignore other events
    { :ok, state }
  end
end

You also need to add the handler to connect with the event manager. You can do this in a number of ways:

1. Managing the event handler with a GenServer:

defmodule TrackingErrorHandlerServer do
  def start_link(opts) do
    GenServer.start_link(__MODULE__, opts, [])
  end
  def init(manager_name) do
    case GenEvent.add_mon_handler(manager_name, TrackingErrorHandler, []) do
      :ok -> {:ok, manager_name}
      {:error, reason} -> {:stop, reason}
    end
  end
end

Then adding the GenServer to your supervision tree:

defmodule Example.App do
  use Application

  def start(_type, _args) do
    import Supervisor.Spec
    tree = [supervisor(Verk.Supervisor, []),
            worker(TrackingErrorHandlerServer, [Verk.EventManager])]
    opts = [name: Simple.Sup, strategy: :one_for_one]
    Supervisor.start_link(tree, opts)
  end
end

2. Using Watcher to add the GenEvent to your supervision tree:

defmodule Example.App do
  use Application

  def start(_type, _args) do
    import Supervisor.Spec
    tree = [supervisor(Verk.Supervisor, []),
            worker(Watcher, [Verk.EventManager, TrackingErrorHandler, []])]
    opts = [name: Simple.Sup, strategy: :one_for_one]
    Supervisor.start_link(tree, opts)
  end
end

More info about GenEvent.add_mon_handler/3 here.

Dashboard ?

Check Verk Web!
