Improve facet error messages in animint2dir#285

Open
ANAMASGARD wants to merge 6 commits intomasterfrom
fix-168-facet-error-message
Open

Improve facet error messages in animint2dir#285
ANAMASGARD wants to merge 6 commits intomasterfrom
fix-168-facet-error-message

Conversation

@ANAMASGARD
Copy link
Copy Markdown
Contributor

@ANAMASGARD ANAMASGARD commented Dec 21, 2025

FIXES #168

What's broken

viz <- list(
  plot = ggplot() +
    facet_wrap(. ~ Species) +  # formula notation
    geom_point(aes(x, y), data = iris)
)
animint2dir(viz)
  • Current error:
    Error: At least one layer must contain all variables used for facetting

Doesn't tell you what's wrong or how to fix it.

  • Workaround that works:
    facet_wrap("Species") # string notation works fine

What I am fixing

  1. Detect when formula notation is used in facets
  2. Give clear error telling user to use string notation instead
  3. Fix happens in animint2dir() - animint2-specific code only

Next commit will add the fix to make tests pass.

Issue #168 - facet_wrap(. ~ var) gives unhelpful error when var is missing.

Added tests that will pass once we improve error messages in animint2dir().
Tests cover facet_wrap and facet_grid with missing variables.

These tests are animint2-specific .
When facet_wrap or facet_grid uses formula notation with a variable
that does not exist in the data, the error now shows:
- Which variable is missing
- What columns are available
- Suggests using string notation instead

Fixes #168
@ANAMASGARD
Copy link
Copy Markdown
Contributor Author

ANAMASGARD commented Dec 22, 2025

Before :-

Error: At least one layer must contain all variables used for facetting

After :-

Error: Facet variable not found in data: MissingVar
Available columns: Sepal.Length, Sepal.Width, Petal.Length, Petal.Width, Species
Use string notation like facet_wrap("var") instead of formula notation facet_wrap(. ~ var) ```

@codecov
Copy link
Copy Markdown

codecov bot commented Dec 22, 2025

Codecov Report

✅ All modified and coverable lines are covered by tests.
✅ Project coverage is 73.12%. Comparing base (543d0d9) to head (bf4c37c).

Additional details and impacted files
@@            Coverage Diff             @@
##           master     #285      +/-   ##
==========================================
+ Coverage   73.09%   73.12%   +0.02%
==========================================
  Files         164      164
  Lines        8769     8778       +9
==========================================
+ Hits         6410     6419       +9
  Misses       2359     2359
Flag Coverage Δ
javascript 80.78% <ø> (ø)
r 69.61% <100.00%> (+0.04%) ⬆️

Flags with carried forward coverage won't be shown. Click here to find out more.

☔ View full report in Codecov by Sentry.
📢 Have feedback on the report? Share it here.

🚀 New features to boost your workflow:
  • ❄️ Test Analytics: Detect flaky tests, report on failures, and find test suite problems.
  • 📦 JS Bundle Analysis: Save yourself from yourself by tracking and limiting bundle sizes in JS merges.

@tdhock
Copy link
Copy Markdown
Collaborator

tdhock commented Dec 22, 2025

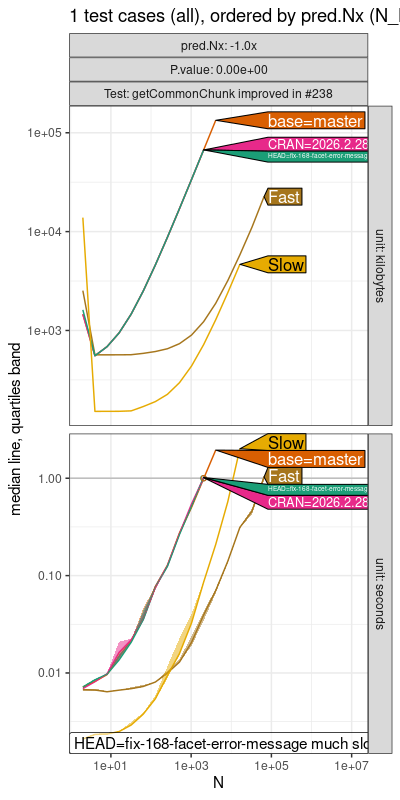

  • HEAD=fix-168-facet-error-message much slower for getCommonChunk improved in #238
    Comparison Plot

Generated via commit bf4c37c

Download link for the artifact containing the test results: ↓ atime-results.zip

Task Duration
R setup and installing dependencies 4 minutes and 1 seconds
Installing different package versions 1 minutes and 0 seconds
Running and plotting the test cases 2 minutes and 43 seconds

@ANAMASGARD
Copy link
Copy Markdown
Contributor Author

Sir @tdhock The 2 failing tests in JS_coverage are in test-compiler-ghpages.R (GitHub Pages tests), not related to this PR. This is the same race condition issue where parallel CI jobs conflict over the shared test repository.

All facet-related tests pass:

  • R_coverage: 2096+ tests passed
  • CRAN: passed
  • My 3 new facet error message tests pass

The fix is working correctly. Please review and give your feedback Sir .

@ANAMASGARD ANAMASGARD requested a review from tdhock December 22, 2025 10:04
Comment thread tests/testthat/test-renderer-facet-error-messages.R Outdated
Comment thread R/z_animintHelpers.R Outdated
@ANAMASGARD ANAMASGARD requested a review from tdhock March 18, 2026 03:30
