ARROW-10960: [C++][FlightRPC] Default to empty buffer instead of null

[carols10cents]

(repeating context from the Jira issue)

Problem

ProtoBuf proto3 specifies that if a message does not contain a particular singular element, the field should get the default value. However, when the C++ flight-test-integration-server gets a DoPut request with a FlightData message for a record batch containing no items, and the FlightData is missing the data_body field, the server responds with an error "Expected body in IPC message of type record batch".

What happens

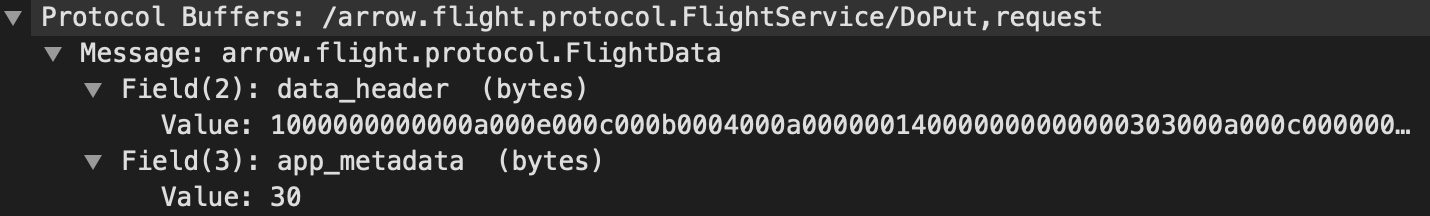

If I run the C++ flight-test-integration-server and the C++ flight-test-integration-client with the generated_null_trivial test case, the test passes and I see this in wireshark:

Note the data_body field is present but has no value.

If I run the Rust flight-test-integration-client that I'm working on developing, it does not send the data_body field at all if there are no bytes to send. I see this in wireshark:

Note the data_body field is not present.

The C++ server then returns the error message Expected body in IPC message of type record batch, which comes from this check for message body called in ReadNext of the record batch stream reader.

What I expect to happen

Instead of returning an error message because of a null pointer, the Message should get the default value of empty bytes.

The fix

@shepmaster and I worked on this fix together, but I'm not at all confident this is the exact right fix.

It's hard for me to trace through the code from a FlightData data_body to an IPC Message body, but this does fix the problem. I'm also not sure what other cases this change might affect.

I don't know how to write a unit test for this because the C++ code doesn't generate this case, but there will be a test coming in the form of a Rust flight integration test client.

Feedback much appreciated!

[github-actions]

https://issues.apache.org/jira/browse/ARROW-10960

[lidavidm]

Thanks for catching & taking a look at this!

I think, rather than change the IPC class, we should make the FlightData Protobuf deserializer act more like a real Protobuf parser, and fill in an empty body instead of leaving the buffer as null if there was not a buffer read from the wire. That should probably happen here:

arrow/cpp/src/arrow/flight/serialization_internal.cc

Lines 376 to 377 in 519e9da

	// TODO(wesm): Where and when should we verify that the FlightData is not
	// malformed or missing components?

I'll admit that even having written the code, it's hard to trace the path from here to where you currently have the fix...

Here is where we invoke the deserializer:

arrow/cpp/src/arrow/flight/serialization_internal.cc

Lines 429 to 432 in 25c736d

	bool ReadPayload(grpc::ClientReader<pb::FlightData>* reader, FlightData* data) {
	// Pretend to be pb::FlightData and intercept in SerializationTraits
	return reader->Read(reinterpret_cast<pb::FlightData*>(data));
	}

That in turn is called from a peekable reader:

arrow/cpp/src/arrow/flight/serialization_internal.h

Line 133 in 25c736d

if (!internal::ReadPayload(&*stream_, &peek_)) {

The reader fills in a FlightData which gets passed to the RecordBatchReader here:

arrow/cpp/src/arrow/flight/server.cc

Line 190 in 519e9da

RETURN_NOT_OK(batch_reader_->ReadNext(&out->data));

Calling ReadNext implicitly bounces through this glue class:

arrow/cpp/src/arrow/flight/server.cc

Lines 96 to 119 in 519e9da

	class FlightIpcMessageReader : public ipc::MessageReader {
	public:
	explicit FlightIpcMessageReader(
	std::shared_ptr<internal::PeekableFlightDataReader<Reader*>> peekable_reader,
	std::shared_ptr<Buffer>* app_metadata)
	: peekable_reader_(peekable_reader), app_metadata_(app_metadata) {}
	::arrow::Result<std::unique_ptr<ipc::Message>> ReadNextMessage() override {
	if (stream_finished_) {
	return nullptr;
	}
	internal::FlightData* data;
	peekable_reader_->Next(&data);
	if (!data) {
	stream_finished_ = true;
	if (first_message_) {
	return Status::Invalid(
	"Client provided malformed message or did not provide message");
	}
	return nullptr;
	}
	*app_metadata_ = std::move(data->app_metadata);
	return data->OpenMessage();
	}

Which finally actually constructs the IPC Message in this PR:

arrow/cpp/src/arrow/flight/serialization_internal.cc

Lines 382 to 384 in 25c736d

	::arrow::Result<std::unique_ptr<ipc::Message>> FlightData::OpenMessage() {
	return ipc::Message::Open(metadata, body);
	}

[lidavidm]

And FWIW, there's a long-standing issue (ARROW-4419) for testing the Flight implementation against a 'plain gRPC' client/server to catch issues like this; we intend for Flight to still be compatible with regular gRPC clients that haven't been specially optimized.

[carols10cents]

@lidavidm Thank you for the pointers! That's very helpful; I'm going to try making the fix in the spot you suggested instead and push an update in a bit.

[lidavidm]

Note I took a look at the Java side of this and the fix may not be so simple, since some code paths in Java expect there to be 0 buffers, and providing a default buffer breaks them; C++ may have the same issue. (Those paths are arguably also wrong, since Protobuf implementations can write the empty field...)

[carols10cents]

I made the same sort of fix in the spot you pointed out, to each of the 3 byte fields in FlightData. What do you think?

Note I took a look at the Java side of this and the fix may not be so simple, since some code paths in Java expect there to be 0 buffers, and providing a default buffer breaks them; C++ may have the same issue.

Yuck. Should I open a new Jira ticket to track the Java side or should this ticket cover the same problem in the Java and C++ implementations?

(Those paths are arguably also wrong, since Protobuf implementations can write the empty field...)

Hm, isn't the C++ client currently writing the empty field? Or is it writing the field to null, rather than an empty list of bytes?

[lidavidm]

I made the same sort of fix in the spot you pointed out, to each of the 3 byte fields in FlightData. What do you think?

Should be good once CI passes, thank you!

Note I took a look at the Java side of this and the fix may not be so simple, since some code paths in Java expect there to be 0 buffers, and providing a default buffer breaks them; C++ may have the same issue.

Yuck. Should I open a new Jira ticket to track the Java side or should this ticket cover the same problem in the Java and C++ implementations?

I filed ARROW-10939 and am looking at it right now. I also cross-linked the three outstanding issues on Jira.

(Those paths are arguably also wrong, since Protobuf implementations can write the empty field...)

Hm, isn't the C++ client currently writing the empty field? Or is it writing the field to null, rather than an empty list of bytes?

Sorry, I was talking about the Java implementation - unilaterally filling in an empty buffer on deserialization when not provided there broke other code which assumed there would be no buffer instead of an empty one. (So what I meant is that while the original code would be fine with any Protobuf implementation that doesn't write out empty fields, it would break with one that did write them out.)

[carols10cents]

Sorry, I was talking about the Java implementation - unilaterally filling in an empty buffer on deserialization when not provided there broke other code which assumed there would be no buffer instead of an empty one. (So what I meant is that while the original code would be fine with any Protobuf implementation that doesn't write out empty fields, it would break with one that did write them out.)

Yes, I meant that because the C++ client is currently a Protobuf implementation that is writing out an empty field (I think), wouldn't the archery integration tests with the Java server and C++ client on the generated_null test currently be failing?

[lidavidm]

Sorry, I was talking about the Java implementation - unilaterally filling in an empty buffer on deserialization when not provided there broke other code which assumed there would be no buffer instead of an empty one. (So what I meant is that while the original code would be fine with any Protobuf implementation that doesn't write out empty fields, it would break with one that did write them out.)

Yes, I meant that because the C++ client is currently a Protobuf implementation that is writing out an empty field (I think), wouldn't the archery integration tests with the Java server and C++ client on the generated_null test currently be failing?

Ah sorry - C++ is fine because it only writes out those bytes conditionally, for message types that require a body (e.g. a RecordBatch). But if an implementation wrote out an (empty) body for a Schema, the Java client/server would break.

arrow/cpp/src/arrow/flight/serialization_internal.cc

Line 274 in 25c736d

if (has_body) {

[lidavidm]

I think the test failures might come from this, actually - if there's a metadata buffer, that causes some code to assume this must be a schema or record batch and try to parse it accordingly (but it'll then encounter the empty buffer and fail to parse it).

Also, the app_metadata buffer can be omitted - it's meant to be optional so having an empty vs null one is no big deal.

[carols10cents]

Whoops! So much for trying to be overly helpful 😅 Pushed a change so this just handles body.

[lidavidm]

Thanks for fixing this!

The three CI failures look like build environment flakes (and are failing on master).
