[improve][java-client] Improve performance of multi-topic consumer with more than one IO thread #16336

codelipenghui · 2022-07-01T16:34:20Z

Motivation

After running the test with the partitioned topic(partitioned topic with only 1 partition) and 4 IO threads.

bin/pulsar-perf produce test -r 500000 -s 1 -o 10000 -threads 2
bin/pulsar-perf consume test -q 100000 -ioThreads 4

The consumer got a very bad performance:

Profiling started

2022-07-01T23:03:13,230+0800 [main] INFO  org.apache.pulsar.testclient.PerformanceConsumer - Throughput received:  216223 msg --- 21517.245  msg/s --- 0.164 Mbit/s  --- Latency: mean: 2702.319 ms - med: 2644 - 95pct: 4594 - 99pct: 4758 - 99.9pct: 4844 - 99.99pct: 4854 - Max: 4854
2022-07-01T23:03:23,494+0800 [main] INFO  org.apache.pulsar.testclient.PerformanceConsumer - Throughput received:  812896 msg --- 58004.006  msg/s --- 0.443 Mbit/s  --- Latency: mean: 9826.540 ms - med: 9992 - 95pct: 12905 - 99pct: 13210 - 99.9pct: 13284 - 99.99pct: 13288 - Max: 13288
2022-07-01T23:03:33,506+0800 [main] INFO  org.apache.pulsar.testclient.PerformanceConsumer - Throughput received: 1548826 msg --- 73501.942  msg/s --- 0.561 Mbit/s  --- Latency: mean: 18000.596 ms - med: 18038 - 95pct: 22170 - 99pct: 22501 - 99.9pct: 22585 - 99.99pct: 22593 - Max: 22594
2022-07-01T23:03:43,519+0800 [main] INFO  org.apache.pulsar.testclient.PerformanceConsumer - Throughput received: 2271634 msg --- 72190.579  msg/s --- 0.551 Mbit/s  --- Latency: mean: 26907.162 ms - med: 26914 - 95pct: 30770 - 99pct: 31196 - 99.9pct: 31290 - 99.99pct: 31297 - Max: 31298
2022-07-01T23:03:53,527+0800 [main] INFO  org.apache.pulsar.testclient.PerformanceConsumer - Throughput received: 2852575 msg --- 58021.315  msg/s --- 0.443 Mbit/s  --- Latency: mean: 35547.844 ms - med: 35503 - 95pct: 39662 - 99pct: 40044 - 99.9pct: 40120 - 99.99pct: 40129 - Max: 40130
2022-07-01T23:04:03,539+0800 [main] INFO  org.apache.pulsar.testclient.PerformanceConsumer - Throughput received: 3317622 msg --- 46424.278  msg/s --- 0.354 Mbit/s  --- Latency: mean: 44615.969 ms - med: 44597 - 95pct: 48807 - 99pct: 49149 - 99.9pct: 49218 - 99.99pct: 49224 - Max: 49225
2022-07-01T23:04:13,554+0800 [main] INFO  org.apache.pulsar.testclient.PerformanceConsumer - Throughput received: 3715533 msg --- 39746.763  msg/s --- 0.303 Mbit/s  --- Latency: mean: 53487.733 ms - med: 53445 - 95pct: 57427 - 99pct: 58195 - 99.9pct: 58413 - 99.99pct: 58425 - Max: 58443

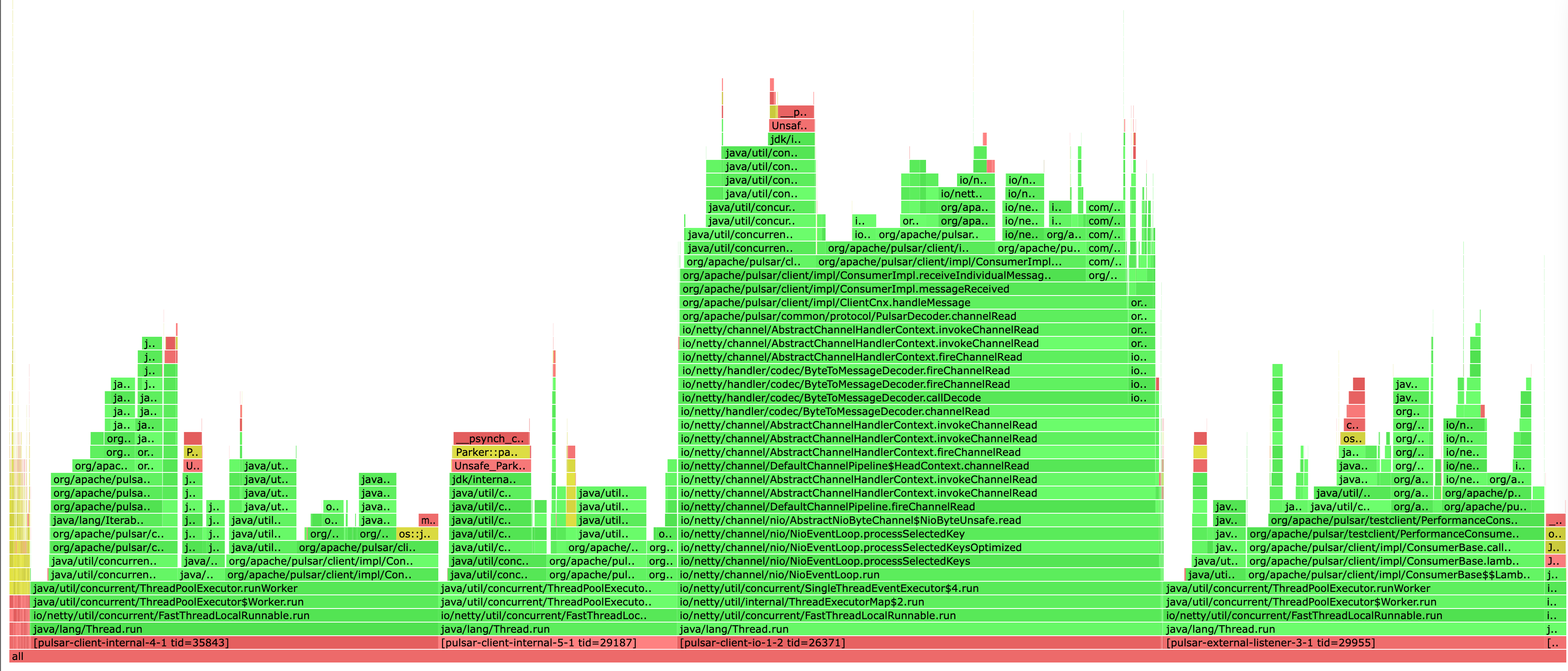

consumer01.html.txt

Use batch receive in the MultiTopicsConsumerImpl internal to fix the performance issue.
After this PR:

Profiling started

2022-07-04T18:11:26,136+0800 [main] INFO  org.apache.pulsar.testclient.PerformanceConsumer - Throughput received: 113768036 msg --- 1033960.241  msg/s --- 7.888 Mbit/s  --- Latency: mean: 26.907 ms - med: 11 - 95pct: 186 - 99pct: 333 - 99.9pct: 345 - 99.99pct: 346 - Max: 347
2022-07-04T18:11:36,148+0800 [main] INFO  org.apache.pulsar.testclient.PerformanceConsumer - Throughput received: 123437199 msg --- 965982.869  msg/s --- 7.370 Mbit/s  --- Latency: mean: 17.216 ms - med: 11 - 95pct: 81 - 99pct: 100 - 99.9pct: 202 - 99.99pct: 231 - Max: 242
Profiling started
2022-07-04T18:11:46,163+0800 [main] INFO  org.apache.pulsar.testclient.PerformanceConsumer - Throughput received: 133784660 msg --- 1033280.877  msg/s --- 7.883 Mbit/s  --- Latency: mean: 29.536 ms - med: 11 - 95pct: 169 - 99pct: 194 - 99.9pct: 198 - 99.99pct: 200 - Max: 200
2022-07-04T18:11:56,176+0800 [main] INFO  org.apache.pulsar.testclient.PerformanceConsumer - Throughput received: 143800200 msg --- 1000179.779  msg/s --- 7.631 Mbit/s  --- Latency: mean: 10.326 ms - med: 10 - 95pct: 17 - 99pct: 23 - 99.9pct: 28 - 99.99pct: 29 - Max: 30
2022-07-04T18:12:06,192+0800 [main] INFO  org.apache.pulsar.testclient.PerformanceConsumer - Throughput received: 153796349 msg --- 998201.268  msg/s --- 7.616 Mbit/s  --- Latency: mean: 12.046 ms - med: 9 - 95pct: 29 - 99pct: 35 - 99.9pct: 36 - 99.99pct: 37 - Max: 39

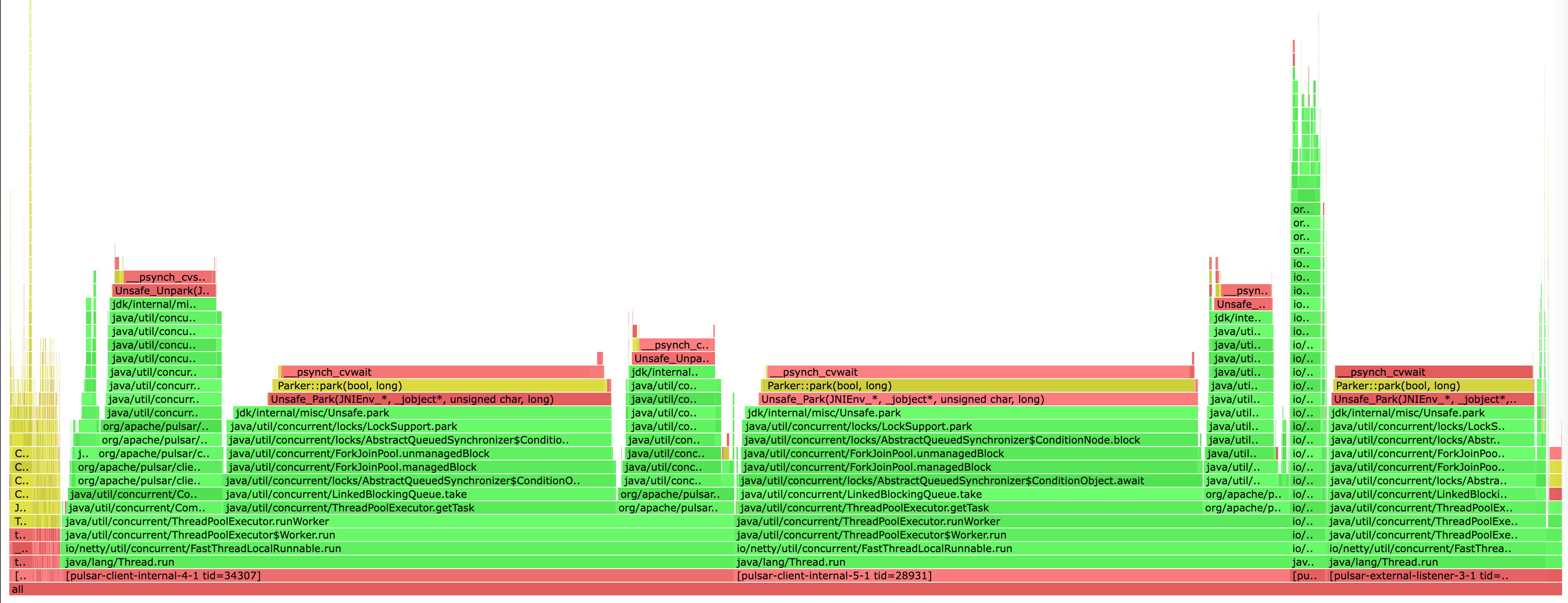

consumer2.html.txt

Documentation

Check the box below or label this PR directly.

Need to update docs?

doc-required
(Your PR needs to update docs and you will update later)
doc-not-needed
(Please explain why)
doc
(Your PR contains doc changes)
doc-complete
(Docs have been already added)

Jason918 · 2022-07-02T07:52:40Z

pulsar-client/src/main/java/org/apache/pulsar/client/impl/MultiTopicsConsumerImpl.java

+                                .maxNumBytes(-1)
+                                .timeout(0, TimeUnit.MILLISECONDS)
+                                .build();
+                        configurationData.setBatchReceivePolicy(internalBatchReceivePolicy);


There are other 2 places creating ConsumerImpl in this class.

@Jason918 Fixed.

zymap · 2022-07-04T01:35:06Z

pulsar-client/src/main/java/org/apache/pulsar/client/impl/MultiTopicsConsumerImpl.java

    private void receiveMessageFromConsumer(ConsumerImpl<T> consumer) {
-        consumer.receiveAsync().thenAcceptAsync(message -> {
+        CompletableFuture<List<Message<T>>> messagesFuture;
+        if (consumer.numMessagesInQueue() >= 10) {


Just make sure It's worth using batch receive API. If less than 10 messages are in the internal consumer and the batch receive operation will also create an ArrayList. And I think we'd better not introduce a new configuration to make the client configuration more complex.

Jason918 · 2022-07-04T02:51:45Z

pulsar-client/src/main/java/org/apache/pulsar/client/impl/ConsumerBase.java

    protected abstract void updateAutoScaleReceiverQueueHint();

    protected boolean hasEnoughMessagesForBatchReceive() {
+        if (batchReceivePolicy.getTimeoutMs() <= 0) {


It seems like a break change if user set this to 0, then batchReceive() would return Messages with empty message immediately when there is no message to consume.

@Jason918 fixed, use 1ms instead.

315157973 · 2022-07-04T12:09:28Z

pulsar-client/src/main/java/org/apache/pulsar/client/impl/MultiTopicsConsumerImpl.java

    private void receiveMessageFromConsumer(ConsumerImpl<T> consumer) {
-        consumer.receiveAsync().thenAcceptAsync(message -> {
+        CompletableFuture<List<Message<T>>> messagesFuture;
+        if (consumer.numMessagesInQueue() >= 10) {


Since it is not configurable, should we test out a good threshold, 10 is the best?

Can we add a new batchReceive implementation to directly get as many messages in incomingMessages? This way you don't need to judge the size of the numMessagesInQueue.

Similar to just running this logic.

MessagesImpl<T> messages = getNewMessagesImpl(); Message<T> msgPeeked = incomingMessages.peek(); while (msgPeeked != null && messages.canAdd(msgPeeked)) { Message<T> msg = incomingMessages.poll(); if (msg != null) { messageProcessed(msg); if (!isValidConsumerEpoch(msg)) { msgPeeked = incomingMessages.peek(); continue; } Message<T> interceptMsg = beforeConsume(msg); messages.add(interceptMsg); } msgPeeked = incomingMessages.peek(); }

Seeing your latest changes, oh, just call batch directly.

hangc0276 · 2022-07-04T14:55:58Z

pulsar-client/src/main/java/org/apache/pulsar/client/impl/MultiTopicsConsumerImpl.java

                // Call receiveAsync() if the incoming queue is not full. Because this block is run with
                // thenAcceptAsync, there is no chance for recursion that would lead to stack overflow.
-                receiveMessageFromConsumer(consumer);
+                receiveMessageFromConsumer(consumer, messages.size() > 0);


If entered receiveMessageFromConsumer from this line and the messages.size() = 0 in this cycle, is there any chance to call batch receive in the future?

Yes, if messages.size() = 0, the current round of receive messages from the internal consumer will use consumer.receiveAsync(). After the internal consumer has new incoming messages, the next round will use the batchReceiveAsync() again.

… consumer with more than one IO thread ### Motivation After run the test with partitioned topic and 4 IO thread. ``` bin/pulsar-perf produce test -r 500000 -s 1 -mk random -o 10000 -threads 2 bin/pulsar-perf consume test -q 100000 -ioThreads 4 ``` The consumer got a very bad performance: ``` Profiling started 2022-07-01T23:03:13,230+0800 [main] INFO org.apache.pulsar.testclient.PerformanceConsumer - Throughput received: 216223 msg --- 21517.245 msg/s --- 0.164 Mbit/s --- Latency: mean: 2702.319 ms - med: 2644 - 95pct: 4594 - 99pct: 4758 - 99.9pct: 4844 - 99.99pct: 4854 - Max: 4854 2022-07-01T23:03:23,494+0800 [main] INFO org.apache.pulsar.testclient.PerformanceConsumer - Throughput received: 812896 msg --- 58004.006 msg/s --- 0.443 Mbit/s --- Latency: mean: 9826.540 ms - med: 9992 - 95pct: 12905 - 99pct: 13210 - 99.9pct: 13284 - 99.99pct: 13288 - Max: 13288 2022-07-01T23:03:33,506+0800 [main] INFO org.apache.pulsar.testclient.PerformanceConsumer - Throughput received: 1548826 msg --- 73501.942 msg/s --- 0.561 Mbit/s --- Latency: mean: 18000.596 ms - med: 18038 - 95pct: 22170 - 99pct: 22501 - 99.9pct: 22585 - 99.99pct: 22593 - Max: 22594 2022-07-01T23:03:43,519+0800 [main] INFO org.apache.pulsar.testclient.PerformanceConsumer - Throughput received: 2271634 msg --- 72190.579 msg/s --- 0.551 Mbit/s --- Latency: mean: 26907.162 ms - med: 26914 - 95pct: 30770 - 99pct: 31196 - 99.9pct: 31290 - 99.99pct: 31297 - Max: 31298 2022-07-01T23:03:53,527+0800 [main] INFO org.apache.pulsar.testclient.PerformanceConsumer - Throughput received: 2852575 msg --- 58021.315 msg/s --- 0.443 Mbit/s --- Latency: mean: 35547.844 ms - med: 35503 - 95pct: 39662 - 99pct: 40044 - 99.9pct: 40120 - 99.99pct: 40129 - Max: 40130 2022-07-01T23:04:03,539+0800 [main] INFO org.apache.pulsar.testclient.PerformanceConsumer - Throughput received: 3317622 msg --- 46424.278 msg/s --- 0.354 Mbit/s --- Latency: mean: 44615.969 ms - med: 44597 - 95pct: 48807 - 99pct: 49149 - 99.9pct: 49218 - 99.99pct: 49224 - Max: 49225 2022-07-01T23:04:13,554+0800 [main] INFO org.apache.pulsar.testclient.PerformanceConsumer - Throughput received: 3715533 msg --- 39746.763 msg/s --- 0.303 Mbit/s --- Latency: mean: 53487.733 ms - med: 53445 - 95pct: 57427 - 99pct: 58195 - 99.9pct: 58413 - 99.99pct: 58425 - Max: 58443 ``` Use batch receive in the MultiTopicsConsumerImpl internal to fix the performance issue. After this PR: ``` Profiling started 2022-07-02T00:15:33,291+0800 [main] INFO org.apache.pulsar.testclient.PerformanceConsumer - Throughput received: 91938234 msg --- 500221.875 msg/s --- 3.816 Mbit/s --- Latency: mean: 17.755 ms - med: 18 - 95pct: 23 - 99pct: 28 - 99.9pct: 34 - 99.99pct: 36 - Max: 36 2022-07-02T00:15:43,308+0800 [main] INFO org.apache.pulsar.testclient.PerformanceConsumer - Throughput received: 96929487 msg --- 498127.011 msg/s --- 3.800 Mbit/s --- Latency: mean: 27.666 ms - med: 18 - 95pct: 80 - 99pct: 98 - 99.9pct: 104 - 99.99pct: 105 - Max: 106 2022-07-02T00:15:53,328+0800 [main] INFO org.apache.pulsar.testclient.PerformanceConsumer - Throughput received: 101955467 msg --- 501660.867 msg/s --- 3.827 Mbit/s --- Latency: mean: 19.226 ms - med: 18 - 95pct: 32 - 99pct: 59 - 99.9pct: 66 - 99.99pct: 67 - Max: 68 2022-07-02T00:16:03,356+0800 [main] INFO org.apache.pulsar.testclient.PerformanceConsumer - Throughput received: 106959191 msg --- 499143.020 msg/s --- 3.808 Mbit/s --- Latency: mean: 132.371 ms - med: 28 - 95pct: 474 - 99pct: 505 - 99.9pct: 511 - 99.99pct: 515 - Max: 515 2022-07-02T00:16:13,378+0800 [main] INFO org.apache.pulsar.testclient.PerformanceConsumer - Throughput received: 111982006 msg --- 501017.414 msg/s --- 3.822 Mbit/s --- Latency: mean: 21.249 ms - med: 18 - 95pct: 53 - 99pct: 74 - 99.9pct: 81 - 99.99pct: 83 - Max: 84 ```

…th more than one IO thread (#16336) (cherry picked from commit bdda1eb)

…th more than one IO thread (apache#16336) (cherry picked from commit bdda1eb) (cherry picked from commit 1649ef4)

…th more than one IO thread (apache#16336)

…th more than one IO thread (#16336) (cherry picked from commit bdda1eb)
