Compatible with 3.x and 4.x RabbitMQ Client

[nisiyong]

Recently I analyze all skywalking java agents logs in our production environment, and found there are some legacy applications using rabbitmq-java-client-3.x print a lot of intercept failure log, as follow:

class[class com.rabbitmq.client.impl.ChannelN] before method[basicPublish] intercept failure
java.lang.IllegalStateException: Exit span doesn't include meaningful peer information.
	at org.apache.skywalking.apm.agent.core.context.TracingContext.inject(TracingContext.java:169)
	at org.apache.skywalking.apm.agent.core.context.TracingContext.inject(TracingContext.java:149)
	at org.apache.skywalking.apm.agent.core.context.ContextManager.createExitSpan(ContextManager.java:126)
	at org.apache.skywalking.apm.plugin.rabbitmq.RabbitMQProducerInterceptor.beforeMethod(RabbitMQProducerInterceptor.java:76)
	at org.apache.skywalking.apm.agent.core.plugin.interceptor.enhance.InstMethodsInterWithOverrideArgs.intercept(InstMethodsInterWithOverrideArgs.java:75)
	at com.rabbitmq.client.impl.ChannelN.basicPublish(ChannelN.java)
	at com.rabbitmq.client.impl.ChannelN.basicPublish(ChannelN.java:639)
	at org.springframework.amqp.rabbit.support.PublisherCallbackChannelImpl.basicPublish(PublisherCallbackChannelImpl.java:259)
	at sun.reflect.GeneratedMethodAccessor419.invoke(Unknown Source)
	at sun.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:43)
	at java.lang.reflect.Method.invoke(Method.java:498)
	at org.springframework.amqp.rabbit.connection.CachingConnectionFactory$CachedChannelInvocationHandler.invoke(CachingConnectionFactory.java:917)

Why

There is an old issue has mentioned this situation, apache/skywalking#2638. This because the the rabbitmq-client could not intercept the 3.x and 4.x contrunctor function, then set the peer info failed.

Solution

I compare the com.rabbitmq.client.impl.ChannelN contructors at 3.x, 4.x and 5.x.

• 5.x: ChannelN.java
• 4.x: ChannelN.java
• 3.x: ChannelN.java

There have the same 1st argument com.rabbitmq.client.impl.AMQConnection, and the peer address is retrieved from this object. I think we just need to polish the contrunctor instrumentation logic.

Sceenshots

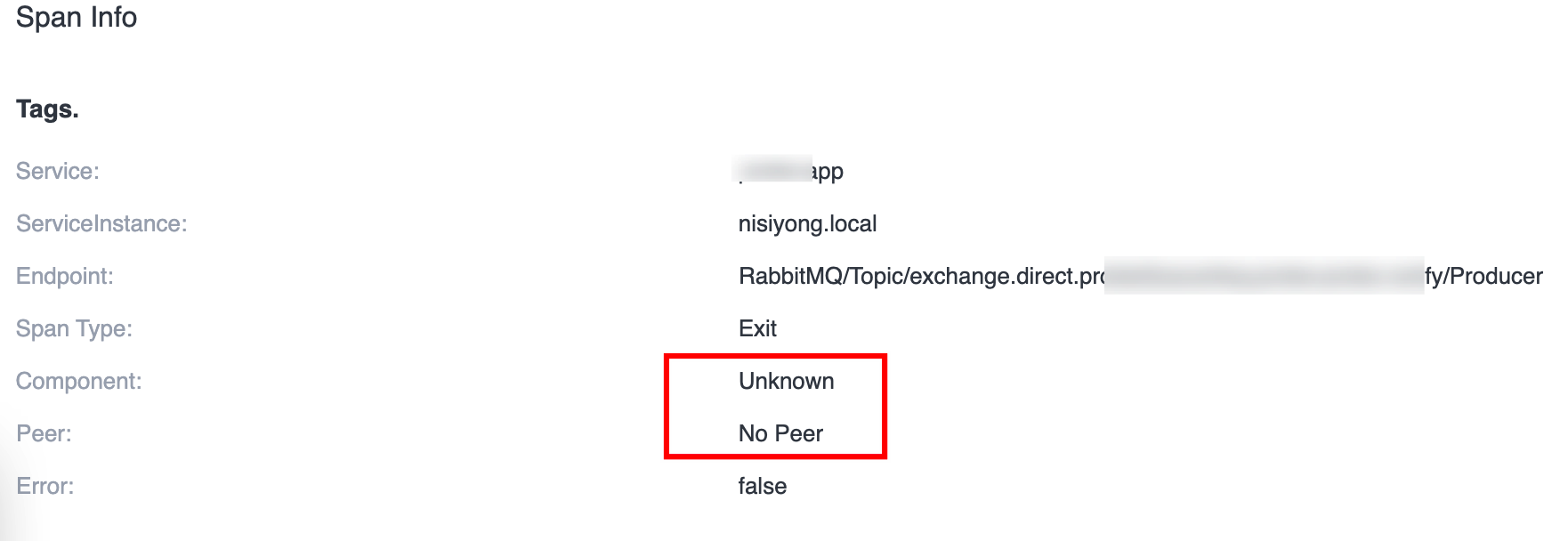

Before changing the instrument logic, rabbtimq-3.x-producer could not get peer

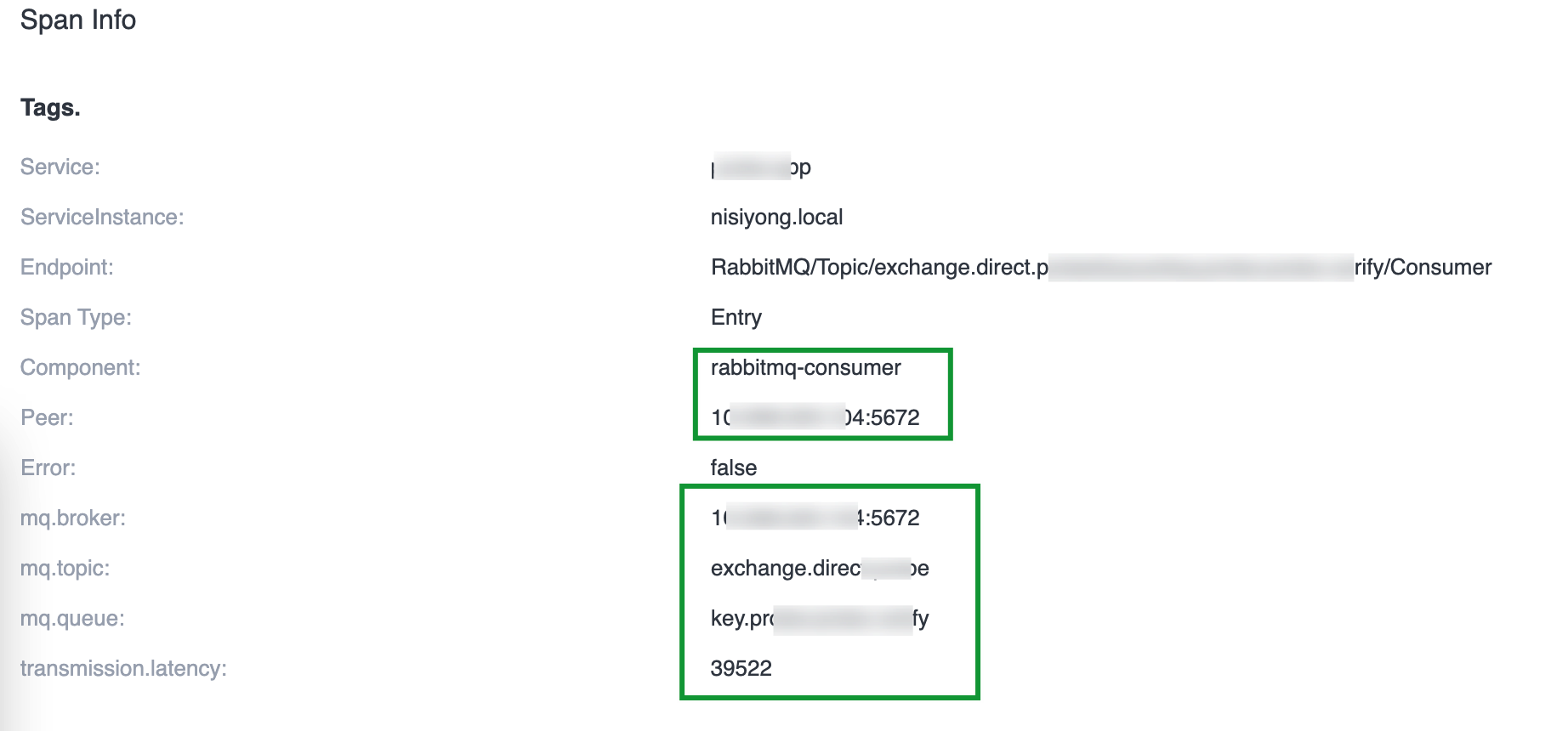

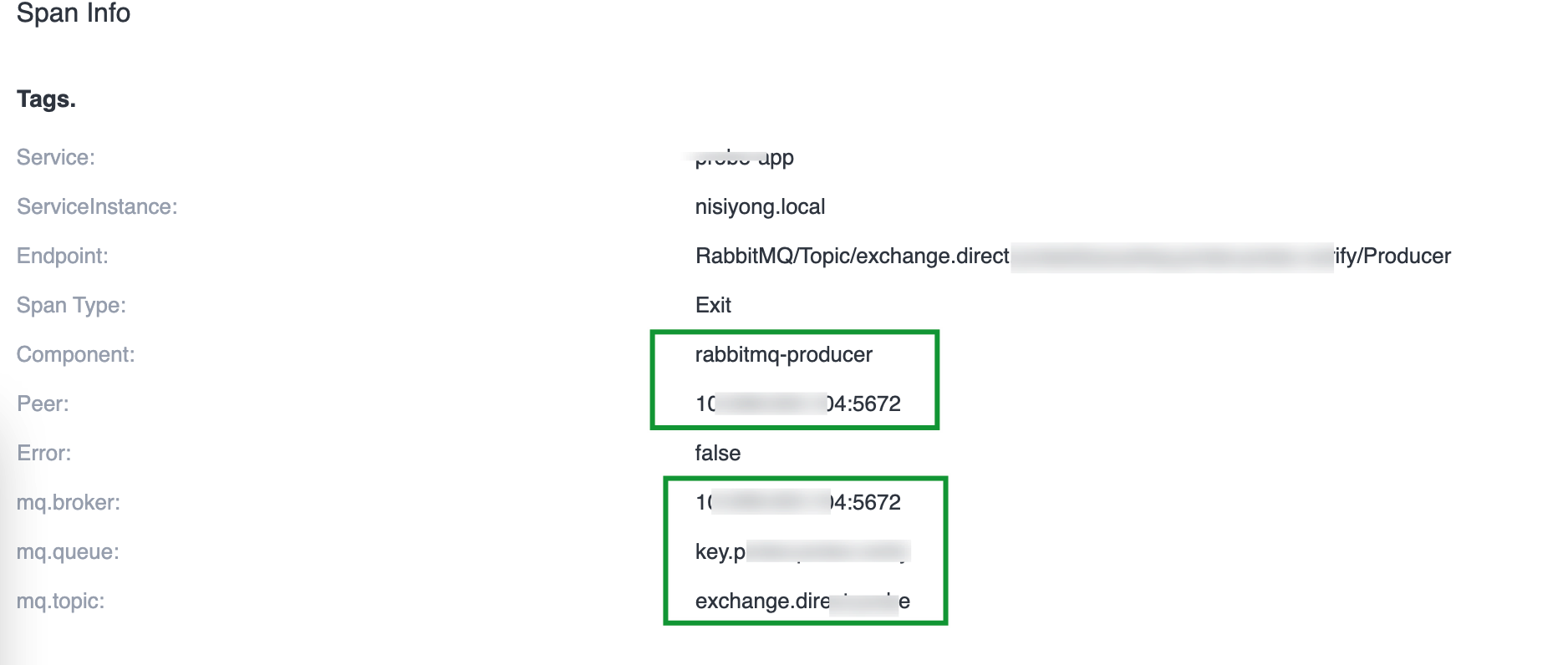

After changing the instrument logic, both rabbtimq-3.x-producer and rabbtimq-3.x-consumer could get more infomation

---

Finally, I think it's unnecessary to add rabbitmq-3.x-plugin or rabbit-4.x-plugin, the previous constructor instrumentation is not inherently well implemented, I just make it more compatible.

• Update the CHANGES log.

[wu-sheng]

Please update changelog and supported list.
More importantly, could yiu try to update test scenarion versions? If possible.

[wu-sheng]

Tests are passed, please update the mentioned docs.

[nisiyong]

The previous test case used com.rabbitmq.client.DeliverCallback introduced in 5.0.0, and if we tested with 3.x or 4.x, it will fail to compile.
Now the case uses the old way of consuming messages, which is compatible with versions from 3.0.0 to 5.16.0.

• https://mvnrepository.com/artifact/com.rabbitmq/amqp-client

I also wanna rename rabbitmq-5.x-plugin to rabbitmq-plugin. What do you think about this?

[wu-sheng]

I also wanna rename rabbitmq-5.x-plugin to rabbitmq-plugin. What do you think about this?

It should be good. But you have to change several files, and name in skywalking-plugin.def. You should mention this as breaking changes in the change log. (* [Breaking Change]: xxxxx)

The previous test case used com.rabbitmq.client.DeliverCallback introduced in 5.0.0, and if we tested with 3.x or 4.x, it will fail to compile.

OK, we may should consider two test scenarios, one is your way, the other is the previous way only for 5.x.

[nisiyong]

OK, we may should consider two test scenarios, one is your way, the other is the previous way only for 5.x.

Using the new test scenario is fine, we don't need the previous test case. The com.rabbitmq.client.DeliverCallback is just for users to easier to use API, the core API consume Class still is com.rabbitmq.client.Consumer. The DeliverCallback is implemented with Consumer inside.

[nisiyong]

All things are finished, please take a look.
