Add service category feature to TO and TP

[jehunte]

What does this PR (Pull Request) do?

• This PR is not associated with any existing issue.

This PR enables the user to associate a delivery service with a specific service category. The user can create, add, update, delete categories as necessary and the value will be used in combination with the xmlid to set the HTTP header "X-CDN-SVC"

Which Traffic Control components are affected by this PR?

• Documentation
• Traffic Control Client Go
• Traffic Ops
• Traffic Ops ORT - atstccfg
• Traffic Portal

What is the best way to verify this PR?

1. Validate database changes
   - New table service category with columns (id, name, last_updated)
   - service_category column added to delivery service table
2. Verify in TP that you can:
   - create a new delivery service with a service category
   - Add, update, delete, get service categories
3. Run the ORT script and verify that the header is being set properly
   X-CDN-SVC "{xmlid}|{service-category}"

The following criteria are ALL met by this PR

• This PR includes tests OR I have explained why tests are unnecessary
• This PR includes documentation OR I have explained why documentation is unnecessary
• This PR includes an update to CHANGELOG.md OR such an update is not necessary
• This PR includes any and all required license headers
• This PR ensures that database migration sequence is correct OR this PR does not include a database migration
• This PR DOES NOT FIX A SERIOUS SECURITY VULNERABILITY (see the Apache Software Foundation's security guidelines for details)

Additional Information

[mitchell852]

Something to think about. Should "service categories" be restricted to certain tenants? For example, imagine the following tenant tree:

- root
-- tenant 1
--- tenant 1.1
-- tenant 2
--- tenant 2.1

If I am a user in tenant 2.1 and i create a Foo service category, should users in root, tenant 1, 1.1, 2 be able to attach the Foo service category to their delivery services? Maybe that's not a problem as the tenant 2.1 user will still only see delivery services scoped to tenant 2.1 in that category. However, this could potentially result in information leakage across tenants. I.e. if i'm in the company A tenant and i create a company-a-service-category-1, everybody across all tenants can see/use that service category.

The more I think about this, service categories should be scoped to tenancy. most tenants don't want to be concerned with the service categories created by other tenants.

[rob05c]

If I am a user in tenant 2.1 and i create a Foo service category

I think the question for anything is, "Will delivery service customers who are not CDN operators be able to create this?" If so, it needs to be under tenancy, and invisible to other tenants.

[mitchell852]

I think the question for anything is, "Will delivery service customers who are not CDN operators be able to create this?" If so, it needs to be under tenancy, and invisible to other tenants.

Well i'm assuming only operators (role=operations or above) can create service categories but those service categories will show up as an option of EVERY delivery service across all tenants which seems problematic.

[rob05c]

Do we expect Service Categories to be created by DS customers? Or is it something only Operators will create?

[mitchell852]

Do we expect Service Categories to be created by tenants? Or is it something only Operators will create?

everybody is scoped to a tenant. operators and non operators. all users are tenant scoped. for example, if i am an operator in the 2.1 tenant, i should probably only be able to create service categories that apply to the 2.1 delivery services.

[rob05c]

Right. But for example, Delivery Service Types aren't "scoped" to tenants, because they're created by operators of the system, not customers of the system. I think it's a valid distinction, to decide if something applies across the entire CDN, or only to the Tenant who created it.

[rob05c]

@mitchell852 I think I agree with you. It's possible a TC Operator will want to make a hard list of categories, e.g. "Linear," "VOD," "Images." But it's also possible the TC Operator will want to allow any DS owner to make any categories they want.

If Service Categories are scoped to Tenants, and under Roles&Capabilities, both are possible.
For the former, the Operator just doesn't give any tenants the Create Service Category Capability, and they make the hard-coded categories on the Root tenant.
For the latter, they give everyone the Capability.

Keeping YAGNI in mind, IMO it's sufficiently likely someone will need the latter, to go ahead and support it from the start.

[mitchell852]

IMO it's sufficiently likely someone will need the latter, to go ahead and support it from the start.

Yeah, it's harder to add tenancy after the fact imo. It seems to me if i were to create a service category i might want to specify that it applies to all ds's (tenant=root) or only applies to ds's of the 2.1 tenant (tenant=2.1) or like you said grant users the ability to create service categories ONLY in there tenancy.

[mitchell852]

also, those 2 sql scripts under additional info seem like something very specific to a certain company's use of edge header rewrites. probably not something needed as part of this PR. also, @jehunte can you make sure your screenshots are generic? i.e. no company-specific info.

[jehunte]

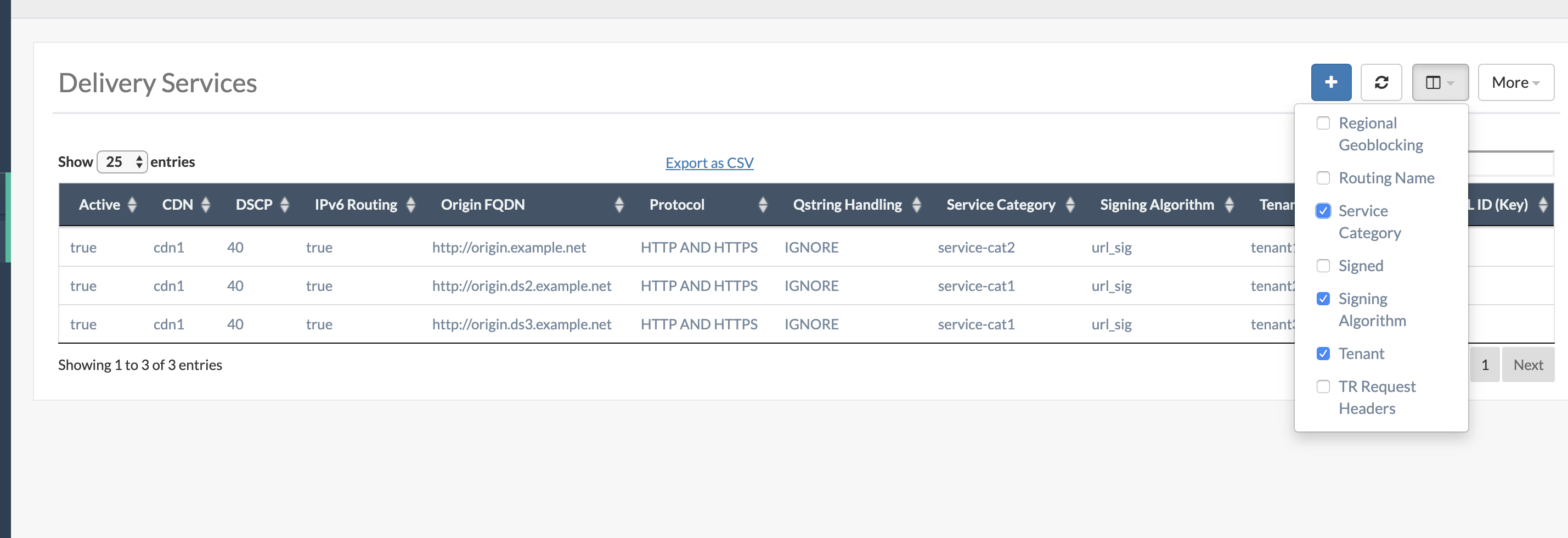

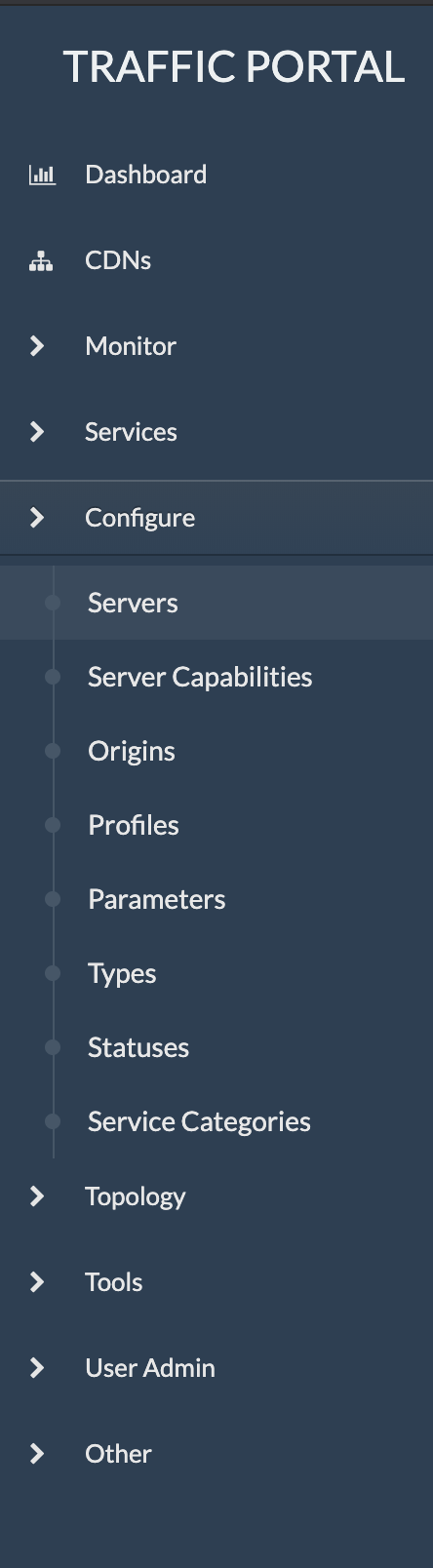

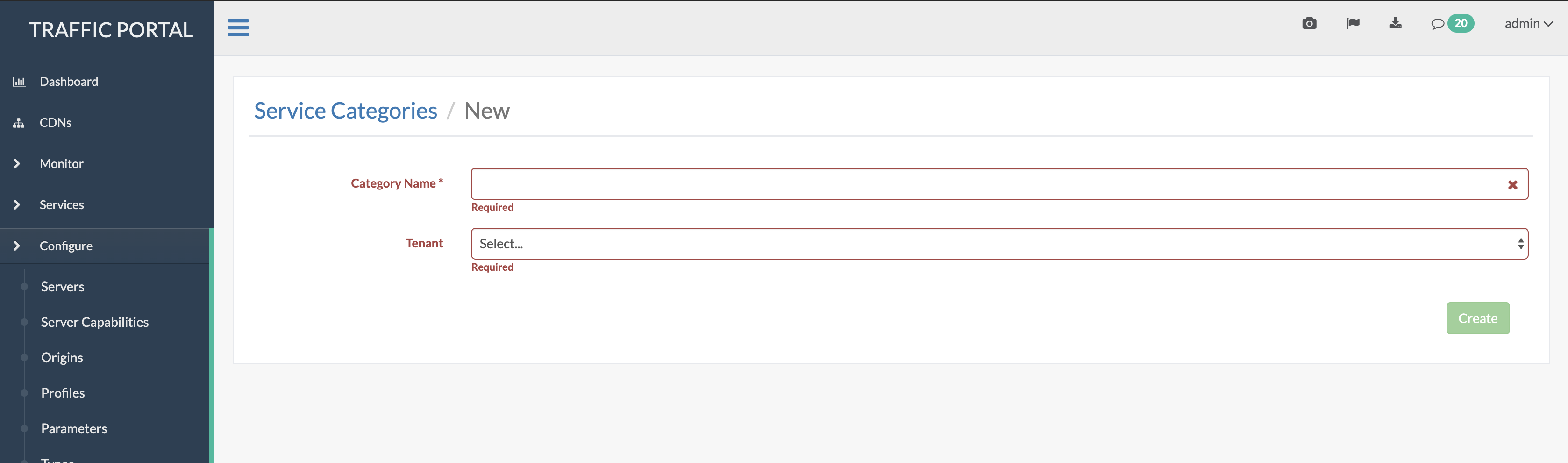

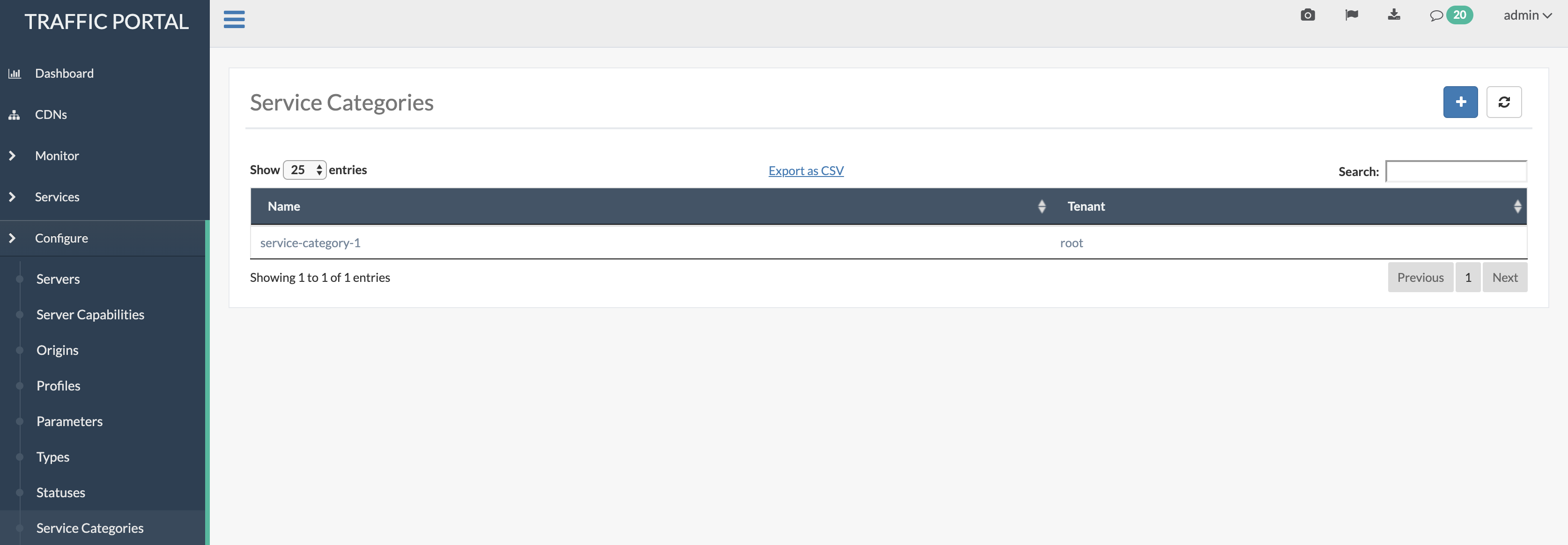

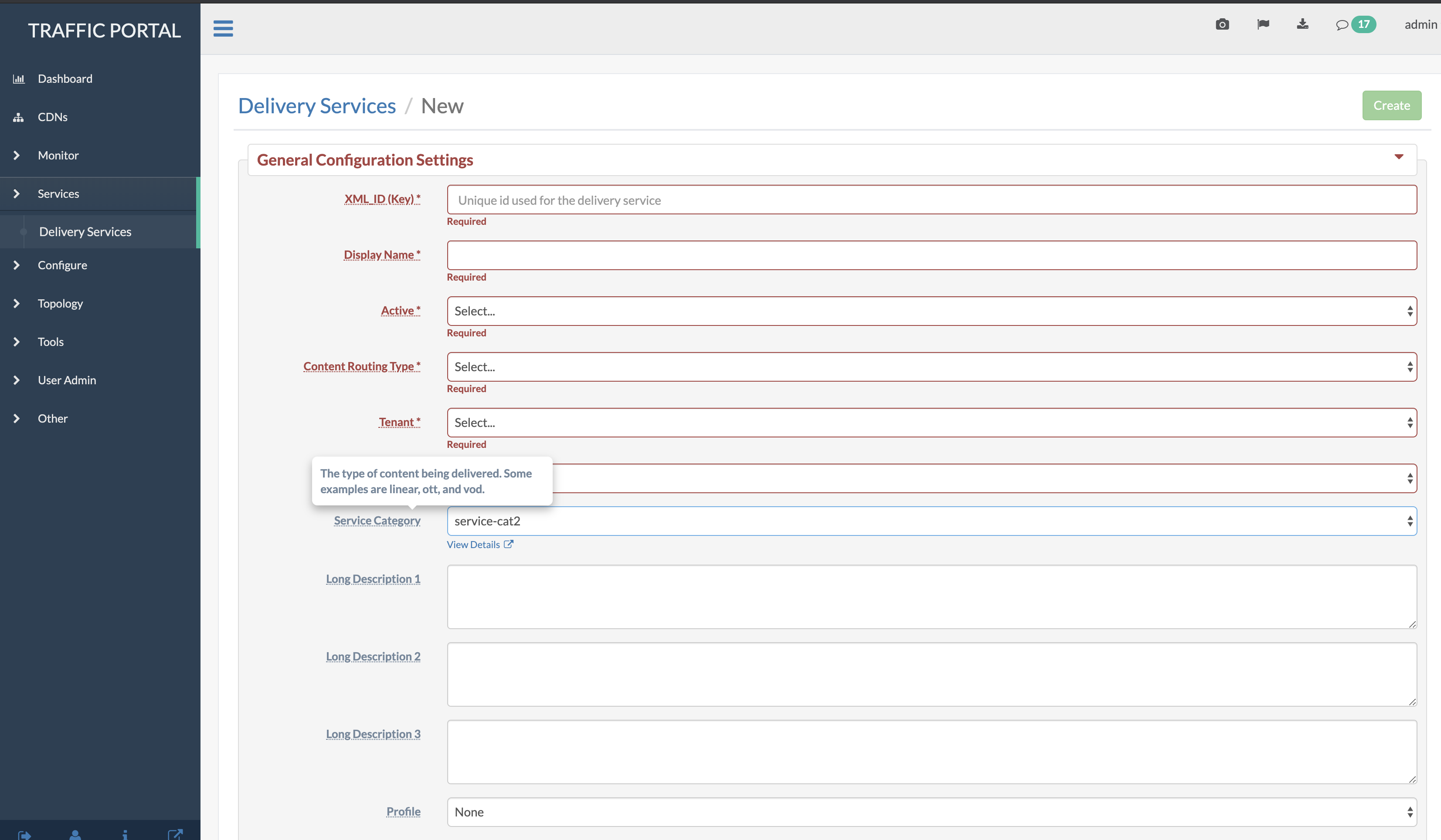

@rob05c @mitchell852 These are great points. I will require a tenant to be associated with the service categories so tenants can only see the service categories they've created. I've also replaced the screenshots and removed the sql queries.

[mattjackson220]

one small comment then this looks good! might depend on PR4633 to get TP set up to use API v3

[rob05c]

I'm approving with respect to the ORT code changes. I haven't actually tested, but I believe the code will work, from what I know of ORT. I had previously raised concerns that it wouldn't, because ORT wasn't using the latest API (if it exists) to get DeliveryServices. It now is, so it should work correctly.

Also, w.r.t. my Tenancy comments: I'll leave it up to @mitchell852 as the Tenacy expert.
