Reduce Sockets mainloop Send/Receive statemachine size

[benaadams]

Removed from sending statemachine struct 16+16+16+16+8+8 = 80 bytes (5 object refs)
Added to sending statemachine struct 16+8 = 24 bytes (1 object ref)

So 56 byte reduction overall and 4 object refs (slower copies) removed.

Similar to #2313

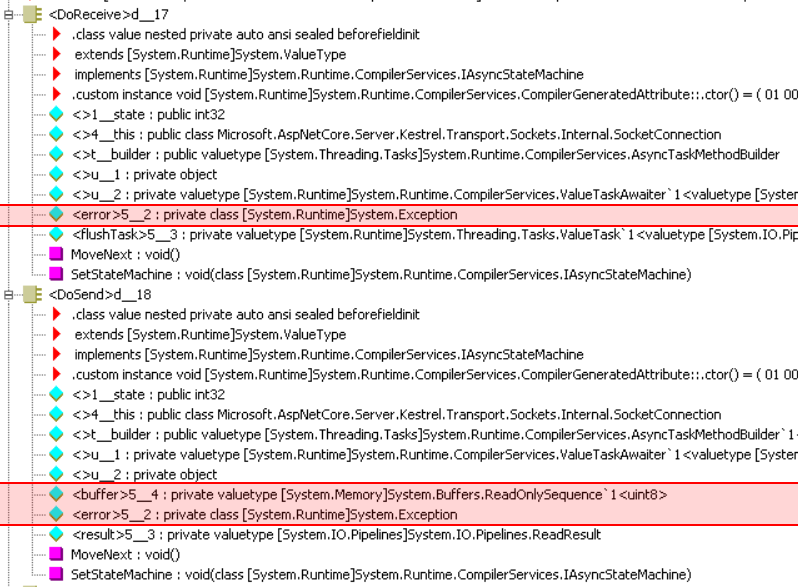

Before

DoSend.MoveNext is 4 .trys deep in il

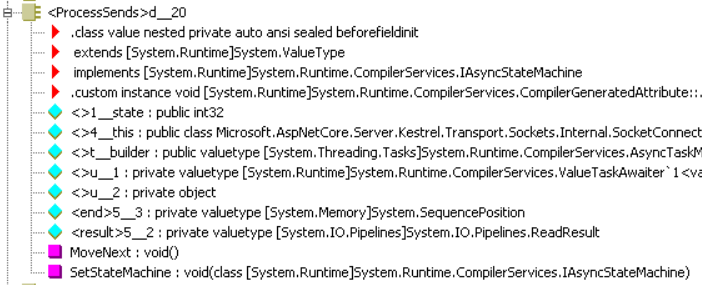

After

ProcessSends.MoveNext is 1 .trys deep in il

Removed (larger due to padding/alignment):

• ReadResult { ReadOnlySequence { 2 x SequencePosition { object, int } }, bool }
• ReadOnlySequence { 2 x SequencePosition { object, int } }
• Exception

Added

• SequencePosition { object, int }
• bool

[davidfowl]

This is pretty gross, can this be left as a local (that will get hoisted).

[benaadams]

Yeah :-/

But it means the main loop doesn't need error handling; so there is only the try catch from the statemachine itself.

Putting it back in the loop means the finally has to go back to ensure Output.AdvanceTo(End); is always called; even when its crashing out.

[benaadams]

Is a consequence of not doing https://github.com/dotnet/corefx/issues/27465?

[benaadams]

Oh... maybe its not needed? dotnet/corefx#27596

[benaadams]

Removed

[benaadams]

Is now hoisting SequencePosition rather than ReadOnlySequence which is much smaller

[benaadams]

Don't think it likes second commit; Complete throws...

Log Critical[0]: Unexpected exception in HttpConnection.ProcessRequestsAsync. System.ObjectDisposedException: Safe handle has been closed
402   at System.Runtime.InteropServices.SafeHandle.DangerousAddRef(Boolean& success)
403   at System.StubHelpers.StubHelpers.SafeHandleAddRef(SafeHandle pHandle, Boolean& success)
404   at Microsoft.AspNetCore.Server.Kestrel.Transport.Libuv.Internal.Networking.LibuvFunctions.NativeMethods.uv_async_send(UvAsyncHandle handle)
405   at Microsoft.AspNetCore.Server.Kestrel.Transport.Libuv.Internal.Networking.LibuvFunctions.async_send(UvAsyncHandle handle) in C:\projects\kestrelhttpserver\src\Kestrel.Transport.Libuv\Internal\Networking\LibuvFunctions.cs:line 179
406   at Microsoft.AspNetCore.Server.Kestrel.Transport.Libuv.Internal.LibuvThread.Post[T](Action`1 callback, T state) in C:\projects\kestrelhttpserver\src\Kestrel.Transport.Libuv\Internal\LibuvThread.cs:line 192
407   at Microsoft.AspNetCore.Server.Kestrel.Transport.Libuv.Internal.LibuvThread.Schedule[T](Action`1 action, T state) in C:\projects\kestrelhttpserver\src\Kestrel.Transport.Libuv\Internal\LibuvThread.cs:line 401
408   at System.IO.Pipelines.Pipe.TrySchedule[TState](PipeScheduler scheduler, Action`1 action, TState state)
409   at System.IO.Pipelines.Pipe.CompleteWriter(Exception exception)
410   at System.IO.Pipelines.Pipe.DefaultPipeWriter.Complete(Exception exception)
411   at Microsoft.AspNetCore.Server.Kestrel.Core.Adapter.Internal.AdaptedPipeline.<WriteOutputAsync>d__15.MoveNext() in C:\projects\kestrelhttpserver\src\Kestrel.Core\Adapter\Internal\AdaptedPipeline.cs:line 115
412--- End of stack trace from previous location where exception was thrown ---
413   at System.Runtime.CompilerServices.TaskAwaiter.ThrowForNonSuccess(Task task)
414   at System.Runtime.CompilerServices.TaskAwaiter.HandleNonSuccessAndDebuggerNotification(Task task)
415   at Microsoft.AspNetCore.Server.Kestrel.Core.Adapter.Internal.AdaptedPipeline.<RunAsync>d__14.MoveNext() in C:\projects\kestrelhttpserver\src\Kestrel.Core\Adapter\Internal\AdaptedPipeline.cs:line 44
416--- End of stack trace from previous location where exception was thrown ---
417   at System.Runtime.CompilerServices.TaskAwaiter.ThrowForNonSuccess(Task task)
418   at System.Runtime.CompilerServices.TaskAwaiter.HandleNonSuccessAndDebuggerNotification(Task task)
419   at System.Runtime.CompilerServices.TaskAwaiter.ValidateEnd(Task task)
420   at Microsoft.AspNetCore.Server.Kestrel.Core.Internal.HttpConnection.<ProcessRequestsAsync>d__47`1.MoveNext() in C:\projects\kestrelhttpserver\src\Kestrel.Core\Internal\HttpConnection.cs:line 179

[benaadams]

Hmm... that's libuv, which is uneffected

[benaadams]

Also test pass/fail results seem to be ignoring it..?

[benaadams]

Removed from sending statemachine struct 16+16+16+16+8+8 = 80 bytes (5 object refs)
Added to sending statemachine struct 16+8 = 24 bytes (1 object ref)

So 56 byte reduction overall and 4 object refs (slower copies) removed.

[benaadams]

i.e.

Removed (larger due to padding/alignment):

• ReadResult { ReadOnlySequence { 2 x SequencePosition { object, int } }, bool }
• ReadOnlySequence { 2 x SequencePosition { object, int } }
• Exception

Added

• SequencePosition { object, int }
• bool

[halter73]

Any idea how this 56 byte async state machine reduction affects the techempower benchmarks?

[benaadams]

It also trims the Send MoveNext from 576 il to 380 il and drops 3 .try blocks, 4 catch, 1 filter and 2 finally

Any idea how this 56 byte async state machine reduction affects the techempower benchmarks?

Alas I am between locations atm, is there a magic incantation you can run? (for sockets)

[davidfowl]

I’ll run it for you

[halter73]

Thanks @davidfowl. I'm not trying to make it harder for you to do free work for us @benaadams. 😄 I was just wondering if you already did your own RPS measurements.

[davidfowl]

Looks like it's within noise range but it does clean up a code a bit (looks nicer).
