Precomputed header bytes by benaadams · Pull Request #367 · aspnet/KestrelHttpServer

benaadams · 2015-11-11T19:12:38Z

Encode all the standard preamble once for all requests

benaadams · 2015-11-11T19:25:12Z

705,348.96 rps -> 1,030,679.42 rps

/cc @davidfowl @halter73

rynowak · 2015-11-11T19:29:35Z

That's some SRS RPS 👍

benaadams · 2015-11-11T19:30:00Z

1,069,312.35 on the 3rd wrk run (with Kestrel warmed up)

benaadams · 2015-11-11T19:38:52Z

If SocketOutput used MemoryPool2 internally and there was a Write(+Async) overload that took (MemoryPoolBlock2 block, int length, ...) and which took ownership of the pooled block (and Released it at write callback); then the copy step at the start of public Task WriteAsync could be skipped for the header preamble.

AspNetSmurfLab · 2015-11-11T21:08:55Z

New numbers from SmurfLab with this PR, up from ~497k previously:

Running 10s test @ http://10.0.0.100:5001/plaintext
  32 threads and 256 connections
  Thread Stats   Avg      Stdev     Max   +/- Stdev
    Latency    10.36ms   23.70ms 316.86ms   93.90%
    Req/Sec    18.86k     3.02k   35.23k    77.74%
  5912136 requests in 10.10s, 744.25MB read
  Socket errors: connect 0, read 0, write 337, timeout 0
Requests/sec: 585370.49
Transfer/sec:     73.69MB

benaadams · 2015-11-11T21:14:14Z

Try non pipelined? I'm also seeing an improvement there.

benaadams · 2015-11-11T21:31:31Z

Added precomputing Http Version bytes also

AspNetSmurfLab · 2015-11-11T22:47:14Z

Wow. With the addition of 371b2ad we break 600K:

Running 10s test @ http://10.0.0.100:5001/plaintext
  32 threads and 256 connections
  Thread Stats   Avg      Stdev     Max   +/- Stdev
    Latency    11.26ms   25.12ms 265.05ms   92.61%
    Req/Sec    19.57k     3.08k   43.89k    82.55%
  6115424 requests in 10.10s, 769.84MB read
  Socket errors: connect 0, read 0, write 300, timeout 0
Requests/sec: 605502.09
Transfer/sec:     76.22MB

AspNetSmurfLab · 2015-11-11T22:48:10Z

And non-pipelined results:

Running 10s test @ http://10.0.0.100:5001/plaintext
  32 threads and 256 connections
  Thread Stats   Avg      Stdev     Max   +/- Stdev
    Latency     1.52ms    1.35ms  56.63ms   96.06%
    Req/Sec     5.68k   667.38     8.41k    83.08%
  1778313 requests in 10.10s, 223.86MB read
  Socket errors: connect 0, read 0, write 552, timeout 0
Requests/sec: 176086.22
Transfer/sec:     22.17MB

benaadams · 2015-11-12T02:16:24Z

Have one last additional item for Server and Date; just need to sort out tests

AspNetSmurfLab · 2015-11-12T03:27:29Z

Latest results, getting higher:

Running 10s test @ http://10.0.0.100:5001/plaintext
  32 threads and 256 connections
  Thread Stats   Avg      Stdev     Max   +/- Stdev
    Latency    10.50ms   23.15ms 230.54ms   92.07%
    Req/Sec    19.83k     2.93k   35.72k    85.37%
  6204867 requests in 10.10s, 781.10MB read
  Socket errors: connect 0, read 0, write 587, timeout 0
Requests/sec: 614363.71
Transfer/sec:     77.34MB

benaadams · 2015-11-12T07:13:40Z

Added Server and Date precomputation; while still allowing swap out/clearing

davidfowl · 2015-11-20T01:59:14Z

Why is this called CopyFromAscii?

Thought that's what you said? CopyAsciiFrom?

Ahh; just the string method?

Add ProducingStart and ProducingComplete methods to ISocketOutput. These new methods can help prevent double buffering when encoding.

benaadams · 2015-11-20T19:31:29Z

Rebased on #410 doing integration now

/cc @halter73

lodejard · 2015-11-20T20:03:37Z

I just filed dotnet/extensions#64 we might want to consider.

It's related to this PR in that it would open a channel from app to server for pre-computed ascii byte[] response headers to be written.

davidfowl · 2015-11-20T21:32:18Z

There's some duplication here with the CopyFrom logic. This looks much cleaner with @halter73 's changes

davidfowl · 2015-11-20T21:34:07Z

Should move these out of frame into a static class? Similar to reason phrases?

Less clutter?

benaadams · 2015-11-20T21:41:35Z

Seem to be spitting out the right length data but in lots of zero bytes; not sure I've integrated right.

halter73 · 2015-11-20T22:37:58Z

This looks good. I was considering making CopyFrom mutate the iterator. I wonder if CopyTo should also mutate for consistency.

Needed to get the count for the count; though I have 27 failing tests I need to work out.

huh? absolutely CopyFrom should mutate the iterator, doesn't it? CopyTo can be changed to match.

ProducingComplete should only take (end), or (begin,end), but not the (count). The SocketOutput knows what to write based on the original tail's iterator returned, and the complete iterator passed in

the count is for bytesPrecompted rather than traversing the iterator to work it out.

The majority of the cases are where the entire response fits in one block, so having SocketOutput call begin.GetLength(end) will just subtract the index integers.

Yep. The count is only to simplify write-behind buffering calculation. We do traverse the blocks and count how many bytes we're actually writing before calling uv_write.

benaadams · 2015-11-21T00:28:55Z

Rebased on SocketOuput changes; fingers crossed for performance

benaadams · 2015-11-21T00:54:37Z

Looks like it might be a good one, a lot of the allocations drop out

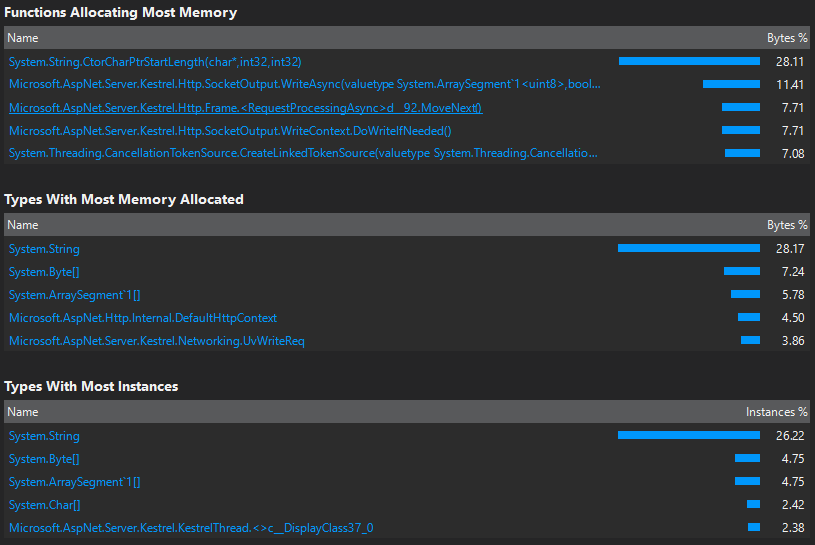

Before

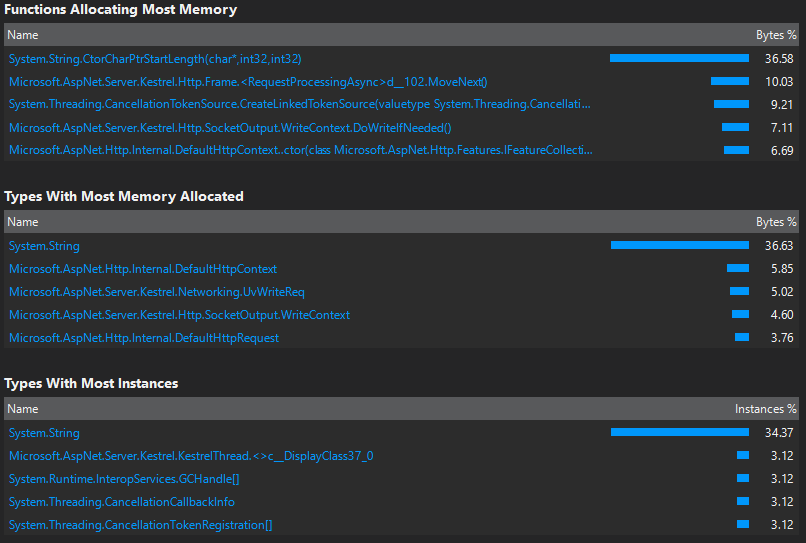

After

benaadams · 2015-11-21T12:48:01Z

RPS isn't great; but CPU is low, so I think there is high lock contention - making some minor adjusts to move work out of the locks.

benaadams · 2015-11-21T15:01:52Z

Reduced the in lock work; but also turned out I had receive side scaling turned off. When I turn that on... Oh my...

  32 threads and 256 connections
  Thread Stats   Avg      Stdev     Max   +/- Stdev
    Latency    11.67ms   34.29ms 657.95ms   90.26%
    Req/Sec    40.62k     4.81k   76.06k    77.62%
  77224953 requests in 1.00m, 9.49GB read
Requests/sec: 1284937.56
Transfer/sec:    161.75MB

Best I've seen in my environment yet

halter73 · 2015-11-23T23:09:41Z

Nice. I'm merging this in now. I plan to make a few more changes, like changing the signature of ProducingComplete to not take a count, but that can be done in another PR.

benaadams · 2015-11-23T23:19:49Z

🏁 time to rebase all the things...
