When the target is scrolled outside of the viewport and the tooltip is constrained to the edge of the window, Chrome's behavior of apparently debouncing window scroll events causes the tooltip position to shift around slightly as the user scrolls. This is a consequence of the absolute positioned tooltip being transformed to appear to be fixed to the viewport edge. To fix this, we detect scenarios where the tooltip is constrained at the viewport edge and the bounds rect is the viewport. In such scenarios, the `position` property of the rendered element is changed from `absolute` to `fixed`, which results in a constant, non-janky style property while the page scroll changes.
Sign up for free
to join this conversation on GitHub.
Already have an account?
Sign in to comment
Add this suggestion to a batch that can be applied as a single commit.
This suggestion is invalid because no changes were made to the code.
Suggestions cannot be applied while the pull request is closed.
Suggestions cannot be applied while viewing a subset of changes.
Only one suggestion per line can be applied in a batch.
Add this suggestion to a batch that can be applied as a single commit.
Applying suggestions on deleted lines is not supported.
You must change the existing code in this line in order to create a valid suggestion.
Outdated suggestions cannot be applied.
This suggestion has been applied or marked resolved.
Suggestions cannot be applied from pending reviews.
Suggestions cannot be applied on multi-line comments.
Suggestions cannot be applied while the pull request is queued to merge.
Suggestion cannot be applied right now. Please check back later.
(Depends on : #62)
Closes: #43
When the target is scrolled outside of the viewport and the tooltip is constrained to the edge of the window, Chrome's behavior of apparently debouncing window scroll events causes the tooltip position to shift around slightly as the user scrolls. This is a consequence of the absolute positioned tooltip being transformed to appear to be fixed to the viewport edge.
To fix this, we detect scenarios where the tooltip is constrained at the viewport edge and the bounds rect is the viewport. In such scenarios, the

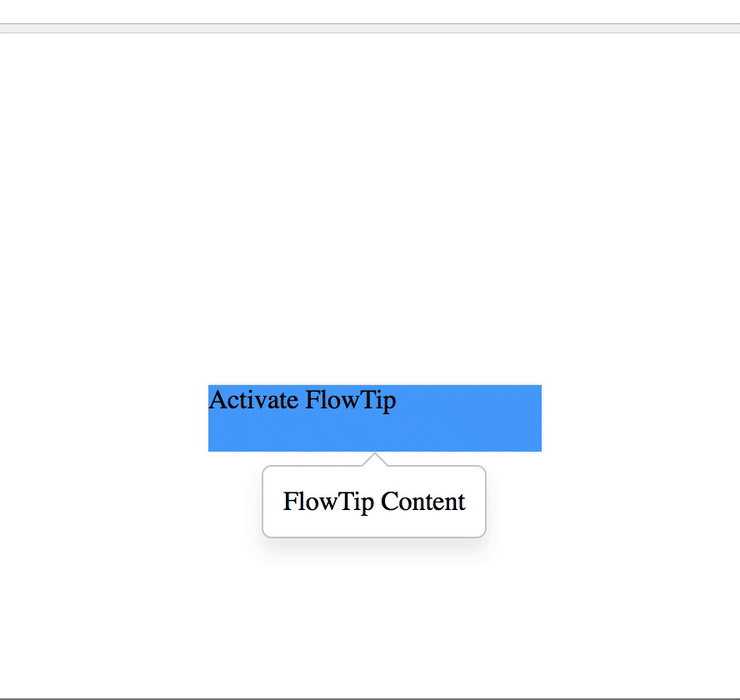

positionproperty of the rendered element is changed fromabsolutetofixed, which results in a constant, non-janky style property while the page scroll changes.Before:

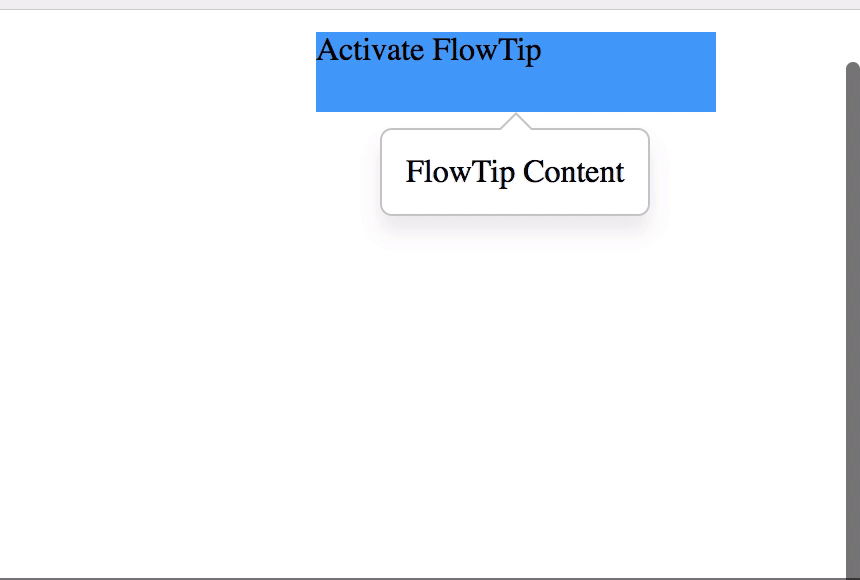

After:
