feat(ecs/network): cloudwatch metrics and dashboard widgets#71

Merged
mskrajnowski merged 19 commits intomasterfrom
feat/ecs-network-dashboards
May 6, 2020
Merged

feat(ecs/network): cloudwatch metrics and dashboard widgets#71
mskrajnowski merged 19 commits intomasterfrom
feat/ecs-network-dashboards

Conversation

@mskrajnowski
Copy link
Collaborator

@mskrajnowski mskrajnowski commented Apr 29, 2020 •
edited
Loading

  • Added ecs/network ALB metrics
    • total requests count
    • request counts by response/error
    • request percentages by response/error
    • target response time stats
    • active/new connection count
    • consumed LCUs
    • traffic in bytes and packets
  • Added ecs/network ALB widgets
    • request counts breakdown by response/error
    • request percentage breakdown by response/error
    • target response time percentiles
    • connections
    • consumed LCUs
    • traffic in bytes or packets
  • Added ecs/network NAT instance metrics
    • CPU utilization stats
    • CPU credit balance counters
    • traffic in bytes and packets
  • Added ecs/network NAT instance widgets
    • CPU utilization
    • CPU credit balance
    • CPU credit usage
    • traffic in bytes or packets
  • Added ecs/network NAT gateway metrics
    • traffic in bytes and packets
    • connection counters
  • Added ecs/network NAT gateway widgets
    • traffic breakdown in bytes or packets
    • active connections
    • connection attempts and their results
  • Forwarded ecs/network metrics and widgets outputs in ecs, so they can be used when you're not using ecs/network directly

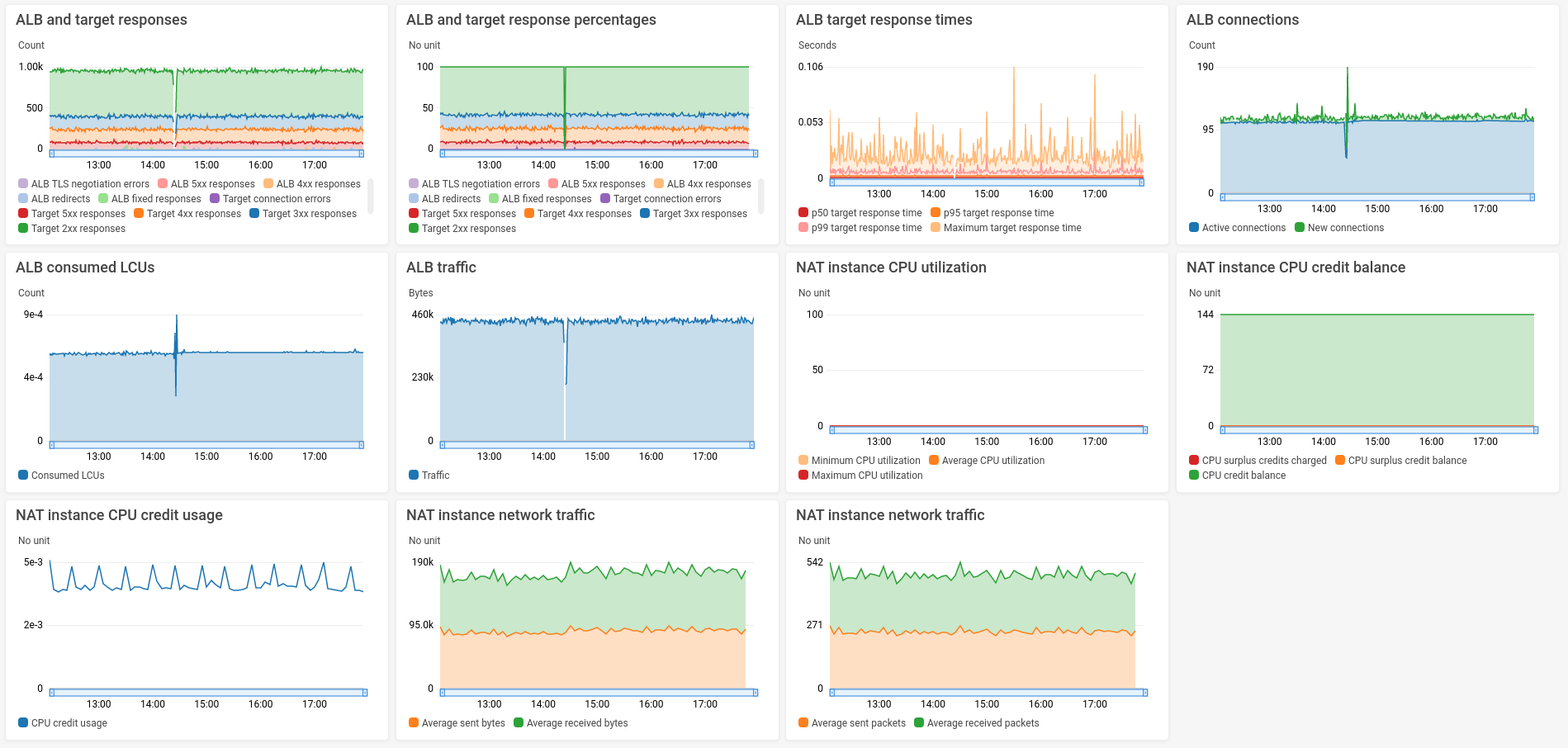

Example NAT instance dashboard

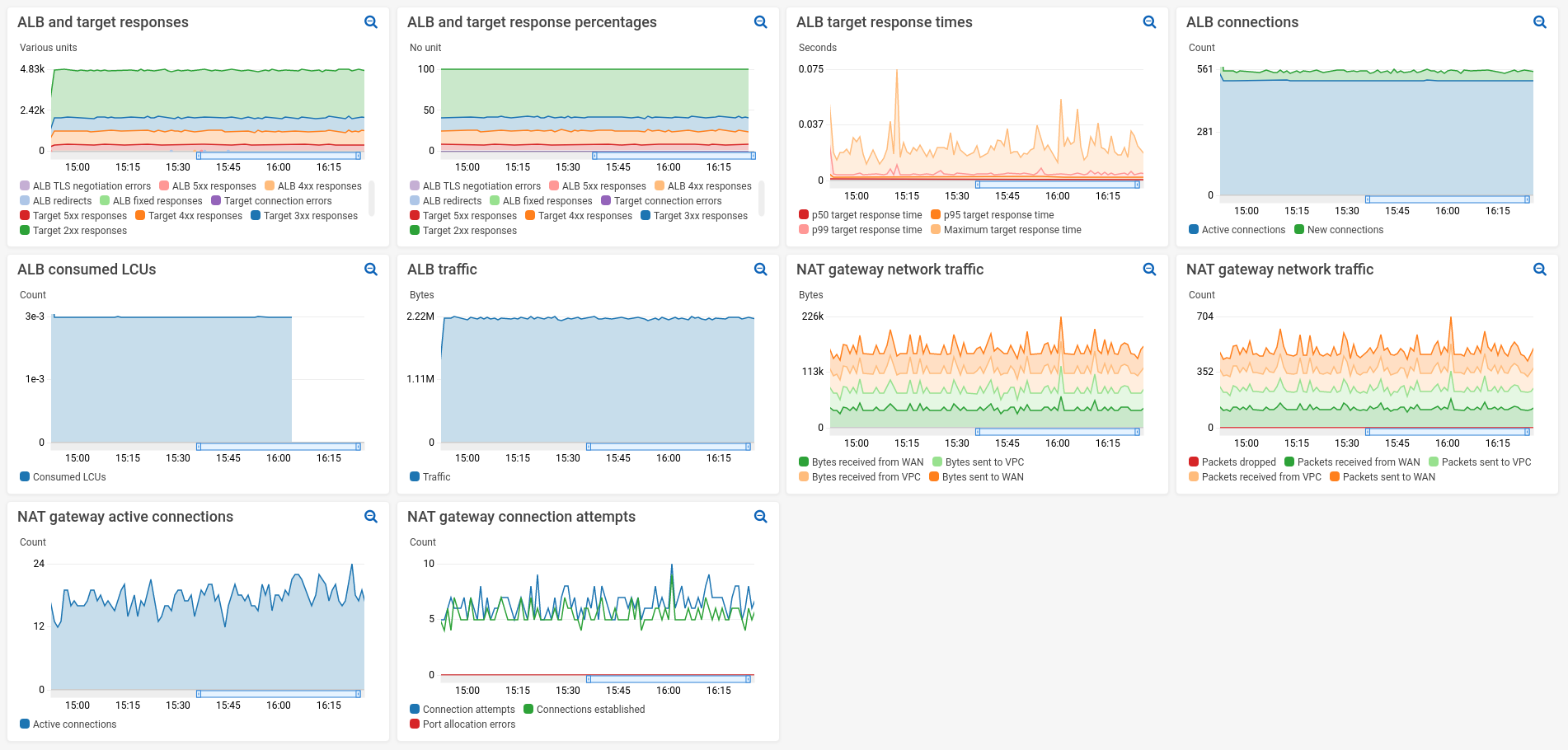

Example NAT gateway dashboard


Related to #43

@mskrajnowski mskrajnowski mentioned this pull request Apr 29, 2020
Merged
2 tasks
@mskrajnowski
Merge branch 'master' into feat/ecs-network-dashboards
1777e4a
@mskrajnowski
refactor(ecs/network): DRYing up request counting metrics with cloudw…
706a0f0
…atch/metric/many module
@mskrajnowski
refactor(ecs/network): DRYing up response time metrics with cloudwatc…
e23783d
…h/metric/many
@mskrajnowski
feat(ecs/network): nat instance cpu metrics and widgets
d549420
@mskrajnowski
fix(ecs/network): NAT instance average cpu utilization metric label a…
1385fcd
…nd color
@mskrajnowski
feat(ecs/network): NAT instance network traffic metrics and widgets
ba9161c
@mskrajnowski
docs(ecs): added a simple locustfile to easily generate some traffic …
7a65b86
…to example cluster
@mskrajnowski
feat(ecs/network): removed NAT instance average IO metrics
b6678e4
@mskrajnowski
feat(ecs/network): NAT gateway IO metrics and widgets
0419fb7
@mskrajnowski
feat(ecs/network): NAT gateway dropped packets metric
3aa3859
@mskrajnowski
refactor(ecs/network): renamed NAT gateway widgets
2cac022
@mskrajnowski
feat(ecs/network): NAT gateway connection metrics and widgets
c5bd5d0
@mskrajnowski
fix(ecs/network): NAT gateway connections established metric showing …
e2e9c7f
…attempts instead
@mskrajnowski
docs(ecs): revert to using NAT instances in the example
693d7a4
@mskrajnowski mskrajnowski force-pushed the feat/ecs-network-dashboards branch from c9ee77a to 693d7a4 Compare April 30, 2020 16:32
@mskrajnowski mskrajnowski marked this pull request as ready for review May 4, 2020 09:19
@mskrajnowski mskrajnowski changed the title feat(ecs/network): Cloudwatch metrics and dashboard widgets feat(ecs/network): cloudwatch metrics and dashboard widgets May 4, 2020
@mskrajnowski mskrajnowski requested a review from karwer May 4, 2020 09:32
@mskrajnowski mskrajnowski mentioned this pull request May 4, 2020
Open
8 tasks
@mskrajnowski mskrajnowski linked an issue May 4, 2020 that may be closed by this pull request
Add preconfigured monitoring dashboards #43
Open
8 tasks
@mskrajnowski mskrajnowski removed a link to an issue May 4, 2020
Add preconfigured monitoring dashboards #43
Open
8 tasks
@mskrajnowski mskrajnowski merged commit 88a0b82 into master May 6, 2020
@mskrajnowski mskrajnowski deleted the feat/ecs-network-dashboards branch May 6, 2020 10:05
