Compute hashes in parallel in GetFileHash by pranavkm · Pull Request #5303 · dotnet/msbuild

pranavkm · 2020-04-21T00:36:07Z

Based on investigations here: dotnet/aspnetcore#21021.

Hashes produced by GetFileHash can be calculated in parallel. This scales better for larger number of files. Some before and after with this change:

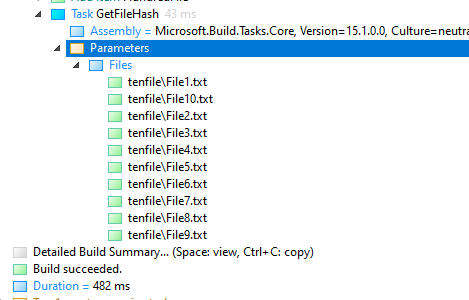

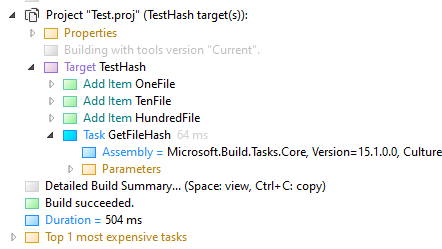

10 files

Before

After

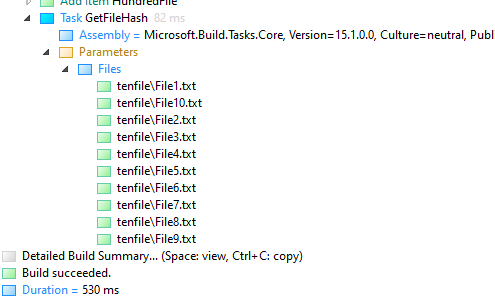

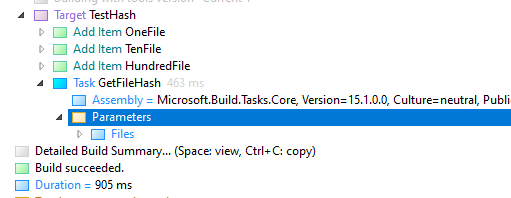

100 files

Before

After

In addition, this PR has a few more cleanups as suggested here by @bartonjs dotnet/aspnetcore#21021 (comment)

ladipro

Hi @pranavkm, in your benchmark what portion of the time went into waiting for I/O versus actual hash computation? If the files were cached in memory and the task was CPU-bound, I'm worried that this may interfere with higher level MSBuild scheduling, lead to overcommitment, and even degrade the performance in some scenarios.

src/Tasks/FileIO/GetFileHash.cs

ladipro · 2020-04-21T09:44:34Z

src/Tasks/FileIO/GetFileHash.cs

-                var hash = ComputeHash(Algorithm, file.ItemSpec);
+                var file = Files[index];
+                var hash = ComputeHash(algorithmFactory, file.ItemSpec);
                file.SetMetadata("FileHashAlgorithm", Algorithm);


This call doesn't appear to be thread safe. You should do it under a lock or defer setting the metadata to after the parallel loop.

There isn't any new concurrency introduced inside the body of the loop. The body of the Parallel.For is invoked exactly once for each index, you wouldn't have multiple threads processing the same ITaskItem concurrently. The only way this would be problematic is if ITaskItem[] does not allow calling methods on different items concurrently, but I'm not sure how you'd have that.

I was thinking about duplicate items in the Files array but haven't succeeded in reproducing this. We may always wrap items with unique instances in which case this would indeed be safe. But it sure feels like an unnecessarily brittle invariant to rely on.

It wouldn't be incorrect to take out duplicates right?

Should be fairly easily to extract changing the array out if you think it's necessary. Let me know and I'll update accordingly.

Team triage: Ladi has successfully scared Rainer about this. Please do extract the SetMetadata outside the Parallel.For. To avoid problems with duplicates, probably store in an array and go by index rather than a dictionary of Include strings or something.

pranavkm

in your benchmark what portion of the time went into waiting for I/O versus actual hash computation? If the files were cached in memory and the task was CPU-bound,.

I haven't had a chance to profile the invocation of the task and I've very little familiarity trying to profile I/O bound work. Do you have some suggestions on how I could try this?

I'm worried that this may interfere with higher level MSBuild scheduling, lead to overcommitment, and even degrade the performance in some scenarios

How would one test this?

src/Tasks/FileIO/GetFileHash.cs

pranavkm · 2020-04-21T15:24:33Z

src/Tasks/FileIO/GetFileHash.cs

-                var hash = ComputeHash(Algorithm, file.ItemSpec);
+                var file = Files[index];
+                var hash = ComputeHash(algorithmFactory, file.ItemSpec);
                file.SetMetadata("FileHashAlgorithm", Algorithm);


There isn't any new concurrency introduced inside the body of the loop. The body of the Parallel.For is invoked exactly once for each index, you wouldn't have multiple threads processing the same ITaskItem concurrently. The only way this would be problematic is if ITaskItem[] does not allow calling methods on different items concurrently, but I'm not sure how you'd have that.

ladipro · 2020-04-21T21:28:46Z

As for testing I/O vs. CPU, I'd try building a simple project that just computes hashes of large files and compare the cold (freshly booted machine) and hot (project already built a couple of times, files are cached) build times. Thanks!

src/Tasks/FileIO/GetFileHash.cs

Forgind · 2020-04-23T23:16:56Z

(Pending performance checks.)

pranavkm · 2020-04-23T23:21:40Z

I've been a little busy this week, I'll try and get some numbers over the weekend.

pranavkm · 2020-04-27T21:26:01Z

Updated. @ladipro I tried your suggestion for cold versus warm builds, but I see very little variance in the numbers once a project gets built. I tested this on a disk drive (not SSD), my guess is that IO is cached after an initial read. Some more numbers from my local tests in case they're interesting:

File does not exist

Before (100 files, 4k each)

File at start:
47 ms GetFileHash 1 calls

File at end:
48 ms GetFileHash 1 calls

After (100 files, 4k each)

File at start:
50 ms GetFileHash 1 calls

File at end:
55 ms GetFileHash 1 calls

All files exist (5 files, 4kb each)

Before

42 ms GetFileHash 1 calls

After

43 ms GetFileHash 1 calls

All files exist (100 files, 4kb each)

Before

49 ms GetFileHash 1 calls

After

46 ms GetFileHash 1 calls

All files exist (5 files, 200 kb each)

Before

47 ms GetFileHash 1 calls

After

44 ms GetFileHash 1 calls

All files exist (100 files, 200 kb each)

Before

132 ms GetFileHash 1 calls

After

61 ms GetFileHash 1 calls

I tested this on an MSBuild built locally in Release configuration with and without my changes. Using the one in the SDK gives very different results (including time to start being quicker). I suspect that's because it's been ngened

ladipro

Thank you for the numbers! I'd probably still extract the calls outside the parallel loop instead of locking. The way it's written now you're locking on a public object so you never know who else may be holding it.

ladipro · 2020-04-28T06:34:00Z

src/Tasks/FileIO/GetFileHash.cs

+                var hash = ComputeHash(algorithmFactory, file.ItemSpec);
+                var encodedHash = EncodeHash(encoding, hash);
+
+                lock (file)


nit: Locking on public objects should generally be avoided.

Fixed to use a dedicated write lock.

ladipro

Thank you!

src/Tasks/FileIO/GetFileHash.cs

Co-Authored-By: Rainer Sigwald <raines@microsoft.com>

Forgind · 2020-04-29T22:38:09Z

Thank you!
