Removed scope pooling and added diagnostics

[davidfowl]

• The ConcurrentQueue showed a 48% regression on AMD scenarios and a 4% regression on citrine
  linux.
• Added event source event to determine how many scopes services and disposable services are resolved

Fixes dotnet/aspnetcore#31703

Citrine:

1,950,852  -> 2,020,030

AMD

1,975,517-> 3,986,695

[ghost]

Tagging subscribers to this area: @eerhardt, @maryamariyan
See info in area-owners.md if you want to be subscribed.

Issue Details

---

• The ConcurrentQueue showed a 48% regression on AMD scenarios and a 4% regression on citrine
  linux.
• Removed interface dispatch on clear

Fixes dotnet/aspnetcore#31703

Author:	davidfowl
Assignees:	-
Labels:	area-Extensions-DependencyInjection
Milestone:	-

[davidfowl]

Unfortunately this regresses #47607

cc @sebastienros

[jkotas]

As we have discussed offline, the pooling here has problems that include regressing performance of heteregenous services that process requests with varying number of services, or increasing GC pause times due to introducing Gen2 -> Gen0 references.

I am sorry I cannot signoff on this change. I believe that the use of pooling here is a bad idea and it should be reverted.

Feel free to overrule me and get somebody else to sing-off on it.

[davidfowl]

Thanks for the feedback @jkotas, my take is that infrastructure shouldn't cost more than the work it's supporting. The change was motivated by the fact that orchard pays for the overhead of DI as being the top allocation.

I think I've struck a reasonable balance based on your feedback and have adjusted numbers appropriately. I think one last tweak would be to tweak the maximum capacity so the worst case behavior of completely heterogeneous scopes is reasonable (but I think that scenario is more rare). In a typical ASP.NET Core app, the scopes are per request and are similar in size. The trick here is to find limit that cover reasonable size apps but don't harm other use cases. I think ~50 scoped services and a max of 100 initialCapacity is good for this (I will change the current numbers).

[davidfowl]

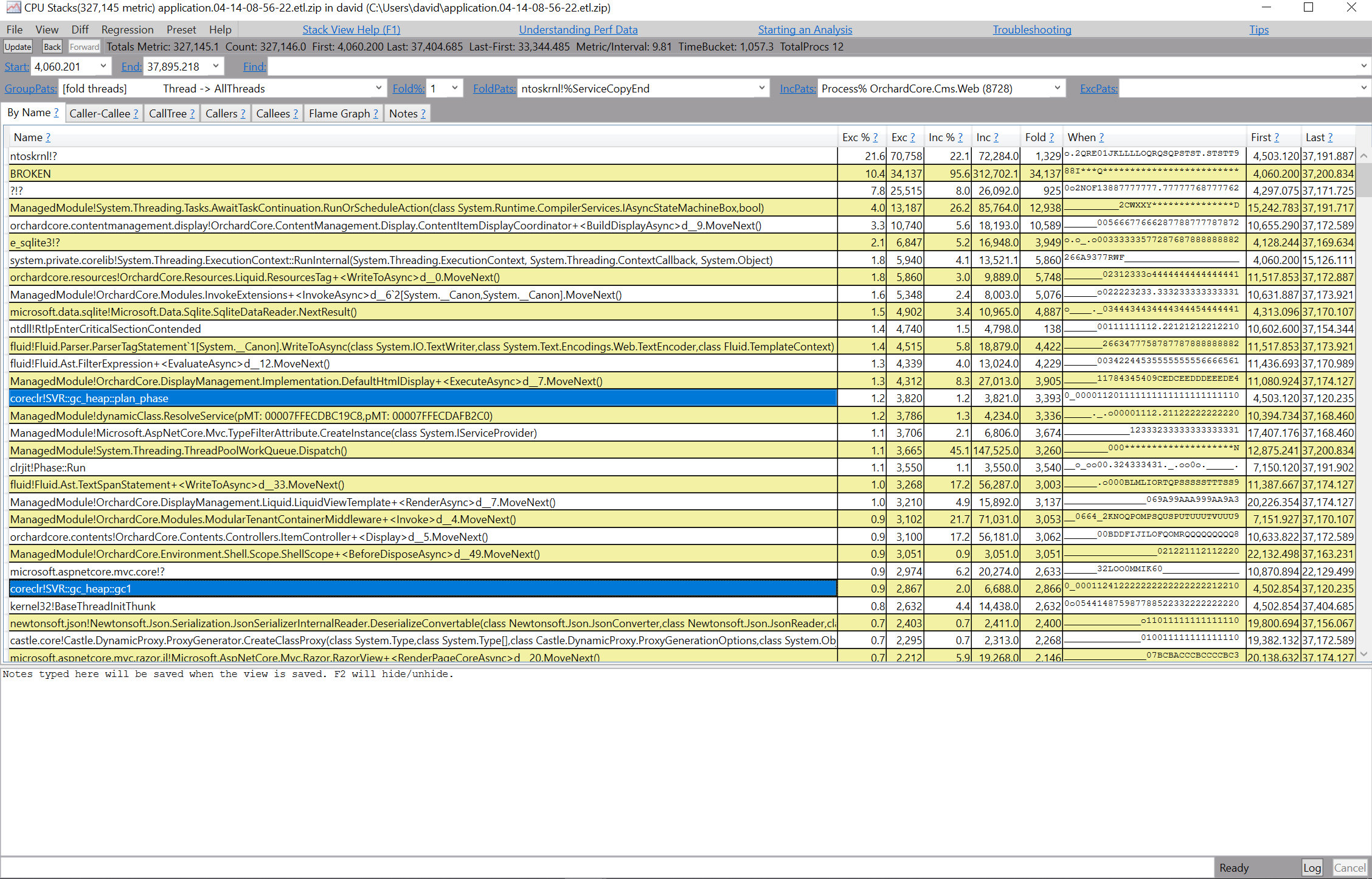

OK I did a bunch of work here to figure out if the GC is a problem in the original issue where this was filed. Initially there was an allocation profile only but without a matching CPU profile or GC trace to see whether it made sense to remove allocations. A CPU profile on the same benchmark shows this:

There's 1.8% spent in the gc1 function (I have no idea what this does specifically cc @Maoni0).

1.8% isn't the end of the world in the grand scheme of things but orchard allocates a crapload of things per request and we started to look at reducing this and DI is one of the top allocations (see #47607). It's possible that orchard is "mis-uing" DI but this felt like something we should try to tackle. If that helps with the motivation.

[jkotas]

There's 1.8% spent in the gc1 function

Does this pooling change actually decrease time spent in the GC? The Gen2 -> Gen0 references that this pooling introduces add more work that the GC has to do. It is not obvious to me that the reduced allocation will pay for this extra work.

[davidfowl]

Does this pooling change actually decrease time spent in the GC? The Gen2 -> Gen0 references that this pooling introduces add more work that the GC has to do. It is not obvious to me that the reduced allocation will pay for this extra work.

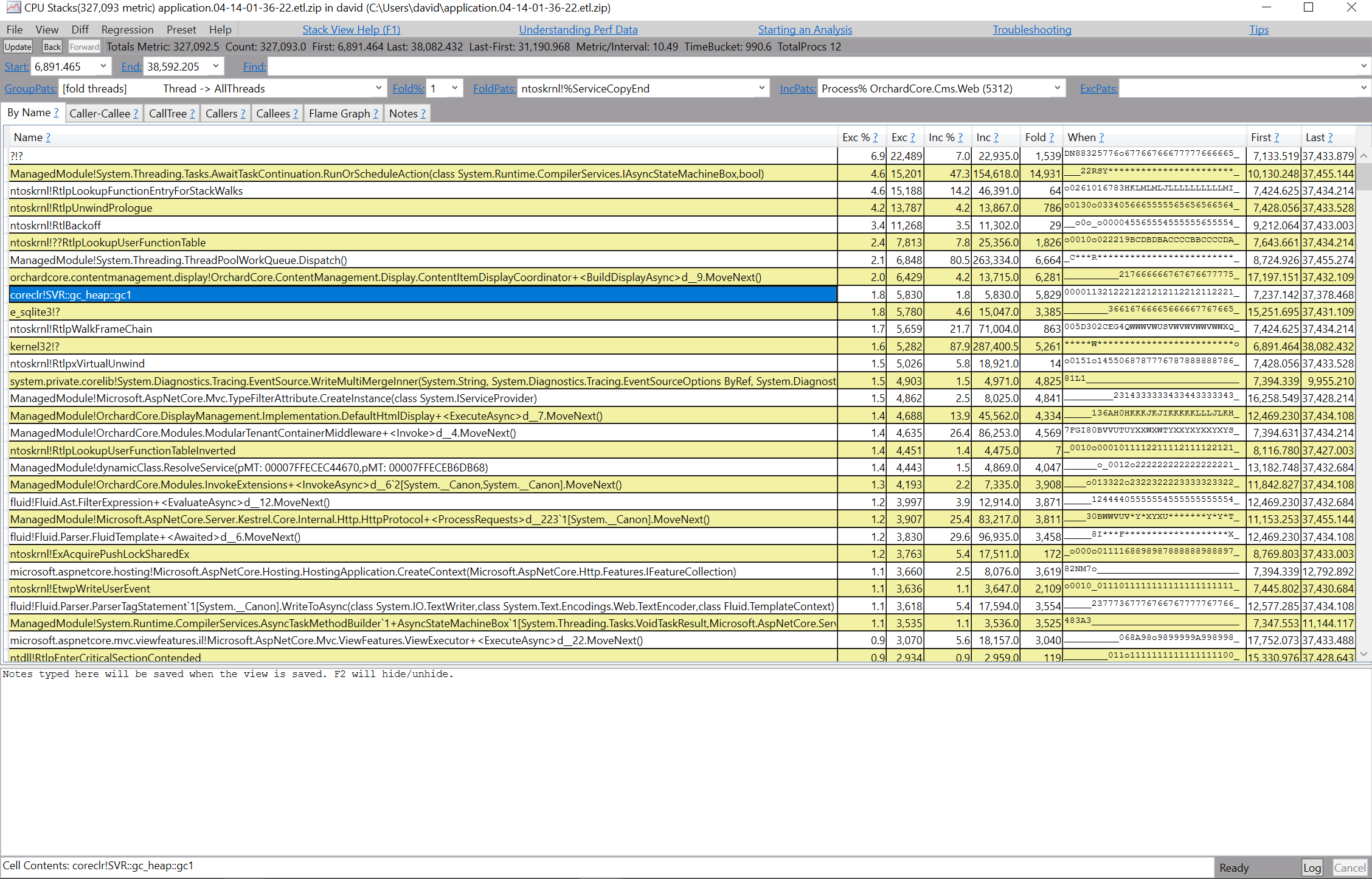

Looks worse, the number of requests isn't exactly the same, but the time looks split now between the plan phase and gc1

[davidfowl]

I removed the pooling and am currently testing out this change that keeps track of the maximum number of services resolved per scope (up to some limit).

[Maoni0]

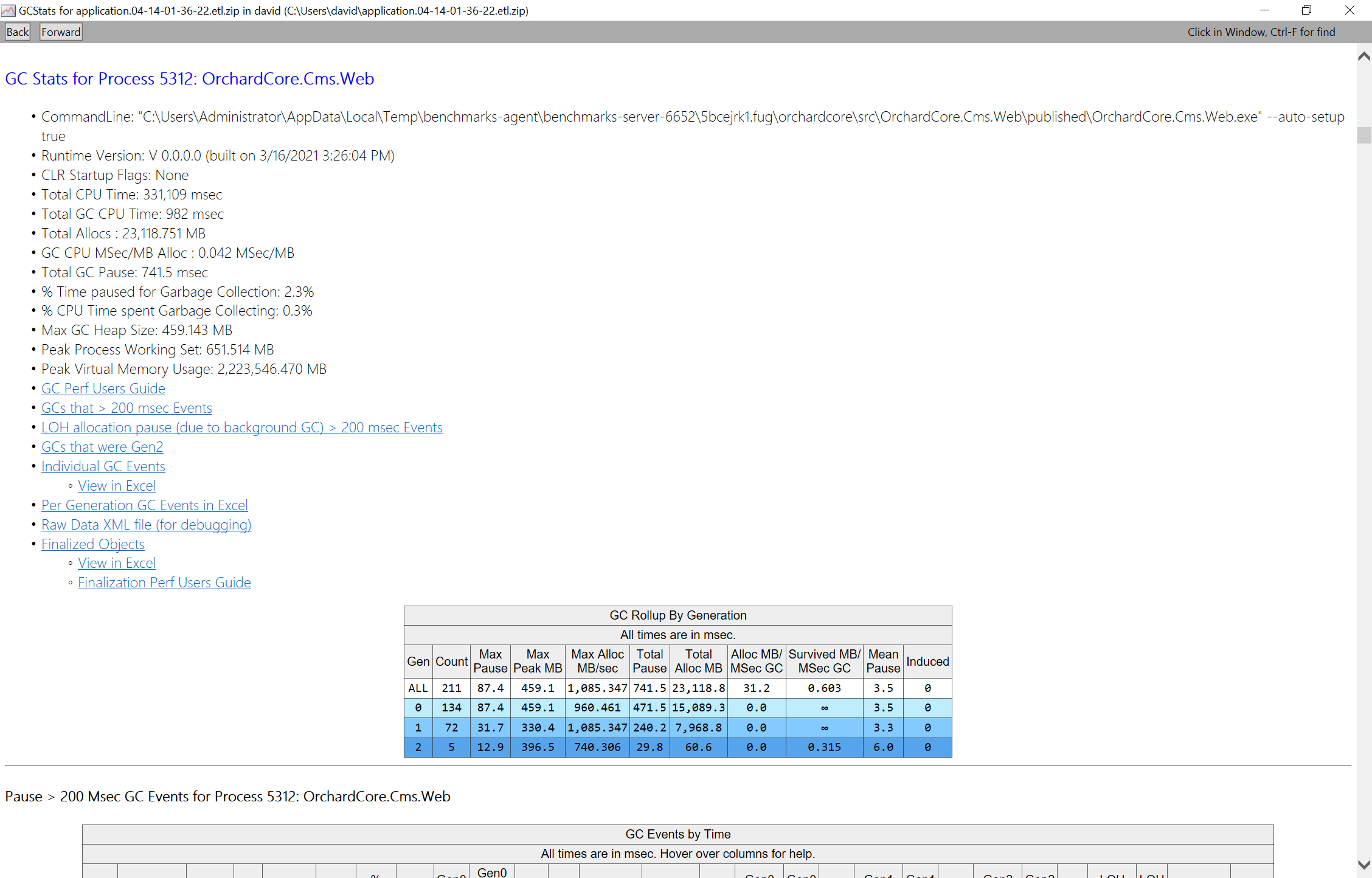

@davidfowl the profiles you showed seem odd... gc1 is the method that actually does the GC internal work and it mostly just calls other methods (that aren't inlined) so you'd see exc is usually 0 and inc is some non zero number. but yours just show the same for both... you might want to expand it callees and see what's up.

if you want to see how much work GC is doing due to the generational aspect, ie, marking objects because they are held live by objects in the generations that aren't getting collecting, this explains how to do that.

[eerhardt]

LGTM - I like that we have the ability to get more information from the system now. It should help in diagnosis in the future.

[davidfowl]

LGTM - I like that we have the ability to get more information from the system now. It should help in diagnosis in the future.

Ran it on orchard:

HasStack="True" ThreadID="18,635" ProcessorNumber="0" serviceProviderHashCode="32,961,781" scopedServicesResolved="209" disposableServices="7"
HasStack="True" ThreadID="18,619" ProcessorNumber="0" serviceProviderHashCode="32,961,781" scopedServicesResolved="209" disposableServices="7"
HasStack="True" ThreadID="18,635" ProcessorNumber="0" serviceProviderHashCode="53,813,228" scopedServicesResolved="0" disposableServices="0"

[davidfowl]

Thanks for all the feedback folks! I learned alot

[davidfowl]

@Maoni0 I still have the traces so I'll spend some time looking at them and let you know what I find.

[gfoidl]

let you know what I find.

Please do this here (I'd like to learn too...)
