TaskSources register tasks with MessageLoopTaskQueues dispatcher #25307

iskakaushik · 2021-03-30T18:03:39Z

Task Source

Introduces a notion of a TaskSource. TaskSource provides the task dispatcher (MessageLoopTaskQueues) an abstraction to obtain the next task to run. TaskSources as implemented in the PR have two managed task heaps. kPrimary and kSecondary task heaps. When registering a task with the task dispatcher, we provide a way to specify whether the task is for the kPrimiary or kSecondary task heap. Secondary heaps can be paused and resumed.

Usage

During a frame workload, on vsync, we pause the secondary heap on the UI thread's task source. This is later resumed on the completion of the frame build process.
As a part of this change, all the HandleMessage calls on a dart isolate are also serviced by the secondary heap of the UI thread's task source.

This makes it so that all non-frame build related events on the UI threads are paused on vsync and we re enable them only when the frame gets built. See: go/flutter-engine-task-prioritization.

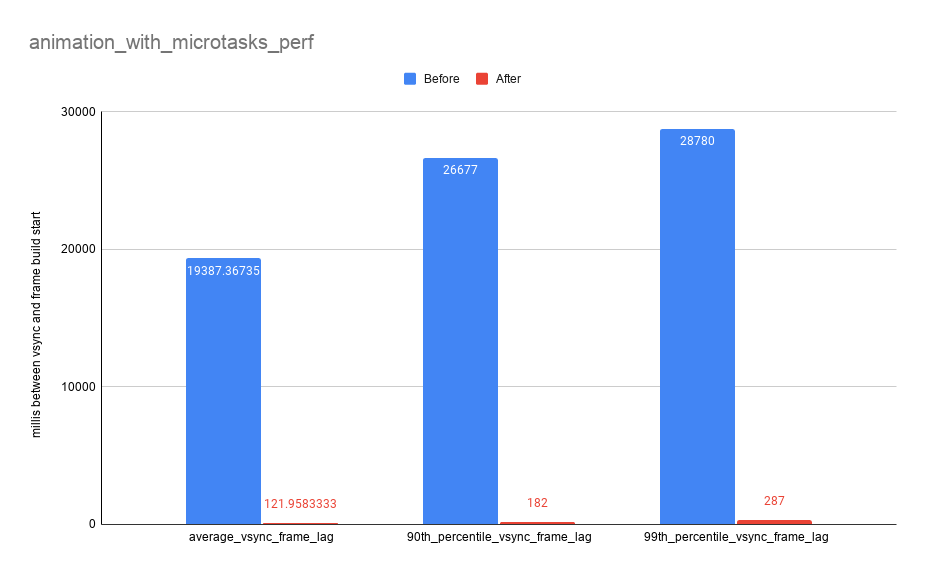

Benchmarks

lands the framework to address: flutter/flutter#69694

flutter-dashboard · 2021-03-30T18:03:41Z

It looks like this pull request may not have tests. Please make sure to add tests before merging. If you need an exemption to this rule, contact Hixie on the #hackers channel in Chat.

If you are not sure if you need tests, consider this rule of thumb: the purpose of a test is to make sure someone doesn't accidentally revert the fix. Ask yourself, is there anything in your PR that you feel it is important we not accidentally revert back to how it was before your fix?

Reviewers: Read the Tree Hygiene page and make sure this patch meets those guidelines before LGTMing.

iskakaushik · 2021-03-30T18:06:50Z

@chinmaygarde this PR is mostly ready, I still need to write tests for this, wanted to get your take on this before I go ahead with it.

chinmaygarde

This is extremely compelling stuff. I did an initial pass over the interface with some suggestions for your consideration. Looking at the implementation in detail now. Thanks!

fml/task_source.h

fml/task_queue_id.h

fml/task_source.h

chinmaygarde · 2021-04-12T18:53:09Z

fml/task_source.h

+
+  void Clear();
+
+  void RegisterTask(TaskSourceGrade grade, DelayedTask&& task);


Can DelayedTask have its copy ctor disabled? We can then remove the && and ensure that it is impossible to have unnecessary copies.

I tried doing this, looks like using a priority queue without a copy constructor is non-trivial. Will attempt doing this in a future PR.

fml/task_source.h

chinmaygarde

This is so awesome.

chinmaygarde · 2021-04-15T22:04:08Z

fml/task_source.cc

+  switch (task.GetTaskSourceGrade()) {
+    case TaskSourceGrade::kUserInteraction:
+      primary_task_queue_.push(task);
+      break;


Nit: Here and later, you can use [[fallthrough]] if the compiler troubles you about the missing break. You call though.

DartHandle messages will be held

1. Add tests for TaskSource 2. Add docs for TaskSource 3. Get existing failing tests to pass

iskakaushik · 2021-04-19T14:19:32Z

@chinmaygarde I've noticed a couple of assumptions in the profiler initialization code that prevents us from pausing the micro task queue on vsync start. We have to do it after the first frame renders. I'm landing the changes to the task management as done in this PR. I will address these issues (in a much smaller patch) in a follow-up PR.

…her (flutter/engine#25307)

Fixes: flutter/flutter#69694 See: flutter#25307 (comment)

…her (flutter/engine#25307)

chinmaygarde · 2021-04-19T20:22:06Z

I'm landing the changes to the task management as done in this PR.

SGTM.

This is because tests don't really wait for vsync to complete Fixes: flutter/flutter#69694 See: flutter#25307 (comment)

zanderso · 2021-04-20T16:31:12Z

Does this also close flutter/flutter#69694?

This is because tests don't really wait for vsync to complete Fixes: flutter/flutter#69694 See: flutter#25307 (comment)

iskakaushik · 2021-04-20T16:32:07Z

@zanderso not yet, this lands the framework to prioritize tasks. I did not prioritize the tasks just yet. That's WIP at #25653.

This is because tests don't really wait for vsync to complete Fixes: flutter/flutter#69694 See: flutter#25307 (comment)

…her (flutter#25307)" This reverts commit f2f09b6.

…tter#25307)
