Conversation

@bdero
Copy link
Member

@bdero bdero commented Aug 13, 2022

Currently the perspective transform assumes OpenGL's NDC depth range of -1 to 1. This patch switches to Metal/Vulkan's range of 0 to 1.

For GLES, the compiler is already emitting the appropriate clip space conversion. For example, when given the following vertex shader as input...

void main() {
  gl_Position = vert_info.mvp * vec4(position, 1.0);
}

...the compiler emits the following when targeting GLES:

void main()
{
    gl_Position = vert_info.mvp * vec4(position, 1.0);
    gl_Position.z = 2.0 * gl_Position.z - gl_Position.w;
}

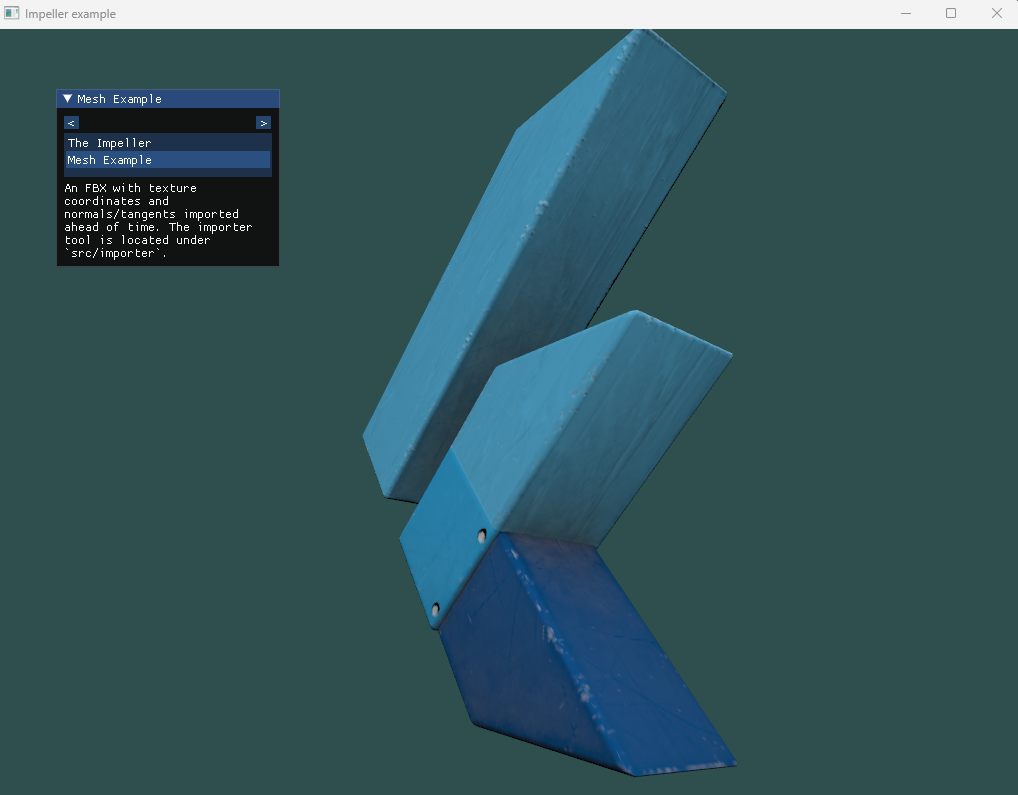

Noticed this problem in impeller-cmake-example.


@bdero bdero self-assigned this Aug 13, 2022
@bdero bdero force-pushed the bdero/perspective-clip-space branch 2 times, most recently from 58de5c4 to 8171ce5 Compare August 14, 2022 07:41
@bdero bdero requested review from chinmaygarde and dnfield August 14, 2022 12:01
@bdero bdero force-pushed the bdero/perspective-clip-space branch from 8171ce5 to 02f7dd9 Compare August 15, 2022 09:40
@chinmaygarde
Copy link
Contributor

For GLES, the compiler is already emitting the appropriate clip space conversion.

Thats because of this option.
