vmware: Support cloud-init datasource GuestInfo

[akutz]

How to categorize this PR?

/kind enhancement
/area os
/os garden-linux

What this PR does / why we need it:
This patch adds support for the Cloud-Init Datasource, VMwareGuestInfo, to the VMware image. The files in this commit were copied from release v1.4.1 of the datasource from https://github.com/vmware/cloud-init-vmware-guestinfo.

The datasource has a dependency on the netifaces library, and so the package python3-netifaces was added to the package file for the vmware image.

The patch was verified by:

1. Building the VMware image:

   make vmware

2. Verifying the cloud-init datasource's files were copied into the image correctly:

   $ tar vtf .build/vmware/20210718/amd64/bullseye/rootfs.tar.xz | grep 'DataSourceVMware\|dscheck_VMware'
   -rw-rw-r-- 0/0             549 2021-07-18 00:00 etc/cloud/cloud.cfg.d/99-DataSourceVMwareGuestInfo.cfg
   -rwxr-xr-x 0/0            2078 2021-07-18 00:00 usr/bin/dscheck_VMwareGuestInfo.sh
   -rw-rw-r-- 0/0           25937 2021-07-18 00:00 usr/lib/python3/dist-packages/cloudinit/sources/DataSourceVMwareGuestInfo.py

   Please note the file dscheck_VMwareGuestInfo.sh maintains its necessary, executable permissions.

3. Verifying the python3-netifaces package was installed correctly:

   $ tar vtf .build/vmware/20210718/amd64/bullseye/rootfs.tar.xz | grep 'netifaces'
   drwxr-xr-x 0/0               0 2021-07-18 00:00 usr/lib/python3/dist-packages/netifaces-0.10.9.egg-info/
   -rw-r--r-- 0/0           10291 2020-12-08 01:16 usr/lib/python3/dist-packages/netifaces-0.10.9.egg-info/PKG-INFO
   -rw-r--r-- 0/0               1 2020-12-08 01:16 usr/lib/python3/dist-packages/netifaces-0.10.9.egg-info/dependency_links.txt
   -rw-r--r-- 0/0              10 2020-12-08 01:16 usr/lib/python3/dist-packages/netifaces-0.10.9.egg-info/top_level.txt
   -rw-r--r-- 0/0               1 2018-05-02 09:15 usr/lib/python3/dist-packages/netifaces-0.10.9.egg-info/zip-safe
   -rw-r--r-- 0/0           23104 2020-12-08 01:16 usr/lib/python3/dist-packages/netifaces.cpython-39-x86_64-linux-gnu.so
   drwxr-xr-x 0/0               0 2021-07-18 00:00 usr/share/doc/python3-netifaces/
   -rw-r--r-- 0/0            1451 2018-04-02 20:08 usr/share/doc/python3-netifaces/copyright
   -rw-r--r-- 0/0             736 2021-07-18 00:00 var/lib/dpkg/info/python3-netifaces.list
   -rw-r--r-- 0/0             852 2020-12-08 01:16 var/lib/dpkg/info/python3-netifaces.md5sums

Which issue(s) this PR fixes:
Fixes NA

Special notes for your reviewer:

• This PR was initiated in conjunction with @marwinski .
• Please note this patch could be implemented by leveraging features/vmware/exec.confg instead of copying static files. This is the process used by the kube-image-builder project. However, a network-based, dynamic install is less deterministic than copying a few static files, so the latter method was used.
• Additionally, I initially had several issues building the image locally in a Linux VM. The root cause ended up being insufficient RAM for the VM. It had 4GiB, and I had to increase it to 8GiB for the image to build successfully.

Release note:

Support for the Cloud-Init datasource VMwareGuestInfo in the VMware image

[ghost]

@akutz Thank you for your contribution.

[marwinski]

Thanks @akutz! Are you sure this does will break the existing vSphere 7.0 use case?

[akutz]

Thanks @akutz! Are you sure this does will break the existing vSphere 7.0 use case?

Are you asking if I'm sure this won't break the existing 7.0 image?

If so, then no, I've not tested the image. You should do that yourself prior to merging this PR. What I am sure of is this PR solves the issue encountered with the cloud-init userdata example provided in that e-Mail thread.

[marwinski]

We haven't checked VMwareGuestInfo yet.

[marwinski]

we had to rename features/vmware/file.include/usr/bin/dscheck_VMwareGuestInfo.sh to features/vmware/file.include/usr/bin/dscheck_VMwareGuestInfo. With this it worked for both environments.

[akutz]

we had to rename features/vmware/file.include/usr/bin/dscheck_VMwareGuestInfo.sh to features/vmware/file.include/usr/bin/dscheck_VMwareGuestInfo. With this it worked for both environments.

Ack. I'll submit the changes to the PR ASAP

[ghost]

@akutz You have pull request review with status CHANGES_REQUESTED, please check

[akutz]

Both changes are now applied. Please note that this datasource will become a standard part of cloud-init in 21.3 (canonical/cloud-init#953).

[CLAassistant]

All committers have signed the CLA.

[marwinski]

Hi @akutz. Thanks for the changes and sorry for the delay. We would like to include this in the upcoming Garden Linux release next week. Could you sign the contributor license agreement so that we can go ahead. Thanks.

[akutz]

Hi @akutz. Thanks for the changes and sorry for the delay. We would like to include this in the upcoming Garden Linux release next week. Could you sign the contributor license agreement so that we can go ahead. Thanks.

Done and done!

[akutz]

FYI @marwinski, I'm not sure on which Debian release Gardener Linux is based, but Debian Bookworm and Sid both have Cloud-Init v21.3. Since Bookworm is the next release for Debian, I imagine you will be able to take advantage of the Cloud-Init DataSource for VMware soon.

[akutz]

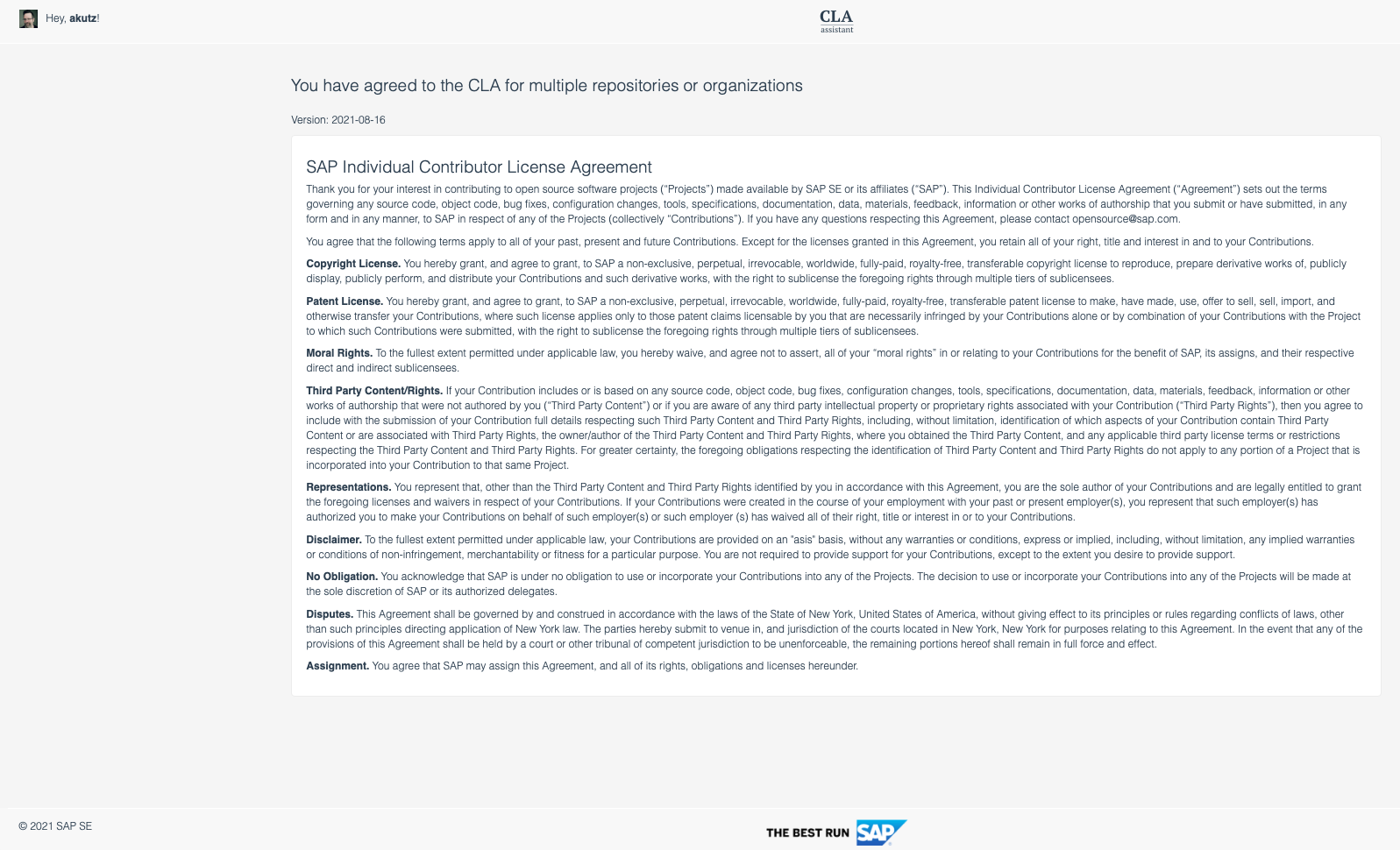

@marwinski The GitHub check above says I've not yet signed the CLA when I clearly have signed the CLA:
