Add missing inference support for GPTNeoXForCausalLM (Pythia and GPT-NeoX base models) by fairydreaming · Pull Request #7461 · ggml-org/llama.cpp

fairydreaming · 2024-05-22T12:24:01Z

This pull request adds missing pieces to support inference for GPT-NeoX-based models like the GPT-NeoX and the Pythia family. Fixes #742. It also adds model types for all Pythia model sizes.
Added use_par_res hparams field corresponds to the use_parallel_residual parameter from config.json.

…e models).

ggerganov · 2024-05-22T13:13:59Z

Tested with https://huggingface.co/EleutherAI/pythia-1.4b/tree/main

Seems to work. PPL on wiki.test is 12.8692 +/- 0.09260:

./perplexity -m models/pythia-1b/ggml-model-f16.gguf -f build/wikitext-2-raw/wiki.test.raw

I guess it's normal for 1.4B model that is 1 year old. Thanks for implementing this

fairydreaming · 2024-05-22T13:18:59Z

It seems that the perplexity is a little higher compared to the HF transformers implementation because there are differences in tokenization output between llama.cpp and GPTNeoXTokenizerFast.
Edit: It looks that there are differences in dataset files that I used for measuring perplexity for transformers and llama.cpp, will have to recheck.

github-actions · 2024-05-22T13:37:40Z

📈 llama.cpp server for bench-server-baseline on Standard_NC4as_T4_v3 for phi-2-q4_0: 537 iterations 🚀

Expand details for performance related PR only

Concurrent users: 8, duration: 10m
HTTP request : avg=8705.59ms p(95)=22299.26ms fails=, finish reason: stop=480 truncated=57
Prompt processing (pp): avg=103.68tk/s p(95)=455.27tk/s
Token generation (tg): avg=31.86tk/s p(95)=47.22tk/s
ggml-org/models/phi-2/ggml-model-q4_0.gguf parallel=8 ctx-size=16384 ngl=33 batch-size=2048 ubatch-size=256 pp=1024 pp+tg=2048 branch=gpt-neox commit=7e171de882ca16fbd75f72d7d1dd4afef75c04d6

More

---
config:
    xyChart:
        titleFontSize: 12
        width: 900
        height: 600
    themeVariables:
        xyChart:
            titleColor: "#000000"
---
xychart-beta
    title "llama.cpp bench-server-baseline on Standard_NC4as_T4_v3
 duration=10m 537 iterations"

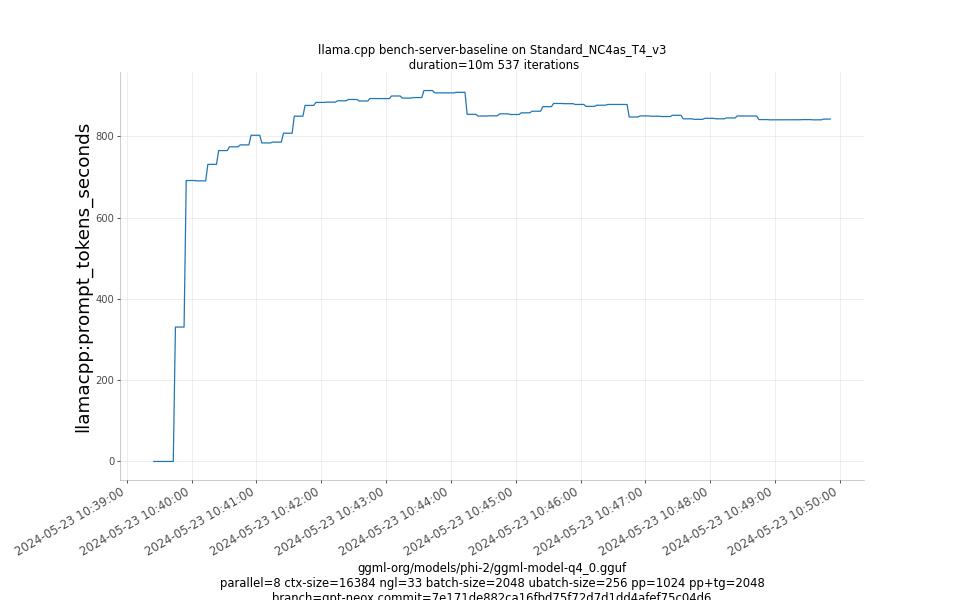

    y-axis "llamacpp:prompt_tokens_seconds"
    x-axis "llamacpp:prompt_tokens_seconds" 1716460765 --> 1716461391
    line [0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 330.75, 330.75, 330.75, 330.75, 330.75, 691.29, 691.29, 691.29, 691.29, 691.29, 690.47, 690.47, 690.47, 690.47, 690.47, 731.07, 731.07, 731.07, 731.07, 731.07, 765.01, 765.01, 765.01, 765.01, 765.01, 774.28, 774.28, 774.28, 774.28, 774.28, 779.03, 779.03, 779.03, 779.03, 779.03, 802.67, 802.67, 802.67, 802.67, 802.67, 783.81, 783.81, 783.81, 783.81, 783.81, 785.81, 785.81, 785.81, 785.81, 785.81, 807.75, 807.75, 807.75, 807.75, 807.75, 849.72, 849.72, 849.72, 849.72, 849.72, 876.13, 876.13, 876.13, 876.13, 876.13, 883.55, 883.55, 883.55, 883.55, 883.55, 884.21, 884.21, 884.21, 884.21, 884.21, 887.5, 887.5, 887.5, 887.5, 887.5, 890.74, 890.74, 890.74, 890.74, 890.74, 887.0, 887.0, 887.0, 887.0, 887.0, 893.05, 893.05, 893.05, 893.05, 893.05, 892.89, 892.89, 892.89, 892.89, 892.89, 899.33, 899.33, 899.33, 899.33, 899.33, 894.13, 894.13, 894.13, 894.13, 894.13, 895.46, 895.46, 895.46, 895.46, 895.46, 912.73, 912.73, 912.73, 912.73, 912.73, 906.99, 906.99, 906.99, 906.99, 906.99, 906.97, 906.97, 906.97, 906.97, 906.97, 908.35, 908.35, 908.35, 908.35, 908.35, 854.22, 854.22, 854.22, 854.22, 854.22, 850.01, 850.01, 850.01, 850.01, 850.01, 850.49, 850.49, 850.49, 850.49, 850.49, 855.41, 855.41, 855.41, 855.41, 855.41, 853.77, 853.77, 853.77, 853.77, 853.77, 857.9, 857.9, 857.9, 857.9, 857.9, 861.87, 861.87, 861.87, 861.87, 861.87, 873.08, 873.08, 873.08, 873.08, 873.08, 880.87, 880.87, 880.87, 880.87, 880.87, 880.4, 880.4, 880.4, 880.4, 880.4, 878.5, 878.5, 878.5, 878.5, 878.5, 873.8, 873.8, 873.8, 873.8, 873.8, 876.65, 876.65, 876.65, 876.65, 876.65, 878.44, 878.44, 878.44, 878.44, 878.44, 878.46, 878.46, 878.46, 878.46, 878.46, 847.66, 847.66, 847.66, 847.66, 847.66, 850.26, 850.26, 850.26, 850.26, 850.26, 849.57, 849.57, 849.57, 849.57, 849.57, 848.81, 848.81, 848.81, 848.81, 848.81, 851.85, 851.85, 851.85, 851.85, 851.85, 843.14, 843.14, 843.14, 843.14, 843.14, 841.89, 841.89, 841.89, 841.89, 841.89, 844.43, 844.43, 844.43, 844.43, 844.43, 843.23, 843.23, 843.23, 843.23, 843.23, 845.33, 845.33, 845.33, 845.33, 845.33, 850.24, 850.24, 850.24, 850.24, 850.24, 850.0, 850.0, 850.0, 850.0, 850.0, 841.26, 841.26, 841.26, 841.26, 841.26, 840.65, 840.65, 840.65, 840.65, 840.65, 840.81, 840.81, 840.81, 840.81, 840.81, 840.85, 840.85, 840.85, 840.85, 840.85, 841.22, 841.22, 841.22, 841.22, 841.22, 840.66, 840.66, 840.66, 840.66, 840.66, 842.45, 842.45, 842.45, 842.45]

More

---
config:
    xyChart:
        titleFontSize: 12
        width: 900
        height: 600
    themeVariables:
        xyChart:
            titleColor: "#000000"
---
xychart-beta
    title "llama.cpp bench-server-baseline on Standard_NC4as_T4_v3
 duration=10m 537 iterations"

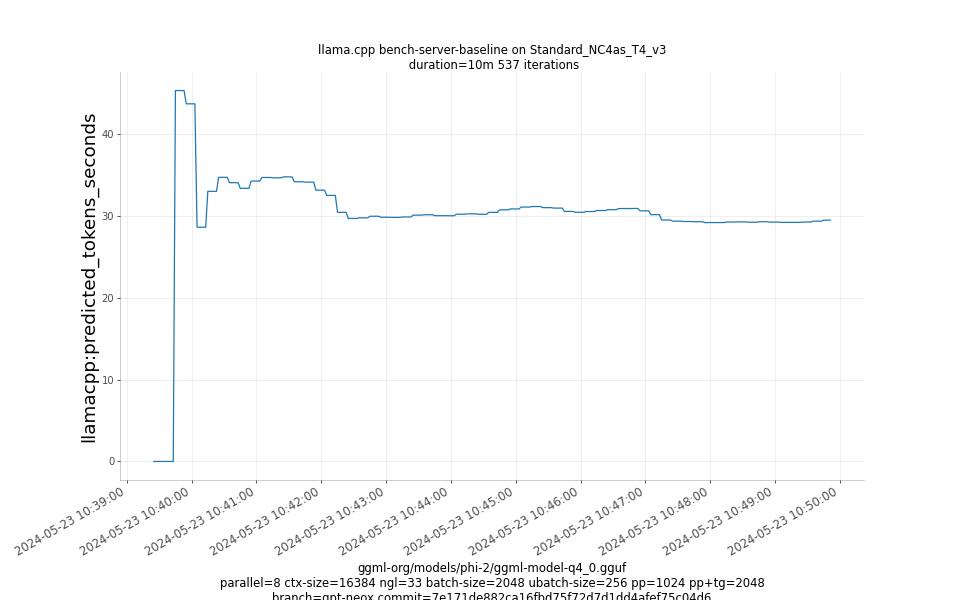

    y-axis "llamacpp:predicted_tokens_seconds"
    x-axis "llamacpp:predicted_tokens_seconds" 1716460765 --> 1716461391
    line [0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 45.31, 45.31, 45.31, 45.31, 45.31, 43.69, 43.69, 43.69, 43.69, 43.69, 28.62, 28.62, 28.62, 28.62, 28.62, 33.0, 33.0, 33.0, 33.0, 33.0, 34.71, 34.71, 34.71, 34.71, 34.71, 34.05, 34.05, 34.05, 34.05, 34.05, 33.36, 33.36, 33.36, 33.36, 33.36, 34.25, 34.25, 34.25, 34.25, 34.25, 34.69, 34.69, 34.69, 34.69, 34.69, 34.64, 34.64, 34.64, 34.64, 34.64, 34.76, 34.76, 34.76, 34.76, 34.76, 34.17, 34.17, 34.17, 34.17, 34.17, 34.12, 34.12, 34.12, 34.12, 34.12, 33.14, 33.14, 33.14, 33.14, 33.14, 32.5, 32.5, 32.5, 32.5, 32.5, 30.43, 30.43, 30.43, 30.43, 30.43, 29.68, 29.68, 29.68, 29.68, 29.68, 29.75, 29.75, 29.75, 29.75, 29.75, 29.95, 29.95, 29.95, 29.95, 29.95, 29.83, 29.83, 29.83, 29.83, 29.83, 29.81, 29.81, 29.81, 29.81, 29.81, 29.86, 29.86, 29.86, 29.86, 29.86, 30.09, 30.09, 30.09, 30.09, 30.09, 30.14, 30.14, 30.14, 30.14, 30.14, 30.02, 30.02, 30.02, 30.02, 30.02, 30.01, 30.01, 30.01, 30.01, 30.01, 30.2, 30.2, 30.2, 30.2, 30.2, 30.25, 30.25, 30.25, 30.25, 30.25, 30.19, 30.19, 30.19, 30.19, 30.19, 30.43, 30.43, 30.43, 30.43, 30.43, 30.74, 30.74, 30.74, 30.74, 30.74, 30.84, 30.84, 30.84, 30.84, 30.84, 31.07, 31.07, 31.07, 31.07, 31.07, 31.14, 31.14, 31.14, 31.14, 31.14, 31.01, 31.01, 31.01, 31.01, 31.01, 30.95, 30.95, 30.95, 30.95, 30.95, 30.54, 30.54, 30.54, 30.54, 30.54, 30.44, 30.44, 30.44, 30.44, 30.44, 30.53, 30.53, 30.53, 30.53, 30.53, 30.65, 30.65, 30.65, 30.65, 30.65, 30.76, 30.76, 30.76, 30.76, 30.76, 30.89, 30.89, 30.89, 30.89, 30.89, 30.9, 30.9, 30.9, 30.9, 30.9, 30.61, 30.61, 30.61, 30.61, 30.61, 30.15, 30.15, 30.15, 30.15, 30.15, 29.49, 29.49, 29.49, 29.49, 29.49, 29.36, 29.36, 29.36, 29.36, 29.36, 29.31, 29.31, 29.31, 29.31, 29.31, 29.28, 29.28, 29.28, 29.28, 29.28, 29.18, 29.18, 29.18, 29.18, 29.18, 29.18, 29.18, 29.18, 29.18, 29.18, 29.25, 29.25, 29.25, 29.25, 29.25, 29.26, 29.26, 29.26, 29.26, 29.26, 29.22, 29.22, 29.22, 29.22, 29.22, 29.29, 29.29, 29.29, 29.29, 29.29, 29.24, 29.24, 29.24, 29.24, 29.24, 29.2, 29.2, 29.2, 29.2, 29.2, 29.2, 29.2, 29.2, 29.2, 29.2, 29.24, 29.24, 29.24, 29.24, 29.24, 29.35, 29.35, 29.35, 29.35, 29.35, 29.47, 29.47, 29.47, 29.47]

Details

More

---
config:
    xyChart:
        titleFontSize: 12
        width: 900
        height: 600
    themeVariables:
        xyChart:
            titleColor: "#000000"
---
xychart-beta
    title "llama.cpp bench-server-baseline on Standard_NC4as_T4_v3
 duration=10m 537 iterations"

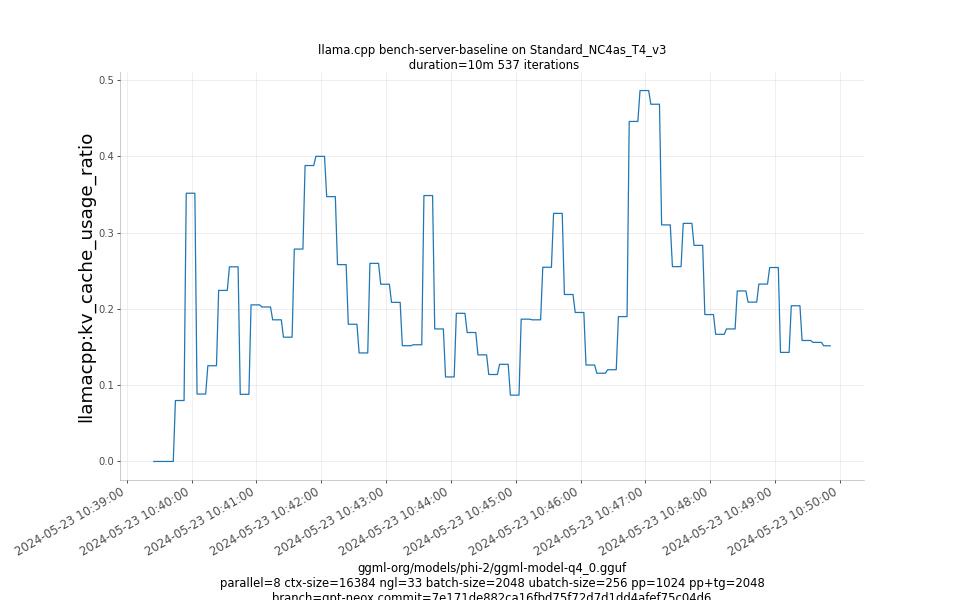

    y-axis "llamacpp:kv_cache_usage_ratio"
    x-axis "llamacpp:kv_cache_usage_ratio" 1716460765 --> 1716461391
    line [0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.08, 0.08, 0.08, 0.08, 0.08, 0.35, 0.35, 0.35, 0.35, 0.35, 0.09, 0.09, 0.09, 0.09, 0.09, 0.13, 0.13, 0.13, 0.13, 0.13, 0.22, 0.22, 0.22, 0.22, 0.22, 0.26, 0.26, 0.26, 0.26, 0.26, 0.09, 0.09, 0.09, 0.09, 0.09, 0.21, 0.21, 0.21, 0.21, 0.21, 0.2, 0.2, 0.2, 0.2, 0.2, 0.19, 0.19, 0.19, 0.19, 0.19, 0.16, 0.16, 0.16, 0.16, 0.16, 0.28, 0.28, 0.28, 0.28, 0.28, 0.39, 0.39, 0.39, 0.39, 0.39, 0.4, 0.4, 0.4, 0.4, 0.4, 0.35, 0.35, 0.35, 0.35, 0.35, 0.26, 0.26, 0.26, 0.26, 0.26, 0.18, 0.18, 0.18, 0.18, 0.18, 0.14, 0.14, 0.14, 0.14, 0.14, 0.26, 0.26, 0.26, 0.26, 0.26, 0.23, 0.23, 0.23, 0.23, 0.23, 0.21, 0.21, 0.21, 0.21, 0.21, 0.15, 0.15, 0.15, 0.15, 0.15, 0.15, 0.15, 0.15, 0.15, 0.15, 0.35, 0.35, 0.35, 0.35, 0.35, 0.17, 0.17, 0.17, 0.17, 0.17, 0.11, 0.11, 0.11, 0.11, 0.11, 0.19, 0.19, 0.19, 0.19, 0.19, 0.17, 0.17, 0.17, 0.17, 0.17, 0.14, 0.14, 0.14, 0.14, 0.14, 0.11, 0.11, 0.11, 0.11, 0.11, 0.13, 0.13, 0.13, 0.13, 0.13, 0.09, 0.09, 0.09, 0.09, 0.09, 0.19, 0.19, 0.19, 0.19, 0.19, 0.19, 0.19, 0.19, 0.19, 0.19, 0.25, 0.25, 0.25, 0.25, 0.25, 0.33, 0.33, 0.33, 0.33, 0.33, 0.22, 0.22, 0.22, 0.22, 0.22, 0.2, 0.2, 0.2, 0.2, 0.2, 0.13, 0.13, 0.13, 0.13, 0.13, 0.12, 0.12, 0.12, 0.12, 0.12, 0.12, 0.12, 0.12, 0.12, 0.12, 0.19, 0.19, 0.19, 0.19, 0.19, 0.45, 0.45, 0.45, 0.45, 0.45, 0.49, 0.49, 0.49, 0.49, 0.49, 0.47, 0.47, 0.47, 0.47, 0.47, 0.31, 0.31, 0.31, 0.31, 0.31, 0.26, 0.26, 0.26, 0.26, 0.26, 0.31, 0.31, 0.31, 0.31, 0.31, 0.28, 0.28, 0.28, 0.28, 0.28, 0.19, 0.19, 0.19, 0.19, 0.19, 0.17, 0.17, 0.17, 0.17, 0.17, 0.17, 0.17, 0.17, 0.17, 0.17, 0.22, 0.22, 0.22, 0.22, 0.22, 0.21, 0.21, 0.21, 0.21, 0.21, 0.23, 0.23, 0.23, 0.23, 0.23, 0.25, 0.25, 0.25, 0.25, 0.25, 0.14, 0.14, 0.14, 0.14, 0.14, 0.2, 0.2, 0.2, 0.2, 0.2, 0.16, 0.16, 0.16, 0.16, 0.16, 0.16, 0.16, 0.16, 0.16, 0.16, 0.15, 0.15, 0.15, 0.15]

More

---
config:
    xyChart:
        titleFontSize: 12
        width: 900
        height: 600
    themeVariables:
        xyChart:
            titleColor: "#000000"
---
xychart-beta
    title "llama.cpp bench-server-baseline on Standard_NC4as_T4_v3
 duration=10m 537 iterations"

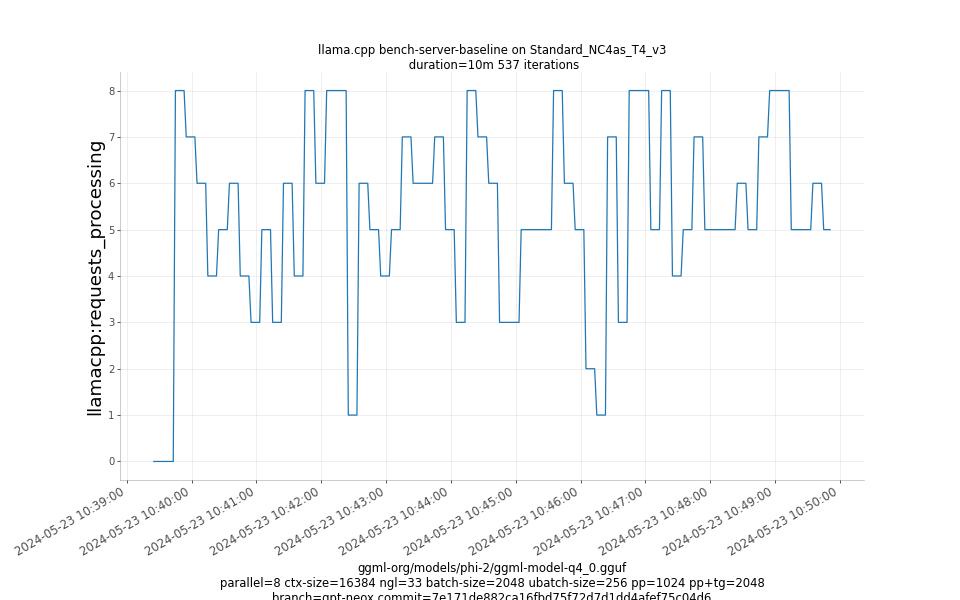

    y-axis "llamacpp:requests_processing"
    x-axis "llamacpp:requests_processing" 1716460765 --> 1716461391
    line [0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 8.0, 8.0, 8.0, 8.0, 8.0, 7.0, 7.0, 7.0, 7.0, 7.0, 6.0, 6.0, 6.0, 6.0, 6.0, 4.0, 4.0, 4.0, 4.0, 4.0, 5.0, 5.0, 5.0, 5.0, 5.0, 6.0, 6.0, 6.0, 6.0, 6.0, 4.0, 4.0, 4.0, 4.0, 4.0, 3.0, 3.0, 3.0, 3.0, 3.0, 5.0, 5.0, 5.0, 5.0, 5.0, 3.0, 3.0, 3.0, 3.0, 3.0, 6.0, 6.0, 6.0, 6.0, 6.0, 4.0, 4.0, 4.0, 4.0, 4.0, 8.0, 8.0, 8.0, 8.0, 8.0, 6.0, 6.0, 6.0, 6.0, 6.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 1.0, 1.0, 1.0, 1.0, 1.0, 6.0, 6.0, 6.0, 6.0, 6.0, 5.0, 5.0, 5.0, 5.0, 5.0, 4.0, 4.0, 4.0, 4.0, 4.0, 5.0, 5.0, 5.0, 5.0, 5.0, 7.0, 7.0, 7.0, 7.0, 7.0, 6.0, 6.0, 6.0, 6.0, 6.0, 6.0, 6.0, 6.0, 6.0, 6.0, 7.0, 7.0, 7.0, 7.0, 7.0, 5.0, 5.0, 5.0, 5.0, 5.0, 3.0, 3.0, 3.0, 3.0, 3.0, 8.0, 8.0, 8.0, 8.0, 8.0, 7.0, 7.0, 7.0, 7.0, 7.0, 6.0, 6.0, 6.0, 6.0, 6.0, 3.0, 3.0, 3.0, 3.0, 3.0, 3.0, 3.0, 3.0, 3.0, 3.0, 5.0, 5.0, 5.0, 5.0, 5.0, 5.0, 5.0, 5.0, 5.0, 5.0, 5.0, 5.0, 5.0, 5.0, 5.0, 8.0, 8.0, 8.0, 8.0, 8.0, 6.0, 6.0, 6.0, 6.0, 6.0, 5.0, 5.0, 5.0, 5.0, 5.0, 2.0, 2.0, 2.0, 2.0, 2.0, 1.0, 1.0, 1.0, 1.0, 1.0, 7.0, 7.0, 7.0, 7.0, 7.0, 3.0, 3.0, 3.0, 3.0, 3.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 5.0, 5.0, 5.0, 5.0, 5.0, 8.0, 8.0, 8.0, 8.0, 8.0, 4.0, 4.0, 4.0, 4.0, 4.0, 5.0, 5.0, 5.0, 5.0, 5.0, 7.0, 7.0, 7.0, 7.0, 7.0, 5.0, 5.0, 5.0, 5.0, 5.0, 5.0, 5.0, 5.0, 5.0, 5.0, 5.0, 5.0, 5.0, 5.0, 5.0, 6.0, 6.0, 6.0, 6.0, 6.0, 5.0, 5.0, 5.0, 5.0, 5.0, 7.0, 7.0, 7.0, 7.0, 7.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 5.0, 5.0, 5.0, 5.0, 5.0, 5.0, 5.0, 5.0, 5.0, 5.0, 6.0, 6.0, 6.0, 6.0, 6.0, 5.0, 5.0, 5.0, 5.0]

ggerganov · 2024-05-22T14:30:08Z

The tokenization differences on wiki.test are minimal and related to slightly different way that we handle added tokens:

diff ./build/wikitext-2-raw/wiki.test.raw.tok ./build/wikitext-2-raw/wiki.test.raw.tokcpp
245413,245414c245413,245414
< 50276
< 6285
---
> 209
> 20589
245440,245441c245440,245441
< 50276
< 6285
---
> 209
> 20589
246660,246661c246660,246661
< 50276
< 6285
---
> 209
> 20589
246687,246688c246687,246688
< 50276
< 6285
---
> 209
> 20589

Likely the perplexity computation used in the HF transformers differs from llama.cpp (i.e. different context size, strided evaluation, etc.)

For Pythia 2.8b I get PPL 10.9294 +/- 0.07654

ggerganov · 2024-05-22T14:33:15Z

Edit: It looks that there are differences in dataset files that I used for measuring perplexity for transformers and llama.cpp, will have to recheck.

Feel free to merge this when ready - I think it works

…EOX - didn't notice it was already present

felladrin · 2024-05-23T10:08:56Z

Thank you for this, @fairydreaming! I have wanted it for so long!
And thanks @ggerganov for reviewing it so quickly!

…NeoX base models) (ggml-org#7461) * convert-hf : add conversion of bloom-style qkv tensor to gpt-style qkv (code borrowed from BloomModel) * llama : add inference support for LLM_ARCH_GPTNEOX * llama : add model types for every Pythia variant and GPT-NeoX Co-authored-by: Stanisław Szymczyk <sszymczy@gmail.com>

sszymczy added 2 commits May 22, 2024 12:09

Added missing support for GPTNeoXForCausalLM (Pythia and GPT-NeoX bas…

720e886

…e models).

Merge remote-tracking branch 'upstream/master' into gpt-neox

d8b8ecf

github-actions Bot added the python python script changes label May 22, 2024

ggerganov approved these changes May 22, 2024

View reviewed changes

cebtenzzre linked an issue May 22, 2024 that may be closed by this pull request

GPT-NeoX has only minimal inference support #3293

Closed

ggerganov mentioned this pull request May 22, 2024

ci : start using Pythia models over OpenLlama #7470

Merged

sszymczy added 2 commits May 22, 2024 20:54

llama : added missing model type for the smallest pythia-14m

1aa777f

llama : remove duplicate LLM_TENSOR_NAMES map entry for LLM_ARCH_GPTN…

5234723

…EOX - didn't notice it was already present

mofosyne added model Model specific Review Complexity : Medium Generally require more time to grok but manageable by beginner to medium expertise level labels May 23, 2024

sszymczy and others added 3 commits May 23, 2024 08:34

llama : add comments for clarity, change confusing variable name

0f3bf7c

llama : whitespace formatting fixes

fcc8f82

Merge branch 'ggerganov:master' into gpt-neox

7e171de

fairydreaming merged commit 9b82476 into ggml-org:master May 23, 2024

felladrin mentioned this pull request May 23, 2024

Add GPT-NeoX + Pythia to the list of supported models #7491

Merged
