ggml : prevent builds with -ffinite-math-only by ggerganov · Pull Request #7726 · ggml-org/llama.cpp

ggerganov · 2024-06-04T05:29:02Z

This enforces a check that -fno-finite-math-only was set and that the operating
compiling mode is not in finite maths mode. This is because during rewriting of
silu and softmax for cpu #7154 there emerged an issue where the result that was
observed when >1 slot was nondeterministic as found by @JohannesGaessler.

@LostRuins narrowed the problem down to -ffinite-math-only which was theorised
to be due to SiLU, instead of flushing small values to 0, returns NaN or some
other garbage. @jart proposed a fix that @ggerganov then implemented in this fix

ref #7154 (comment)

ggml-ci

mofosyne

Confirmed that gg's changes matches the intent of #7154

github-actions · 2024-06-04T08:27:30Z

📈 llama.cpp server for bench-server-baseline on Standard_NC4as_T4_v3 for phi-2-q4_0: 552 iterations 🚀

Expand details for performance related PR only

Concurrent users: 8, duration: 10m
HTTP request : avg=8540.34ms p(95)=20501.86ms fails=, finish reason: stop=495 truncated=57

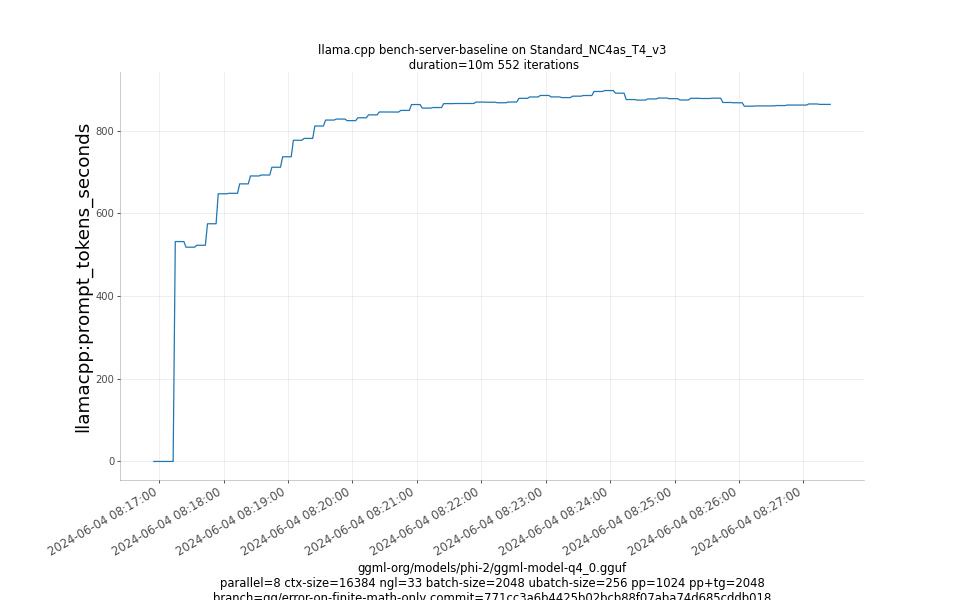

Prompt processing (pp): avg=99.34tk/s p(95)=453.53tk/s

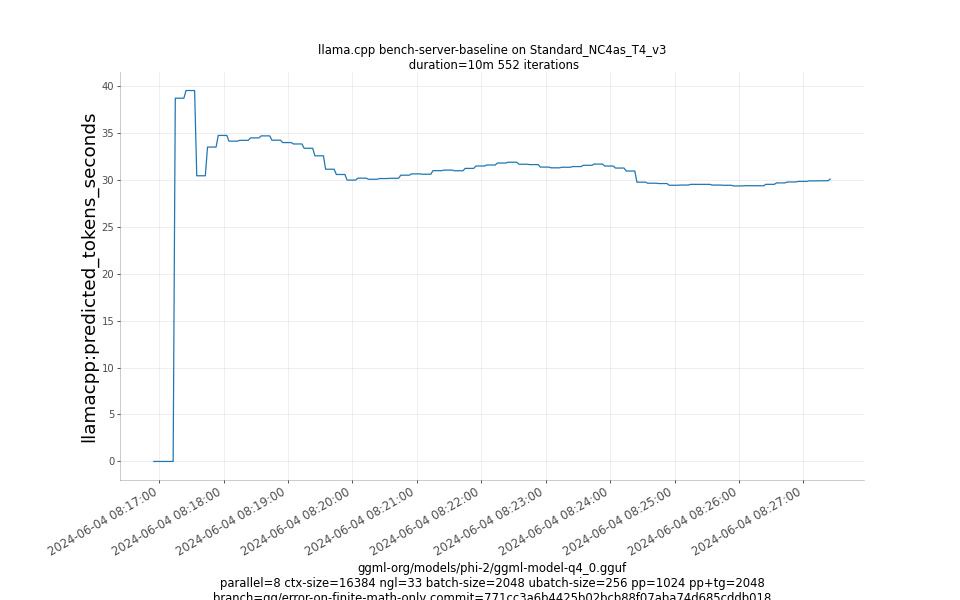

Token generation (tg): avg=46.88tk/s p(95)=45.53tk/s
ggml-org/models/phi-2/ggml-model-q4_0.gguf parallel=8 ctx-size=16384 ngl=33 batch-size=2048 ubatch-size=256 pp=1024 pp+tg=2048 branch=gg/error-on-finite-math-only commit=771cc3a6b4425b02bcb88f07aba74d685cddb018

More

---
config:
    xyChart:
        titleFontSize: 12
        width: 900
        height: 600
    themeVariables:
        xyChart:
            titleColor: "#000000"
---
xychart-beta
    title "llama.cpp bench-server-baseline on Standard_NC4as_T4_v3
 duration=10m 552 iterations"
    y-axis "llamacpp:prompt_tokens_seconds"
    x-axis "llamacpp:prompt_tokens_seconds" 1717489015 --> 1717489645
    line [0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 531.88, 531.88, 531.88, 531.88, 531.88, 518.27, 518.27, 518.27, 518.27, 518.27, 522.93, 522.93, 522.93, 522.93, 522.93, 574.92, 574.92, 574.92, 574.92, 574.92, 647.41, 647.41, 647.41, 647.41, 647.41, 648.6, 648.6, 648.6, 648.6, 648.6, 671.43, 671.43, 671.43, 671.43, 671.43, 690.53, 690.53, 690.53, 690.53, 690.53, 692.81, 692.81, 692.81, 692.81, 692.81, 711.66, 711.66, 711.66, 711.66, 711.66, 736.93, 736.93, 736.93, 736.93, 736.93, 776.88, 776.88, 776.88, 776.88, 776.88, 781.33, 781.33, 781.33, 781.33, 781.33, 811.32, 811.32, 811.32, 811.32, 811.32, 825.76, 825.76, 825.76, 825.76, 825.76, 828.18, 828.18, 828.18, 828.18, 828.18, 824.39, 824.39, 824.39, 824.39, 824.39, 831.22, 831.22, 831.22, 831.22, 831.22, 838.33, 838.33, 838.33, 838.33, 838.33, 845.32, 845.32, 845.32, 845.32, 845.32, 845.12, 845.12, 845.12, 845.12, 845.12, 849.05, 849.05, 849.05, 849.05, 849.05, 863.26, 863.26, 863.26, 863.26, 863.26, 854.68, 854.68, 854.68, 854.68, 854.68, 856.07, 856.07, 856.07, 856.07, 856.07, 865.48, 865.48, 865.48, 865.48, 865.48, 865.75, 865.75, 865.75, 865.75, 865.75, 865.85, 865.85, 865.85, 865.85, 865.85, 869.2, 869.2, 869.2, 869.2, 869.2, 868.87, 868.87, 868.87, 868.87, 868.87, 867.6, 867.6, 867.6, 867.6, 867.6, 869.35, 869.35, 869.35, 869.35, 869.35, 878.27, 878.27, 878.27, 878.27, 878.27, 881.61, 881.61, 881.61, 881.61, 881.61, 885.27, 885.27, 885.27, 885.27, 885.27, 881.76, 881.76, 881.76, 881.76, 881.76, 880.08, 880.08, 880.08, 880.08, 880.08, 883.55, 883.55, 883.55, 883.55, 883.55, 885.13, 885.13, 885.13, 885.13, 885.13, 894.87, 894.87, 894.87, 894.87, 894.87, 897.14, 897.14, 897.14, 897.14, 897.14, 890.78, 890.78, 890.78, 890.78, 890.78, 875.36, 875.36, 875.36, 875.36, 875.36, 874.06, 874.06, 874.06, 874.06, 874.06, 876.83, 876.83, 876.83, 876.83, 876.83, 879.01, 879.01, 879.01, 879.01, 879.01, 877.48, 877.48, 877.48, 877.48, 877.48, 874.25, 874.25, 874.25, 874.25, 874.25, 878.36, 878.36, 878.36, 878.36, 878.36, 877.88, 877.88, 877.88, 877.88, 877.88, 878.73, 878.73, 878.73, 878.73, 878.73, 868.25, 868.25, 868.25, 868.25, 868.25, 867.58, 867.58, 867.58, 867.58, 867.58, 859.32, 859.32, 859.32, 859.32, 859.32, 859.89, 859.89, 859.89, 859.89, 859.89, 860.04, 860.04, 860.04, 860.04, 860.04, 860.85, 860.85, 860.85, 860.85, 860.85, 862.06, 862.06, 862.06, 862.06, 862.06, 862.04, 862.04, 862.04, 862.04, 862.04, 864.67, 864.67, 864.67, 864.67, 864.67, 863.67, 863.67, 863.67, 863.67, 863.67, 863.67]

More

---
config:
    xyChart:
        titleFontSize: 12
        width: 900
        height: 600
    themeVariables:
        xyChart:
            titleColor: "#000000"
---
xychart-beta
    title "llama.cpp bench-server-baseline on Standard_NC4as_T4_v3
 duration=10m 552 iterations"
    y-axis "llamacpp:predicted_tokens_seconds"
    x-axis "llamacpp:predicted_tokens_seconds" 1717489015 --> 1717489645
    line [0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 38.68, 38.68, 38.68, 38.68, 38.68, 39.5, 39.5, 39.5, 39.5, 39.5, 30.42, 30.42, 30.42, 30.42, 30.42, 33.48, 33.48, 33.48, 33.48, 33.48, 34.72, 34.72, 34.72, 34.72, 34.72, 34.11, 34.11, 34.11, 34.11, 34.11, 34.19, 34.19, 34.19, 34.19, 34.19, 34.45, 34.45, 34.45, 34.45, 34.45, 34.67, 34.67, 34.67, 34.67, 34.67, 34.21, 34.21, 34.21, 34.21, 34.21, 33.95, 33.95, 33.95, 33.95, 33.95, 33.81, 33.81, 33.81, 33.81, 33.81, 33.35, 33.35, 33.35, 33.35, 33.35, 32.54, 32.54, 32.54, 32.54, 32.54, 31.12, 31.12, 31.12, 31.12, 31.12, 30.56, 30.56, 30.56, 30.56, 30.56, 29.96, 29.96, 29.96, 29.96, 29.96, 30.16, 30.16, 30.16, 30.16, 30.16, 30.05, 30.05, 30.05, 30.05, 30.05, 30.12, 30.12, 30.12, 30.12, 30.12, 30.15, 30.15, 30.15, 30.15, 30.15, 30.48, 30.48, 30.48, 30.48, 30.48, 30.62, 30.62, 30.62, 30.62, 30.62, 30.59, 30.59, 30.59, 30.59, 30.59, 30.96, 30.96, 30.96, 30.96, 30.96, 31.02, 31.02, 31.02, 31.02, 31.02, 30.95, 30.95, 30.95, 30.95, 30.95, 31.21, 31.21, 31.21, 31.21, 31.21, 31.46, 31.46, 31.46, 31.46, 31.46, 31.57, 31.57, 31.57, 31.57, 31.57, 31.78, 31.78, 31.78, 31.78, 31.78, 31.86, 31.86, 31.86, 31.86, 31.86, 31.65, 31.65, 31.65, 31.65, 31.65, 31.61, 31.61, 31.61, 31.61, 31.61, 31.34, 31.34, 31.34, 31.34, 31.34, 31.27, 31.27, 31.27, 31.27, 31.27, 31.33, 31.33, 31.33, 31.33, 31.33, 31.4, 31.4, 31.4, 31.4, 31.4, 31.54, 31.54, 31.54, 31.54, 31.54, 31.66, 31.66, 31.66, 31.66, 31.66, 31.46, 31.46, 31.46, 31.46, 31.46, 31.24, 31.24, 31.24, 31.24, 31.24, 30.92, 30.92, 30.92, 30.92, 30.92, 29.74, 29.74, 29.74, 29.74, 29.74, 29.63, 29.63, 29.63, 29.63, 29.63, 29.59, 29.59, 29.59, 29.59, 29.59, 29.41, 29.41, 29.41, 29.41, 29.41, 29.43, 29.43, 29.43, 29.43, 29.43, 29.51, 29.51, 29.51, 29.51, 29.51, 29.5, 29.5, 29.5, 29.5, 29.5, 29.43, 29.43, 29.43, 29.43, 29.43, 29.41, 29.41, 29.41, 29.41, 29.41, 29.34, 29.34, 29.34, 29.34, 29.34, 29.36, 29.36, 29.36, 29.36, 29.36, 29.35, 29.35, 29.35, 29.35, 29.35, 29.51, 29.51, 29.51, 29.51, 29.51, 29.66, 29.66, 29.66, 29.66, 29.66, 29.76, 29.76, 29.76, 29.76, 29.76, 29.82, 29.82, 29.82, 29.82, 29.82, 29.87, 29.87, 29.87, 29.87, 29.87, 29.89, 29.89, 29.89, 29.89, 29.89, 30.06]

Details

More

---
config:
    xyChart:
        titleFontSize: 12
        width: 900
        height: 600
    themeVariables:
        xyChart:
            titleColor: "#000000"
---
xychart-beta
    title "llama.cpp bench-server-baseline on Standard_NC4as_T4_v3
 duration=10m 552 iterations"

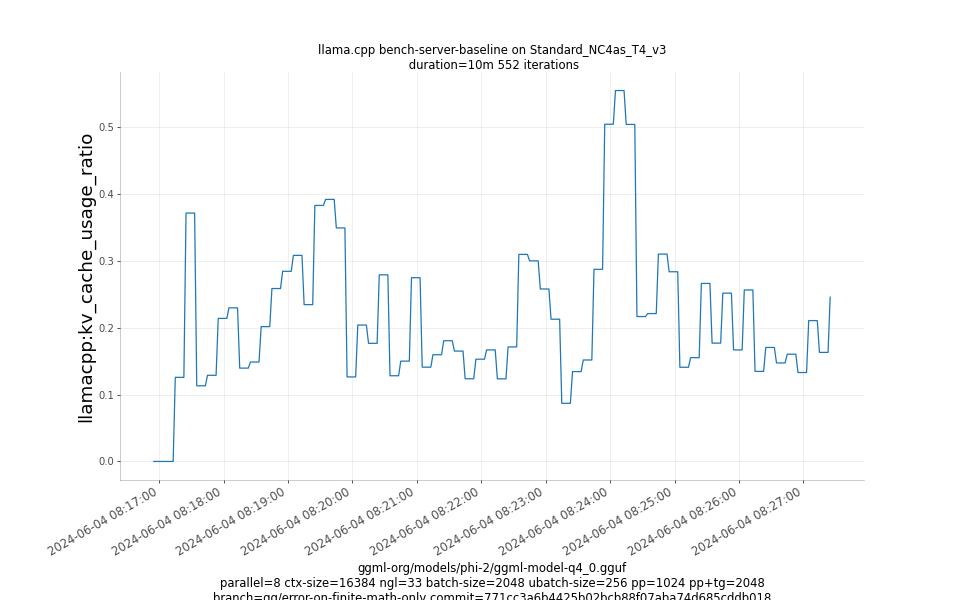

    y-axis "llamacpp:kv_cache_usage_ratio"
    x-axis "llamacpp:kv_cache_usage_ratio" 1717489015 --> 1717489645
    line [0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.13, 0.13, 0.13, 0.13, 0.13, 0.37, 0.37, 0.37, 0.37, 0.37, 0.11, 0.11, 0.11, 0.11, 0.11, 0.13, 0.13, 0.13, 0.13, 0.13, 0.21, 0.21, 0.21, 0.21, 0.21, 0.23, 0.23, 0.23, 0.23, 0.23, 0.14, 0.14, 0.14, 0.14, 0.14, 0.15, 0.15, 0.15, 0.15, 0.15, 0.2, 0.2, 0.2, 0.2, 0.2, 0.26, 0.26, 0.26, 0.26, 0.26, 0.28, 0.28, 0.28, 0.28, 0.28, 0.31, 0.31, 0.31, 0.31, 0.31, 0.23, 0.23, 0.23, 0.23, 0.23, 0.38, 0.38, 0.38, 0.38, 0.38, 0.39, 0.39, 0.39, 0.39, 0.39, 0.35, 0.35, 0.35, 0.35, 0.35, 0.13, 0.13, 0.13, 0.13, 0.13, 0.2, 0.2, 0.2, 0.2, 0.2, 0.18, 0.18, 0.18, 0.18, 0.18, 0.28, 0.28, 0.28, 0.28, 0.28, 0.13, 0.13, 0.13, 0.13, 0.13, 0.15, 0.15, 0.15, 0.15, 0.15, 0.27, 0.27, 0.27, 0.27, 0.27, 0.14, 0.14, 0.14, 0.14, 0.14, 0.16, 0.16, 0.16, 0.16, 0.16, 0.18, 0.18, 0.18, 0.18, 0.18, 0.16, 0.16, 0.16, 0.16, 0.16, 0.12, 0.12, 0.12, 0.12, 0.12, 0.15, 0.15, 0.15, 0.15, 0.15, 0.17, 0.17, 0.17, 0.17, 0.17, 0.12, 0.12, 0.12, 0.12, 0.12, 0.17, 0.17, 0.17, 0.17, 0.17, 0.31, 0.31, 0.31, 0.31, 0.31, 0.3, 0.3, 0.3, 0.3, 0.3, 0.26, 0.26, 0.26, 0.26, 0.26, 0.21, 0.21, 0.21, 0.21, 0.21, 0.09, 0.09, 0.09, 0.09, 0.09, 0.13, 0.13, 0.13, 0.13, 0.13, 0.15, 0.15, 0.15, 0.15, 0.15, 0.29, 0.29, 0.29, 0.29, 0.29, 0.5, 0.5, 0.5, 0.5, 0.5, 0.55, 0.55, 0.55, 0.55, 0.55, 0.5, 0.5, 0.5, 0.5, 0.5, 0.22, 0.22, 0.22, 0.22, 0.22, 0.22, 0.22, 0.22, 0.22, 0.22, 0.31, 0.31, 0.31, 0.31, 0.31, 0.28, 0.28, 0.28, 0.28, 0.28, 0.14, 0.14, 0.14, 0.14, 0.14, 0.16, 0.16, 0.16, 0.16, 0.16, 0.27, 0.27, 0.27, 0.27, 0.27, 0.18, 0.18, 0.18, 0.18, 0.18, 0.25, 0.25, 0.25, 0.25, 0.25, 0.17, 0.17, 0.17, 0.17, 0.17, 0.26, 0.26, 0.26, 0.26, 0.26, 0.13, 0.13, 0.13, 0.13, 0.13, 0.17, 0.17, 0.17, 0.17, 0.17, 0.15, 0.15, 0.15, 0.15, 0.15, 0.16, 0.16, 0.16, 0.16, 0.16, 0.13, 0.13, 0.13, 0.13, 0.13, 0.21, 0.21, 0.21, 0.21, 0.21, 0.16, 0.16, 0.16, 0.16, 0.16, 0.25]

More

---
config:
    xyChart:
        titleFontSize: 12
        width: 900
        height: 600
    themeVariables:
        xyChart:
            titleColor: "#000000"
---
xychart-beta
    title "llama.cpp bench-server-baseline on Standard_NC4as_T4_v3
 duration=10m 552 iterations"

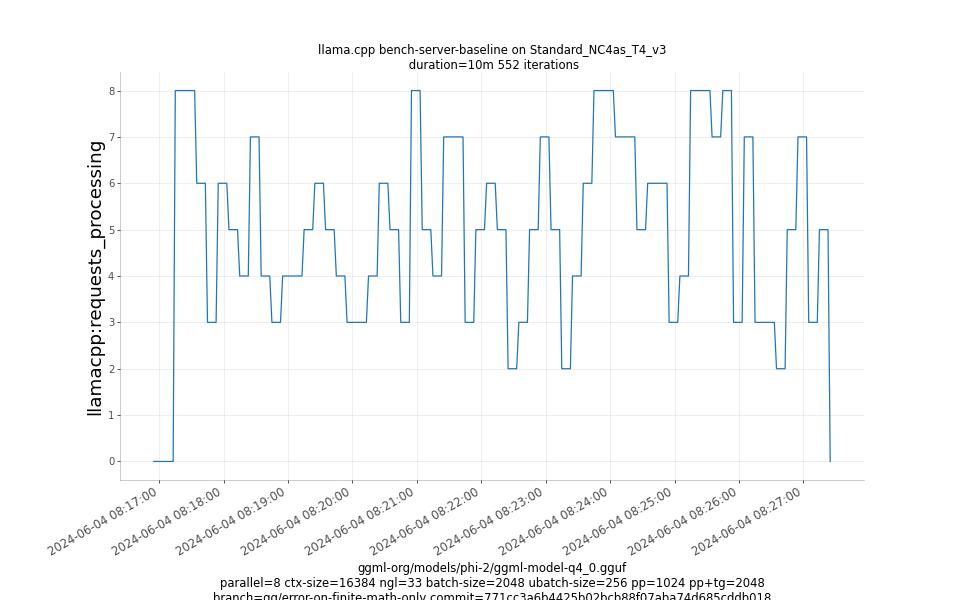

    y-axis "llamacpp:requests_processing"
    x-axis "llamacpp:requests_processing" 1717489015 --> 1717489645
    line [0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 6.0, 6.0, 6.0, 6.0, 6.0, 3.0, 3.0, 3.0, 3.0, 3.0, 6.0, 6.0, 6.0, 6.0, 6.0, 5.0, 5.0, 5.0, 5.0, 5.0, 4.0, 4.0, 4.0, 4.0, 4.0, 7.0, 7.0, 7.0, 7.0, 7.0, 4.0, 4.0, 4.0, 4.0, 4.0, 3.0, 3.0, 3.0, 3.0, 3.0, 4.0, 4.0, 4.0, 4.0, 4.0, 4.0, 4.0, 4.0, 4.0, 4.0, 5.0, 5.0, 5.0, 5.0, 5.0, 6.0, 6.0, 6.0, 6.0, 6.0, 5.0, 5.0, 5.0, 5.0, 5.0, 4.0, 4.0, 4.0, 4.0, 4.0, 3.0, 3.0, 3.0, 3.0, 3.0, 3.0, 3.0, 3.0, 3.0, 3.0, 4.0, 4.0, 4.0, 4.0, 4.0, 6.0, 6.0, 6.0, 6.0, 6.0, 5.0, 5.0, 5.0, 5.0, 5.0, 3.0, 3.0, 3.0, 3.0, 3.0, 8.0, 8.0, 8.0, 8.0, 8.0, 5.0, 5.0, 5.0, 5.0, 5.0, 4.0, 4.0, 4.0, 4.0, 4.0, 7.0, 7.0, 7.0, 7.0, 7.0, 7.0, 7.0, 7.0, 7.0, 7.0, 3.0, 3.0, 3.0, 3.0, 3.0, 5.0, 5.0, 5.0, 5.0, 5.0, 6.0, 6.0, 6.0, 6.0, 6.0, 5.0, 5.0, 5.0, 5.0, 5.0, 2.0, 2.0, 2.0, 2.0, 2.0, 3.0, 3.0, 3.0, 3.0, 3.0, 5.0, 5.0, 5.0, 5.0, 5.0, 7.0, 7.0, 7.0, 7.0, 7.0, 5.0, 5.0, 5.0, 5.0, 5.0, 2.0, 2.0, 2.0, 2.0, 2.0, 4.0, 4.0, 4.0, 4.0, 4.0, 6.0, 6.0, 6.0, 6.0, 6.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 7.0, 7.0, 7.0, 7.0, 7.0, 7.0, 7.0, 7.0, 7.0, 7.0, 5.0, 5.0, 5.0, 5.0, 5.0, 6.0, 6.0, 6.0, 6.0, 6.0, 6.0, 6.0, 6.0, 6.0, 6.0, 3.0, 3.0, 3.0, 3.0, 3.0, 4.0, 4.0, 4.0, 4.0, 4.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 8.0, 7.0, 7.0, 7.0, 7.0, 7.0, 8.0, 8.0, 8.0, 8.0, 8.0, 3.0, 3.0, 3.0, 3.0, 3.0, 7.0, 7.0, 7.0, 7.0, 7.0, 3.0, 3.0, 3.0, 3.0, 3.0, 3.0, 3.0, 3.0, 3.0, 3.0, 2.0, 2.0, 2.0, 2.0, 2.0, 5.0, 5.0, 5.0, 5.0, 5.0, 7.0, 7.0, 7.0, 7.0, 7.0, 3.0, 3.0, 3.0, 3.0, 3.0, 5.0, 5.0, 5.0, 5.0, 5.0, 0.0]

JohannesGaessler · 2024-06-04T11:14:54Z

The issue that I reported in #7154 (comment) has not been fixed by this PR. For the minimal reproduction I was not using LLAMA_FAST and therefore not -ffinite-math-only anyways.

ggerganov · 2024-06-04T11:22:32Z

Yes, I didn't expect it to be fixed. We need a non-unified KV cache implementation to have deterministic results for n_slots > 1

jart · 2024-06-04T23:18:48Z

Could it be a memory barrier issue? x86 guarantees about acquire / release semantics change when you switch to xmm/ymm ops.

ggerganov · 2024-06-05T07:17:38Z

The problem is not a data race or a race condition. Rather the same set of tokens can produce slightly different floating point results, depending on the position they get assigned in the unified KV cache due to the reduce operations in the attention

yunginnanet · 2024-06-15T08:49:11Z

btw, this breaks LLAMA_FAST=1

@JohannesGaessler

This enforces a check that -fno-finite-math-only was set and that the operating compiling mode is not in finite maths mode. This is because during rewriting of silu and softmax for cpu ggml-org#7154 there emerged an issue where the result that was observed when >1 slot was nondeterministic as found by @JohannesGaessler. @LostRuins narrowed the problem down to -ffinite-math-only which was theorised to be due to SiLU, instead of flushing small values to 0, returns NaN or some other garbage. @jart proposed a fix that @ggerganov then implemented in this fix ref ggml-org#7154 (comment)

@JohannesGaessler

This enforces a check that -fno-finite-math-only was set and that the operating compiling mode is not in finite maths mode. This is because during rewriting of silu and softmax for cpu ggml-org#7154 there emerged an issue where the result that was observed when >1 slot was nondeterministic as found by @JohannesGaessler. @LostRuins narrowed the problem down to -ffinite-math-only which was theorised to be due to SiLU, instead of flushing small values to 0, returns NaN or some other garbage. @jart proposed a fix that @ggerganov then implemented in this fix ref ggml-org#7154 (comment)

ggml : prevent builds with -ffinite-math-only

41e8f8c

ggml-ci

github-actions Bot added the ggml changes relating to the ggml tensor library for machine learning label Jun 4, 2024

ggerganov added 2 commits June 4, 2024 08:31

ggml : fix missing quotes

6e23edf

ggml-ci

ci : fix arm64 win build flags

771cc3a

mofosyne approved these changes Jun 4, 2024

View reviewed changes

mofosyne added Review Complexity : Low Trivial changes to code that most beginner devs (or those who want a break) can tackle. e.g. UI fix merge ready A maintainer can use this label to indicate that they consider the changes final and ready to merge. labels Jun 4, 2024

mofosyne merged commit 6d16169 into master Jun 4, 2024

github-actions Bot added the build Compilation issues label Jun 4, 2024

mofosyne deleted the gg/error-on-finite-math-only branch June 5, 2024 01:38
