Sync state from fellow validateer by haerdib · Pull Request #615 · integritee-network/worker

haerdib · 2022-01-11T14:49:07Z

Divides tls_ra.rs into server and client
Adds header with opcode and payload length indicator, such that the ordering and length of the payload may vary.
add state syncing
add some unit tests

TODO:

sync state: add state handler
add unit tests

Tested manually with following steps (wasn't sure how to do an integration test here..)

start integritee node
start worker 1 with ./integritee-service -P 2094 -p 9994 -r 3494 run --dev
run demo_direct_call: ./demo_direct_call.sh -P 2094 -p 9994:

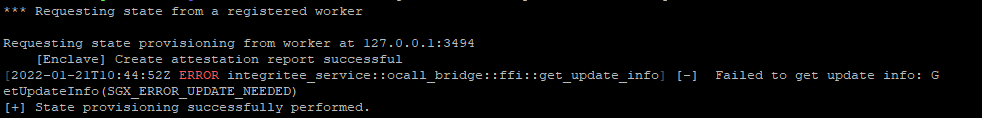

request-state with worker2 (with empty shard directory): ./integritee-service -p 9994 request-state
Stop worker 1 (such that no sidechain blocks will reach worker 2)
Start worker 2 ./integritee-service -P 2095 -p 9994 -r 3494 run --dev
Query balance of //AliceIncognito of second worker:

./integritee-cli -p 9994 -P 2095 trusted balance //AliceIncognito --mrenclave DBQbPN2WKh54fucAmpU7Z39ip5FYRBzzmnkJPmuQ1GNH
10000000000
./integritee-cli -p 9994 -P 2095 trusted balance //BobIncognito --mrenclave DBQbPN2WKh54fucAmpU7Z39ip5FYRBzzmnkJPmuQ1GNH
40000000000

closes #614

haerdib · 2022-01-19T09:05:33Z

enclave-runtime/src/tls_ra/authentication.rs

+
+*/
+
+//! Remote attestation certificate authentication of server and client


I did not change this part, simply copy pasted from the old tls_ra.rs file. So I'm unsure why there are so many unused variables in the function definition. Hence, I left as it is for now.

haerdib · 2022-01-19T09:12:18Z

enclave-runtime/src/tls_ra/tls_ra_client.rs

+}
+
+#[no_mangle]
+pub unsafe extern "C" fn request_state_provisioning(


Code from here on (in this file) left as is (copy pasted from tls_ra.rs), except the inclusion of the request_state_provisioning_internal for easy testing & usage of ?

haerdib · 2022-01-19T09:13:11Z

enclave-runtime/src/tls_ra/tls_ra_server.rs

+}
+
+#[no_mangle]
+pub unsafe extern "C" fn run_state_provisioning_server(


Code from here on (in this file) left as is (copy pasted from tls_ra.rs), except the inclusion of the run_state_provisioning_server_internal for easy testing & usage of ?

murerfel

All in all it's looking good - there are some issues I would like to have addressed ☺️

core-primitives/sgx/crypto/src/lib.rs

murerfel · 2022-01-19T08:56:31Z

enclave-runtime/src/tls_ra/mocks.rs

+	fn seal_shielding_key(&self, bytes: &[u8]) -> EnclaveResult<()> {
+		*SHIELDING_KEY.write().unwrap() = bytes.to_vec();
+		Ok(())
+	}


Why do we need these global variables in this mock? Is it not enough to use the members?

The problem lies with the mutability of the variables. We don't pass a mutable self here because it's not needed by the original function.

And if we have a mutable self, the whole request_state_provisioning_internal needs a mut reference input for the client_seal_handler, otherwise my server - client connection test would not work.

I didn't think adapting the code to use mutable references, which are not actually needed, are the way to go. Or what do you think?

What you need then, is RwLock on your members (that's something you'll see in many of my mock implementations). But they'll still be members and scoped inside the struct, not globally.

Better now? :)

Yes indeed, that's what I imagined ☺️

enclave-runtime/src/tls_ra/seal_handler.rs

murerfel · 2022-01-19T09:02:50Z

enclave-runtime/src/tls_ra/tests.rs

+	thread::spawn(move || {
+		run_state_provisioning_server(server_seal_handler);
+	});


You spawn a thread here, but you never join - so this thread keeps on running until the entire program is terminated? However, the thread should probably terminate when the test does?

Ops, that is correct. But joining simply waits for the thread to finish, it does not terminate anything. So in the worst case, the test will never end. I removed the (now obsolete) loop, so the thread finishes as soon it's done writing.

Yes simple joining wouldn't have solved problem if the thread is in an endless loop. You would've needed a sender/receiver to terminate the thread. But in case the loop is not required anymore, you can do the simple join.

Added a join 👍

enclave-runtime/src/tls_ra/tests.rs

enclave-runtime/src/tls_ra/authentication.rs

enclave-runtime/src/tls_ra/tls_ra_client.rs

enclave-runtime/src/tls_ra/tls_ra_server.rs

enclave-runtime/src/tls_ra/tls_ra_client.rs

echevrier

I am not a specialist in this part of the code, so my opinion is limited. It looks good to me. I really like the clean code and the tests

haerdib · 2022-01-19T13:45:35Z

I am not a specialist in this part of the code, so my opinion is limited.

And that's the reason why you're a good reviewer. If you don't understand something, it means it's not good code or not enough documented. Thanks for your comment ! 👍

murerfel · 2022-01-24T06:55:38Z

core-primitives/sgx/crypto/src/lib.rs

+#[cfg(all(feature = "mocks", feature = "sgx"))]
+pub mod mocks;


murerfel · 2022-01-24T07:00:13Z

enclave-runtime/src/tls_ra/mocks.rs

+	pub shielding_key: Arc<RwLock<Vec<u8>>>,
+	pub signing_key: Arc<RwLock<Vec<u8>>>,
+	pub state: Arc<RwLock<Vec<u8>>>,


I'm guessing you're using Arcs here for the #[derive(Clone)], because RwLock is not clonable? For the mock it's probably okay, but in a real implementation, this would most likely not be what we want. We'd have to implement clone ourselves and clone the inner value of RwLock.

Agreed, but for the mock that was the easiest way to implement a test. At least for what I could see.

murerfel · 2022-01-24T07:03:12Z

enclave-runtime/src/tls_ra/tests.rs

+	// Ensure server thread has finished.
+	server_thread_handle.join().unwrap();


murerfel · 2022-01-24T07:04:24Z

enclave-runtime/src/tls_ra/mocks.rs

+	fn seal_shielding_key(&self, bytes: &[u8]) -> EnclaveResult<()> {
+		*SHIELDING_KEY.write().unwrap() = bytes.to_vec();
+		Ok(())
+	}


Yes indeed, that's what I imagined ☺️

murerfel

It's looking good to me now 👍 good job
