Neural Memory Adapter for Hermes Agent

Semantic memory system with knowledge graph, spreading activation, embedding-based recall, autonomous dream consolidation, and C++ LSTM+kNN pattern learning for the Hermes Agent.

MSSQL users: run the production migration! Fixes NREM bloat, deduplicates everything, adds UNIQUE constraints:

cd ~/projects/neural-memory-adapter
python3 tools/mssql_production_migrate.py --force

SQLite users: bash migrate.sh still works. See Production Migration for details.

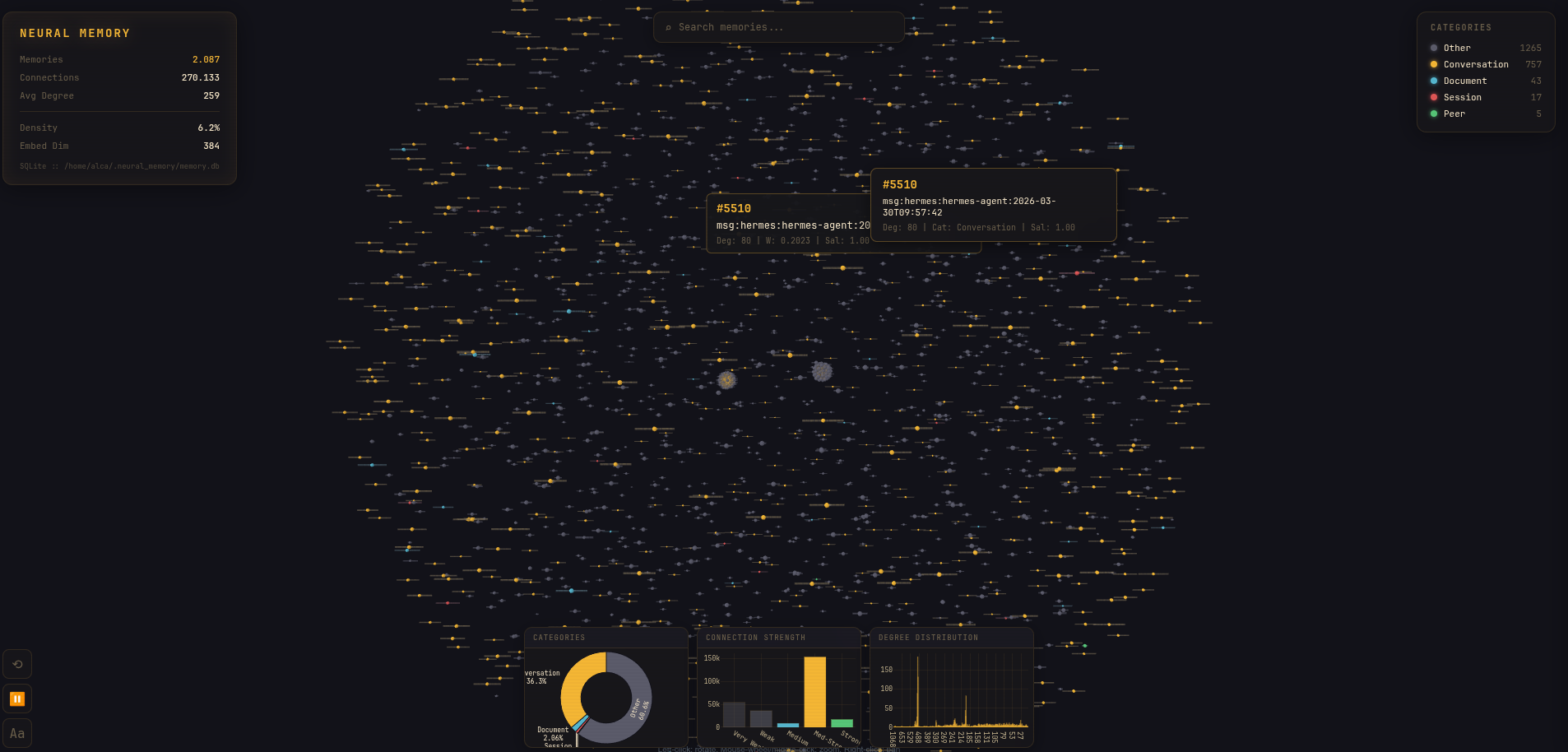

Demo Dashboard

Features

  • Semantic Memory Storage: Store memories with automatic embedding generation (BAAI/bge-m3, 1024d, CUDA-accelerated)
  • Knowledge Graph: Automatic connection of related memories based on cosine similarity
  • Spreading Activation: Explore connected ideas through BFS graph traversal with decay
  • Conflict Detection: Automatically detect and supersede conflicting memories
  • Dream Engine: Autonomous background consolidation (NREM/REM/Insight phases)
  • LSTM+kNN Pattern Learning: C++ LSTM predicts next-relevant embedding from access sequences; kNN re-ranks by multi-signal score (embedding + temporal + frequency + graph)
  • MSSQL Backend: Optional shared database for multi-agent setups — all dream operations write to the connections table directly
  • CUDA Acceleration: GPU-accelerated embeddings via sentence-transformers

Installation

cd ~/projects/neural-memory-adapter
bash install_database.sh   # Setup database
bash install.sh            # Install plugin

Installation Modes

Mode Command RAM Backend Embeddings
Lite bash install.sh --lite ~50MB SQLite hash/tfidf (auto)
Full Stack bash install.sh --full ~500MB SQLite + MSSQL bge-m3 1024d + C++ LSTM+kNN

Lite — Budget VPS friendly. No GPU, no Docker, no external services. Perfect for small setups.

Full Stack — Production. MSSQL shared database, sentence-transformers embeddings, optional GPU, C++ LSTM+kNN pattern learning. Supports multi-agent dream consolidation.

The installer will:

  1. Check/install Python dependencies
  2. Build the C++ library (optional)
  3. Create databases (SQLite + optionally MSSQL)
  4. Install the Hermes plugin
  5. Configure Hermes

Prerequisites for Full Stack

  • MSSQL Server running (sudo systemctl start mssql-server)
  • ODBC Driver 18 (yay -S msodbcsql18)
  • pyodbc (pip install pyodbc)
  • C++ build: cmake, C++17 compiler

Production Migration (MSSQL)

If you're running MSSQL, the production migration script handles everything — diagnose, sync, dedup, V1→V2, constraints, verify:

cd ~/projects/neural-memory-adapter

# Quick verification (no changes)
python3 tools/mssql_production_migrate.py --verify-only

# Full migration
python3 tools/mssql_production_migrate.py --force

# Dry run (preview)
python3 tools/mssql_production_migrate.py --dry-run

What it does

Step Action Result
1 Diagnose Tables, sizes, duplicates, orphans
2 SQLite → MSSQL sync Merge all SQLite databases (no overwrite)
3 Deduplicate connections 210 duplicates removed, keep highest weight
4 Deduplicate history 709K → 42K rows (UNIQUE prevents future bloat)
5 V1 → V2 migration Drop legacy GraphNodes/Edges, keep V2
6 Drop legacy tables NeuralMemory_old (117MB), connection_history_v2 duplicates
7 UNIQUE constraints connections(source_id, target_id), connection_history(source_id, target_id)
8 Code verification All INSERTs → MERGE/UPSERT confirmed
9 Functional verification 14 automated checks

Typical results

Before:  490 MB, 11 tables, 709K history rows, 210 connection dupes
After:   284 MB, 8 tables, 42K history rows, zero dupes
Saved:   42% disk space

Test Suite

24 production verification tests across 7 categories:

# Full suite
python3 tools/test_mssql_production.py

# By tag
python3 tools/test_mssql_production.py --tags constraints,merge
python3 tools/test_mssql_production.py --tags schema,data
Tag Tests
schema Tables exist, no legacy, column types
constraints UNIQUE indexes, FK relationships
data Counts, zero dupes, zero orphans, bloat check
merge MERGE on connections, MERGE on history, UNIQUE enforcement
integration V2 sufficient, NeuralMemory, dream_sessions, DB size
performance Recall <100ms, history lookup <50ms

Safety

  • Idempotent — safe to re-run, skips what's already clean
  • --dry-run — preview without changes
  • --verify-only — only run checks, no modifications
  • Full test suite — 24 tests verify everything

Migration (SQLite)

For SQLite-only setups, the shell migration still works:

cd ~/projects/neural-memory-adapter
git pull
bash migrate.sh

What it does

Step Action Why
1 Backup database Safety net — memory.db.bak.<timestamp>
2 Clean orphans Remove connections pointing to deleted memories
3 Clean history bloat Remove changelog entries for deleted memories
4 Deduplicate edges Merge duplicate (source, target, type) triples
5 UNIQUE constraint Prevent future duplicate edges at DB level
6 Retention indexes Fast time-based cleanup queries
7 VACUUM Reclaim wasted disk space
8 Patch dream_engine.py Auto-prune every 50 Dream cycles (history 7d, sessions 30d, orphans)
9 Patch backends MSSQL + C++ backend retention methods
10 Verify integrity Full sanity check

Typical results

Before:  200-400 MB (depending on age)
After:   30-80 MB
Saved:   60-80% disk space

Safety

  • Backup always created before any changes
  • Idempotent — safe to re-run, skips what's already clean
  • --dry-run — preview without changes: bash migrate.sh --dry-run
  • Integrity verified after every run

After migration

The Dream Engine will now automatically prune old data every 50 cycles. No manual maintenance needed going forward.

MSSQL: UNIQUE constraints on connections and connection_history prevent NREM from creating duplicates. The Dream Engine uses MERGE/UPSERT — existing rows get updated, not duplicated.

SQLite: ON CONFLICT DO UPDATE provides the same protection.

Check database health:

# MSSQL
python3 tools/mssql_production_migrate.py --verify-only

# SQLite
sqlite3 ~/.neural_memory/memory.db "SELECT COUNT(*) FROM connection_history"

Should stay under 50K in normal operation.

Configuration

Config (config.yaml) — Single Source of Truth

All settings — including MSSQL credentials — live in ~/.hermes/config.yaml. No .env vars needed. The plugin reads config.yaml and sets C++ bridge env vars internally.

memory:
  provider: neural
  neural:
    db_path: ~/.neural_memory/memory.db
    embedding_backend: sentence-transformers  # or: auto
    prefetch_limit: 10
    search_limit: 10
    dream:
      enabled: true
      idle_threshold: 600        # seconds before dream cycle
      memory_threshold: 50       # dream after N new memories
      mssql:                     # MSSQL backend config
        server: 127.0.0.1
        database: NeuralMemory
        username: SA
        password: 'your_password_here'
        driver: '{ODBC Driver 18 for SQL Server}'

How it works:

  1. Plugin loads config.yaml via config.py
  2. Reads memory.neural.dream.mssql.* settings
  3. Sets MSSQL_SERVER, MSSQL_DATABASE, MSSQL_USERNAME, MSSQL_PASSWORD, MSSQL_DRIVER into os.environ
  4. C++ bridge picks them up via std::getenv() — no .env file needed

Tools

When active, the following tools are available:

Tool Description
neural_remember Store a memory (with conflict detection)
neural_recall Search memories by semantic similarity
neural_think Spreading activation from a memory
neural_graph View knowledge graph statistics
neural_dream Force a dream cycle (all/nrem/rem/insight)
neural_dream_stats Dream engine statistics

Dream Engine

Autonomous background memory consolidation inspired by biological sleep:

Phase 1 — NREM (Replay & Consolidation) Replays 100 recent memories via spreading activation. Active connections strengthened (+0.05), inactive weakened (-0.01 with decay protection for strong/bridge edges). Dead connections pruned (<0.05).

Phase 2 — REM (Exploration & Bridge Discovery) Finds 50 isolated memories (few connections). For each, searches for semantically similar unconnected memories via recall(). Creates tentative bridge connections in the connections table (weight = similarity × 0.3).

Phase 3 — Insight (Community Detection) BFS connected component analysis on the full graph. Identifies bridge nodes spanning multiple communities. Creates cluster and bridge insight entries in dream_insights.

Triggers

  • Automatic: after 600s idle (configurable)
  • Automatic: every 50 new memories (configurable)
  • Manual: neural_dream tool
  • Cron: every 6 hours (default)

Standalone Worker

# One-shot cycle
python python/dream_worker.py

# Specific phase
python python/dream_worker.py --phase nrem

# Daemon mode
python python/dream_worker.py --daemon --idle 300

C++ LSTM+kNN Stack

The LSTM+kNN system learns when you'll need memories, not just what you'll need. It runs entirely in C++ via libneural_memory.so, with Python bindings through ctypes.

Components

AccessLogger (Python)
  └─ logs every recall event (query embedding, result IDs, scores, timestamps)
  └─ circular buffer → JSON Lines persistence → co-occurrence analysis
  └─ extracts training pairs (sequence → target embedding)

LSTMPredictor (C++, 875 lines)
  └─ single-layer LSTM, Xavier-initialized
  └─ forward(): given sequence of recent access embeddings → predicted next embedding
  └─ train(): backprop on (sequence, target) pairs from AccessLogger
  └─ save/load weights to ~/.neural_memory/lstm_weights.bin

KNNEngine (C++, 281 lines)
  └─ multi-signal re-ranking of base recall results
  └─ score = w_embed × cosine + w_temporal × decay + w_freq × log(count) + w_graph × hop_distance
  └─ LSTM context dynamically adjusts weights (e.g., boost temporal if LSTM predicts time-sensitive query)

How It Works

User query: "what pet do I have?"
    │
    ▼
1. Base recall (embedding search) → [memory#42: "dog named Lou", memory#88: "cat food"]
2. AccessLogger → recent sequence: [memory#17, memory#3, memory#42]
3. LSTMPredictor → predicts next embedding from sequence (what comes next?)
4. KNNEngine → re-ranks base results using 4 signals:
   - Embedding similarity (0.50 weight)
   - Temporal decay (0.20) — how recently was it accessed?
   - Frequency (0.15) — how often is it accessed?
   - Graph proximity (0.15) — how close in the knowledge graph?
5. LSTM context adjusts weights → final scored results

Configuration

LSTM+kNN auto-initializes when libneural_memory.so is available. Falls back silently if not compiled.

Parameter Default Description
input_dim 1024 Embedding dimension (matches bge-m3)
hidden_dim 256 LSTM hidden state size
w_embedding 0.50 Cosine similarity weight
w_temporal 0.20 Temporal decay weight
w_frequency 0.15 Access frequency weight
w_graph 0.15 Graph proximity weight
half_life_hours 24.0 Temporal decay half-life

Architecture

Data Flow (MSSQL Mode)

When MSSQL is configured, the system uses the connections table as single source of truth for all graph operations:

Operation Source Notes
Semantic search (recall) Python → MSSQL/SQLite bge-m3 embedding similarity
Spreading activation (think) Python → MSSQL connections BFS with decay
Dream NREM strengthen/weaken/prune pyodbc → MSSQL connections Direct SQL UPDATE/DELETE
Dream REM bridge creation pyodbc → MSSQL connections INSERT with edge_type = 'bridge'
Dream Insight community detection pyodbc → MSSQL connections BFS connected components
LSTM+kNN enhancement C++ → Python In-memory scoring
Session tracking SQLite dream_sessions.db Lightweight metadata

Python Components

  • neural_memory.py: Unified Memory class (auto-detects MSSQL vs SQLite, LSTM+kNN integration)
  • memory_client.py: NeuralMemory class (remember/recall/think/graph) + SQLiteStore
  • embed_provider.py: Embedding backends (sentence-transformers, tfidf, hash)
  • dream_engine.py: Dream engine core + SQLiteDreamBackend
  • cpp_dream_backend.py: MSSQL direct-query dream backend (pyodbc)
  • dream_mssql_store.py: MSSQL dream session tracking
  • access_logger.py: Recall event logging for LSTM training
  • lstm_knn_bridge.py: Python ctypes interface to C++ LSTM+kNN

C++ Components

  • libneural_memory.so: Main shared library
    • lstm.cpp (875 lines): LSTM forward/backward pass, Xavier init, weight save/load
    • knn.cpp (281 lines): Multi-signal kNN scoring engine
    • c_api.cpp: C API surface (handles, type-safe wrappers)
    • hopfield.cpp: Hopfield network for pattern completion
    • knowledge_graph.cpp: Graph operations

Testing

cd ~/projects/neural-memory-adapter/python
python3 demo.py

MSSQL Production Tests

# Full suite (24 tests)
python3 tools/test_mssql_production.py

# Specific tags
python3 tools/test_mssql_production.py --tags constraints,merge
python3 tools/test_mssql_production.py --tags performance

File Structure

neural-memory-adapter/
├── migrate.sh                    # One-shot Day-0 → Production migration
├── install.sh                    # Plugin installer (Lite/Full picker)
├── install_database.sh           # Database setup (SQLite/MSSQL)
├── hermes-plugin/                # Plugin files (deployed to Hermes)
│   ├── __init__.py               # MemoryProvider + tools
│   ├── config.py                 # Configuration loader
│   ├── plugin.yaml               # Plugin metadata
│   ├── neural_memory.py          # Unified Memory class
│   ├── memory_client.py          # Main client
│   ├── embed_provider.py         # Embedding backends
│   ├── dream_engine.py           # Dream engine (SQLite backend)
│   ├── cpp_dream_backend.py      # Dream engine (MSSQL direct queries)
│   ├── dream_mssql_store.py      # Dream engine (MSSQL sessions)
│   ├── mssql_store.py            # MSSQL storage backend
│   ├── access_logger.py          # Recall event logger (LSTM training data)
│   ├── lstm_knn_bridge.py        # C++ LSTM+kNN ctypes bridge
│   ├── cpp_bridge.py             # C++ vector ops ctypes bridge
│   └── fast_ops.pyx              # Cython cosine similarity
├── python/                       # Python source (source of truth)
│   └── (mirrors hermes-plugin/ + demo.py, dream_worker.py)
├── src/                          # C++ source
│   ├── core/c_api.cpp            # C API surface
│   ├── memory/lstm.cpp           # LSTM predictor
│   ├── memory/knn.cpp            # kNN engine
│   └── memory/hopfield.cpp       # Hopfield network
├── include/neural/               # C++ headers
│   ├── lstm.h                    # LSTM weights, forward pass, backprop
│   ├── knn.h                     # kNN config, multi-signal scoring
│   └── c_api.h                   # C API declarations
├── tools/
│   ├── mssql_production_migrate.py # MSSQL migration + verification pipeline
│   ├── test_mssql_production.py    # 24 production verification tests
│   ├── production_upgrade.py       # SQLite cleanup script (orphans, dedup, VACUUM)
│   └── dashboard/                  # Interactive HTML dashboard
└── README.md

Memory Storage

  • MSSQL (primary): 127.0.0.1/NeuralMemory — 8 tables, V2 canonical layout
  • SQLite (fallback): ~/.neural_memory/memory.db (always active)
  • Embeddings: BAAI/bge-m3 (1024d) — auto-downloaded on first use, cached at ~/.neural_memory/models/ (~2.2 GB)
  • LSTM weights: ~/.neural_memory/lstm_weights.bin (persisted after training)
  • Access logs: ~/.neural_memory/access_logs/ (JSON Lines, LSTM training data)

MSSQL Tables (V2 — Production)

Table Purpose Constraint
memories Semantic memories with embeddings PK: id
connections Knowledge graph edges UNIQUE: (source_id, target_id)
connection_history Latest weight per edge (UPSERT) UNIQUE: (source_id, target_id)
dream_sessions Dream cycle tracking PK: id
dream_insights Community detection results PK: id
NeuralMemory Vector store (C++ bridge) UNIQUE: legacy_id
GraphNodes_v2 Graph node metadata PK: node_id
GraphEdges_v2 Graph edge metadata PK: edge_id

Embedding Auto-Setup

Priority Backend Model Dimensions Requirements
1st sentence-transformers BAAI/bge-m3 1024 GPU recommended, auto-downloads
2nd tfidf — varies numpy only
3rd hash — 384 nothing (always works)

Conflict Detection

When storing a memory with similar content to an existing one:

  • High similarity (>0.7) + different content → updates existing memory
  • Marks old memory as [SUPERSEDED] and adds [UPDATED TO]
  • Returns the existing memory ID instead of creating duplicate

Dashboard

Interactive 3D knowledge graph visualization — fully offline, zero CDN dependencies.

cd tools/dashboard

# Generate from SQLite
python3 generate.py -o ~/neural_memory_dashboard.html

# Generate from MSSQL
python3 generate.py --mssql --mssql-password 'pass' -o ~/dashboard.html

# Generate + serve via HTTPS (self-signed cert)
python3 generate.py --serve --port 8443

Features:

  • 3D Force Graph — full-viewport WebGL graph (vasturiano/3d-force-graph + Three.js), force-directed layout with directional particles, clickable nodes with camera focus
  • Amber Theme — #f5b731 on deep black #0a0a12, matching hermelinChat skin
  • HUD Panel — top-left: memory count, connections, avg degree, graph density, embedding dim
  • Detail Panel — right slide-in on node click: category, salience bar, degree (in/out/total), access count, connected nodes (clickable)
  • Search — top-center fuzzy search by label or ID, click to focus + open detail
  • Category Legend — top-right, click to highlight/filter nodes by category
  • Mini Charts — bottom bar: category donut, connection strength bars, degree histogram (Plotly)
  • Controls — camera reset, pause/resume simulation, toggle labels

Offline-First: All JS libraries (Plotly ~3.5 MB, Three.js ~670 KB, 3d-force-graph ~690 KB) embedded inline. SpriteText replaced with canvas-based inline class. No external CDN calls. Generated HTML is fully self-contained (~5.4 MB).

Library Cache: tools/dashboard/.lib_cache/ — auto-downloaded on first generate.py run.

Troubleshooting

Plugin not loading

grep -n "def tool_error" ~/.hermes/hermes-agent/tools/registry.py

Dependencies

# Lite
pip install numpy

# Full Stack
pip install sentence-transformers pyodbc numpy cython

Database issues

rm ~/.neural_memory/memory.db  # fresh start

MSSQL connection

grep -A5 'mssql:' ~/.hermes/config.yaml
systemctl status mssql-server
ss -tlnp | grep 1433

C++ / LSTM+kNN

# Build
cd ~/projects/neural-memory-adapter/build
cmake .. -DCMAKE_BUILD_TYPE=Release
make neural_memory -j$(nproc)

# Verify
python3 -c "from lstm_knn_bridge import LSTMPredictor; print('OK')"

License

See LICENSE file.

About

Semantic memory system with knowledge graph, spreading activation, embedding-based recall, autonomous dream consolidation, and C++ LSTM+kNN pattern learning for the Hermes Agent.

Topics

agent ai knowledge graph memory simd avx2 hermes vectors brain agents dimensional hermes-agent avx2-simd

Resources

Readme

License

MIT license

Contributing

Contributing
Activity

Stars

13 stars

Watchers

1 watching

Forks

3 forks
Report repository

Releases

1 tags

Packages





Contributors

Languages
