pH in Durov diagram

[Fabi1398]

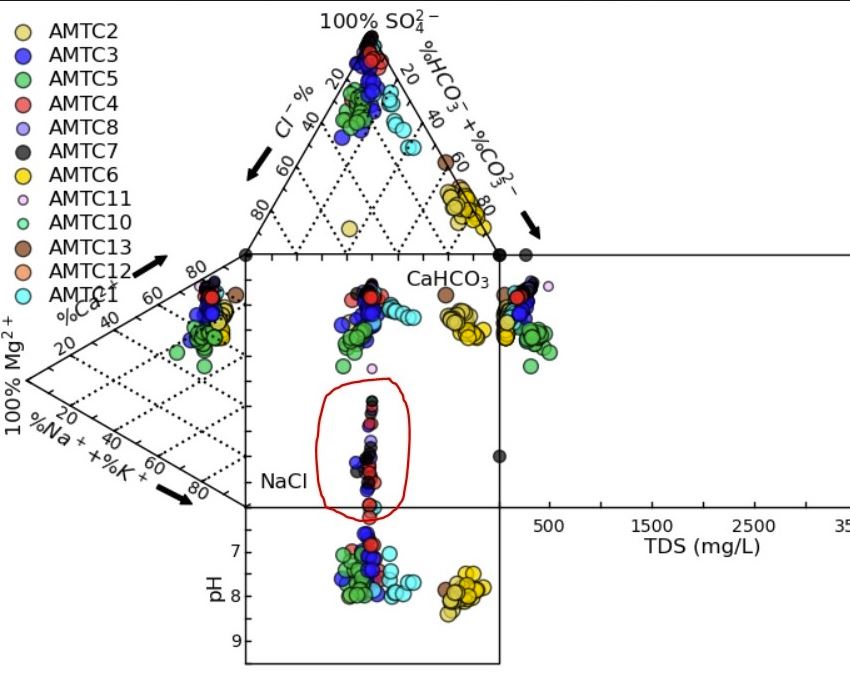

Hi, when my pH data is less than 5, it is plotted in the middle rectangle and mixed with the triangle data. Suggestion to modify the code to plot only in the pH rectangle.

[jyangfsu]

Hi, Thank you for your email and sorry for the late response. This is caused by the pr-edetermined min/max pH valuses which are hard-coded in wqchartpy. We will fix this issue soon and keep you updated. Jing

…

---- Replied Message ---- From ***@***.******@***.***> Date 06/14/2022 01:18 To ***@***.******@***.***> Cc ***@***.******@***.***> Subject [jyangfsu/WQChartPy] pH in Durov diagram (Issue #4) Hi, when my pH data is less than 5, it is plotted in the middle rectangle and mixed with the triangle data. Suggestion to modify the code to plot only in the pH rectangle. [Durov]<https://urldefense.com/v3/__https://user-images.githubusercontent.com/107427503/173408586-7384c3d8-8ccf-4277-8092-c1199a09cfdf.JPG__;!!PhOWcWs!wR1jBKeln7rHAleLJH4Nry_GPsTl0g7SSKDwh1k93NNleDsVS7l4dXoUUDRT8Y4vsOMIEfjqS2nj8s0VLqPM-wLF$> — Reply to this email directly, view it on GitHub<https://urldefense.com/v3/__https://github.com/jyangfsu/WQChartPy/issues/4__;!!PhOWcWs!wR1jBKeln7rHAleLJH4Nry_GPsTl0g7SSKDwh1k93NNleDsVS7l4dXoUUDRT8Y4vsOMIEfjqS2nj8s0VLkrzSshn$>, or unsubscribe<https://urldefense.com/v3/__https://github.com/notifications/unsubscribe-auth/APBTNE3WDLUFEBJXVKWB6SDVO5UP5ANCNFSM5YU5SJOQ__;!!PhOWcWs!wR1jBKeln7rHAleLJH4Nry_GPsTl0g7SSKDwh1k93NNleDsVS7l4dXoUUDRT8Y4vsOMIEfjqS2nj8s0VLvM8jj_V$>. You are receiving this because you are subscribed to this thread.Message ID: ***@***.***>

[jyangfsu]

@Fabi1398 The pre-determined min/max pH values are 6.5 and 9 in the original code. We have fixed this issue and you may want to try the new version of durvo.py. The code now automatically determines the min/max pH values based on your data.
