MRG +1 plot_compare_evokeds topo functionality #6211

jona-sassenhagen · 2019-04-24T15:22:19Z

Another attempt. It's not really hard, but it's my 3rd attempt so ...

mne.viz.plot_compare_evokeds gains the ability to plot to a topographical layout.
This will be slow for MEG data, but is often used for ERP papers.

Not ready for reviews yet.

Closes #4746
Closes #5746
Closes #6166
Closes #6039

Redo of #5568

jona-sassenhagen · 2019-04-24T15:35:41Z

See https://nbviewer.jupyter.org/gist/jona-sassenhagen/5128318bd01bb7305a42048f2de1fa2c/Untitled4.ipynb

codecov · 2019-04-25T09:14:02Z

Codecov Report

Merging #6211 into master will increase coverage by 2.14%.
The diff coverage is 90.86%.

@@            Coverage Diff             @@
##           master    #6211      +/-   ##
==========================================
+ Coverage   87.21%   89.36%   +2.14%
==========================================
  Files         413      415       +2
  Lines       74522    76125    +1603
  Branches    12314    12957     +643
==========================================
+ Hits        64998    68031    +3033
+ Misses       6647     5200    -1447
- Partials     2877     2894      +17

tutorials/plot_visualize_evoked.py

drammock · 2019-04-25T14:32:19Z

done pushing commits? title still says WIP

jona-sassenhagen · 2019-04-25T14:33:14Z

done pushing commits? title still says WIP

I guess I need to add more tests and maybe another example, and extend the docs. But the code is ready for review.

drammock

mne/viz/tests/test_evoked.py

mne/viz/evoked.py

jona-sassenhagen · 2019-04-26T09:01:29Z

In that case, I think the user can most easily use iter_topography themselves, or loop over axes and picks and call plot_compare_evokeds manually ... If we want to support a custom layout, we need a whole new kwarg and a bunch of extra infrastructure.

We might want to have an example like that though, using make_1020_rois.

jona-sassenhagen · 2019-04-26T10:15:32Z

mne/viz/topo.py

+            if not do_legend:
+                ax.set(xticklabels=[], yticklabels=[])
+                plt.setp(ax.get_xticklines(), visible=False)
+                plt.setp(ax.get_yticklines(), visible=False)


The legend only makes sense if you have ticks on the axes really.

same comment as above about state machine vs obj-oriented approach:

tklines = list(ax.get_xticklines()) + list(ax.get_yticklines()) list(tk.set_visible(False) for tk in tklines)

drammock

LGTM as long as CIs are green

mne/viz/tests/test_evoked.py

mne/viz/topo.py

drammock · 2019-04-26T11:05:50Z

mne/viz/topo.py

+            if not do_legend:
+                ax.set(xticklabels=[], yticklabels=[])
+                plt.setp(ax.get_xticklines(), visible=False)
+                plt.setp(ax.get_yticklines(), visible=False)


same comment as above about state machine vs obj-oriented approach:

tklines = list(ax.get_xticklines()) + list(ax.get_yticklines()) list(tk.set_visible(False) for tk in tklines)

drammock

can you find a way to test lines 159-161? Otherwise +1 for merge (assuming green CIs)

mne/viz/topo.py

drammock · 2019-04-26T14:52:16Z

good to go as soon as CIs come back green. Thanks @jona-sassenhagen for sticking with this one!

jona-sassenhagen · 2019-04-26T14:54:26Z

Thank you @drammock , @mmagnuski can you do another pass?

agramfort · 2019-04-27T08:20:51Z

mne/viz/evoked.py

+        this_evokeds = evokeds[cond]
+        # this will fail if evokeds do not have the same structure
+        # (e.g. channel count)
+        res = _get_data_and_ci(this_evokeds, scaling=scaling, picks=picks,


can you write

data, ci = _get_data_and_ci(...)

it makes it explicit what is returned.

then _get_data_and_ci would have to return data, None when no ci is requested, currently it returns (data, )

agramfort · 2019-04-27T08:21:48Z

mne/viz/evoked.py

+    # first, copy to avoid overwriting
+    styles = deepcopy(styles)
+    colors = deepcopy(colors)
+    linestyles = deepcopy(linestyles)


you don't see to overwrite in this function. Can you do the copies just before the overwrites so it's clearer why you need it?

agramfort · 2019-04-27T08:23:14Z

mne/viz/evoked.py

+        d = data_dict[condition].T
+        ax.plot(times, d, zorder=1000, label=condition, clip_on=False,
+                **styles[condition])
+        if np.any(d > 0) or all_positive:


you should write:

if all_positive or np.any(d > 0):

so the np.any(d > 0) is done again once all_positive is True. It saves some computation.

agramfort · 2019-04-27T08:23:52Z

mne/viz/evoked.py

+                **styles[condition])
+        if np.any(d > 0) or all_positive:
+            any_positive = True
+        if np.any(d < 0):


idem. You should not need to do this computation once any_negative has been set to True

agramfort · 2019-04-27T08:25:39Z

mne/viz/evoked.py

+            (picks == 'meg' or picks in _DATA_CH_TYPES_SPLIT) or
+            (isinstance(picks, Iterable) and
+             all(pick == 'meg' or pick in _DATA_CH_TYPES_SPLIT
+                 for pick in picks)))):


can you add a comment to explain in which case gfp is necessary?

agramfort · 2019-04-27T08:26:59Z

mne/viz/evoked.py

+                    for _ in range(len(ch_types)))
    else:
-        axes = (plt.subplots(figsize=(8, 6))[1] for _ in range(len(ch_types)))
+        axes = ["topo" for _ in ch_types]


axes = ["topo"] * len(ch_types)

agramfort · 2019-04-27T08:38:53Z

ok. Then maybe don't write res[-1] but rather res[1]

…

agramfort · 2019-04-27T14:45:00Z

thx @jona-sassenhagen

jona-sassenhagen added 4 commits April 24, 2019 15:14

init

cf94ea2

basic topo functionality

1ff78b6

progress

7433ecc

better

0a9098c

jona-sassenhagen added HARD VIZ labels Apr 24, 2019

jona-sassenhagen added 2 commits April 24, 2019 17:24

...

e0fca7d

del legend title

b20801d

interactive

da4c711

jona-sassenhagen added 6 commits April 25, 2019 11:26

gfpmagic

0f24a95

fixes

ba20190

fix split_legend

4d1e652

:D

0fd7aa0

fix missing ticks

654ef8e

fix docstrings

97b2f58

jona-sassenhagen requested review from cbrnr, drammock and mmagnuski April 25, 2019 14:30

jona-sassenhagen commented Apr 25, 2019

View reviewed changes

tutorials/plot_visualize_evoked.py Show resolved Hide resolved

drammock requested changes Apr 25, 2019

View reviewed changes

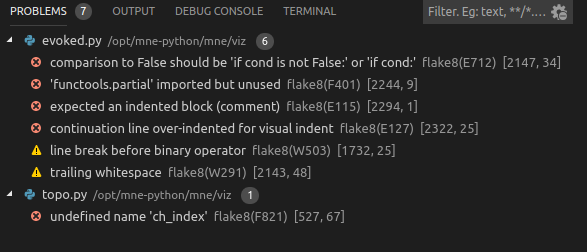

fix pep

cf375b7

jona-sassenhagen requested a review from drammock April 25, 2019 16:05

jona-sassenhagen changed the title ~~WIP plot_compare_evokeds topo functionality~~ MRG plot_compare_evokeds topo functionality Apr 25, 2019

larsoner reviewed Apr 25, 2019

View reviewed changes

mne/viz/tests/test_evoked.py Outdated Show resolved Hide resolved

mmagnuski reviewed Apr 25, 2019

View reviewed changes

mne/viz/evoked.py Show resolved Hide resolved

pep again

17969b6

jona-sassenhagen added 3 commits April 26, 2019 12:08

move legend to iter_topo

7d262a0

spelling

cc7deaf

comment

eb3850b

jona-sassenhagen commented Apr 26, 2019

View reviewed changes

test for iter_topo change

03c3c49

drammock approved these changes Apr 26, 2019

View reviewed changes

dans comments

b614605

jona-sassenhagen changed the title ~~MRG plot_compare_evokeds topo functionality~~ WIP plot_compare_evokeds topo functionality Apr 26, 2019

fix picks

cd21935

jona-sassenhagen changed the title ~~WIP plot_compare_evokeds topo functionality~~ MRG plot_compare_evokeds topo functionality Apr 26, 2019

jona-sassenhagen added 3 commits April 26, 2019 15:57

...

bbeb173

another dumb commit to deal with np.bool_

8f45464

...

c776fa8

drammock requested changes Apr 26, 2019

View reviewed changes

mne/viz/topo.py Show resolved Hide resolved

add iter_topo test

fd30246

drammock approved these changes Apr 26, 2019

View reviewed changes

drammock changed the title ~~MRG plot_compare_evokeds topo functionality~~ MRG +1 plot_compare_evokeds topo functionality Apr 26, 2019

jona-sassenhagen mentioned this pull request Apr 26, 2019

y-limits of subplots in plot_evoked_topo #6039

Closed

larsoner requested a review from mmagnuski April 26, 2019 21:19

agramfort reviewed Apr 27, 2019

View reviewed changes

comments

dc10327

agramfort merged commit 3d33e8e into mne-tools:master Apr 27, 2019

jona-sassenhagen deleted the plot_comp_topo branch April 27, 2019 16:14

jdpigeon mentioned this pull request Apr 28, 2019

Add electrode names to topo map Overview figure in Analyze screen makebrainwaves/BrainWaves#44

Open

drammock mentioned this pull request May 9, 2019

MRG, FIX: avoid spurious "showing first five" message #6288

Merged
