MRG: Add support for playback in time_viewer by GuillaumeFavelier · Pull Request #7200 · mne-tools/mne-python

GuillaumeFavelier · 2020-01-13T13:32:07Z

This PR adds basic support for brain/time playback in _TimeViewer. It's still a work in progress since for now only a simple call to set_time_point() is done every second with an increment of playback_speed. I had to modify the UI as well to make room for this new slider. Playback is started/stopped with the shortcut t.

ToDo

Support time dilation
Use space for playback shortcut
Snap fscale back to 1
Improve coverage

It's an item of #7162

Screenshot

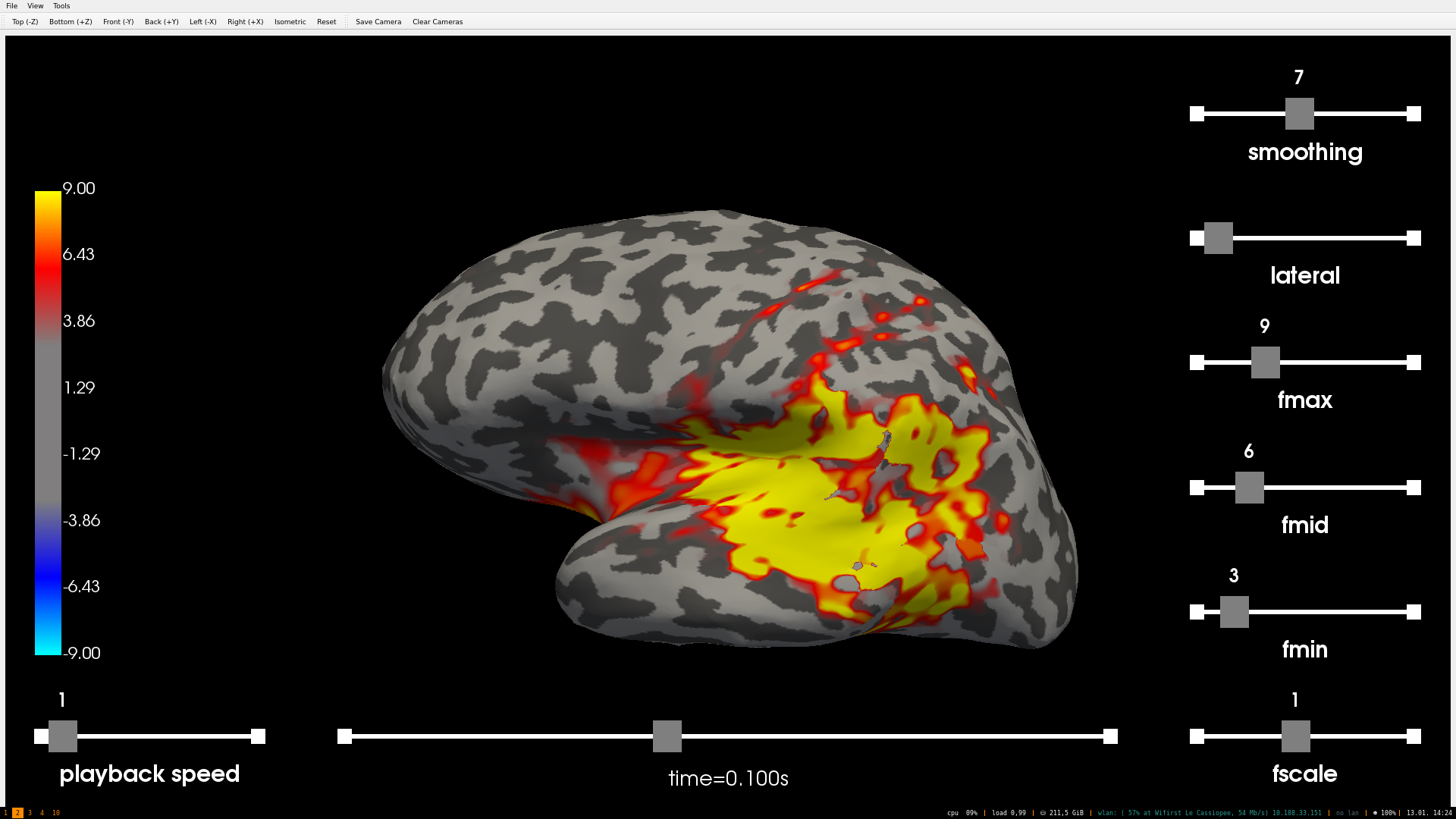

Animation

(t is pressed twice to start and stop the playback)

codecov · 2020-01-13T14:13:31Z

Codecov Report

Merging #7200 into master will decrease coverage by 0.02%.
The diff coverage is 66.98%.

@@            Coverage Diff             @@
##           master    #7200      +/-   ##
==========================================
- Coverage   89.76%   89.74%   -0.03%
==========================================
  Files         445      445
  Lines       79874    79960      +86
  Branches    12773    12786      +13
==========================================
+ Hits        71702    71761      +59
- Misses       5374     5398      +24
- Partials     2798     2801       +3

larsoner · 2020-01-13T14:52:30Z

Nice proof of concept, agree with the todo list

GuillaumeFavelier · 2020-01-13T17:58:39Z

@larsoner I'm not familiar with PySurfer time dilation so I tried the following:

A callback checking on the time_elapsed every 10ms updates the brain depending on the playback_speed and find the current time index with: idx = np.argmin(np.abs(times - time))

But I'm not sure about the user experience, is it even close to what you expect?

larsoner · 2020-01-13T20:49:56Z

I'm not familiar with PySurfer time dilation

@GuillaumeFavelier you should try it. There is no interactive element but you can see how the movies get created.

Basically a time dilation of 1 plays back in real-time (1 sec of data plays back over 1 sec of viewer time). A time dilation of 10 plays back 10 times slower than real time (0.1 sec of data plays back over 1 sec of viewer time). I would implement the same user interface because it's an intuitive way to think about playback speed.

larsoner · 2020-01-13T20:50:24Z

mne/viz/_brain/_timeviewer.py

+        self.playback = False
+        self.playback_speed = 1
+        self.time_elapsed = 0
+        self.plotter.add_key_event('t', self.toggle_playback)


I would use spacebar, it's what most media players use for play/pause

larsoner · 2020-01-13T20:51:57Z

mne/viz/_brain/_timeviewer.py

+        self.playback_speed = 1
+        self.time_elapsed = 0
+        self.plotter.add_key_event('t', self.toggle_playback)
+        self.plotter.add_callback(self.play, 10)


I would use 16.7ms as the interval (about 1./60.)

larsoner · 2020-01-13T20:54:20Z

mne/viz/_brain/_timeviewer.py

+                times = self.brain._data['time']
+                time_idx = self.brain._data['time_idx']
+                time = times[time_idx] + 1. / self.playback_speed
+                idx = np.argmin(np.abs(times - time))


After working out the user-time-to-data-time logic I let interp1d from scipy in 'linear' mode do the work of picking the correct data.

GuillaumeFavelier · 2020-01-14T14:06:47Z

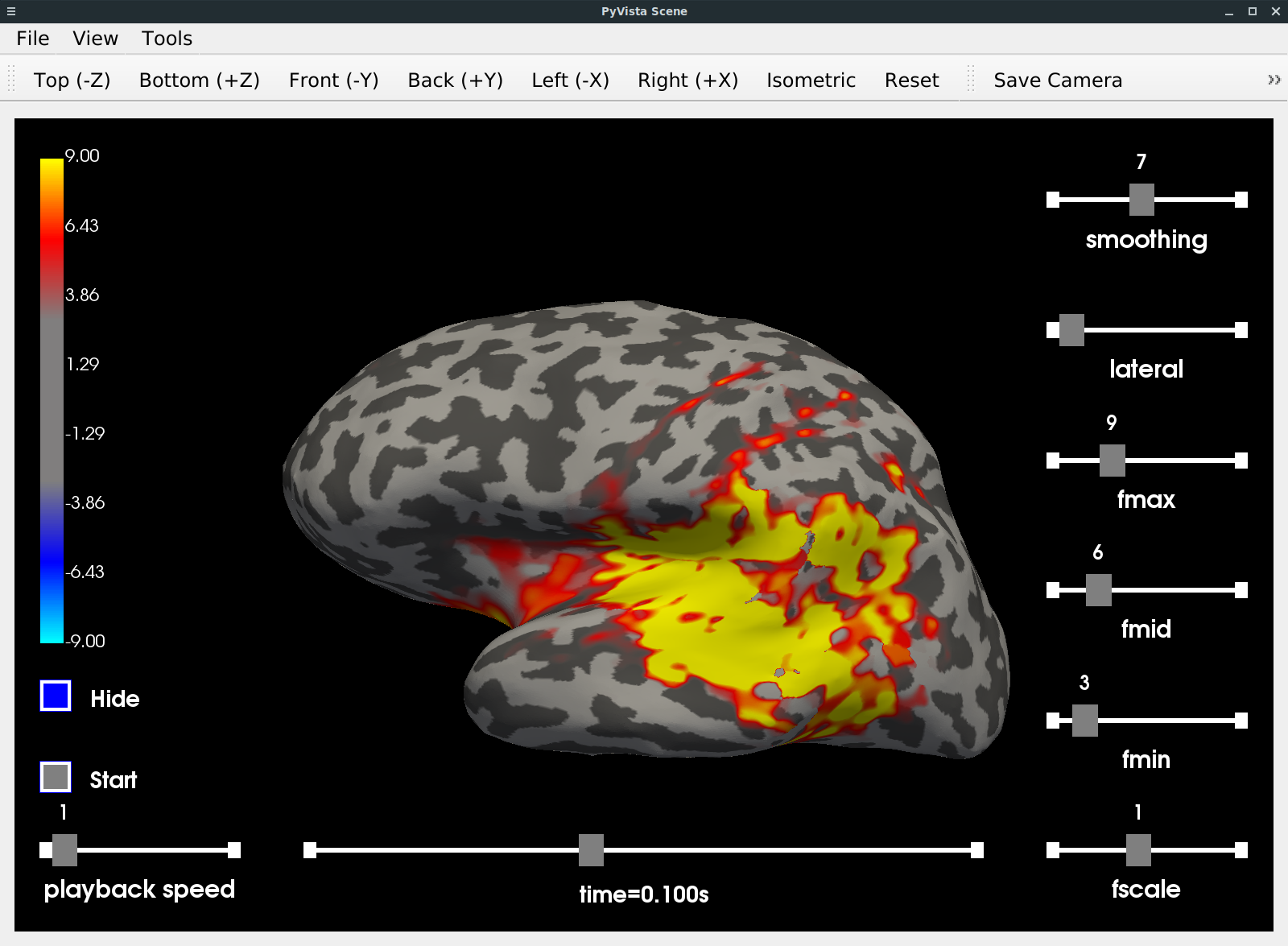

Update that introduces button widgets:

codecov · 2020-01-14T14:14:42Z

Codecov Report

Merging #7200 into master will increase coverage by 0.01%.
The diff coverage is 78%.

@@            Coverage Diff             @@
##           master    #7200      +/-   ##
==========================================
+ Coverage   89.76%   89.78%   +0.01%
==========================================
  Files         445      445
  Lines       79874    79943      +69
  Branches    12773    12783      +10
==========================================
+ Hits        71702    71773      +71
+ Misses       5374     5367       -7
- Partials     2798     2803       +5

GuillaumeFavelier · 2020-01-14T16:36:51Z

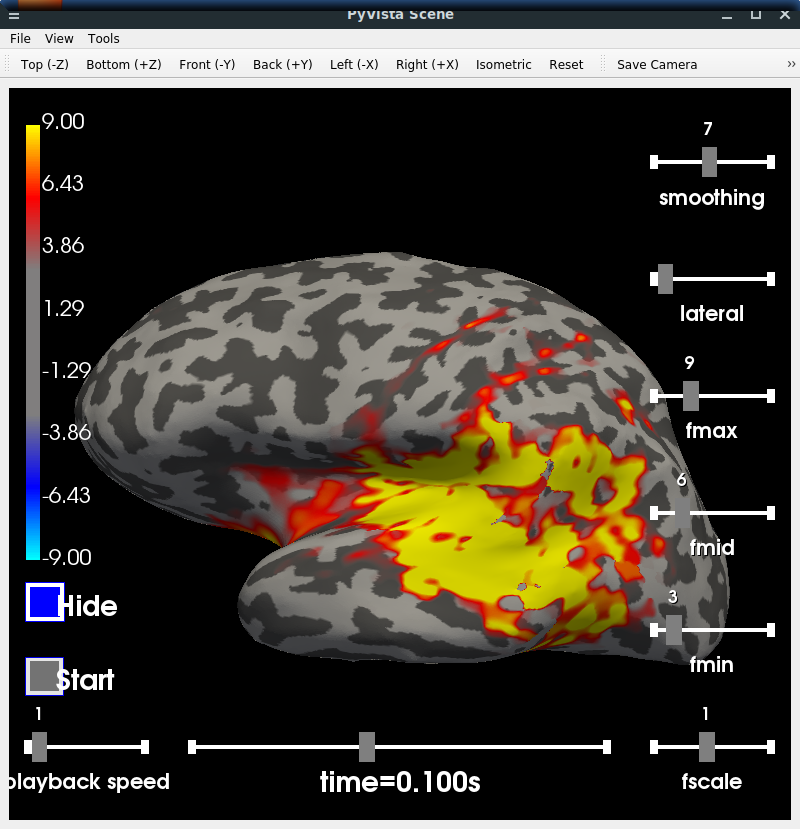

This is the latest result:

larsoner · 2020-01-14T16:47:34Z

If you are going to call it playback_speed (which is fine by me) it should probably go from 0.01 (1/100th speed) to 1 (realtime), i.e. the reciprocal of time_dilation. Sliding to the right should make things faster and sliding left should slow it down

larsoner · 2020-01-14T17:01:22Z

And after using it, a few more:

Show/hide does not toggle the start button, which it should
In media players, "Stop" typically means "pause and return to start". So rather than using "start/stop" I would use "Play/Pause"
I would also check to see if VTK supports unicode and just use ⏯ and let the checkbox / behavior indicate the state, but if you really like changing the text then I'd use ▶️ and ⏸ (though this might be less clear than ⏯ depending on how well VTK renders these characters, if it does at all)
It looks like you're on a HiDPI display (macOS). Things look good for you but bad when using non-HiDPI displays. Using:
```
$ QT_SCALE_FACTOR=2 MNE_3D_BACKEND=pyvista python -ui tutorials/source-modeling/plot_visualize_stc.py
```
I get what you see:

But then using 1. as the scale factor, which is also effectively the default on my system:

So it seems like PyVista and/or our code needs to take into account the physical-to-logical pixel ratio to get e.g. the font-to-button distances correct. You can use the QT_SCALE_FACTOR=1 on your system to test what it would look like for most people. Might be good to get in the habit of testing both.

larsoner · 2020-01-14T17:34:19Z

Also:

Changing fscale is an immediate change relative to the present values on the slider. In other words, that if I click and drag to a value, it updates fmin/fmid/fmax, and the next time I click and release fscale, it changes those new values based on the value of fmult. That means that the effective value of fscale after releasing and updating fmin/fmid/fmax should be restored to 1. In other words, once the user click-drag-releases the fscale slider, it should (after changing fmin/fmid/fmax) immediately snap back to the 1. position.

GuillaumeFavelier · 2020-01-15T09:13:33Z

Show/hide does not toggle the start button, which it should

I encountered the same bug and I couldn't find a way to hide/show the button widget without first interacting with it. For reference, the temporary solution modifies the opacity of the button.

I would also check to see if VTK supports unicode

The properties of this button don't allow it but it would be possible to use an image as a texture for a state of the button (checked/unchecked).

It looks like you're on a HiDPI display (macOS)

I'm not using a HiDPI display, this type of button uses absolute coordinates in the window space, which is not consistent with the rest of the UI elements using relative coordinates. This means that the button won't get resized and its position to the bottom-left corner won't change either while you resize the window. It is possible to mitigate this with a callback that updates the information of the button accordingly, this is the role of the perform_maintenance() function. I think this is a lot of code dedicated to compensate the limitations of this type of button. I would prefer to invest this energy to find a better alternative.

Thanks for the feedback @larsoner, I think I will rollback to the shortcuts for now in order to move forward with this PR. I will report all your comments on #7162 in case we come back on the buttons again.

GuillaumeFavelier · 2020-01-15T12:16:40Z

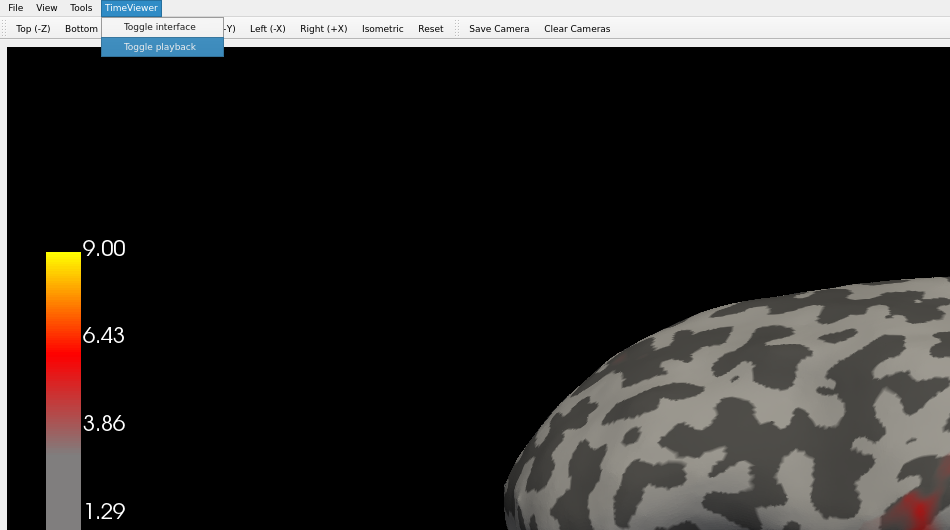

Now that I think about it. We can also use the Qt interface of the plotter itself instead of the rendering view. We could add a menu 'TimeViewer' and put all the toggles in here. What do you think?

This is 3 lines of code:

        menu = self.plotter.main_menu.addMenu('TimeViewer')
        menu.addAction('Toggle interface', self.toggle_interface)
        menu.addAction('Toggle playback', self.toggle_playback)

Or we could add them in the camera toolbar or create a new toolbar. It's another option.

larsoner · 2020-01-15T15:39:01Z

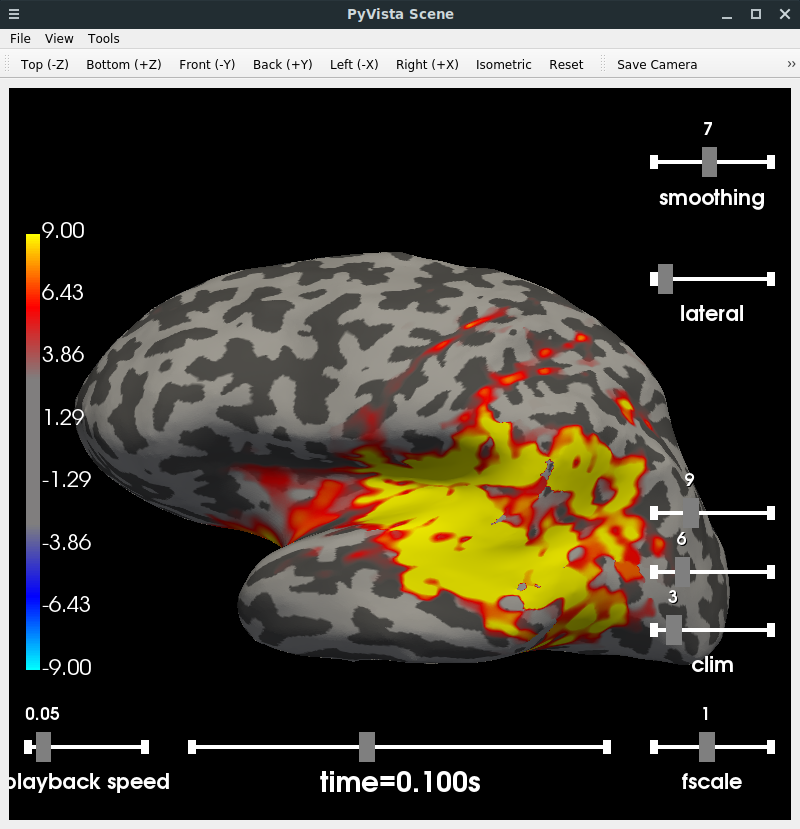

After much tweaking the colorbar limits (including with overlap) I think this is probably the best compromise of usability and compactness:

I also:

updated / simplified / fixed the logic for playback speed
changed the default to 0.05 which works well for `sample
added a .update() that makes the playback smoother
made it so that if you hit space after playback is over (i.e., it's on the last time point) it starts from the beginning -- makes iterative viewing much easier because you don't have to click back to the beginning anymore

I'm very happy with this version! These changes okay with you @GuillaumeFavelier ?

GuillaumeFavelier · 2020-01-15T15:52:38Z

Magnificent!

GuillaumeFavelier · 2020-01-15T15:55:58Z

mne/viz/_brain/_timeviewer.py

        self.playback = False
-        self.playback_speed = 1
+        self.playback_speed = default_playback_speed
        self.time_elapsed = 0


We don't need self.time_elapsed anymore

larsoner · 2020-01-15T17:46:10Z

Thanks @GuillaumeFavelier !

agramfort · 2020-01-15T17:47:33Z

🍻 !

…

* Add basic support for playback * Try time dilation * Add button widgets * Rollback this part * Add linear time interpolation * Fix time management * Fix time dilation * Update range of playback speed * Rollback to shortcuts * Snap fscale back to 1 * Improve coverage * FIX: Smoother animation * Remove unused variable Co-authored-by: Eric Larson <larson.eric.d@gmail.com>

Add basic support for playback

9f2a005

GuillaumeFavelier added the VIZ label Jan 13, 2020

GuillaumeFavelier self-assigned this Jan 13, 2020

GuillaumeFavelier mentioned this pull request Jan 13, 2020

ENH: New interface for Brain #7162

Closed

86 tasks

Try time dilation

3e18470

larsoner reviewed Jan 13, 2020

View reviewed changes

GuillaumeFavelier added 2 commits January 14, 2020 13:03

Add button widgets

e16bdfe

Rollback this part

fd6bf28

GuillaumeFavelier added 3 commits January 14, 2020 15:50

Add linear time interpolation

b84b775

Fix time management

0b8ac3f

Fix time dilation

726cc97

GuillaumeFavelier added 4 commits January 15, 2020 10:22

Update range of playback speed

14840ae

Rollback to shortcuts

e3f9a0c

Snap fscale back to 1

50dddef

Improve coverage

926beaa

GuillaumeFavelier changed the title ~~WIP: Add support for playback in time_viewer~~ MRG: Add support for playback in time_viewer Jan 15, 2020

FIX: Smoother animation

68ac4f5

larsoner approved these changes Jan 15, 2020

View reviewed changes

GuillaumeFavelier commented Jan 15, 2020

View reviewed changes

Remove unused variable

b3c3622

larsoner merged commit a35f8cf into mne-tools:master Jan 15, 2020

GuillaumeFavelier mentioned this pull request Feb 13, 2020

WIP: Add help window to the _TimeViewer #7305

Merged

7 tasks

GuillaumeFavelier deleted the time_viewer_playback branch June 11, 2020 09:38
