Heater Control

Jump to bottom
modmaker edited this page Jun 1, 2012 · 1 revision

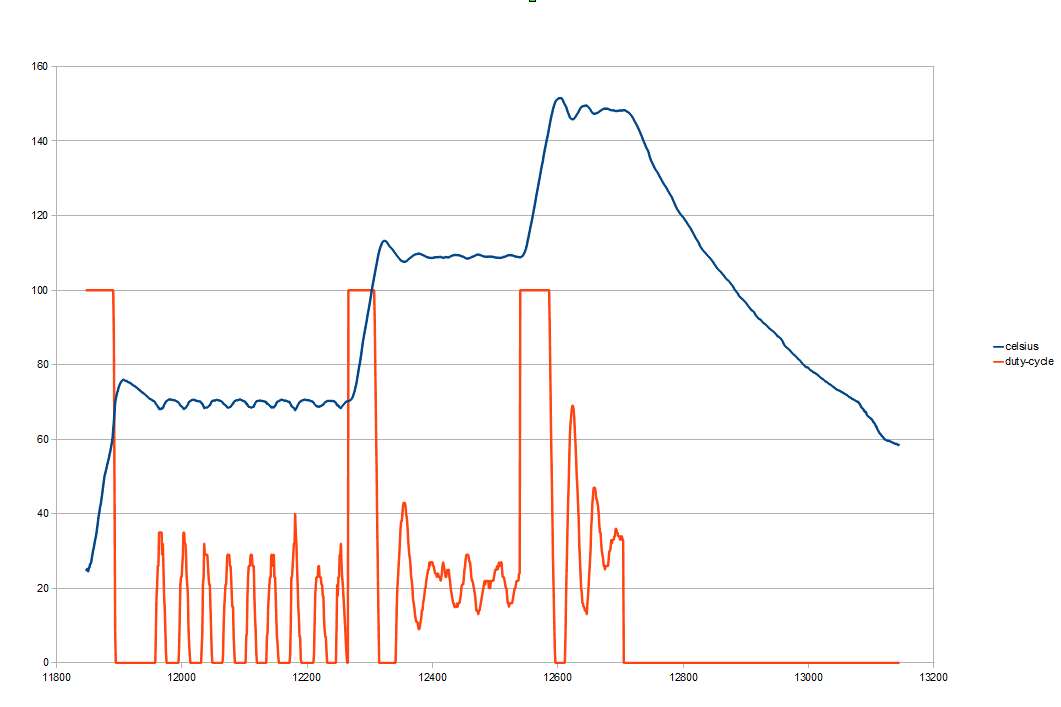

This is an example of the temperature profile before tuning the PID parameters. One of the AM3359 processor's ehrpwm devices is used to generate the PWM signal. The temperature is measured with a thermistor connected to one of the analog inputs (and some electronics inbetween).

Extruder Temperature (untuned) Step Response
