Github action to check database status after calibration updates

[jmbenlloch]

Whenever a new calibration is done some tables are changed in our MySQL server, that are later reflected in the SQLite file uploaded to this repository (examples in #765, #759, #754, etc.). Usually I'm the one responsible of reviewing those PRs. Besides checking all tests passed in Travis there is an extra step to ensure everything is ok and there was no human error in the process of creating the sqlite copy. This PR shows a way to do it automatically.

The calibration in the database affects the tables ChannelGain, ChannelMask and SipmNoisePDF. All of them are indexed using a MinRun and a MaxRun, delimiting the range of runs to which those values are applicable. The set of (MinRun, MaxRun) for each of those tables must be the same in our MySQL server and in the sqlite3 file included in the corresponding PR.

So far, I have been doing that step manually. This PR includes a Github action to do that check automatically. It will be triggered only for PR's modifying some *.sqlite3 file. This is what it does:

• Detect which is the updated database by parsing the name of the updated file. So it is useful for NEW, DEMOPP, etc.
• Retrieve the (MinRun, MaxRun) set for the relevant tables and checks the SQLite file contains the same thing both for SiPMs and PMTs (separately).
• It does NOT check all the values (too much data), but only that there is consistency between the latest calibration run number in both databases.

As illustration I have already included the code in this PR into my fork's master and created several PR's two show you how it works:

• A PR updating DEMOPP database without including the latest calibration in the MySQL server.

  • This PR passed all Travis tests but did NOT passed the new test done by the Github action included in this PR.


• Another PR with the same idea for the NEW database.

  • The code autodetects the proper database to check and shows the error.

• One last PR modifying the DEMOPP sqlite file but keeping the latest calibration in place.

  • All tests passed in this case.


I think this automation will simplify the reviewing of calibration PR's (which are common) and can also be useful as a proof of concept for tests/tasks that we want to run occasionally and do not fit well in the pytest scheme. This can be the first Github action included in IC, but there may be more in the future.

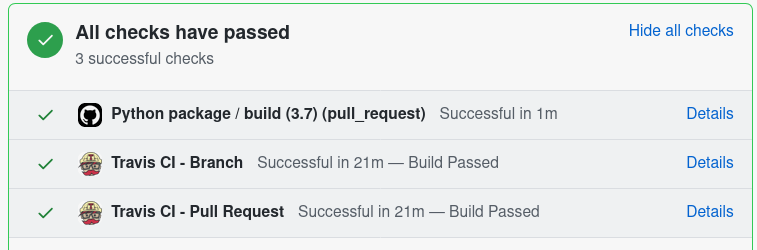

PS: In the sample images you can see a check called Python package / build (3.7) (pull_request), I have updated that name to Calibration check / build (3.7) (pull_request)

[carmenromo]

Amazing @jmbenlloch!!! Thank you!!!

Retrieve the (MinRun, MaxRun) set for the relevant tables and checks the SQLite file contains the same thing both for SiPMs and PMTs (separately).

In the case of DEMO we do not calibrate always both type of sensors. Here you mean that they are independent, right? Or does it check that the run numbers match for SiPMs and PMTs?

[jmbenlloch]

In the case of DEMO we do not calibrate always both type of sensors. Here you mean that they are independent, right? Or does it check that the run numbers match for SiPMs and PMTs?

The code will extract from the database the (MinRun, MaxRun) set first for the SiPMs (SensorID > 100) and then for the PMTs (SensorID < 100). In this way there shouldn't be any problem if you have updated both SiPMs and PMTs or only one of them.

[jacg]

I doubt I'll have much more to say on this, but I think that someone who is familiar with the task that is being automated, should have a look at exactly what is being verified, whether it makes sense, and whether anything has been overlooked.

AFAIAC: LGTM.

[jmbenlloch]

I doubt I'll have much more to say on this, but I think that someone who is familiar with the task that is being automated, should have a look at exactly what is being verified, whether it makes sense, and whether anything has been overlooked.

Thanks @jacg. I have squashed all the commits. Maybe @carmenromo can have a look a give the final review.

[carmenromo]

I suggested to @jmbenlloch to make another test to check that there are no gaps between the run numbers. However, given the large number of required exceptions we agreed on leaving it for the future, after reviewing the database itself.

I have reviewed the function that checks the gain update and it does its work, so I approve!
