Warn the user if speaking while muted #2016

danxuliu · 2019-07-19T08:46:23Z

Fixes #285

If the user is speaking while muted now an OC.Notification is shown (the notification is not immediate, though; it only appears after three seconds of "speech" (not actual speech, but just sounds above some volume threshold)); in the future it could be more integrated with the local video view if needed, but for now I would say that the OC.Notification is good enough.

However, if the browser is hidden the OC.Notification (or one integrated in the local video view) is not useful, as the user would not be able to see it. In those cases a browser notification is used instead, as it is visible even if the browser is hidden (provided the user grants access to notifications from the site; if not the OC.Notification is shown as a fallback, even if in most cases it will not be seen by the user, but there is nothing else that can be done in that case).

Unfortunately, currently there are some issues:

The OC.Notification in Nextcloud 17 is only shown for 7 seconds, instead of being there until the user stops speaking or unmutes; this is a regression in the server and it will be fixed there.
Chromium limits setTimeout to 1000 milliseconds in background tabs; due to this the audio analyzer is called with less frequency than in foreground tabs and the speaking detection is much less reliable (it needs a lot more time to detect that the user is speaking). In order to solve this it will be probably needed to use WebWorkers, so I would defer this fix for later.
If the browser is behind another window but not minimized the Page Visibility API still flags the window as visible, so in that case the OC.Notification is shown instead of the browser notification. I have not found a reliable way to check that scenario; the closest would be to check if the document has focus, but then if the browser window is in the foreground and the user has clicked the browser UI the document would not have focus and a browser notification would be shown, which would be unexpected too. I guess that we can defer this too until some solution is found.

Besides those issues there are also some pending enhancements:

Do not show the notification if there is no other participant in the conversation. I would defer this for a later pull request once some other changes are made in the WebRTC code.
Do not show the notification again if the notification was dismissed by the user before (but show it anyway if the user has unmuted and then muted again). I am not sure about this one, though; on one hand the notification may be a little annoying if there is more background noise than usual, but on the other hand the user may dismiss it at the beginning of a long conversation and when her speaking time comes she may have forgotten about it.

Finally, the current volume threshold is the one that was being used until now. It may need some tweaking (probably to make it higher), but I am not sure. Needs testing in different environments ;-)

nickvergessen · 2019-07-19T08:58:52Z

Not sure if I would do a browser notification. That sounds too annoying if you are just following a group call with audio without having to participate actively (like our company call). But maybe it's enough if that can be done once per call by clicking away the OC.Notification or the browser notification.

nickvergessen · 2019-07-19T09:15:14Z

Tested a bit and at least for me the notifcation is shown too shortly.

you have to notice it is being shown (which is not too easy since it's in the right sidebar and not in the call screen part
it keeps disappearing as soon as you stop talking(?) which you aautomatically might do after a quick question, so you cant even finish reading the message. I think once triggered, it should at least show for 5-7 seconds evne when you stop talking, unless you unmute.

danxuliu · 2019-07-23T08:49:15Z

Not sure if I would do a browser notification. That sounds too annoying if you are just following a group call with audio without having to participate actively (like our company call). But maybe it's enough if that can be done once per call by clicking away the OC.Notification or the browser notification.

As mentioned in the pull request I would make the dismiss to last until the user unmutes again instead of until the call ends (so if the user dismisses the notification and speaks again while muted the notification would not be shown, but if he then unmutes, mutes and later starts to speak again while muted the notification would be shown again).

you have to notice it is being shown (which is not too easy since it's in the right sidebar and not in the call screen part

Yes, it is inconvenient :-( , but this will be addressed in the future once there is a proper view for the call screen.

it keeps disappearing as soon as you stop talking(?) which you aautomatically might do after a quick question, so you cant even finish reading the message. I think once triggered, it should at least show for 5-7 seconds evne when you stop talking, unless you unmute.

It disappears one second after you stop talking. And if you do a quick question it may not show at all, as you need to speak for three seconds before the message is shown; this prevents the notification from being shown on short noises like coughs or laughs, as well as on short phrases, as that is usually not "speaking" (of course in some cases it could be, but in general I think that it is better to show the notification only after there has been sound for a while).

Regarding the timeout I used just one second because I think that it should be hidden quickly after you stop speaking (not immediately, but quickly). Although right now the notification is not very noticeable I think that is a problem only while you are not used to the new behaviour; once you realize that a notification is shown when speaking while muted I guess that you will be more prone to take a quick look to that area if you speak and nobody seems to hear you. Therefore hiding it after several seconds could be good at first, but I think that in the long run it would just make the notification annoying and more likely to be dismissed (which could also cause it to not be shown when really needed if the "do not show again once dismissed" behaviour is implemented).

Anyway, I would wait for the feedback from the users in our cloud as well as from @nextcloud/designers

jancborchardt · 2019-07-23T14:12:07Z

Instead of a disconnected Notification, I would do it as proposed in the issue:

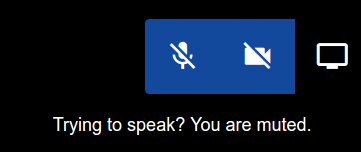

Just for the record, this is how appear.in or Jitsi meet do it (don’t remember, took the screenshot some time ago). Just a simple tooltip on the speaker icon which is shown when there’s audio input when muted:

Signed-off-by: Daniel Calviño Sánchez <danxuliu@gmail.com>

The LocalMedia helper handles the local streams sent to the other participants, and analyzes those streams to emit events when the user starts and stops speaking. However, when the local audio is muted those streams are disabled, so the audio is silent and it can not be detected if the user is speaking. In order to properly analyze the streams when the local audio is muted the streams are cloned and those clones, which are never disabled, are now the ones analyzed. Thanks to this now the LocalMedia helper also emits the "speakingWhileMuted" and "stoppedSpeakingWhileMuted" events while respecting the previous behaviour for the "speaking" and "stoppedSpeaking" events; muting and unmuting the audio while speaking also emits again the events as needed. Signed-off-by: Daniel Calviño Sánchez <danxuliu@gmail.com>

Signed-off-by: Daniel Calviño Sánchez <danxuliu@gmail.com>

Until now an OC.Notification, which shows an element in the page, was always used when speaking while muted. Now that is used only if the browser is visible; if it is not that notification would not be seen by the user, so in that case now a browser notification is used instead. Signed-off-by: Daniel Calviño Sánchez <danxuliu@gmail.com>

If the browser notification could not be shown for any reason (for example, if the user denied permissions to notifications) the OC.Notification is now shown as a fallback (although in most cases the user will not see it anyway, but it may be useful if the user switchs back to the Talk tab while still speaking). Signed-off-by: Daniel Calviño Sánchez <danxuliu@gmail.com>

Instead of using an OC.Notification the warning is now shown with a tooltip on the audio button that needs to be used to unmute. Signed-off-by: Daniel Calviño Sánchez <danxuliu@gmail.com>

danxuliu · 2019-08-28T12:35:42Z

Instead of a disconnected Notification, I would do it as proposed in the issue:

Done with a tooltip.

Ivansss

Tooltip looks great 👍
Tested and works!

nickvergessen

Also like it much more there and with the white tooltip on the black part of the view it's much more obvious.
Speaking of that, in dark mode the tooltip is black on black. Not worth a lot of effort, but it would be nice if it could stay white.

danxuliu added 3. to review enhancement feature: WebRTC 🚡 WebRTC connection between browsers and/or mobile clients feature: frontend 🖌️ "Web UI" client labels Jul 19, 2019

danxuliu added this to the 💚 Next Major milestone Jul 19, 2019

danxuliu requested review from Ivansss and nickvergessen July 19, 2019 08:46

backportbot-nextcloud bot added the backport-request label Jul 19, 2019

nextcloud deleted a comment from danxuliu Jul 19, 2019

nickvergessen removed the backport-request label Jul 19, 2019

danxuliu mentioned this pull request Jul 19, 2019

Add volume indicator for the local audio #2021

Merged

nickvergessen added the deployed on testing label Jul 23, 2019

danxuliu added 6 commits August 28, 2019 14:32

Keep track of whether the local audio was enabled or disabled

def4e43

Signed-off-by: Daniel Calviño Sánchez <danxuliu@gmail.com>

Show notification when the user speaks while muted

a3c3699

Signed-off-by: Daniel Calviño Sánchez <danxuliu@gmail.com>

Show speaking while muted warning with a tooltip on the audio button

49cadf4

Instead of using an OC.Notification the warning is now shown with a tooltip on the audio button that needs to be used to unmute. Signed-off-by: Daniel Calviño Sánchez <danxuliu@gmail.com>

danxuliu force-pushed the warn-the-user-if-speaking-while-muted branch from 4dba087 to 49cadf4 Compare August 28, 2019 12:33

Ivansss approved these changes Aug 28, 2019

View reviewed changes

nickvergessen approved these changes Aug 28, 2019

View reviewed changes

nickvergessen merged commit c428fdf into master Aug 28, 2019

delete-merged-branch bot deleted the warn-the-user-if-speaking-while-muted branch August 28, 2019 13:23

danxuliu mentioned this pull request Aug 30, 2019

Show volume indicator in other colours when speaking while muted #2138

Closed

danxuliu mentioned this pull request Nov 28, 2019

[stable17] Fix local media not stopped when leaving a call #2504

Merged
