JNIXray

A browser UI for jnitrace, plus a static JNI helper for Android apps.



---

Screenshots

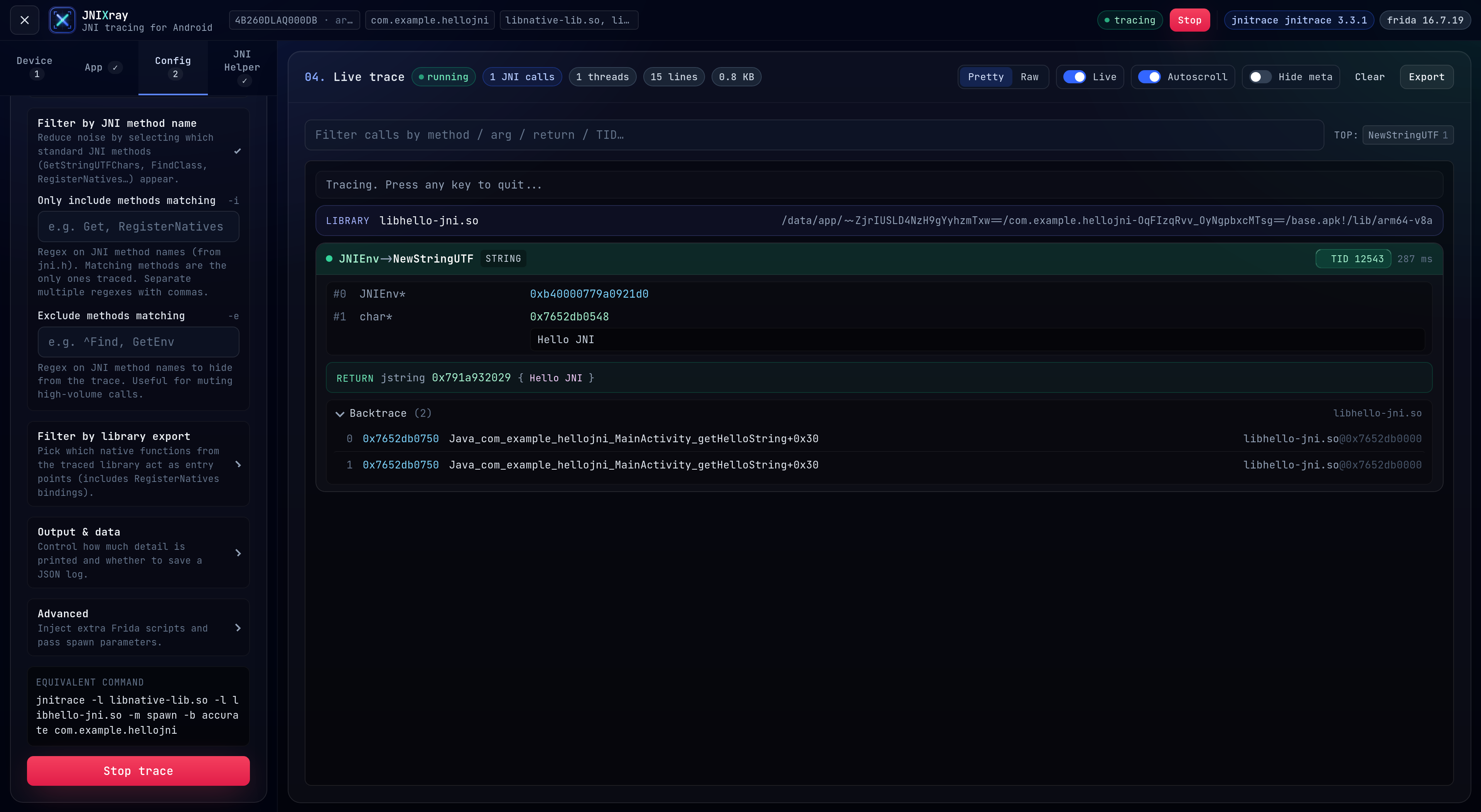

_{Live trace — color-coded args, thread chips, backtrace, equivalent CLI command preview.}

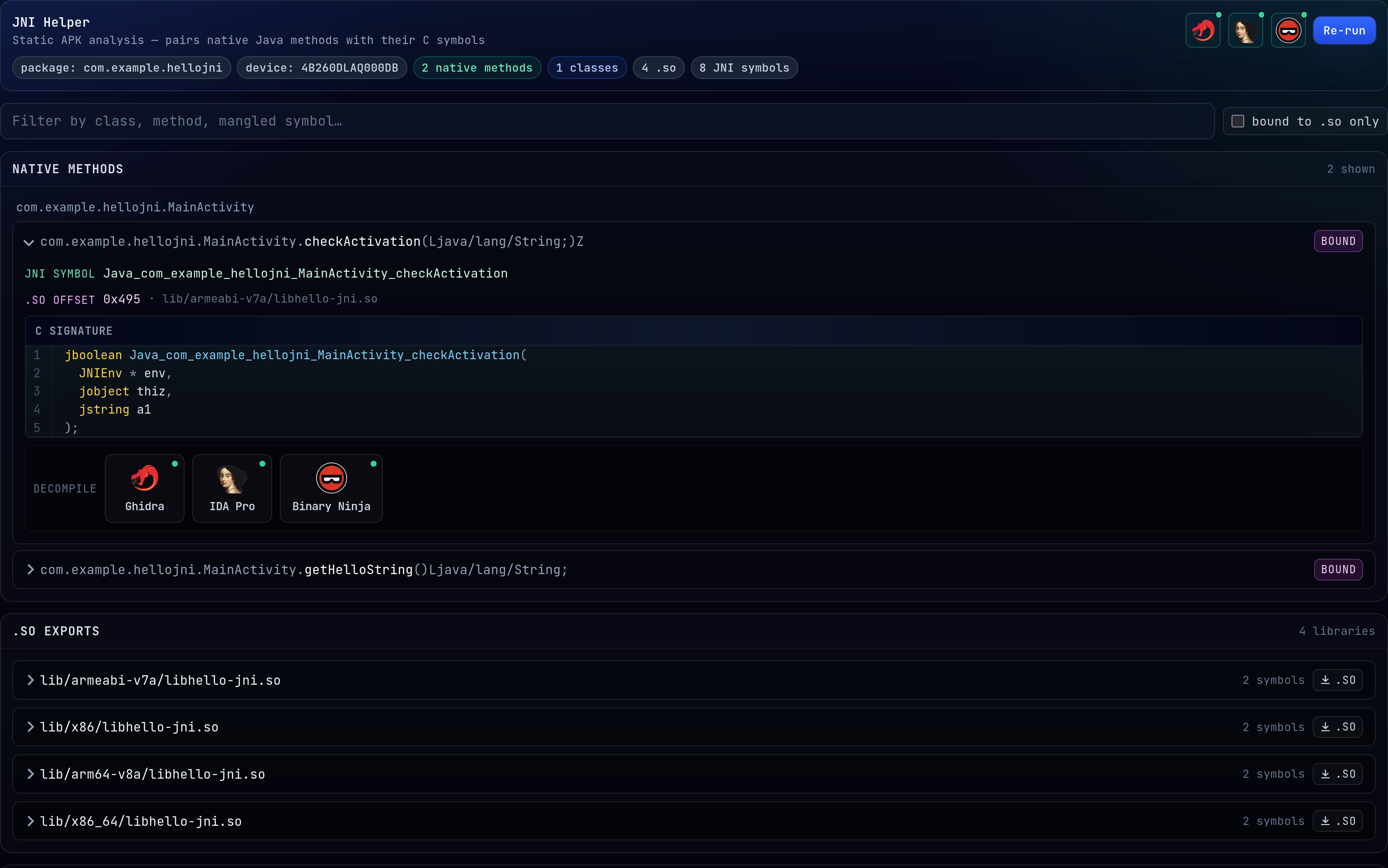

_{JNI Helper pairs every native Java method with the C symbol that exports it from the .so.}

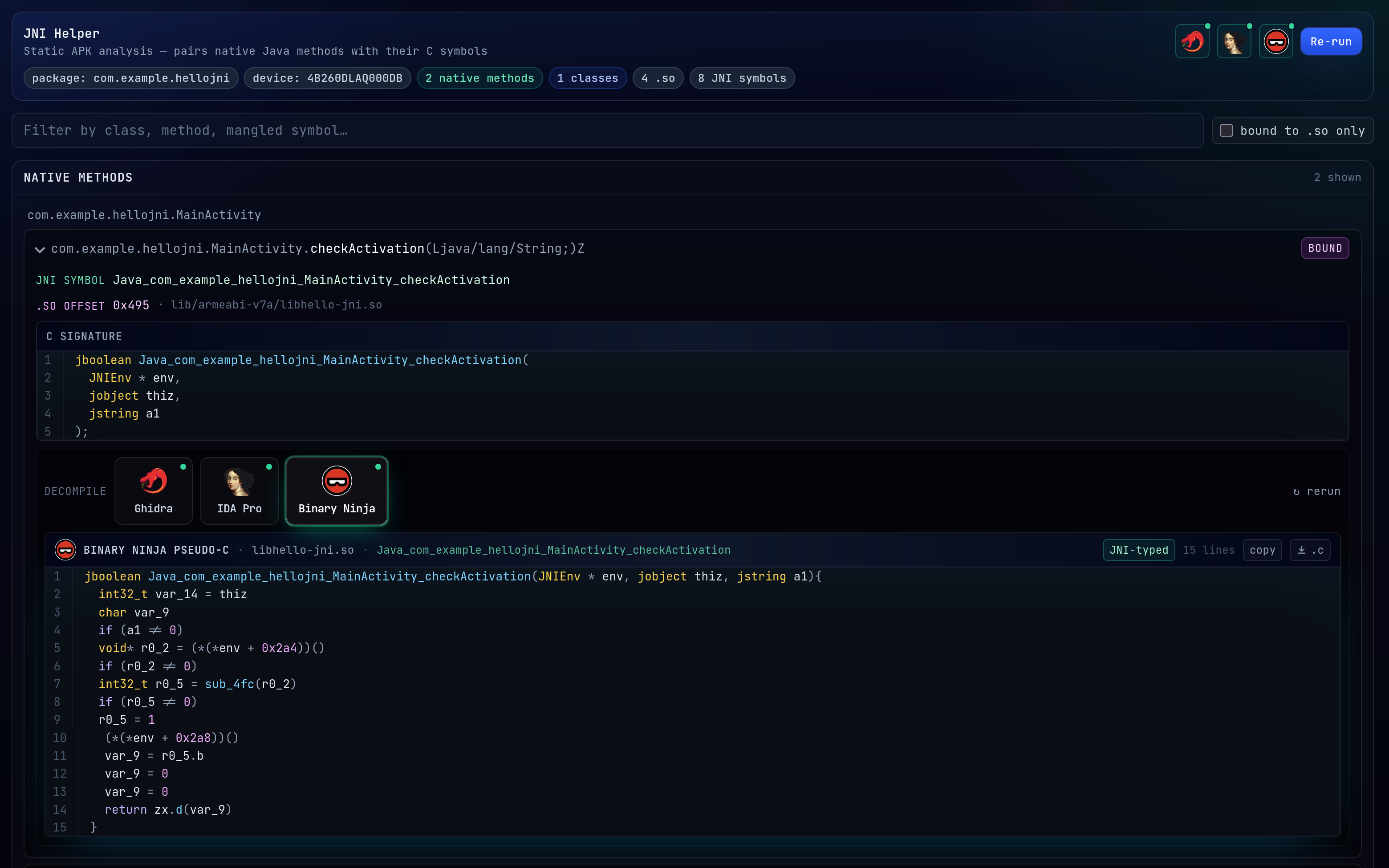

_{One-click pseudo-C from Ghidra / IDA / Binary Ninja, re-typed with JNI signatures from the DEX.}

---

Pick a device, pick an app, hit Start trace. JNI calls stream in live over a WebSocket. Every flag jnitrace takes on the command line is also exposed in the config tab (libraries, method/export include-exclude filters, backtrace mode, --aux, and so on).

There's also a JNI Helper panel that pulls the APK off the device, parses the DEX to find every native Java method, and pairs each one with the C symbol that exports it from whichever .so ships in the APK. If you have Ghidra, IDA Pro or Binary Ninja installed you can decompile any of those symbols to pseudo-C with one click, and the output gets re-typed with the JNI signature so jobjects and friends aren't just void * blobs.

What you get

• Live JNI call stream with color-coded args, thread chips, backtraces.
• Method and export include/exclude filters, spawn or attach, three backtrace modes. Same flags as the jnitrace CLI.
• Static APK analysis: native Java method ↔ exported C symbol pairing.
• One-click pseudo-C from Ghidra / IDA / Binary Ninja, re-typed with JNI signatures pulled from the DEX.
• Download the .so or the pseudo-C straight from the UI.
• ANSI-rendered log, substring filter, export to .log.

Why

The jnitrace CLI is great but the invocation gets long once you start piling on filters, and you lose scroll position every time you Ctrl-C. Running it from a UI makes exploration quicker and streaming the output means you can attach, detach, pause or filter without tearing the session down.

Requirements

• Python 3.10+
• Node.js 20+, npm 9+
• adb on PATH (or set ADB_BIN).
• A Frida 16.x frida-server running on the device. Same setup as any other Frida workflow. 17 broke APIs jnitrace depends on so the stack is pinned to 16 for now.

Python deps are in requirements.txt.

Setup

git clone https://github.com/nyxFault/JNIXray.git
cd JNIXray

# python side (tracer + static analysis helpers)
python3 -m venv .venv
source .venv/bin/activate
pip install -r requirements.txt

# node side (API + UI)
cd web
npm run install:all

Run it

cd web
npm run dev

• UI: http://127.0.0.1:5173
• API / WS: http://127.0.0.1:4455

Vite proxies /api and /ws to the backend, so you only ever open the frontend URL. That's it.

For a static build:

npm run build
# output: web/frontend/dist/
# backend is a plain Node ESM app; host it however you like

AppImage

Grab the latest JNIXray-*-x86_64.AppImage from the Releases page and run it:

chmod +x JNIXray-*-x86_64.AppImage
./JNIXray-*-x86_64.AppImage
# UI + API on http://127.0.0.1:4455, browser opens automatically

You still need adb on PATH and a Frida 16.x frida-server running on the device — the AppImage doesn't replace those.

If it complains about FUSE

AppImages use FUSE to mount themselves. Some modern distros (Ubuntu 22.04+, Fedora 36+) ship fuse3 only and the type-2 runtime expects libfuse.so.2. Two options:

# 1. install the fuse2 compat lib
sudo apt install libfuse2                 # Debian / Ubuntu / Kali
sudo dnf install fuse-libs                # Fedora / RHEL

# 2. or run the AppImage in "extract and run" mode (no FUSE needed)
./JNIXray-*-x86_64.AppImage --appimage-extract-and-run

Try it with the demo APK

If you don't have a target app handy, there's a tiny sample APK in examples/HelloJNI/ — a throwaway Android app I built specifically to give JNIXray something predictable to trace.

adb install examples/HelloJNI/app-debug.apk

Then in the UI: Device → App (com.example.hellojni) → Start trace. Tap the buttons in the app and the JNI calls will roll in.

The matching source is at https://github.com/nyxFault/HelloJNI, and the prebuilt APK lives on its releases page too if you'd rather grab it from there.

Decompilers (optional)

The JNI Helper can shell out to external decompilers. Install whichever you already own and point JNIXray at them from the gear icons in the top-right of the JNI Helper panel. Paths are saved in ~/.jnixray/settings.json, never in the repo.

	Tool	How to hook it up
	Ghidra	Set Ghidra home to the folder containing support/analyzeHeadless.
	IDA Pro	Path to idat64, or to the install dir (it'll find idat64 inside).
	Binary Ninja	Install folder. License key optional if ~/.binaryninja/license.dat is already set up.

None of these are required to use the live tracer.

Layout

.
├── requirements.txt          # python: jnitrace, frida, androguard, ...
├── web/
│   ├── package.json          # dev orchestration
│   ├── scripts/dev.js        # runs backend + frontend together
│   ├── backend/
│   │   ├── src/              # express + ws server (index.js, tracer.js, ...)
│   │   └── py/               # python helpers (jni_helper.py, decomp_*.py)
│   └── frontend/             # vite + react + tailwind
├── examples/HelloJNI/        # tiny sample APK to play with
└── docs/assets/              # logos

API

GET    /api/health                   jnitrace + frida versions
GET    /api/devices                  adb devices -l, enriched with ABI
GET    /api/apps?serial=ID           frida-ps -Uai on that device
POST   /api/sessions                 body = TraceOptions; starts a trace
DELETE /api/sessions/:id             stops it
WS     /ws/sessions/:id              { type: "log" | "status", payload }

POST   /api/jni-helper                static APK analysis
POST   /api/decompile                 { engine, pkg, lib, symbol }
GET    /api/decomp/settings
POST   /api/decomp/settings

Env vars

Var	Default	What
HOST	127.0.0.1	Backend bind host
PORT	4455	Backend bind port
ADB_BIN	adb	Override the adb executable

Heads up

There is no authentication on the backend. Keep it bound to loopback. If you're exposing it on a LAN, put a reverse proxy with some kind of auth in front of it.

Same goes for the decompiler integrations: JNIXray runs whatever binary you point it at, so don't point it at stuff you don't trust.

Credits

• jnitrace by chame1eon does all the real work on the tracing side.
• frida for instrumentation.
• jni_helper by evilpan inspired the static APK analyzer.
• androguard for DEX parsing.
