[BD-32] feat: add unenrollment Open edX Filter

[mariajgrimaldi]

Description

As part of the Hooks Extension Framework implementation plan, this PR adds a filter before the unenrollment process starts.

Supporting information

• Hooks Extension Framework OEP-50
  ADR(s) on:
• Open edX Filters naming and versioning: about how to identify filters and manage its versions
• Open edX Filters configuration: how to configure filters
• Open edX Filters tooling: what to use to run filters
• Open edX Filters payload: input arguments for filters

Testing instructions

1. Install openedx-filters library:

pip install openedx-filters==0.5.0

2. Implement your pipeline steps in your favorite plugin. We created some as illustration in openedx-filters-samples. We'll be using those in this example.
3. Install openedx-filters-samples

pip install git+https://github.com/eduNEXT/openedx-filters-samples.git@master#egg=openedx_filters_samples

4. Configure your filters:
   With this configuration, you won't be able to:

• Un-enroll from a course org.openedx.learning.course.unenrollment.started.v1

OPEN_EDX_FILTERS_CONFIG = {
    "org.openedx.learning.course.unenrollment.started.v1": {
        "fail_silently": False,
        "pipeline": [
            "openedx_filters_samples.samples.pipeline.StopUnenrollment"
        ]
    },
}

And with this one, the user's profile will be modified before the unenrollment process starts

OPEN_EDX_FILTERS_CONFIG = {
    "org.openedx.learning.course.unenrollment.started.v1": {
        "fail_silently": False,
        "pipeline": [
            "openedx_filters_samples.samples.pipeline.ModifyUserProfileBeforeUnenrollment"
        ]
    },
}

Straightforward implementations as a way of illustrating how they work. More complex steps are coming.

[openedx-webhooks]

Thanks for the pull request, @mariajgrimaldi! I've created BLENDED-1101 to keep track of it in Jira. More details are on the BD-32 project page.

When this pull request is ready, tag your edX technical lead.

[ghassanmas]

How exactly am I suppose to change the filter settings, should I create settings variable for both cases above?, should the OPEN_EDX_FILTERS_CONFIG exist before changing it?
Should the openedx-filters app in listed in the lms INSTALLED_APPS ?

[mariajgrimaldi]

Hi there @ghassanmas! Thank you for taking the time to review this. We appreciate it.

Well, openedx-filters is a python library that reads the filters information from OPEN_EDX_FILTERS_CONFIG. You should create the setting in your configuration file of choice, eg, I'm currently using the devstack so I put mine in devstack_docker:

# lms/envs/devstack_docker.py
 OPEN_EDX_FILTERS_CONFIG = {
    "org.openedx.learning.course.unenrollment.started.v1": {
        "fail_silently": False,
        "pipeline": [
            "openedx_filters_samples.samples.pipeline.ModifyModeBeforeUnenrollment"
        ]
    },
}

or

# lms/envs/devstack_docker.py
 OPEN_EDX_FILTERS_CONFIG = {
    "org.openedx.learning.course.unenrollment.started.v1": {
        "fail_silently": False,
        "pipeline": [
            "openedx_filters_samples.samples.pipeline.StopUnenrollment"
        ]
    },
}

[felipemontoya]

Hey @mariajgrimaldi,

I reviewed this and I found that on the backend it works just as I would expect.

In your example, using "openedx_filters_samples.samples.pipeline.ModifyModeBeforeEnrollment" is actually not going to work, because the arguments are different, but I found ModifyUserProfileBeforeUnenrollment which is working nicely.

Using "openedx_filters_samples.samples.pipeline.StopUnenrollment" stops the unenrollment from happening and it raises the exception and all.

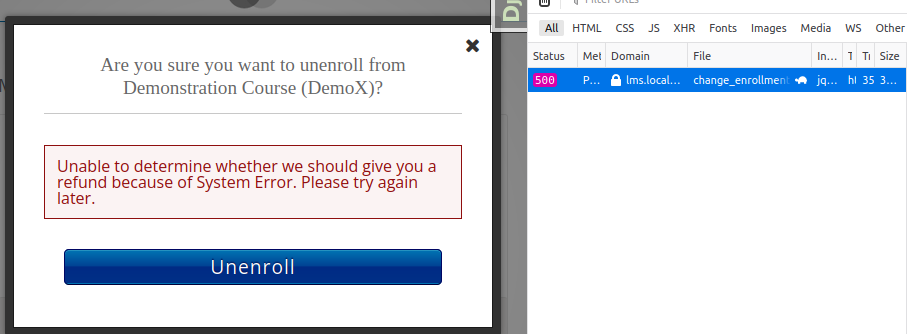

Now, what I think it could still be improved, is that StopUnenrollment raises an exception which is never catched and results in a 500 error that the UI never shows. Instead it says something about the refund which is likely to confuse the user.

We would need to catch the exception at https://github.com/openedx/edx-platform/blob/db32ff2cdf678fa8edd12c9da76a76eef0478614/common/djangoapps/student/views/management.py#L413 to pass the str as the response message and make the js view support it at https://github.com/openedx/edx-platform/blob/db32ff2cdf678fa8edd12c9da76a76eef0478614/lms/static/js/learner_dashboard/views/unenroll_view.js#L70

[mariajgrimaldi]

Hi there, @felipemontoya. Well spotted! I already fixed the testing instructions 😄

I'll try adding the message to the UI, and let you know! Thank you again.

[mariajgrimaldi]

Hello again @felipemontoya,

what do you think about this? 😎

I'm currently implementing some unit tests for the new changes. Stay tuned!

[felipemontoya]

It looks great @mariajgrimaldi. Thanks!

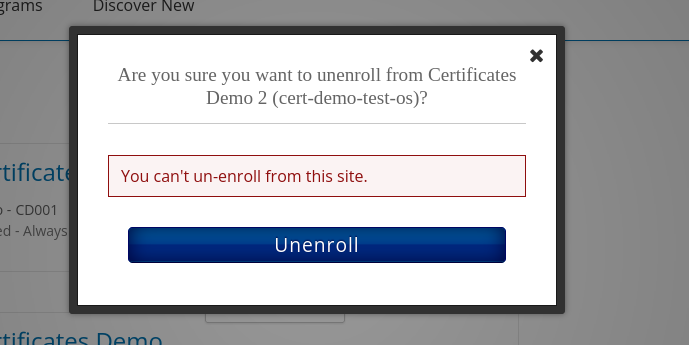

For anyone reviewing this, the message "You can't un-enroll from this site" is returned by the plugin, so the actual message will vary depending on the filter that is implemented.

From my end this looks good and ready to be merged.

Based on your previous work on this files, I think that the most likely reviewers for this would be:

• @ormsbee you know the models and the filters framework.
• @mikix you know the UI that allows the user to unregister/shows the message.
• @bmedx you know the API and the view that is called to actually perform the unernollment.

Your comments here would be priceless. Thanks

[ghassanmas]

I got same result as what @felipemontoya had metioned above:
Before applying config settings I could unroll, after applying the config settings I got the fund message along with an exception in the logs

lms_1                        | 2022-03-09 21:49:34,108 INFO 8 [tracking] [user 8] [ip xx.xx.xx.xx] logger.py:41 - {"name": "/change_enrollment", "context": {"user_id": 8, "path": "/change_enrollment", "course_id": "", "org_id": "", "enterprise_uuid": ""}, "username": "ghassanmas", "session": "7b1594cf5e5031e2b17ee7c43fe60b42", "ip": "xx.xx.xx.xx", "agent": "Mozilla/5.0 (Macintosh; Intel Mac OS X 10_15_7) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/98.0.4758.109 Safari/537.36", "host": "edx.gsgapp.io", "referer": "http://edx.gsgapp.io/dashboard", "accept_language": "en-US,en;q=0.9,ar-IL;q=0.8,ar;q=0.7,en-IL;q=0.6", "event": "{\"GET\": {}, \"POST\": {\"course_id\": [\"course-v1:serser+DemoX+20020\"], \"enrollment_action\": [\"unenroll\"]}}", "time": "2022-03-09T21:49:34.107980+00:00", "event_type": "/change_enrollment", "event_source": "server", "page": null}
lms_1                        | 2022-03-09 21:49:34,125 ERROR 8 [openedx_filters.tooling] [user 8] [ip xx.x.xx.xx] tooling.py:227 - Exception raised while running 'StopUnenrollment':
lms_1                        |  You can't un-enroll from this site.
lms_1                        | Traceback (most recent call last):
lms_1                        |   File "/openedx/venv/lib/python3.8/site-packages/openedx_filters/tooling.py", line 217, in run_pipeline
lms_1                        |     result = step_runner.run_filter(**accumulated_output)
lms_1                        |   File "/openedx/venv/lib/python3.8/site-packages/openedx_filters_samples/samples/pipeline.py", line 301, in run_filter
lms_1                        |     raise CourseUnenrollmentStarted.PreventUnenrollment(
lms_1                        | openedx_filters.learning.filters.CourseUnenrollmentStarted.PreventUnenrollment: You can't un-enroll from this site.

Anyone can try that at http://edx.gsgapp.io the settings to cancel or stop unrollment is active

[mikix]

I believe the dashboard is the only spot you can unenroll from, yeah?

[mariajgrimaldi]

Yes, I believe so! At least using this view

[felipemontoya]

@mariajgrimaldi can we go ahead and merge this? we have 2 approvals now.

[mariajgrimaldi]

@mariajgrimaldi can we go ahead and merge this? we have 2 approvals now.

Yes @felipemontoya, I'll do it first thing in the morning. Thanks for the reminder.

[openedx-webhooks]

@mariajgrimaldi 🎉 Your pull request was merged! Please take a moment to answer a two question survey so we can improve your experience in the future.

[edx-pipeline-bot]

EdX Release Notice: This PR has been deployed to the production environment.

[edx-pipeline-bot]

EdX Release Notice: This PR has been deployed to the production environment.
