add submenu support to resource action menus #3922

openshift-merge-robot merged 3 commits into from
Jan 14, 2020

Conversation

@christianvogt
Copy link
Contributor

@christianvogt christianvogt commented Jan 11, 2020

Fixes https://issues.redhat.com/browse/ODC-2712
Related to work in topology view to have a way to access the Add actions in-context: #3918

Problem

Kebab actions only support a flat list.
Patternfly does not have any sub menu support either.
Many more actions are being added to resources and a flat list of actions will become much too large.

Solution

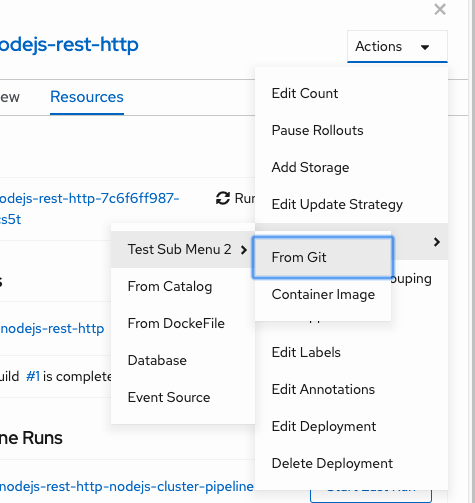

This PR builds off the earlier support for popper.js based menus. These menus automatically align to the left or right depending on where space is available. The preference is set to always open to the right if there is available space. This is why in the screenshots for the kebab and actions dropdown, the 2nd nested menu appears out to the right. The nesting of sub menus multiple levels deep is shown in the screenshots because the solution has no restriction on depth.

There is some duplicate code between kebab and topology in the popper setup but they are are based on two very different menu implementations. Also, we are trying to keep topology pure from console dependencies to eventually push it to PF.

The way to specify actions to appear in a sub menu is by using the new path prop of the KebabOption. The path is a / separated string where each segment denotes a new sub menu entry. Eg. Menu 1/Menu 2/Menu 3

There is keyboard support as well.

  • Right-Arrow | Enter opens a sub menu
  • Left-Arrow closes a sub menu
  • Esc continues to close the entire menu for kebab and topology while only closing sub menus in the dropdown. This is because of the way dropdowns have a very different implementation.

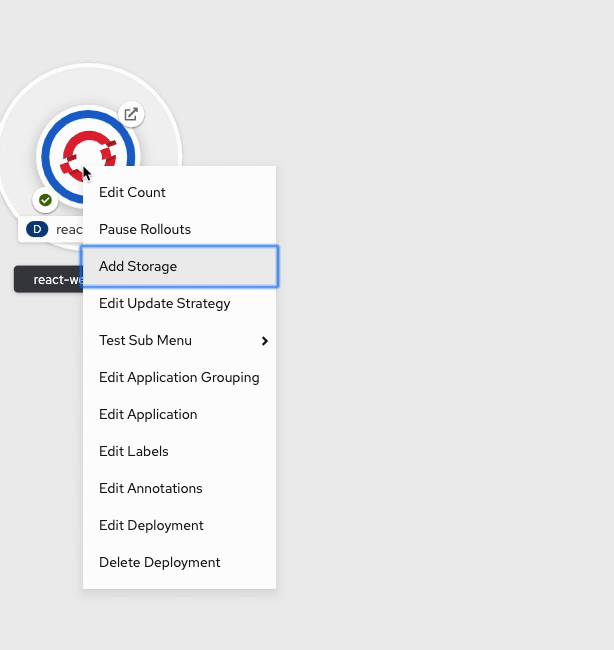

Keyboard navigation:
submenus

cc @spadgett @karthikjeeyar @andrewballantyne

@openshift-ci-robot openshift-ci-robot added size/L Denotes a PR that changes 100-499 lines, ignoring generated files. component/core Related to console core functionality component/dev-console Related to dev-console component/shared Related to console-shared labels Jan 11, 2020
@openshift-ci-robot openshift-ci-robot added the approved Indicates a PR has been approved by an approver from all required OWNERS files. label Jan 11, 2020
abhinandan13jan
abhinandan13jan reviewed Jan 13, 2020
View reviewed changes
frontend/packages/topology/src/components/contextmenu/ContextSubMenuItem.tsx Outdated
Copy link
Contributor

@abhinandan13jan abhinandan13jan Jan 13, 2020 •
edited
Loading

Choose a reason for hiding this comment

The reason will be displayed to describe this comment to others. Learn more.

should there be a keycode 37 check for closing the submenu i.e setOpen(false)?

Copy link
Contributor Author

@christianvogt christianvogt Jan 13, 2020

Choose a reason for hiding this comment

The reason will be displayed to describe this comment to others. Learn more.

Left arrow is being captured in the scope of the sub menu itself. See code below on line 80 of this file.
