feat(operator-grouping): add operator grouping in topology #4048

karthikjeeyar · 2020-01-23T00:07:28Z

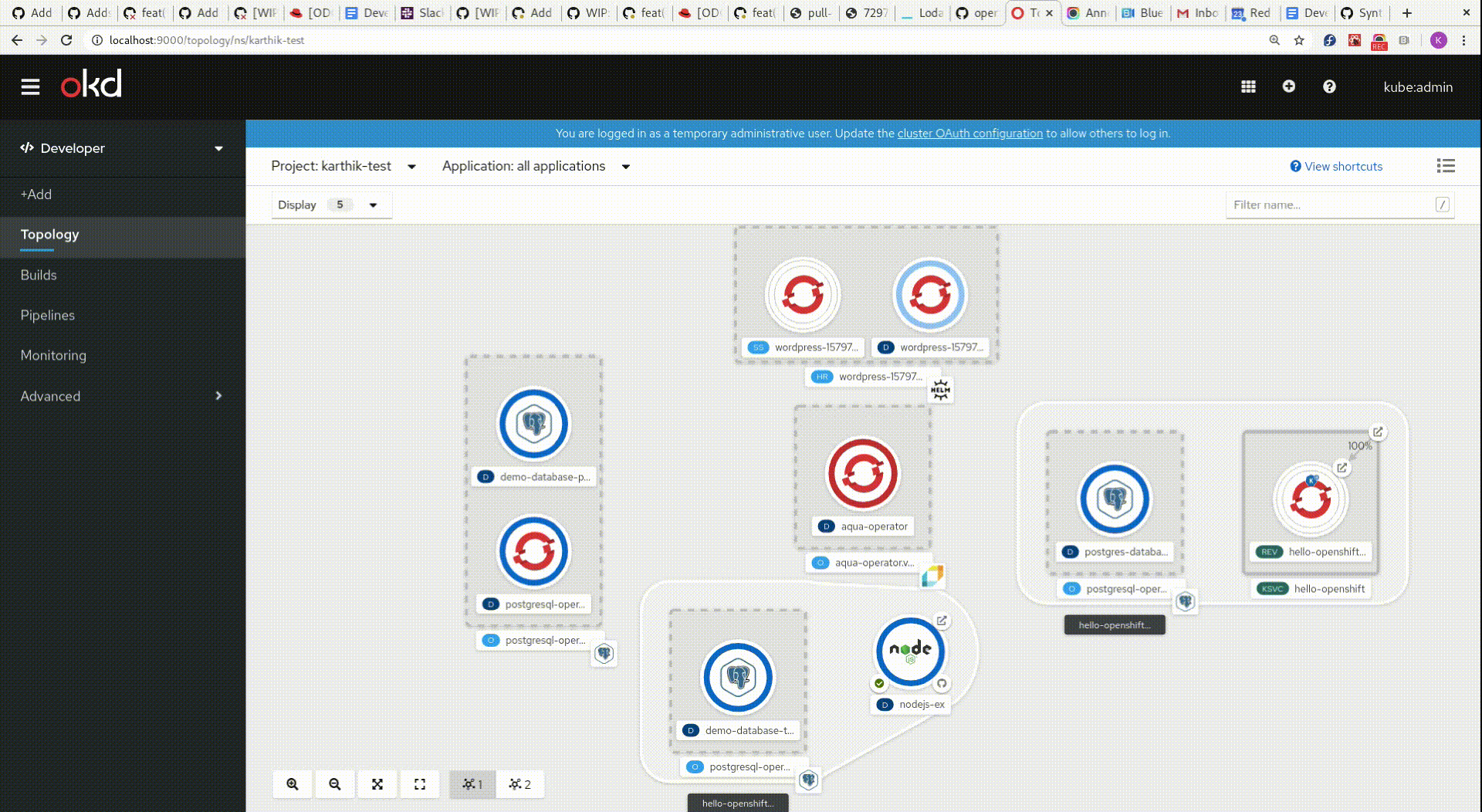

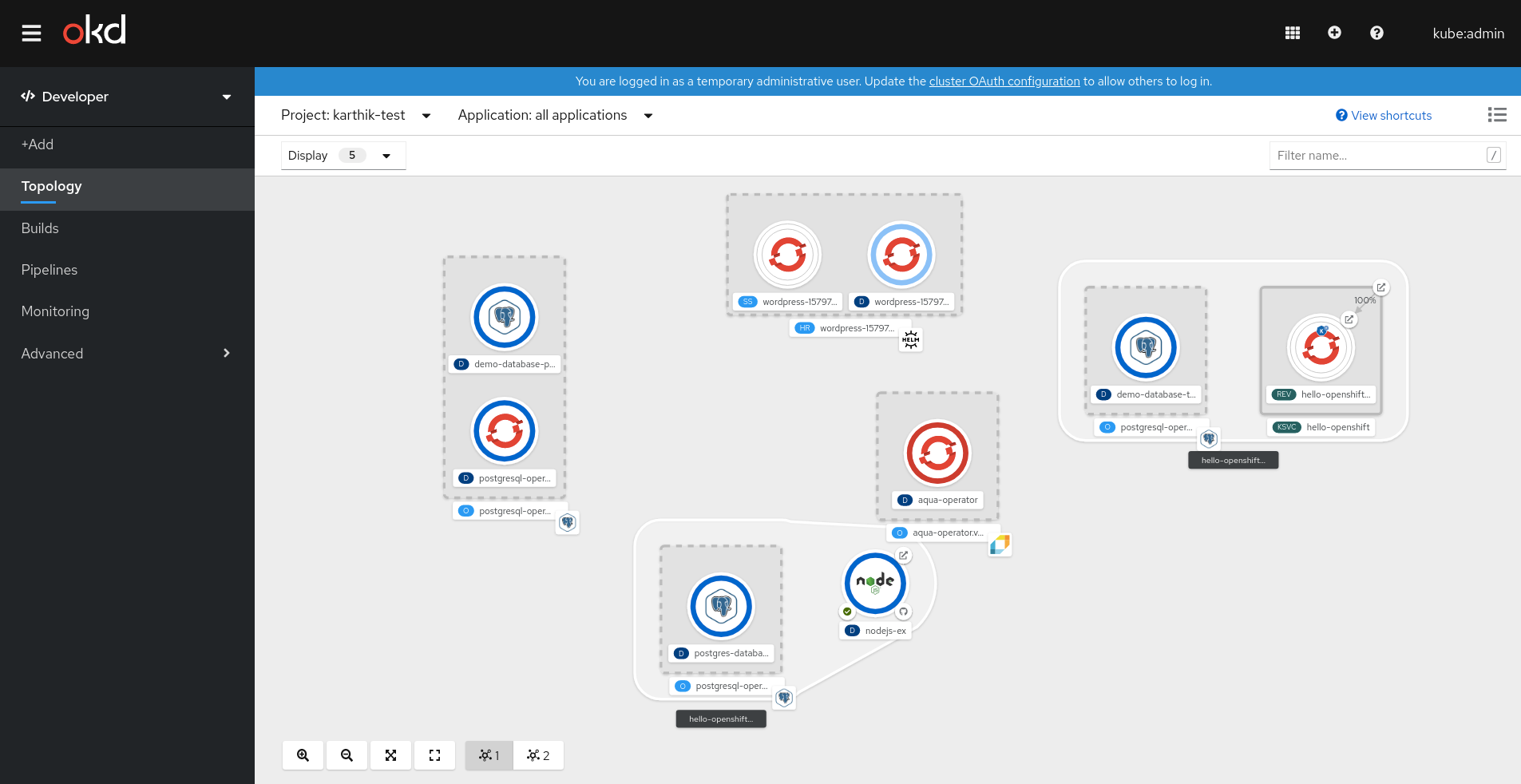

This PR supports Operator backed services grouping in topology.

Supports for multiple grouping

Todo

Add Icon to the group

Add unit test cases

cc: @openshift/team-devconsole-ux @serenamarie125 @christianvogt

Fixes: https://issues.redhat.com/browse/ODC-2699

karthikjeeyar · 2020-01-23T09:18:55Z

/retitle feat(operator-grouping): add operator grouping in topology

karthikjeeyar · 2020-01-23T09:28:35Z

/assign @christianvogt

karthikjeeyar · 2020-01-23T09:28:55Z

/kind feature

divyanshiGupta · 2020-01-23T10:31:33Z

...end/packages/dev-console/src/components/topology/components/nodes/OperatorBackedService.scss

Use pf variables (https://www.patternfly.org/v4/documentation/overview/global-css-variables) wherever possible.

divyanshiGupta · 2020-01-23T10:32:28Z

...tend/packages/dev-console/src/components/topology/components/nodes/OperatorBackedService.tsx

Move it to the end of imports

divyanshiGupta · 2020-01-23T10:42:58Z

frontend/packages/dev-console/src/components/topology/topology-utils.ts

So we create operatorBackedServiceKindMap using the installedOperators, if operator is not present in installedOperators then it will not be present in operatorBackedServiceKindMap. Am I missing anything?

we create operatorBackedServiceKindMap(CRD map) out of installedOperators's crds, which can be used to identify the resources created by the crd. But when you install an operator, the operator creates a resource (eg: postgres-operator) which will have ownerReference of the installed operator(csv). We need to group the nodes created by operator & its crds together.

Based on a resource's owner reference, this will choose from installedOperators or its crds operatorBackedServiceKindMap

Got it. Forgot about the case of the operator node :P Then it makes sense to look for the csv itself in the installed operators list.

jeff-phillips-18 · 2020-01-23T11:55:28Z

...end/packages/dev-console/src/components/topology/components/nodes/OperatorBackedService.scss

Doesn't appear there is any click nor drag action on service, so there shouldn't be a pointer cursor.

jeff-phillips-18 · 2020-01-23T11:55:35Z

...tend/packages/dev-console/src/components/topology/components/nodes/OperatorBackedService.tsx

The factory is not adding withDndDrop or withDragNode so a lot of these props will not be passed.

removed it.

karthikjeeyar · 2020-01-23T13:21:46Z

frontend/packages/dev-console/src/components/svg/SvgBoxedText.tsx

@jeff-phillips-18 FYI, I have this use case where i have data:url from the csv instead of icon name. I believe you have the proper icon alignment in one of your PRs.

thanks, I'll be sure to adjust.

andrewballantyne · 2020-01-25T06:40:45Z

I wanna say this is a flake...

/test frontend

andrewballantyne · 2020-01-25T07:34:03Z

/lgtm

andrewballantyne · 2020-01-25T07:41:08Z

/lgtm

openshift-ci-robot · 2020-01-25T07:41:28Z

[APPROVALNOTIFIER] This PR is APPROVED

This pull-request has been approved by: andrewballantyne, christianvogt, divyanshiGupta, jeff-phillips-18, karthikjeeyar, sahil143

The full list of commands accepted by this bot can be found here.

The pull request process is described here

Details

Needs approval from an approver in each of these files:

~~frontend/OWNERS~~ [christianvogt]

Approvers can indicate their approval by writing /approve in a comment
Approvers can cancel approval by writing /approve cancel in a comment

karthikjeeyar · 2020-01-25T08:05:20Z

/test analyze

andrewballantyne · 2020-01-25T09:15:30Z

/retest

openshift-bot · 2020-01-25T10:43:34Z

/retest

Please review the full test history for this PR and help us cut down flakes.

openshift-bot · 2020-01-25T10:56:14Z

/retest

Please review the full test history for this PR and help us cut down flakes.

karthikjeeyar · 2020-01-25T14:41:11Z

/retest

openshift-bot · 2020-01-25T15:28:53Z

/retest

Please review the full test history for this PR and help us cut down flakes.

openshift-bot · 2020-01-25T18:06:12Z

/retest

Please review the full test history for this PR and help us cut down flakes.

andrewballantyne · 2020-01-25T18:25:00Z

/hold

All the checks are failing atm
https://coreos.slack.com/archives/CEKNRGF25/p1579962369129100

andrewballantyne · 2020-01-25T19:38:04Z

/hold cancel
/retest

Looks like it's good to go again.

openshift-bot · 2020-01-25T19:49:28Z

/retest

Please review the full test history for this PR and help us cut down flakes.

openshift-bot · 2020-01-25T20:02:03Z

/retest

Please review the full test history for this PR and help us cut down flakes.

openshift-bot · 2020-01-25T20:15:09Z

/retest

Please review the full test history for this PR and help us cut down flakes.
