Squirrel ImGui Debugger

A simple interface for debugging Squirrel programming language scripts without the need for an additional IDE such as Visual Studio, VS Code, or Eclipse.

What it can do

• File browser with filtering
• Tabbed files
• Syntax highlighting
• Skip to file line
• Enable/disable breakpoints
• Symbol inspection with mouse hover
• Watched variable inspection
• Local variable inspection
• Resume, step into, step over, and step out of program flow
• Callstack info
• Persistent environment
• Debug Squirrel VMs simultaneously with your native code

What it can't do

• Code editing
• Dynamic expression evaluation
• Collapse and expand regions of code
• Dynamically modify variable data
• Run to cursor

Requirements

To use this library, your program must already support both Squirrel and Dear Imgui.

For remote debugging, your program must additionally include support for NetImgui or a similar application.

Release Notes

v0.2

• Stores the context in a thread_local pointer so that the debugger context doesn't conflict with other ImGui contexts.
• Adds a new VMs tab to the Callstack/Breakpoints window for attaching and detaching registered VMs with the press of a button.
• Adds a Show Hex checkbox for showing integers as hex.
• Adds RequestVariableUpdates() for forcing updates on all variables - used by the Show Hex check box.
• The FindSymbol call will now try the consttable for variable information as a last resort.
• Made the watch window just say "running" when the context isn't paused like most of the other tabs.
• Adds a temporary stub tab next to Watched/Locals so that the Show Hex checkbox will not wrap to an undesirable location.
• Fix for misc. crashes when the active context is null.
• Adds GetVMByName() helper.
• Adds IsDebuggerAttached() query.
• Adds a rumVMInfo struct and GetVMInfo() call for querying a VMs name and attachment state.

v0.1

• Initial release

Getting started

Build the library or embed the source

There are two methods for using the debugger:

1. Open the provided solution and build the static library for either release or debug. Link to the generated .lib file in your program.
2. Copy the source code in the src folder to your project and include the source.

Include headers

There are two major components to the debugger that you'll need to access: the VM manager and the debugger interface. Simply include these headers:

#include <d_interface.h>
#include <d_vm.h>

Link to the library

squirrel_imgui_debugger.lib

Create the ImGui interface thread

You'll need to create a thread for the ImGui interface to run on separately from your main program thread. Here's some example code to get you started:

#define MY_NETIMGUI_PORT 8888U

std::thread myDebuggerThread;

void ScriptDebuggerThread( const std::string& strPath, const bool& shutdownRequested );

void main()
{
  // Program init

  bool shutdownRequested{ false };
  std::thread myDebuggerThread( &ScriptDebuggerThread,
                                "path/to/squirrel/scripts",
                                std::ref( shutdownRequested ) );

  rumDebugVM::EnableDebugInfo( myVM );
  // ... load scripts
  rumDebugVM::RegisterVM( myVM, "MyProgram" );
  rumDebugVM::AttachVM( myVM );

  // Main program loop
  while( !shutdownRequested )
  {
    rumDebugVM::Update();
  }

  // Program shutdown
  rumDebugVM::DetachVM( myVM );
  if( myDebuggerThread.joinable() )
  {
    myDebuggerThread.join();
  }
}

void ScriptDebuggerThread( const std::string& strPath, const bool& shutdownRequested )
{
  rumDebugInterface::Init( "myProgramName", MY_NETIMGUI_PORT, strPath );

  while( !shutdownRequested )
  {
    rumDebugInterface::Update();
  }

  rumDebugInterface::Shutdown();
}

Consider designing your program so that the debugger thread is only executing when debugging is enabled.

Enable Squirrel Debug Info

When you load/compile you Squirrel scripts, you must have debug info enabled or the debugger will not be able to debug the script:

rumDebugVM::EnableDebugInfo( mySquirrelVM );

You can also disable debug info:

rumDebugVM::EnableDebugInfo( mySquirrelVM, false );

Allow the debugger to update

Once per frame, call rumDebugVM::Update() to allow the debugger to process attach and detach requests. You do not need to call this function if you are only attaching and detaching programmatically. If in doubt, go ahead and call this function per frame.

Register your VM(s)

You can optionally register each VM with the script debugger so that you can attach and detach from the VM tab in the debugger interface:

rumDebugVM::RegisterVM( mySquirrelVM, "MyVMName" );

Attach your VM(s)

To attach a VM programmatically:

rumDebugVM::AttachVM( mySquirrelVM );

This is ideal for attaching based on a menu selection, keypress, console command, and/or startup parameter.

Detach your VM(s)

Similarly, you can detach a VM with this line of code:

rumDebugVM::DetachVM( mySquirrelVM );

Shutdown

Don't forget to join your debugger thread! It is best practice to make sure that all VMs are detached before you try to close your program window. If your program/script execution is paused, the program may have difficulty closing because the thread can't process your close request.

Configure settings

You can modify d_settings.h to change a few simple things such as the display resolution, how many lines variable previews will show, and the maximum length of filenames.

Managing multiple ImGui contexts

If you're already using ImGui in your project, you'll need to support multiple contexts. The squirrel_imgui_debugger defines a thread_local global pointer that you can use to easily keep the ImGui context pointer separate between your program and the debugger. You will need to add this to your imconfig.h file:

struct ImGuiContext;
extern thread_local ImGuiContext* g_pcImGuiTLSContext;
#define GImGui g_pcImGuiTLSContext

Then, store the context wherever you create it in g_pcImGuiTLSContext like so:

g_pcImGuiTLSContext = ImGui::CreateContext();

You'll also need to reference the thread_local pointer when you destroy the ImGui context:

ImGui::DestroyContext( g_pcImGuiTLSContext );

Using the debugger

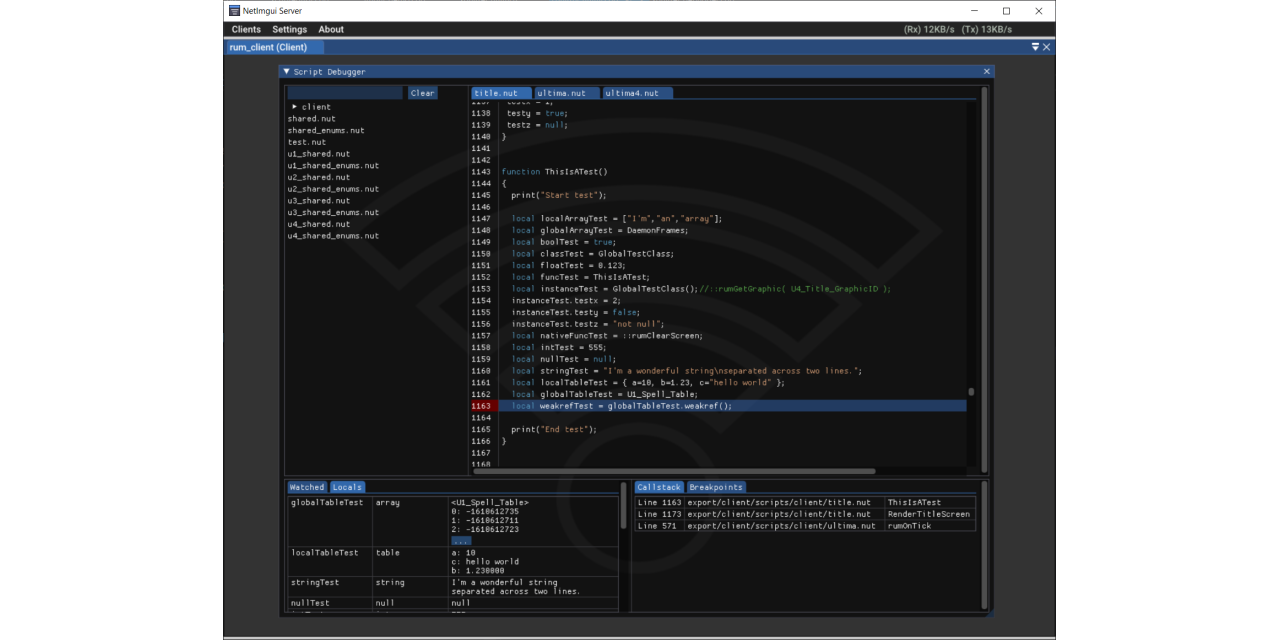

Once your VM is attached, ImGui should render a debugging environment similar to Visual Studio.

Available files are listed in a panel at the top left. Folders can be expanded and collapsed and a filter input is provided for quickly finding a file by name. A single click on any file will open the file in the code panel to the right.

In the code panel, you can press Ctrl+G to designate a line number to view. You can set a breakpoint in the line column by double-clicking. To toggle to a disabled breakpoint, double-click the breakpoint to change its color to yellow. You can remove a breakpoint by pressing 'delete' on the keyboard. You can also set a breakpoint from the code window by pressing F9 on the matching line.

When program execution pauses at a breakpoint, you can hover over source to get preview information for various symbols. You can also right-click on a symbol to copy the symbol name or add the symbol to the Watched section in the bottom left panel.

Watched variable names can be modified at any time, or you can right-click on the variable to delete the entry. You can also manually add a watch variable at any time by entering its name in the + input box at the bottom of the list.

Next to the Watch tab is a tab called Locals. When the program is paused at a breakpoint, all available local variables are populated here at the current stack level.

In the final panel at the bottom right, you can find both the Callstack and Breakpoints tabs.

The Callstack tab is only populated when the program is paused at a breakpoint. You can switch the stack level by double-clicking on the stack row. This will automatically bring the file and line into focus and all local variable info at the request stack level will be reflected in the Locals tab on the left.

The Breakpoints tab shows all currently set breakpoints and whether or not they're enabled or disabled. You can toggle breakpoints by double-clicking on the first column. Otherwise, you can jump directly to a breakpoint by double-clicking on its row.

The VM tab shows all VMs by the name that was provided during VM registration and a button to modify the current attachment state. If the VM is currently attached, there will be a button provided for detaching the VM and vice-versa.

While paused at a breakpoint, you can:

1. Resume execution by pressing F5
2. Step into a function by pressing F10
3. Step over a function by pressing F11
4. Step out of a function by pressing Shift+F11

Debugger persistence

While using the debugger, breakpoint changes, opened files, and watched variables are all saved to the imgui.ini in the [UserData][Script Debugger] section.

Example:

[UserData][Script Debugger]
Breakpoint1=1143,0,export/client/scripts/client/title.nut
Breakpoint2=1172,1,export/client/scripts/client/title.nut
File1=export/client/scripts/client/title.nut
File2=export/client/scripts/client/ultima.nut
WatchVariable1=testx
WatchVariable2=intTest
WatchVariable3=nullTest
WatchVariable4=localTableTest

You can manually edit that information if needed.
