Fix pulsar-io-thread block forever #946

lordcheng10 · 2021-12-02T04:02:50Z

When the requestQueue is full, the pulsar-io thread will always be blocked in: requestQueue.put(), which will cause the requestQueue.remove method to not be called, because the writeAndFlushResponseToClient method is also executed by the pulsar-io thread:
ctx.channel().eventLoop().execute(() -> { writeAndFlushResponseToClient(channel); });
This will cause a lot of close_wait on the server side；

related to:
#942

BewareMyPower · 2021-12-02T04:09:06Z

Is it related to #942?

lordcheng10 · 2021-12-02T04:11:04Z

Is it related to #942?

yes

kafka-impl/src/main/java/io/streamnative/pulsar/handlers/kop/KafkaCommandDecoder.java

BewareMyPower · 2021-12-02T05:53:25Z

In addition, is there a way to reproduce it? I think we can configure maxQueuedRequests with 1 so that some channels might stuck at requestQueue.put. But we have many pulsar-io threads to use, how many clients should we start to reproduce it? Or is there another way to reproduce it easily?

lordcheng10 · 2021-12-02T06:02:03Z

In addition, is there a way to reproduce it? I think we can configure maxQueuedRequests with 1 so that some channels might stuck at requestQueue.put. But we have many pulsar-io threads to use, how many clients should we start to reproduce it? Or is there another way to reproduce it easily?

Both maxQueuedRequests and numIOThreads are set to 1, which should be easier to reproduce

lordcheng10 · 2021-12-02T08:55:16Z

@BewareMyPower I use the common order excuter to send response. PLTAL , thanks!

aloyszhang · 2021-12-02T09:11:26Z

Nice catch!

BewareMyPower · 2021-12-02T09:38:55Z

LGTM. I will approve it after I have a simple test for following configs.

maxQueuedRequests=1
numIOThreads=1

Please also take a look, @hangc0276 @Demogorgon314

aloyszhang

LGTM

BewareMyPower · 2021-12-02T10:38:36Z

I think this PR still doesn't fix the problem. Here are my logs of KoP standalone:

18:35:22.795 [send-response-OrderedScheduler-0-0] ERROR io.streamnative.pulsar.handlers.kop.KafkaCommandDecoder - [[id: 0x952f3998, L:/127.0.0.1:9092 - R:/127.0.0.1:63152]] request RequestHeader(apiKey=PRODUCE, apiVersion=6, clientId=producer-1, correlationId=6) is not completed for 30003703129 ns (> 30000 ms)
18:35:23.002 [BookKeeperClientScheduler-OrderedScheduler-0-0] INFO  org.apache.bookkeeper.proto.PerChannelBookieClient - Timed-out 1 operations to channel [id: 0xda8b8f09, L:/127.0.0.1:63108 - R:/127.0.0.1:3181] for 127.0.0.1:3181
18:35:23.004 [BookKeeperClientWorker-OrderedExecutor-4-0] WARN  org.apache.bookkeeper.client.PendingAddOp - Failed to write entry (4, 0): Bookie operation timeout
18:35:23.013 [BookKeeperClientWorker-OrderedExecutor-4-0] WARN  org.apache.bookkeeper.client.RackawareEnsemblePlacementPolicyImpl - Failed to find 1 bookies : excludeBookies [<Bookie:127.0.0.1:3181>], allBookies [<Bookie:127.0.0.1:3181>].
18:35:23.013 [BookKeeperClientWorker-OrderedExecutor-4-0] WARN  org.apache.bookkeeper.client.RackawareEnsemblePlacementPolicyImpl - Failed to choose a bookie: excluded [<Bookie:127.0.0.1:3181>], fallback to choose bookie randomly from the cluster.

I test it simply with following extra configs:

maxQueuedRequests=1
sendKafkaResponseThreads=1

And send messages via Kafka CMD tool:

$ ./bin/kafka-producer-perf-test.sh --topic my-topic --num-records 10000 --throughput 1000 --record-size 1024 --producer.config temp.properties
[2021-12-02 18:35:32,240] WARN [Producer clientId=producer-1] Got error produce response with correlation id 5 on topic-partition my-topic-0, retrying (2147483646 attempts left). Error: NETWORK_EXCEPTION (org.apache.kafka.clients.producer.internals.Sender)
[2021-12-02 18:35:32,241] WARN [Producer clientId=producer-1] Received invalid metadata error in produce request on partition my-topic-0 due to org.apache.kafka.common.errors.NetworkException: The server disconnected before a response was received.. Going to request metadata update now (org.apache.kafka.clients.producer.internals.Sender)
...

BewareMyPower · 2021-12-02T10:39:58Z

"send-response-OrderedScheduler-0-0" #96 prio=5 os_prio=31 tid=0x00007fddd74d7800 nid=0x19a03 waiting on condition [0x0000700013bee000]
   java.lang.Thread.State: WAITING (parking)
	at sun.misc.Unsafe.park(Native Method)
	- parking to wait for  <0x0000000796005f48> (a java.util.concurrent.locks.AbstractQueuedSynchronizer$ConditionObject)
	at java.util.concurrent.locks.LockSupport.park(LockSupport.java:175)
	at java.util.concurrent.locks.AbstractQueuedSynchronizer$ConditionObject.await(AbstractQueuedSynchronizer.java:2039)
	at java.util.concurrent.ScheduledThreadPoolExecutor$DelayedWorkQueue.take(ScheduledThreadPoolExecutor.java:1081)
	at java.util.concurrent.ScheduledThreadPoolExecutor$DelayedWorkQueue.take(ScheduledThreadPoolExecutor.java:809)
	at java.util.concurrent.ThreadPoolExecutor.getTask(ThreadPoolExecutor.java:1074)
	at java.util.concurrent.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1134)
	at java.util.concurrent.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:624)
	at io.netty.util.concurrent.FastThreadLocalRunnable.run(FastThreadLocalRunnable.java:30)
	at java.lang.Thread.run(Thread.java:748)

   Locked ownable synchronizers:
	- None

lordcheng10 · 2021-12-02T11:14:26Z

I think this PR still doesn't fix the problem. Here are my logs of KoP standalone:

18:35:22.795 [send-response-OrderedScheduler-0-0] ERROR io.streamnative.pulsar.handlers.kop.KafkaCommandDecoder - [[id: 0x952f3998, L:/127.0.0.1:9092 - R:/127.0.0.1:63152]] request RequestHeader(apiKey=PRODUCE, apiVersion=6, clientId=producer-1, correlationId=6) is not completed for 30003703129 ns (> 30000 ms)
18:35:23.002 [BookKeeperClientScheduler-OrderedScheduler-0-0] INFO  org.apache.bookkeeper.proto.PerChannelBookieClient - Timed-out 1 operations to channel [id: 0xda8b8f09, L:/127.0.0.1:63108 - R:/127.0.0.1:3181] for 127.0.0.1:3181
18:35:23.004 [BookKeeperClientWorker-OrderedExecutor-4-0] WARN  org.apache.bookkeeper.client.PendingAddOp - Failed to write entry (4, 0): Bookie operation timeout
18:35:23.013 [BookKeeperClientWorker-OrderedExecutor-4-0] WARN  org.apache.bookkeeper.client.RackawareEnsemblePlacementPolicyImpl - Failed to find 1 bookies : excludeBookies [<Bookie:127.0.0.1:3181>], allBookies [<Bookie:127.0.0.1:3181>].
18:35:23.013 [BookKeeperClientWorker-OrderedExecutor-4-0] WARN  org.apache.bookkeeper.client.RackawareEnsemblePlacementPolicyImpl - Failed to choose a bookie: excluded [<Bookie:127.0.0.1:3181>], fallback to choose bookie randomly from the cluster.

I test it simply with following extra configs:

maxQueuedRequests=1
sendKafkaResponseThreads=1

And send messages via Kafka CMD tool:

$ ./bin/kafka-producer-perf-test.sh --topic my-topic --num-records 10000 --throughput 1000 --record-size 1024 --producer.config temp.properties
[2021-12-02 18:35:32,240] WARN [Producer clientId=producer-1] Got error produce response with correlation id 5 on topic-partition my-topic-0, retrying (2147483646 attempts left). Error: NETWORK_EXCEPTION (org.apache.kafka.clients.producer.internals.Sender)
[2021-12-02 18:35:32,241] WARN [Producer clientId=producer-1] Received invalid metadata error in produce request on partition my-topic-0 due to org.apache.kafka.common.errors.NetworkException: The server disconnected before a response was received.. Going to request metadata update now (org.apache.kafka.clients.producer.internals.Sender)
...

Before this PR is repaired, once the pulsar-io thread is blocked in the putting queue, the thread will be blocked forever. This PR is to solve the problem.
But we can't handle the situation where the pulsar-io thread is blocked in a limited time when the speed of putting it in is much faster than taking it out of the queue.

lordcheng10 · 2021-12-02T11:53:28Z

18:35:22.795 [send-response-OrderedScheduler-0-0] ERROR io.streamnative.pulsar.handlers.kop.KafkaCommandDecoder - [[id: 0x952f3998, L:/127.0.0.1:9092 - R:/127.0.0.1:63152]] request RequestHeader(apiKey=PRODUCE, apiVersion=6, clientId=producer-1, correlationId=6) is not completed for 30003703129 ns (> 30000 ms) 18:35:23.002 [BookKeeperClientScheduler-OrderedScheduler-0-0] INFO org.apache.bookkeeper.proto.PerChannelBookieClient - Timed-out 1 operations to channel [id: 0xda8b8f09, L:/127.0.0.1:63108 - R:/127.0.0.1:3181] for 127.0.0.1:3181 18:35:23.004 [BookKeeperClientWorker-OrderedExecutor-4-0] WARN org.apache.bookkeeper.client.PendingAddOp - Failed to write entry (4, 0): Bookie operation timeout 18:35:23.013 [BookKeeperClientWorker-OrderedExecutor-4-0] WARN org.apache.bookkeeper.client.RackawareEnsemblePlacementPolicyImpl - Failed to find 1 bookies : excludeBookies [<Bookie:127.0.0.1:3181>], allBookies [<Bookie:127.0.0.1:3181>]. 18:35:23.013 [BookKeeperClientWorker-OrderedExecutor-4-0] WARN org.apache.bookkeeper.client.RackawareEnsemblePlacementPolicyImpl - Failed to choose a bookie: excluded [<Bookie:127.0.0.1:3181>], fallback to choose bookie randomly from the cluster.

How big is the bookkeeper thread? You can add it to the bookkeeper thread to increase the processing capacity. In addition, is the managedledgerdefaultensemblesize of bookkeeper set to 1

BewareMyPower · 2021-12-02T13:22:23Z

Sorry I've made a mistake. I configured numIOThreads=1 instead of sendKafkaResponseThreads=1.

I think the root cause is that the value of numIOThread is too small for a lot of connections because writeAndFlushResponseToClient also uses the pulsar-io thread. The independent sendResponseScheduler can reduce the pressure for the IO threads.

kafka-impl/src/main/java/io/streamnative/pulsar/handlers/kop/KafkaServiceConfiguration.java

Demogorgon314

LGTM. The default value of numSendKafkaResponseThreads might need some benchmark test to find out.

lordcheng10 · 2021-12-02T16:21:15Z

LGTM. The default value of numSendKafkaResponseThreads might need some benchmark test to find out.

Set numsendkafkaresponsethreads = 4，Use Kafka perf tool for pressure measurement，200 perf programs started ，Pulsar broker has only one :
nohup sh kafka-producer-perf-test.sh --topic test1 --num-records 10000000000 --throughput 200000 --record-size 512 --producer.config ../config/producer.properties &
.....
nohup sh kafka-producer-perf-test.sh --topic test200 --num-records 10000000000 --throughput 200000 --record-size 512 --producer.config ../config/producer.properties &

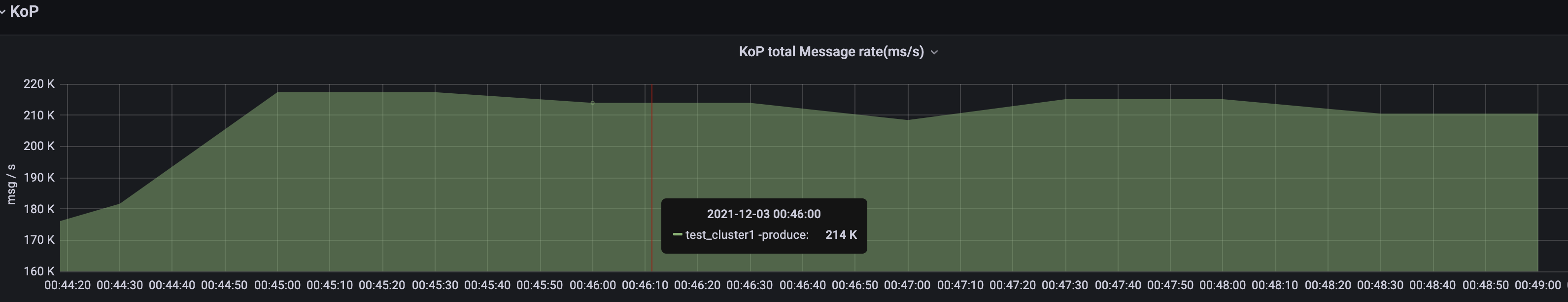

The throughput of a single broker is 200K msg/ s :

So we can set the default value to 4? @Demogorgon314 @hangc0276

BewareMyPower · 2021-12-03T02:30:53Z

Did you compare it with other values? I think you can give a simple comparison with Runtime.getRuntime().availableProcessors() value.

lordcheng10 · 2021-12-03T02:44:26Z

Did you compare it with other values? I think you can give a simple comparison with Runtime.getRuntime().availableProcessors() value.

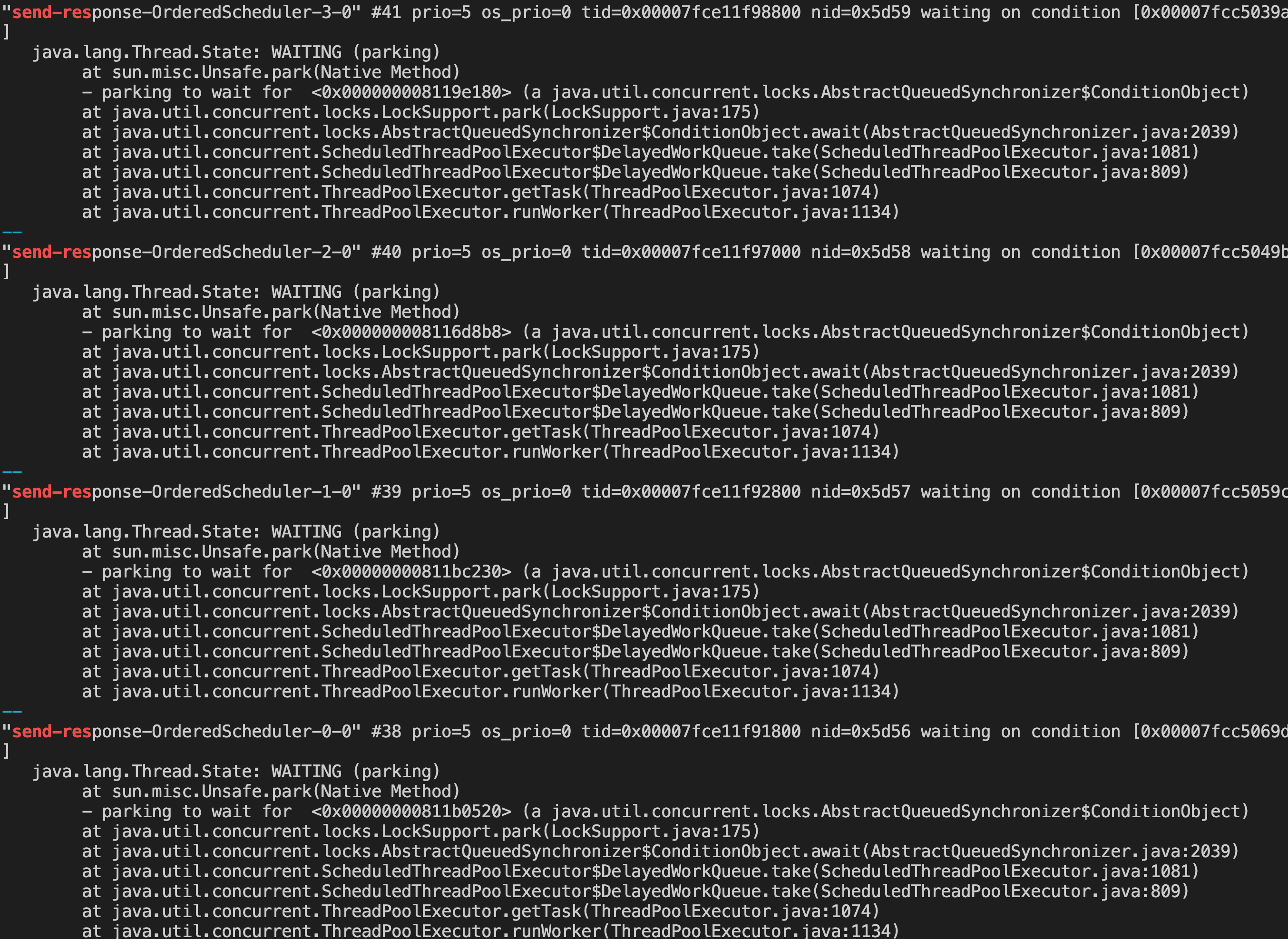

When numsendkafkaresponsethreads = 4 and the throughput of a single broker reaches 200K msg / s, the send response thread is still very idle. At this time, the bottleneck is not the send response thread，So it doesn't make sense to increase the number of send threads:

lordcheng10 · 2021-12-03T02:58:22Z

Runtime.getRuntime().availableProcessors()

When using runtime. Getruntime(). Availableprocessors(), the number of send response threads on my test broker is 24

BewareMyPower · 2021-12-03T03:31:00Z

It makes sense.

When the requestQueue is full, the pulsar-io thread will always be blocked in: requestQueue.put(), which will cause the requestQueue.remove method to not be called, because the writeAndFlushResponseToClient method is also executed by the pulsar-io thread: ` ctx.channel().eventLoop().execute(() -> { writeAndFlushResponseToClient(channel); });` This will cause a lot of close_wait on the server side； related to: #942

When the requestQueue is full, the pulsar-io thread will always be blocked in: requestQueue.put(), which will cause the requestQueue.remove method to not be called, because the writeAndFlushResponseToClient method is also executed by the pulsar-io thread: ` ctx.channel().eventLoop().execute(() -> { writeAndFlushResponseToClient(channel); });` This will cause a lot of close_wait on the server side； related to: streamnative#942 (cherry picked from commit c4ce316)

This reverts commit c4ce316.

fix pulsar-io-thread block forever

16d7474

lordcheng10 requested review from BewareMyPower and jiazhai as code owners December 2, 2021 04:02

fix import

b729e59

lordcheng10 mentioned this pull request Dec 2, 2021

[BUG] Messages produced failed. #935

Open

BewareMyPower assigned lordcheng10 Dec 2, 2021

BewareMyPower added release/2.8.1.x release/2.9.0 type/bug labels Dec 2, 2021

BewareMyPower linked an issue Dec 2, 2021 that may be closed by this pull request

[BUG] producer request timeout #942

Closed

BewareMyPower reviewed Dec 2, 2021

View reviewed changes

kafka-impl/src/main/java/io/streamnative/pulsar/handlers/kop/KafkaCommandDecoder.java Outdated Show resolved Hide resolved

BewareMyPower requested review from Demogorgon314 and hangc0276 December 2, 2021 05:15

use order excuter for send kafka response

450a731

lordcheng10 changed the title ~~fix pulsar-io-thread block forever~~ Fix pulsar-io-thread block forever Dec 2, 2021

aloyszhang approved these changes Dec 2, 2021

View reviewed changes

BewareMyPower reviewed Dec 2, 2021

View reviewed changes

kafka-impl/src/main/java/io/streamnative/pulsar/handlers/kop/KafkaServiceConfiguration.java Outdated Show resolved Hide resolved

rename config sendKafkaResponseThreads to numSendKafkaResponseThreads

6e6cfa5

hangc0276 reviewed Dec 2, 2021

View reviewed changes

kafka-impl/src/main/java/io/streamnative/pulsar/handlers/kop/KafkaServiceConfiguration.java Outdated Show resolved Hide resolved

reset numSendKafkaResponseThreads default value =4

394e2d2

BewareMyPower approved these changes Dec 2, 2021

View reviewed changes

Demogorgon314 approved these changes Dec 2, 2021

View reviewed changes

BewareMyPower merged commit c4ce316 into streamnative:master Dec 3, 2021

BewareMyPower added the cherry-picked/branch-2.8.1 label Dec 3, 2021

michaeljmarshall added a commit to michaeljmarshall/kop that referenced this pull request Dec 12, 2022

Revert "Fix pulsar-io-thread block forever (streamnative#946)"

2c52c29

This reverts commit c4ce316.

michaeljmarshall mentioned this pull request Dec 13, 2022

[fix] Use async back pressure to limit RIP #1621

Draft

1 task
