[SDW][BUG]Output source in sound setting is wrong(shows:multichannel output ).

[sinahuang]

Describe the bug
Output source in sound setting is wrong. It seems UCM can't work.

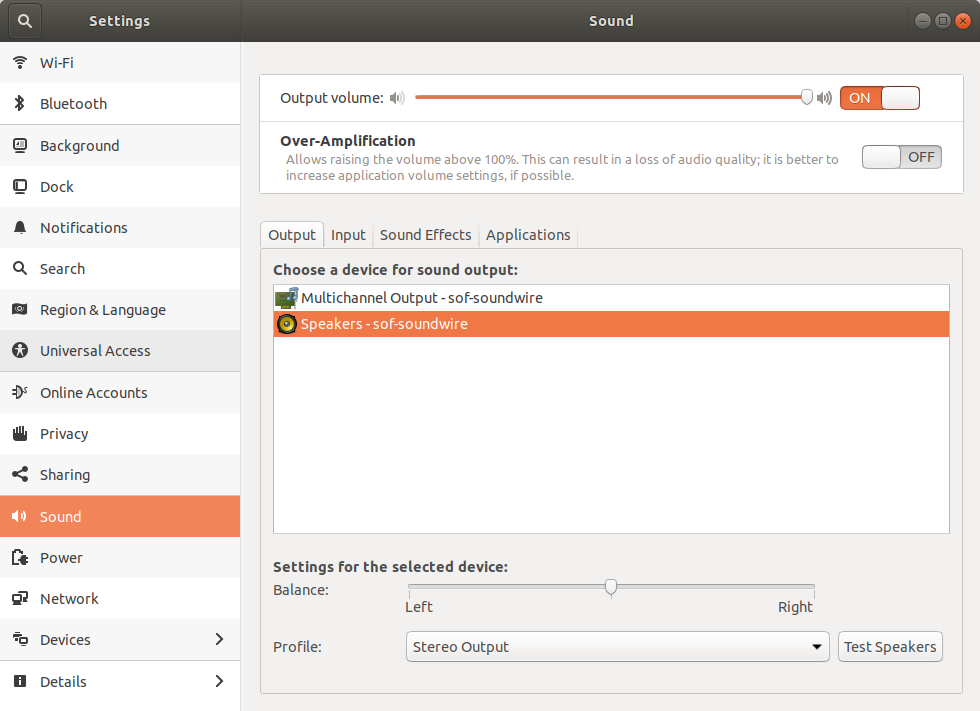

Shows:

To Reproduce
1.Boot up system successfully.
2.Check sound setting.

Reproduce rate
5/5

Expected result
Output source in sound setting should be right.

Actual result
Output source in sound setting is wrong.

Test recipe

Kernel:https://github.com/thesofproject/linux/commits/topic/sof-dev commit:12cdaef
FW: https://github.com/thesofproject/sof/commits/master commit: c639886
Tplg: Same with FW branch, sof-cml-rt711-rt1308-rt715.tplg
Platform:CML-H Laptop with codec ALC711, 2 x RT1308, RT715 in SDW mode.

no error info in dmesg:
dmesg20.log

[YvonneYang2]

Issue cannot be reproduced with sof-dev(top commit:2be2a04) + master which reverted thesofproject/sof@5e8de9f. Then I tried next commit 6983721, but sof cannot load up successfully. So I'm not sure if it's caused by commit 6983721

[plbossart]

You need to update the UCM file, see thesofproject/alsa-ucm-conf#29

The card name changed and you need to have the files in /usr/share/alsa/ucm2/sof-soundwire

[sinahuang]

Issue also can be reproduced on TGL-U RVP with codec ALC711 in SDW mode and RT1308 in I2S mode

[bardliao]

Issue also can be reproduced on TGL-U RVP with codec ALC711 in SDW mode and RT1308 in I2S mode

We should use new UCM for this too.

[sinahuang]

Issue can't be reproduced on CML-H with latest UCM:https://github.com/thesofproject/alsa-ucm-conf (commit: 4722f5b ) +PR#32.

[YvonneYang2]

Issue cannot be reproduced on cml-u with latest UCM: https://github.com/thesofproject/alsa-ucm-conf (commit: 4722f5b ) +thesofproject/alsa-ucm-conf#33

[ClarexZhou]

Error not reproduced on latest UCM1 PR#32 and PR#33.
For UCM2 PR#29:
CML-H will be tested after 1308 sync playback are ready
CML-U, tested with ubuntu 20.04 (pulseaudio default version 13.99.1 and alsa lib default version 1.2.2-2.1 )current issue not seen. UCM works, but still has several issues. See thesofproject/alsa-ucm-conf#29 (comment)

[ClarexZhou]

close for ucm 1 not reproduced with PR #32/ PR#33
and UCM2 also not reproduced on CML-U in SDW mode or with 2 1303 sync playback prs on CML-H
