TGL: max98373-sdw codec observes SDW_DP0_INTMASK read failed:-61

[naveen-manohar]

While trying to integrate max98373-sdw on chrome-environment(coreboot) observe the following error, tried configuring this sub-property as NULL in coreboot but still observe the same issue.
Log:
dmesg_DP0_ww18.log

[    5.591825] intel-master sdw-master-1: SDW_DP0_INTMASK read failed:-61
[    5.591828] intel-master sdw-master-1: Slave 1 initialization failed: -61

Further to the Query to Maxim-Team about max98373 codec supports SDW_DP0_INT_PORT_READY and SDW_DP0_INT_BRA_FAILURE cmd or not. And also check imp_def_interrupts which is retrieved from “mipi-sdw-imp-def-dp0-interrupts-supported” in ACPI table.

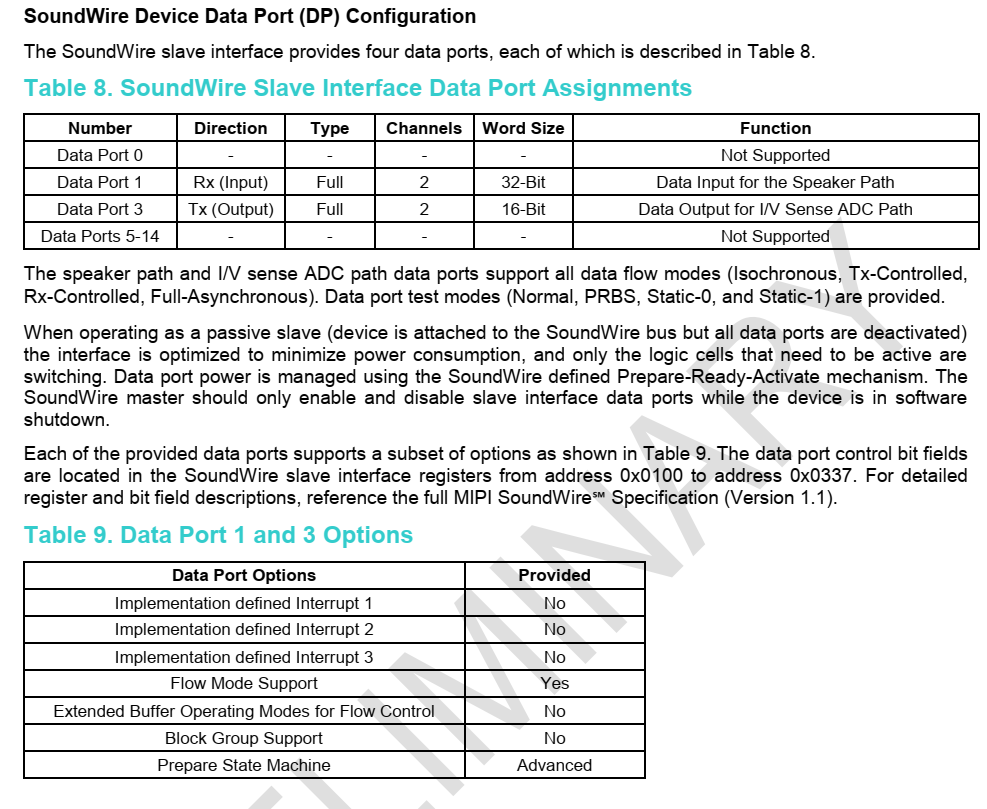

Codec vendor assured that DP0 isn't supported in max98373-sdw.

Recipe:
Kernel & DSP FW are based on TGL_v0.4 sof-dev-rebase - https://github.com/naveen-manohar/linux/commits/chrome_max98373-rebased_ww18

[plbossart]

@naveen-manohar you probably have a bad table in Coreboot. I checked the code and I see no case where we read DP0 interrupt registers if slave->dp0_prop is NULL.

BTW no one currently reads those properties from ACPI tables, see the realtek codecs they implement their own _read_prop callback and hard-code the values directly in the codec driver.

[plbossart]

@naveen-manohar also enable dynamic debug for the SoundWire core please. I do this by copying this file to /etc/modprobe.d/sof-debug.conf :
ddebug.txt

[naveen-manohar]

Thanks for the quick turn-around @plbossart , Guess you are right.
I rebased the codec driver to latest version and now i'm not observing the 'SDW_DP0_INTMASK read failed' issue. even after removing the hacks - link

Log(with Debug enabled):
dmesg_debug-hack-removed.log

Shall do few more experiments and later close this bug.

[plbossart]

@naveen-manohar do you mind submitting the codec driver as an RFC PR against topic/sof-dev? This would help the rest of us provide feedback. It doesn't need to be perfect, but you have a set of people willing to help so don't keep this to yourself :-)

[naveen-manohar]

Sure @plbossart Thanks for the support.
Working with codec-author(Ryan), shall post it start-of-week.

[naveen-manohar]

Submitted #2062, please help review

[naveen-manohar]

Thnaks to @plbossart, @RanderWang, @bardliao for supporting during this debug and helping with PR#2062
