Speakers/headphones not working in Lenovo Yoga C640 (Comet Lake PCH cAVS, Realtek ALC285) #3087
Description
No sound from both speakers and headphones on Lenovo Yoga C640-13IML on a Debian machine. Pulseaudio and ALSA apparently up and running (alsamixer all levels up). Tried to modprobe snd_hda_intel dmic_detect=0 and snd_intel_dspcfg dsp_driver=1 without any success.
Installed firmware-misc-nonfree and firmware-intel-sound and firmware-sof-signed.

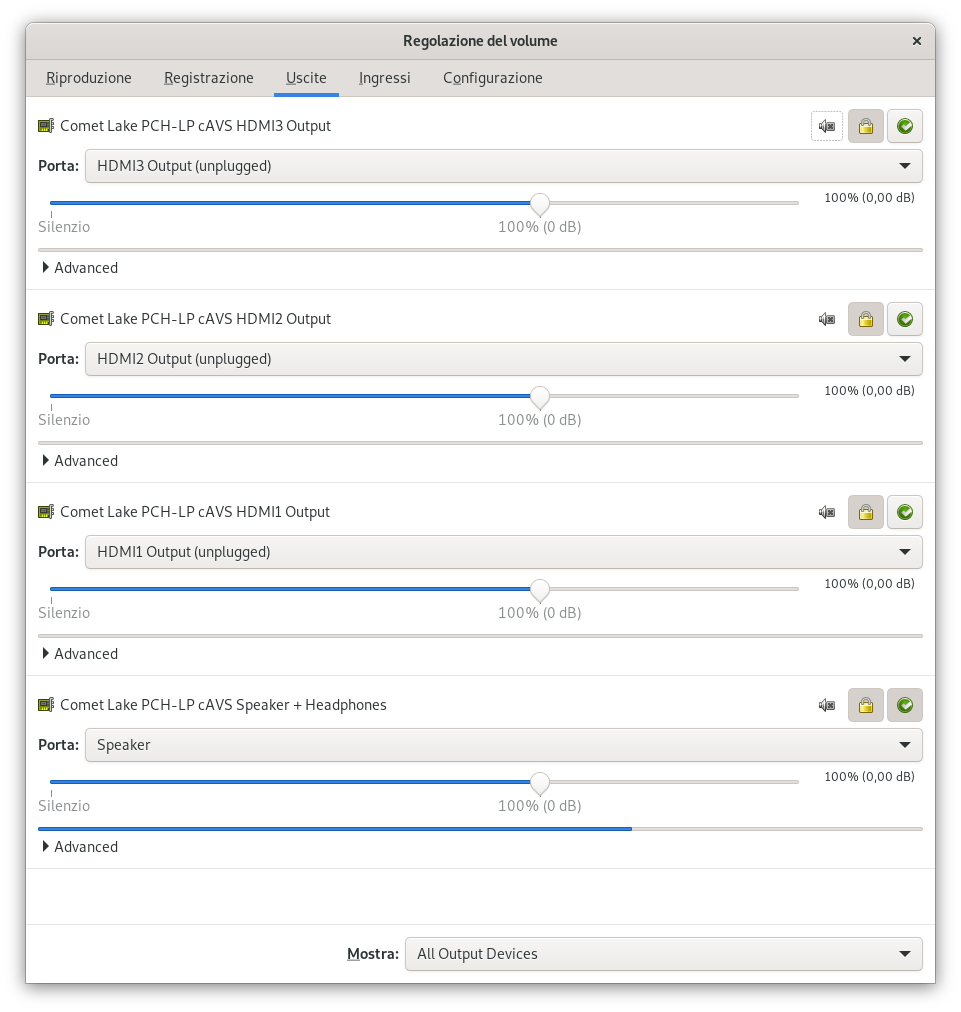

This is pavucontrol with spotify running without any sound either from speakers or from headphones:
pierpaolo@sid:~$ uname --all
Linux sid 5.10.0-8-amd64 #1 SMP Debian 5.10.46-4 (2021-08-03) x86_64 GNU/Linux
pierpaolo@sid:~$ aplay -l
**** List of PLAYBACK Hardware Devices ****
card 0: sofhdadsp [sof-hda-dsp], device 0: HDA Analog (*) []
Subdevices: 0/1
Subdevice #0: subdevice #0
card 0: sofhdadsp [sof-hda-dsp], device 1: HDA Digital (*) []
Subdevices: 1/1
Subdevice #0: subdevice #0
card 0: sofhdadsp [sof-hda-dsp], device 3: HDMI1 (*) []
Subdevices: 0/1
Subdevice #0: subdevice #0
card 0: sofhdadsp [sof-hda-dsp], device 4: HDMI2 (*) []
Subdevices: 0/1
Subdevice #0: subdevice #0
card 0: sofhdadsp [sof-hda-dsp], device 5: HDMI3 (*) []
Subdevices: 0/1
Subdevice #0: subdevice #0
pierpaolo@sid:~$ pacmd list-cards
1 card(s) available.
index: 0
name: <alsa_card.pci-0000_00_1f.3-platform-skl_hda_dsp_generic>
driver: <module-alsa-card.c>
owner module: 6
properties:
alsa.card = "0"
alsa.card_name = "sof-hda-dsp"
alsa.long_card_name = "sof-hda-dsp"
alsa.driver_name = "snd_soc_skl_hda_dsp"
device.bus_path = "pci-0000:00:1f.3-platform-skl_hda_dsp_generic"
sysfs.path = "/devices/pci0000:00/0000:00:1f.3/skl_hda_dsp_generic/sound/card0"
device.bus = "pci"
device.vendor.id = "8086"
device.vendor.name = "Intel Corporation"
device.product.id = "02c8"
device.product.name = "Comet Lake PCH-LP cAVS"
device.string = "0"
device.description = "Comet Lake PCH-LP cAVS"
module-udev-detect.discovered = "1"
device.icon_name = "audio-card-pci"
profiles:
HiFi: Play HiFi quality Music (priority 8000, available: unknown)
off: Spento (priority 0, available: unknown)
active profile: <HiFi>
sinks:
alsa_output.pci-0000_00_1f.3-platform-skl_hda_dsp_generic.HiFi__hw_sofhdadsp_5__sink/#10: Comet Lake PCH-LP cAVS HDMI3 Output
alsa_output.pci-0000_00_1f.3-platform-skl_hda_dsp_generic.HiFi__hw_sofhdadsp_4__sink/#11: Comet Lake PCH-LP cAVS HDMI2 Output
alsa_output.pci-0000_00_1f.3-platform-skl_hda_dsp_generic.HiFi__hw_sofhdadsp_3__sink/#12: Comet Lake PCH-LP cAVS HDMI1 Output
alsa_output.pci-0000_00_1f.3-platform-skl_hda_dsp_generic.HiFi__hw_sofhdadsp__sink/#13: Comet Lake PCH-LP cAVS Speaker + Headphones
sources:
alsa_output.pci-0000_00_1f.3-platform-skl_hda_dsp_generic.HiFi__hw_sofhdadsp_5__sink.monitor/#14: Monitor of Comet Lake PCH-LP cAVS HDMI3 Output
alsa_output.pci-0000_00_1f.3-platform-skl_hda_dsp_generic.HiFi__hw_sofhdadsp_4__sink.monitor/#15: Monitor of Comet Lake PCH-LP cAVS HDMI2 Output
alsa_output.pci-0000_00_1f.3-platform-skl_hda_dsp_generic.HiFi__hw_sofhdadsp_3__sink.monitor/#16: Monitor of Comet Lake PCH-LP cAVS HDMI1 Output
alsa_output.pci-0000_00_1f.3-platform-skl_hda_dsp_generic.HiFi__hw_sofhdadsp__sink.monitor/#17: Monitor of Comet Lake PCH-LP cAVS Speaker + Headphones
alsa_input.pci-0000_00_1f.3-platform-skl_hda_dsp_generic.HiFi__hw_sofhdadsp__source/#18: Comet Lake PCH-LP cAVS Headphones Stereo Microphone
alsa_input.pci-0000_00_1f.3-platform-skl_hda_dsp_generic.HiFi__hw_sofhdadsp_6__source/#19: Comet Lake PCH-LP cAVS Digital Microphone
ports:
[Out] HDMI3: HDMI3 Output (priority 700, latency offset 0 usec, available: no)
properties:
[Out] HDMI2: HDMI2 Output (priority 600, latency offset 0 usec, available: no)
properties:
[Out] HDMI1: HDMI1 Output (priority 500, latency offset 0 usec, available: no)
properties:
[Out] Speaker: Speaker (priority 100, latency offset 0 usec, available: unknown)
properties:
[Out] Headphones: Headphones (priority 200, latency offset 0 usec, available: no)
properties:
[In] Mic2: Headphones Stereo Microphone (priority 200, latency offset 0 usec, available: no)
properties:
[In] Mic1: Digital Microphone (priority 100, latency offset 0 usec, available: unknown)
properties:
pierpaolo@sid:~$ pacmd list-sinks
4 sink(s) available.
index: 10
name: <alsa_output.pci-0000_00_1f.3-platform-skl_hda_dsp_generic.HiFi__hw_sofhdadsp_5__sink>
driver: <module-alsa-card.c>
flags: HARDWARE DECIBEL_VOLUME LATENCY DYNAMIC_LATENCY
state: IDLE
suspend cause: (none)
priority: 9037
volume: front-left: 65536 / 100% / 0,00 dB, front-right: 65536 / 100% / 0,00 dB
balance 0,00
base volume: 65536 / 100% / 0,00 dB
volume steps: 65537
muted: no
current latency: 38,69 ms
max request: 7 KiB
max rewind: 7 KiB
monitor source: 14
sample spec: s16le ch 2 48000 Hz
channel map: front-left,front-right
Stereo
used by: 0
linked by: 1
configured latency: 40,00 ms; range is 0,50 .. 341,00 ms
card: 0 <alsa_card.pci-0000_00_1f.3-platform-skl_hda_dsp_generic>
module: 6
properties:
alsa.resolution_bits = "16"
device.api = "alsa"
device.class = "sound"
alsa.class = "generic"
alsa.subclass = "generic-mix"
alsa.name = ""
alsa.id = "HDMI3 (*)"
alsa.subdevice = "0"
alsa.subdevice_name = "subdevice #0"
alsa.device = "5"
alsa.card = "0"
alsa.card_name = "sof-hda-dsp"
alsa.long_card_name = "sof-hda-dsp"
alsa.driver_name = "snd_soc_skl_hda_dsp"
device.bus_path = "pci-0000:00:1f.3-platform-skl_hda_dsp_generic"
sysfs.path = "/devices/pci0000:00/0000:00:1f.3/skl_hda_dsp_generic/sound/card0"
device.bus = "pci"
device.vendor.id = "8086"
device.vendor.name = "Intel Corporation"
device.product.id = "02c8"
device.product.name = "Comet Lake PCH-LP cAVS"
device.string = "hw:sofhdadsp,5"
device.buffering.buffer_size = "65472"
device.buffering.fragment_size = "16320"
device.access_mode = "mmap+timer"
device.profile.name = "HiFi: hw:sofhdadsp,5: sink"
device.profile.description = "HDMI3 Output"
alsa.mixer_device = "hw:sofhdadsp"
device.description = "Comet Lake PCH-LP cAVS HDMI3 Output"
module-udev-detect.discovered = "1"
device.icon_name = "audio-card-pci"
ports:
[Out] HDMI3: HDMI3 Output (priority 700, latency offset 0 usec, available: no)
properties:
active port: <[Out] HDMI3>
index: 11
name: <alsa_output.pci-0000_00_1f.3-platform-skl_hda_dsp_generic.HiFi__hw_sofhdadsp_4__sink>
driver: <module-alsa-card.c>
flags: HARDWARE DECIBEL_VOLUME LATENCY DYNAMIC_LATENCY
state: IDLE
suspend cause: (none)
priority: 9036
volume: front-left: 65536 / 100% / 0,00 dB, front-right: 65536 / 100% / 0,00 dB
balance 0,00
base volume: 65536 / 100% / 0,00 dB
volume steps: 65537
muted: no
current latency: 36,80 ms
max request: 7 KiB
max rewind: 7 KiB
monitor source: 15
sample spec: s16le ch 2 48000 Hz
channel map: front-left,front-right
Stereo
used by: 0
linked by: 1
configured latency: 40,00 ms; range is 0,50 .. 341,00 ms
card: 0 <alsa_card.pci-0000_00_1f.3-platform-skl_hda_dsp_generic>
module: 6
properties:
alsa.resolution_bits = "16"
device.api = "alsa"
device.class = "sound"
alsa.class = "generic"
alsa.subclass = "generic-mix"
alsa.name = ""
alsa.id = "HDMI2 (*)"
alsa.subdevice = "0"
alsa.subdevice_name = "subdevice #0"
alsa.device = "4"
alsa.card = "0"
alsa.card_name = "sof-hda-dsp"
alsa.long_card_name = "sof-hda-dsp"
alsa.driver_name = "snd_soc_skl_hda_dsp"
device.bus_path = "pci-0000:00:1f.3-platform-skl_hda_dsp_generic"
sysfs.path = "/devices/pci0000:00/0000:00:1f.3/skl_hda_dsp_generic/sound/card0"
device.bus = "pci"
device.vendor.id = "8086"
device.vendor.name = "Intel Corporation"
device.product.id = "02c8"
device.product.name = "Comet Lake PCH-LP cAVS"
device.string = "hw:sofhdadsp,4"
device.buffering.buffer_size = "65472"
device.buffering.fragment_size = "16320"
device.access_mode = "mmap+timer"
device.profile.name = "HiFi: hw:sofhdadsp,4: sink"
device.profile.description = "HDMI2 Output"
alsa.mixer_device = "hw:sofhdadsp"
device.description = "Comet Lake PCH-LP cAVS HDMI2 Output"
module-udev-detect.discovered = "1"
device.icon_name = "audio-card-pci"
ports:
[Out] HDMI2: HDMI2 Output (priority 600, latency offset 0 usec, available: no)
properties:
active port: <[Out] HDMI2>
index: 12
name: <alsa_output.pci-0000_00_1f.3-platform-skl_hda_dsp_generic.HiFi__hw_sofhdadsp_3__sink>
driver: <module-alsa-card.c>
flags: HARDWARE DECIBEL_VOLUME LATENCY DYNAMIC_LATENCY
state: IDLE
suspend cause: (none)
priority: 9035
volume: front-left: 65536 / 100% / 0,00 dB, front-right: 65536 / 100% / 0,00 dB
balance 0,00
base volume: 65536 / 100% / 0,00 dB
volume steps: 65537
muted: no
current latency: 38,99 ms
max request: 7 KiB
max rewind: 7 KiB
monitor source: 16
sample spec: s16le ch 2 48000 Hz
channel map: front-left,front-right
Stereo
used by: 0
linked by: 1
configured latency: 40,00 ms; range is 0,50 .. 341,00 ms
card: 0 <alsa_card.pci-0000_00_1f.3-platform-skl_hda_dsp_generic>
module: 6
properties:
alsa.resolution_bits = "16"
device.api = "alsa"
device.class = "sound"
alsa.class = "generic"
alsa.subclass = "generic-mix"
alsa.name = ""
alsa.id = "HDMI1 (*)"
alsa.subdevice = "0"
alsa.subdevice_name = "subdevice #0"
alsa.device = "3"
alsa.card = "0"
alsa.card_name = "sof-hda-dsp"
alsa.long_card_name = "sof-hda-dsp"
alsa.driver_name = "snd_soc_skl_hda_dsp"
device.bus_path = "pci-0000:00:1f.3-platform-skl_hda_dsp_generic"
sysfs.path = "/devices/pci0000:00/0000:00:1f.3/skl_hda_dsp_generic/sound/card0"
device.bus = "pci"
device.vendor.id = "8086"
device.vendor.name = "Intel Corporation"
device.product.id = "02c8"
device.product.name = "Comet Lake PCH-LP cAVS"
device.string = "hw:sofhdadsp,3"
device.buffering.buffer_size = "65472"
device.buffering.fragment_size = "16320"
device.access_mode = "mmap+timer"
device.profile.name = "HiFi: hw:sofhdadsp,3: sink"
device.profile.description = "HDMI1 Output"
alsa.mixer_device = "hw:sofhdadsp"
device.description = "Comet Lake PCH-LP cAVS HDMI1 Output"
module-udev-detect.discovered = "1"
device.icon_name = "audio-card-pci"
ports:
[Out] HDMI1: HDMI1 Output (priority 500, latency offset 0 usec, available: no)
properties:
active port: <[Out] HDMI1>
* index: 13
name: <alsa_output.pci-0000_00_1f.3-platform-skl_hda_dsp_generic.HiFi__hw_sofhdadsp__sink>
driver: <module-alsa-card.c>
flags: HARDWARE HW_MUTE_CTRL HW_VOLUME_CTRL DECIBEL_VOLUME LATENCY DYNAMIC_LATENCY
state: RUNNING
suspend cause: (none)
priority: 9032
volume: front-left: 65536 / 100% / 0,00 dB, front-right: 65536 / 100% / 0,00 dB
balance 0,00
base volume: 65536 / 100% / 0,00 dB
volume steps: 65537
muted: no
current latency: 33,37 ms
max request: 7 KiB
max rewind: 7 KiB
monitor source: 17
sample spec: s16le ch 2 48000 Hz
channel map: front-left,front-right
Stereo
used by: 1
linked by: 5
configured latency: 40,00 ms; range is 0,50 .. 341,00 ms
card: 0 <alsa_card.pci-0000_00_1f.3-platform-skl_hda_dsp_generic>
module: 6
properties:
alsa.resolution_bits = "16"
device.api = "alsa"
device.class = "sound"
alsa.class = "generic"
alsa.subclass = "generic-mix"
alsa.name = ""
alsa.id = "HDA Analog (*)"
alsa.subdevice = "0"
alsa.subdevice_name = "subdevice #0"
alsa.device = "0"
alsa.card = "0"
alsa.card_name = "sof-hda-dsp"
alsa.long_card_name = "sof-hda-dsp"
alsa.driver_name = "snd_soc_skl_hda_dsp"
device.bus_path = "pci-0000:00:1f.3-platform-skl_hda_dsp_generic"
sysfs.path = "/devices/pci0000:00/0000:00:1f.3/skl_hda_dsp_generic/sound/card0"
device.bus = "pci"
device.vendor.id = "8086"
device.vendor.name = "Intel Corporation"
device.product.id = "02c8"
device.product.name = "Comet Lake PCH-LP cAVS"
device.string = "hw:sofhdadsp"
device.buffering.buffer_size = "65472"
device.buffering.fragment_size = "16320"
device.access_mode = "mmap+timer"
device.profile.name = "HiFi: hw:sofhdadsp: sink"
device.profile.description = "Speaker + Headphones"
alsa.mixer_device = "hw:sofhdadsp"
device.description = "Comet Lake PCH-LP cAVS Speaker + Headphones"
module-udev-detect.discovered = "1"
device.icon_name = "audio-card-pci"
ports:
[Out] Speaker: Speaker (priority 100, latency offset 0 usec, available: unknown)
properties:
[Out] Headphones: Headphones (priority 200, latency offset 0 usec, available: no)
properties:
active port: <[Out] Speaker>
pierpaolo@sid:~$ sudo dmesg | grep -C1 -E 'ALSA|HDA|sof|HDMI|snd[_-]|sound|hda.codec|hda.intel'
[ 90.348197] snd_hda_intel 0000:00:1f.3: DSP detected with PCI class/subclass/prog-if info 0x040100
[ 90.348213] snd_hda_intel 0000:00:1f.3: Digital mics found on Skylake+ platform, using SOF driver
[ 90.372549] sof-audio-pci 0000:00:1f.3: DSP detected with PCI class/subclass/prog-if info 0x040100
[ 90.372576] sof-audio-pci 0000:00:1f.3: Digital mics found on Skylake+ platform, using SOF driver
[ 90.372587] sof-audio-pci 0000:00:1f.3: enabling device (0000 -> 0002)
[ 90.372784] sof-audio-pci 0000:00:1f.3: DSP detected with PCI class/subclass/prog-if 0x040100
[ 90.372940] sof-audio-pci 0000:00:1f.3: bound 0000:00:02.0 (ops i915_audio_component_bind_ops [i915])
[ 90.377164] iwlwifi 0000:00:14.3: base HW address: 40:ec:99:be:32:aa
[ 90.379476] sof-audio-pci 0000:00:1f.3: use msi interrupt mode
[ 90.383377] usb 1-5: new high-speed USB device number 2 using xhci_hcd
[ 90.389832] thermal thermal_zone6: failed to read out thermal zone (-61)
[ 90.540896] sof-audio-pci 0000:00:1f.3: hda codecs found, mask 5
[ 90.540898] sof-audio-pci 0000:00:1f.3: using HDA machine driver skl_hda_dsp_generic now
[ 90.540903] sof-audio-pci 0000:00:1f.3: DMICs detected in NHLT tables: 2
[ 90.542809] usb 1-5: New USB device found, idVendor=27c6, idProduct=55b4, bcdDevice= 1.00
--
[ 90.542814] usb 1-5: Manufacturer: Generic
[ 90.543512] sof-audio-pci 0000:00:1f.3: firmware: direct-loading firmware intel/sof/sof-cml.ri
[ 90.543521] sof-audio-pci 0000:00:1f.3: warning: unknown sof_ext_man header type 6 size 0x20
[ 90.543523] sof-audio-pci 0000:00:1f.3: Firmware info: version 1:7:0-47d07
[ 90.543524] sof-audio-pci 0000:00:1f.3: Firmware: ABI 3:18:1 Kernel ABI 3:17:0
[ 90.543526] sof-audio-pci 0000:00:1f.3: warn: FW ABI is more recent than kernel
[ 90.543530] sof-audio-pci 0000:00:1f.3: warning: unknown sof_ext_man header type 3 size 0x30
[ 90.543531] sof-audio-pci 0000:00:1f.3: warning: unknown sof_ext_man header type 5 size 0x20
[ 90.671349] Adding 7811068k swap on /dev/mapper/Pool-Swap. Priority:-2 extents:1 across:7811068k SSFS
[ 90.671395] usb 1-6: new high-speed USB device number 3 using xhci_hcd
[ 90.687235] sof-audio-pci 0000:00:1f.3: Firmware info: version 1:7:0-47d07
[ 90.687238] sof-audio-pci 0000:00:1f.3: Firmware: ABI 3:18:1 Kernel ABI 3:17:0
[ 90.687238] sof-audio-pci 0000:00:1f.3: warn: FW ABI is more recent than kernel
[ 90.700253] intel_rapl_common: Found RAPL domain package
--
[ 90.849142] hid-generic 001F:8087:0AC2.0003: hidraw2: <UNKNOWN> HID v2.00 Device [hid-ishtp 8087:0AC2] on
[ 90.849891] sof-audio-pci 0000:00:1f.3: firmware: direct-loading firmware intel/sof-tplg/sof-hda-generic-2ch.tplg
[ 90.849904] sof-audio-pci 0000:00:1f.3: Topology: ABI 3:18:1 Kernel ABI 3:17:0
[ 90.849905] sof-audio-pci 0000:00:1f.3: warn: topology ABI is more recent than kernel
[ 90.853350] hid-generic 001F:8087:0AC2.0004: hidraw3: <UNKNOWN> HID v2.00 Device [hid-ishtp 8087:0AC2] on
[ 90.867109] sof-audio-pci 0000:00:1f.3: ASoC: Parent card not yet available, widget card binding deferred
[ 90.882711] snd_hda_codec_realtek ehdaudio0D0: autoconfig for ALC285: line_outs=1 (0x14/0x0/0x0/0x0/0x0) type:speaker
[ 90.882714] snd_hda_codec_realtek ehdaudio0D0: speaker_outs=0 (0x0/0x0/0x0/0x0/0x0)
[ 90.882715] snd_hda_codec_realtek ehdaudio0D0: hp_outs=1 (0x21/0x0/0x0/0x0/0x0)
[ 90.882715] snd_hda_codec_realtek ehdaudio0D0: mono: mono_out=0x0
[ 90.882716] snd_hda_codec_realtek ehdaudio0D0: inputs:
[ 90.882717] snd_hda_codec_realtek ehdaudio0D0: Mic=0x19
[ 90.885514] usb 1-6: New USB device found, idVendor=04f2, idProduct=b6a8, bcdDevice=26.83
--
[ 90.885518] usb 1-6: SerialNumber: 0001
[ 90.928021] snd_hda_codec_realtek ehdaudio0D0: ASoC: sink widget AIF1TX overwritten
[ 90.928026] snd_hda_codec_realtek ehdaudio0D0: ASoC: source widget AIF1RX overwritten
[ 90.928149] skl_hda_dsp_generic skl_hda_dsp_generic: ASoC: sink widget hifi3 overwritten
--
[ 90.928188] skl_hda_dsp_generic skl_hda_dsp_generic: ASoC: source widget Alt Analog Codec Capture overwritten
[ 90.940050] input: sof-hda-dsp Mic as /devices/pci0000:00/0000:00:1f.3/skl_hda_dsp_generic/sound/card0/input15
[ 90.967474] input: sof-hda-dsp Headphone as /devices/pci0000:00/0000:00:1f.3/skl_hda_dsp_generic/sound/card0/input16
[ 90.967509] input: sof-hda-dsp HDMI/DP,pcm=3 as /devices/pci0000:00/0000:00:1f.3/skl_hda_dsp_generic/sound/card0/input17
[ 90.967540] input: sof-hda-dsp HDMI/DP,pcm=4 as /devices/pci0000:00/0000:00:1f.3/skl_hda_dsp_generic/sound/card0/input18
[ 90.967569] input: sof-hda-dsp HDMI/DP,pcm=5 as /devices/pci0000:00/0000:00:1f.3/skl_hda_dsp_generic/sound/card0/input19
pierpaolo@sid:~$ lsmod | grep snd
snd_hda_intel 57344 0
snd_intel_sst_acpi 20480 0
snd_intel_sst_core 69632 1 snd_intel_sst_acpi
snd_soc_sst_atom_hifi2_platform 114688 1 snd_intel_sst_core
snd_soc_skl_hda_dsp 28672 11
snd_soc_hdac_hdmi 45056 1 snd_soc_skl_hda_dsp
snd_soc_dmic 16384 1
snd_hda_codec_hdmi 73728 1
snd_hda_codec_realtek 151552 1
snd_hda_codec_generic 98304 1 snd_hda_codec_realtek
snd_sof_pci 24576 12
snd_sof_intel_byt 24576 1 snd_sof_pci
snd_sof_intel_ipc 20480 1 snd_sof_intel_byt
snd_sof_intel_hda_common 102400 1 snd_sof_pci
snd_sof_xtensa_dsp 16384 2 snd_sof_intel_hda_common,snd_sof_intel_byt
snd_sof 139264 4 snd_sof_pci,snd_sof_intel_hda_common,snd_sof_intel_byt,snd_sof_intel_ipc
snd_sof_intel_hda 20480 1 snd_sof_intel_hda_common
snd_soc_hdac_hda 24576 1 snd_sof_intel_hda_common
snd_hda_ext_core 36864 4 snd_sof_intel_hda_common,snd_soc_hdac_hdmi,snd_soc_hdac_hda,snd_sof_intel_hda
snd_soc_acpi_intel_match 45056 3 snd_sof_pci,snd_sof_intel_hda_common,snd_intel_sst_acpi
snd_soc_acpi 16384 4 snd_soc_acpi_intel_match,snd_sof_intel_hda_common,snd_sof_intel_byt,snd_intel_sst_acpi
ledtrig_audio 16384 2 snd_hda_codec_generic,snd_sof
snd_intel_dspcfg 28672 3 snd_hda_intel,snd_sof_pci,snd_sof_intel_hda_common
soundwire_intel 45056 2 snd_sof_intel_hda_common,snd_intel_dspcfg
snd_soc_core 315392 8 soundwire_intel,snd_sof,snd_sof_intel_hda_common,snd_soc_hdac_hdmi,snd_soc_hdac_hda,snd_soc_sst_atom_hifi2_platform,snd_soc_dmic,snd_soc_skl_hda_dsp
snd_compress 32768 1 snd_soc_core
snd_hda_codec 172032 6 snd_hda_codec_generic,snd_hda_codec_hdmi,snd_hda_intel,snd_hda_codec_realtek,snd_soc_hdac_hda,snd_soc_skl_hda_dsp
snd_hda_core 110592 11 snd_hda_codec_generic,snd_hda_codec_hdmi,snd_hda_intel,snd_hda_ext_core,snd_hda_codec,snd_hda_codec_realtek,snd_sof_intel_hda_common,snd_soc_hdac_hdmi,snd_soc_hdac_hda,snd_sof_intel_hda,snd_soc_skl_hda_dsp
snd_hwdep 16384 1 snd_hda_codec
snd_pcm 135168 17 snd_hda_codec_hdmi,snd_hda_intel,snd_hda_codec,soundwire_intel,snd_sof,snd_sof_intel_hda_common,snd_soc_hdac_hdmi,snd_compress,snd_soc_sst_atom_hifi2_platform,snd_soc_core,snd_hda_core
snd_timer 49152 1 snd_pcm
snd 110592 29 snd_hda_codec_generic,snd_hda_codec_hdmi,snd_hwdep,snd_hda_intel,snd_hda_codec,snd_hda_codec_realtek,snd_timer,snd_soc_hdac_hdmi,snd_compress,snd_soc_sst_atom_hifi2_platform,snd_soc_core,snd_pcm,snd_soc_skl_hda_dsp
soundcore 16384 1 snd
