[BUG][DSM] Channel 3,4 are empty when testing with S16_LE format #2679

@keqiaozhang

Description

@keqiaozhang

Describe the bug

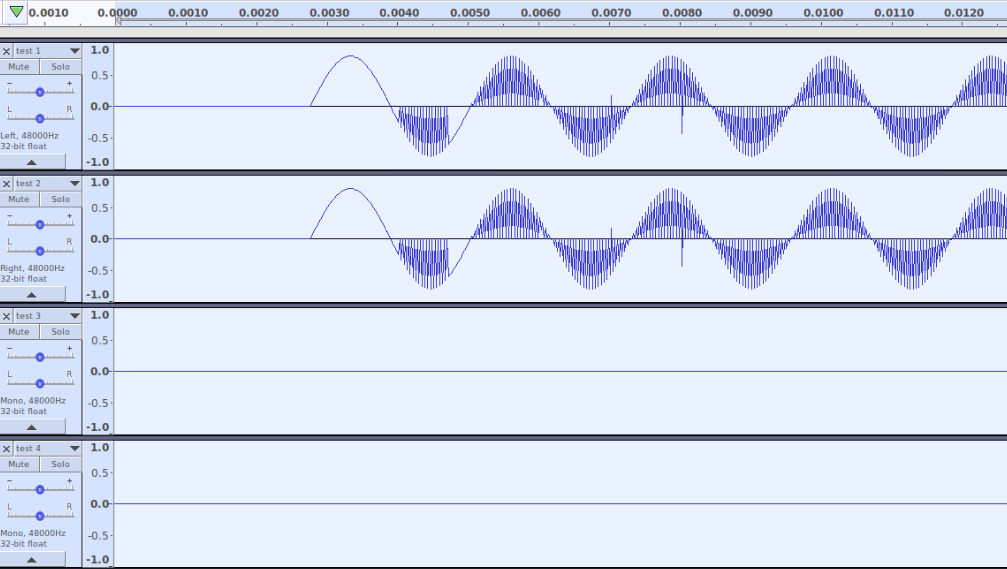

Tested the DSM on TGL, S24_4LE and S32_LE are working well. but when testing with S16_LE format, channel 3 and 4 are empty in the recorded wav. From waveform, it looks like the data of channel 3 and 4 are mixed in channel 1 and 2.

DSM

To Reproduce
aplay -Dhw:0,0 -f S16_LE -r 48000 -c2 sine_s16_le_48k.wav --dump-hw-params & arecord -Dhw:0,0 -f S16_LE -r 48000 -c 4 -d 10 DSM.wav -vv

Reproduction Rate
5/5

Expected behavior
channel 3,4 should also have data

Impact
no data in Channel 3 and 4, and channel 1 and 2 data are also wrong.

Environment

  1. Kernel: thesofproject/linux topic/smart-amp
  2. Sof: thesofproject/sof tgl-004-drop-stabe
  3. Tplg: sof-tgl-smart-amplifier.m4 (rename it to sof-tgl-nocodec.tplg
  4. Platform:TGL

trace-dsm.txt
dmesg-dsm.txt
