Decoupling dvcignore and fs by karajan1001 · Pull Request #5812 · treeverse/dvc

karajan1001 · 2021-04-14T07:58:36Z

remove dvcignore from fs objects
attach dvcignore to repo
add ignore check to functions(add, checkout, output, pipeline, etc)
problem of subrepo
problem .git and .dvc ignore in fs
pass all tests
final check ( some new tests)
Performance guarantee.

❗ I have followed the Contributing to DVC checklist.
📖 If this PR requires documentation updates, I have created a separate PR (or issue, at least) in dvc.org and linked it here.

Thank you for the contribution - we'll try to review it as soon as possible. 🙏

karajan1001 · 2021-04-15T07:31:48Z

Currently affected files ( with at least one fs.walk, fs.isfile, fs.isdir or fs.exists in it)

dvc/checkout.py
dvc/config.py
etc

Can be classified into five levels

fs level:

dvc/fs/fsspec_wrapper.py
dvc/fs/memory.py
etc

object level:

dvc/objects/db/base.py
dvc/objects/db/local.py
etc

output level

dvc/output/base.py
dvc/dependency # inheriant from output
etc

command level:

dvc/checkout.py
dvc/repo/add.py
etc

file operations:

dvc/config.py
dvc/dvcfile.py
etc

Originally dvcignore check was done in fs level, and affect all of the file levels above. In this PR, we have two choices:

on output level.
on command level.

Currently the behavior of DVC or more like in output level. Ignore checking not only affect untracked files but also those which had already been added to the repo. For example

$ dvc add a
$ echo a >> .dvcignore
$ dvc status

would throw an exception

ERROR: Path '<dvc_root>/a' is ignored by
.dvcignore:5:a

And in documents

⚠️ dvc run and dvc repro might remove ignored files. If they are not produced by a pipeline stage, they can be lost permanently.

Keep in mind that when you add .dvcignore patterns that affect an existing output, its status will change and DVC will behave as if that affected files were deleted.

For comparison, in Git .gitignore only affect untracked files. The behavior of gitignore is more like on command level (this is actually what dulwich do), and this implementation is more simple and its behavior is easier to predict.

Should we keep our current logic or switch to a more Git-like one?

BTW, even if we decided to switch, it shouldn't be included in this PR.
@efiop @dberenbaum

karajan1001 · 2021-04-15T10:23:12Z

@efiop
Besides the functional problem above, we have another two code problem:

dvcignore used to couple with sub-repo and they need to be decoupled now.
Without dvcignore, .git, .dvc directory are now exposed to the filesystem. We need a new way to mask them.

efiop · 2021-04-15T10:38:10Z

@karajan1001 Great summary! Indeed, there is an inconsistency where dvcignore could ignore already tracked output, even though it really should behave like git add -f for .gitignoreed file. I think it is more of an accident caused by the current fs & dvcignore coupling and indeed could be changed. I'm not sure there are even tests that check for that behavior right now.

dvcignore used to couple with sub-repo and they need to be decoupled now.

Most of user-facing commands don't really walk into subrepos when walking the host repo, but when given a path that is in subrepo - will indeed go into the subrepo (it is a bit confusing, but it is really a more simple logic), while we do have some tests that check for recursive host walk that has to walk into subrepos as well. The latter one could be considered to be changed.

Without dvcignore, .git, .dvc directory are now exposed to the filesystem. We need a new way to mask them.

Hopefully most of such cases could be covered by just filtering out fs.walk() results with .dvcignore, so it won't traverse into .git and .dvc when it is not needed.

skshetry · 2021-04-15T11:04:27Z

@efiop, @karajan1001, what are the reasons for the decoupling? IIRC we depend on this behaviour in a lot of places
(stage collection, parametrization, checkouts, add/repro, get/import), so I see this as a necessity in a lot of places.

(maybe what we need is a better API but is decoupling/duplication worth it?).

efiop · 2021-04-15T11:47:58Z

@skshetry Bugs like #5605 and migration to fsspec. Those could be solved in the current arch, but it gets clunky, so trying to explore if more explicit approach of applying dvcignore only where it is needed (similar to git) would fit better. We might decide that it is not worth it too.

karajan1001 · 2021-04-15T15:02:46Z

@karajan1001 Great summary! Indeed, there is an inconsistency where dvcignore could ignore already tracked output, even though it really should behave like git add -f for .gitignoreed file. I think it is more of an accident caused by the current fs & dvcignore coupling and indeed could be changed. I'm not sure there are even tests that check for that behavior right now.

So, it is not a designed behavior but accidentally behaves like this.

dvcignore used to couple with sub-repo and they need to be decoupled now.

Most of user-facing commands don't really walk into subrepos when walking the host repo, but when given a path that is in subrepo - will indeed go into the subrepo (it is a bit confusing, but it is really a more simple logic), while we do have some tests that check for recursive host walk that has to walk into subrepos as well. The latter one could be considered to be changed.

The latter one could be considered to be changed. Sorry I didn't understand this.

efiop · 2021-04-15T16:31:29Z

@karajan1001 I mean that we can change the second part - behaviour that is only tested by us in syntetic tests but not actually used in any user-facing functionality. E.g. an ability to fs.walk("host_root") and go through host repo and into the subrepo could be considered to be dropped, as it is not used by any dvc commands.

Have to point out that this is an open-ended task, if you see that the current approach works better - we can keep it.

karajan1001 · 2021-04-26T03:10:58Z

Current subrepo problem.

Originally subrepo's dvcignore attached to its own fs. So each fs has its own dvcignore patterns on it, and can be controlled individually. Now the fs of subrepo is directly called by the root repo 's fs. And our dvcginore pattern is bound on subrepo ignore. We can't get subrepo files while ignoring subrepo's patterns.

Two solutions:

Root repo didn't get subrepo's files directly.
Dvcginore decoupling patternsignore andsubrepo`'s ignore.

karajan1001 · 2021-04-30T08:02:02Z

tests	previous version	after this PR	diff
add.Add.time_cats_dogs copy	38.6±0.7s	40.0±0.6s	3.6%
add.Add.time_cats_dogs symlink	30.9±0.1s	30.1±0.6s	- 2.6%
add.Add.time_cats_dogs hardlink	38.1±0.1s	37.0±0.2s	- 2.9%
checkout.CheckoutBench.time_cats_dogs copy	16.8±0.4s	16.8±0.3s	0.0%
checkout.CheckoutBench.time_cats_dogs symlink	8.27±0.4s	8.45±0.04s	2.1%
checkout.CheckoutBench.time_cats_dogs hardlink	13.4±0.4s	13.7±0.1s	2.2%
collect.CollectBench.time_stages_collection	2.58±0s	2.18±0s	- 15.5 %
collect.TraverseGitRepoBench.time_repo_traversing	4.14±0s	5.28±0s	27.1%
imports.ImportBench.time_imports	13.9±0m	14.1±0m	1.4 %
init.InitNoScmBench.time_init	177±5ms	177±2ms	0.0%
init.InitScmBench.time_init	197±3ms	196±1ms	- 0.5 %
push.PushBench.time_cats_dogs	failed	failed
startup.StartupBench.time_startup	107±0ms	110±0ms	2.8%
status.DVCIgnoreBench.time_status	403±0ms	406±0ms	0.7%
status.DVCStatusBench.time_status	401±0ms	401±0ms	0.0%

Most of the tests' performance changed less than 4% after this PR. Only two of them show an obvious diff
collect.CollectBench.time_stages_collection accelerates about 15%
collect.TraverseGitRepoBench.time_repo_traversing slows about 27%
Currently, I'm looking for the reason for this.

karajan1001 · 2021-04-30T10:48:03Z

tests previous version after this PR diff
add.Add.time_cats_dogs copy 38.6±0.7s 40.0±0.6s 3.6%
add.Add.time_cats_dogs symlink 30.9±0.1s 30.1±0.6s - 2.6%
add.Add.time_cats_dogs hardlink 38.1±0.1s 37.0±0.2s - 2.9%
checkout.CheckoutBench.time_cats_dogs copy 16.8±0.4s 16.8±0.3s 0.0%
checkout.CheckoutBench.time_cats_dogs symlink 8.27±0.4s 8.45±0.04s 2.1%
checkout.CheckoutBench.time_cats_dogs hardlink 13.4±0.4s 13.7±0.1s 2.2%
collect.CollectBench.time_stages_collection 2.58±0s 2.18±0s - 15.5 %
collect.TraverseGitRepoBench.time_repo_traversing 4.14±0s 5.28±0s 27.1%
imports.ImportBench.time_imports 13.9±0m 14.1±0m 1.4 %
init.InitNoScmBench.time_init 177±5ms 177±2ms 0.0%
init.InitScmBench.time_init 197±3ms 196±1ms - 0.5 %
push.PushBench.time_cats_dogs failed failed
startup.StartupBench.time_startup 107±0ms 110±0ms 2.8%
status.DVCIgnoreBench.time_status 403±0ms 406±0ms 0.7%
status.DVCStatusBench.time_status 401±0ms 401±0ms 0.0%
Most of the tests' performance changed less than 4% after this PR. Only two of them show an obvious diff
collect.CollectBench.time_stages_collection accelerates about 15%
collect.TraverseGitRepoBench.time_repo_traversing slows about 27%
Currently, I'm looking for the reason for this.

Extra time cost comes from two steps.

Now we update two trees,
Time cost in searching all dirs (potential subrepo).

After solving these two problems. New version runs a bit faster than before. This might because we move subrepo finding from __call__ to __update__ which would run only once.

tests	previous version	after this PR	after optimization	diff
collect.CollectBench.time_stages_collection	2.67±0s	2.33±0s	2.27±0s	- 15.0 %
collect.TraverseGitRepoBench.time_repo_traversing	4.14±0s	5.37±0s	3.96±0s	-4.4%

karajan1001 · 2021-05-03T06:31:12Z

Newest result. a bit better than before.

tests	previous version	after this PR	diff
add.Add.time_cats_dogs copy	40.4±0.7s	36.4±0.5s	-9%
add.Add.time_cats_dogs symlink	30.8±0.08s	28.8±0.01s	- 6.5%
add.Add.time_cats_dogs hardlink	36.5±0.2s	35.0±0.04s	- 4.2%
checkout.CheckoutBench.time_cats_dogs copy	15.6±0.2s	15.4±0.02s	-1.1%
checkout.CheckoutBench.time_cats_dogs symlink	7.69±0.02s	7.59±0.01s	-1.4%
checkout.CheckoutBench.time_cats_dogs hardlink	12.4±0.05s	12.5±0.02s	0.8%
collect.CollectBench.time_stages_collection	2.49±0s	2.15±0s	- 13.7 %
collect.TraverseGitRepoBench.time_repo_traversing	4.09±0s	3.87±0s	-5.4%
imports.ImportBench.time_imports	14.6±0m	14.8±0m	1.3 %
init.InitNoScmBench.time_init	175±0.9ms	175±0.7ms	0.0%
init.InitScmBench.time_init	193±0.7ms	194±0.7ms	0.5 %
push.PushBench.time_cats_dogs	failed	failed
startup.StartupBench.time_startup	104±0ms	104±0ms	0.0%
status.DVCIgnoreBench.time_status	403±0ms	401±0ms	-0.5%
status.DVCStatusBench.time_status	402±0ms	398±0ms	-1.0%

efiop · 2021-05-03T12:08:18Z

walk_files should probably be files to avoid confusion with the function.

How about:

Suggested change

if fs.scheme == Schemes.LOCAL and fs.repo:

walk_files = fs.repo.dvcignore(fs.walk(path_info), walk_files=True)

else:

walk_files = fs.walk_files(path_info)

existing_files = set(walk_files)

files = set(cache.repo.dvcignore(fs, path_info, walk_files=True))

unlike fs.repo, cache.repo is more persistent (though temporarily) so we can rely on it more.

Or maybe even:

files = set(cache.repo.dvcignore.walk_files(fs, path_info))

so that dvcignore has walk and walk_files methods.

Also, for the record, I'm refactoring this right now to decouble repo from fs, and fs.repo will go away soon, as well as cache.repo. We'll likely start passing dvcignore(as well as state) to checkout as kwargs. No action needed in this PR, just FYI.

dvc/objects/stage.py: walk_iterator = odb.repo.dvcignore.walk_files(fs.walk(path_info)) dvc/utils/fs.py: walk_iterator = dvcignore.walk_files(fs.walk(path)) dvc/checkout.py: cache.repo.dvcignore.walk_files(fs.walk(path_info)) dvc/fs/repo.py: yield from repo.dvcignore.walk( dvc/repo/collect.py: target_infos.extend(repo.dvcignore.walk_files(fs.walk(path_info))) dvc/repo/add.py: repo.dvcignore.walk_files(repo.fs.walk(target)), dvc/repo/stage.py: for root, dirs, files in self.repo.dvcignore.walk(

Currently dvcignore are used in these 7 places.

4 of them could be derived directly from repo

dvc/repo/collect.py: target_infos.extend(repo.dvcignore.walk_files(fs.walk(path_info))) dvc/repo/add.py: repo.dvcignore.walk_files(repo.fs.walk(target)), dvc/repo/stage.py: for root, dirs, files in self.repo.dvcignore.walk( dvc/fs/repo.py: yield from repo.dvcignore.walk(

2 come from cache ( temporary solution )

dvc/objects/stage.py: walk_iterator = odb.repo.dvcignore.walk_files(fs.walk(path_info)) dvc/checkout.py: cache.repo.dvcignore.walk_files(fs.walk(path_info))

And I add a repo variable to the class State in the last one.

dvc/utils/fs.py: walk_iterator = dvcignore.walk_files(fs.walk(path))

In my opinion, maybe we should pass a list of individual files instead of path and file systems other things in the last three cases.

In my opinion, maybe we should pass a list of individual files instead of path and file systems other things in the last three cases.

Could you elaborate, please?

karajan1001 · 2021-05-10T12:15:14Z

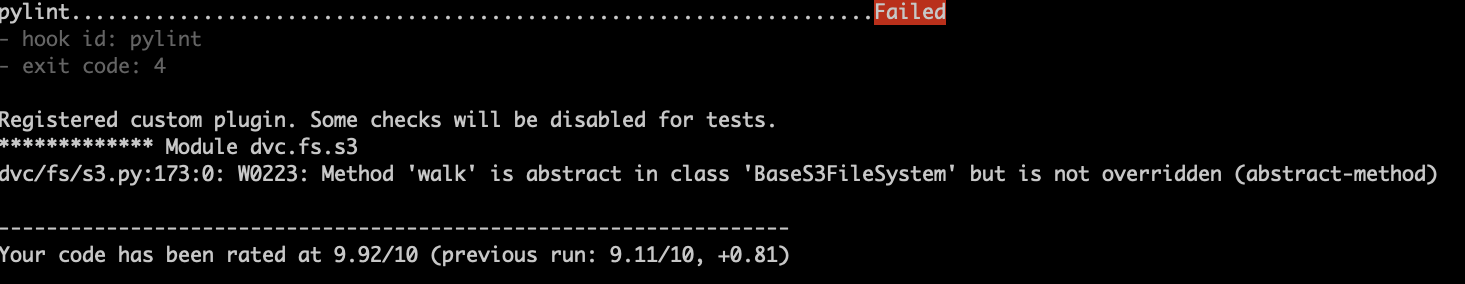

Any methods to suppress this other than using # pylint?

I guess we need to override it and raise NotImplementedError

I remember that an abstract method must be implemented ( can't be abstract ) in subclasses in some other languages.

Hmmm, It didn't work as well in pylint.

efiop · 2021-05-10T17:24:55Z

-                    jobs=jobs,
-                    follow_subrepos=False,
-                )
+                obj = stage(odb, path_info, repo.repo_fs, "md5", jobs=jobs,)


There's an interesting question of whether we should apply dvcignore here instead of relying on it being applied in repo_fs 🤔 For now we could keep it as is, but it might be a good idea for the future.

@efiop add dvcignore here would cause dvc fetch only downloading those not ignored caches. The problem would be with those caches inside subrepos. Subrepo problems are not solved thoroughly. Maybe it is better to solve it after we had fixed and clear subrepo documents and usage.

For the record: https://github.com/iterative/dvc/pull/5812/files#r630405193

efiop · 2021-05-10T17:41:03Z

+def get_mtime_and_size(path, fs, dvcignore=None):
    import nanotime

    if fs.isdir(path):


This should probably also use dvcignore, right?

Yes, without it, dvc tracked directories would be regarded as modified after dvcignored changing.

So should it check that the path is not dvcignored first?

On a related topic, right now we pass dvcignore to the state constructor so we could pass it through to get_mtime_and_size, which has an implication of us always using dvcignore even though we might not want to. So maybe it could be a good idea to pass dvcignore explicitly to State methods that might need it.

State is a bit behind right now on fsspec changes and still uses os.path instead of fs (same as get_mtime_and_size), but that should change in the near future. Thinking if maybe dvcignore as a wrapper (blast from the past 🙂 ) would turn to be more fitting here.

Another note is that DvcignoreFilter right now is combining patter matching and filesystem operations, which has been a source of confusion, as we try to use os.path and introduce a local filesystem bias, which results in us using, say, os.path.isdir in is_ignored instead of fs.isdir

efiop · 2021-05-10T17:44:45Z

    def isdir(self):
+        if self._check_path_dvcignore(self.path_info):
+            return False
        return self.fs.isdir(self.path_info)


dvcignore can ignore a dir (e.g. dir/) or a file, which are two different cases, so dvcignore will need to call isdir internally using os.path, but we should pass self.fs to it instead and make it use that. Or am I missing something?

@efiop , dvcignore didn't test where the path is a file or a dir. The only difference of dirs and files are the matching of pattern like paths/.

@karajan1001 Right, I'm saying that you are using is_ignored which will interpret path as a local path and will try to use os.path.isdir https://github.com/iterative/dvc/blob/e7571ab3251ef4417fa196e7ad45b7f6f8a42ee3/dvc/ignore.py#L354 on it, while it should use fs.isdir, because fs might be a GitFileSystem, for example.

In general, right now dvcignore should only work for fs(and path) that only belong to dvcignore.fs(filesystem that dvcignore was collected from).

efiop · 2021-05-10T18:13:17Z

@karajan1001 @pared We are in a bit of a mess with legacy walk() and fsspec migration, the end goal is fsspec's walk(). For now just adding walk to fsspec_wrapper and adding a pylint ignore to that line is fine, we'll adjust it in a followup.

efiop · 2021-05-11T17:21:26Z

+        is_ignored = self.repo.dvcignore.is_ignored_file(self.path)
+        return self.repo.fs.exists(self.path) and not is_ignored


Love how we now use is_ignored_file instead of relying on implicit is_ignored(includes is_ignored_dir which we don't care about and can be harmful) inside fs ❤️

efiop · 2021-05-11T17:29:56Z



-class AzureFileSystem(FSSpecWrapper):
+class AzureFileSystem(FSSpecWrapper):  # pylint:disable=abstract-method


There is a less dangerous way: you could add walk to FSSpecWrapper.

EDIT: on the other hand we've been using it in other FileSystems for awhile 🙁

efiop · 2021-05-11T17:57:06Z

    assert set(actual) == set(expected)
    assert len(actual) == len(expected)

-    assert fs.isfile(tmp_dir / "lorem") is True
-    assert fs.isfile(tmp_dir / "dir" / "repo" / "foo") is False
-    assert fs.isdir(tmp_dir / "dir" / "repo") is False
-    assert fs.isdir(tmp_dir / "dir") is True
-
-    assert fs.isdvc(tmp_dir / "lorem") is True
-    assert fs.isdvc(tmp_dir / "dir" / "repo" / "dir1") is False
-
-    assert fs.exists(tmp_dir / "dir" / "repo.txt") is True
-    assert fs.exists(tmp_dir / "repo" / "ipsum") is False
-


Hm, this is actually what we were talking about in #5812 (comment) . Here we have a very strange situation where fs.walk is dvcignore aware, but isdir/isdfile are not, which is bad. So we need to either use dvcignore in both, or just apply dvcignore where it is needed on top of RepoFileSystem, effectively decoupling it and dvcignore.

Simple fix for now is to just use dvicgnore in RepoFileSystems isfile/isdir/exists, but we might want to think about futher decoupling here in the future or could discuss right away. The change is not going to be simple there because RepoFileSystem was designed that way, but we could give it a shot.

Per https://github.com/iterative/dvc/pull/5812/files#r630604524

karajan1001 · 2021-05-12T02:10:37Z

    def isdir(self, path):  # pylint: disable=arguments-differ
        fs, dvc_fs = self._get_fs_pair(path)

+        if dvc_fs and dvc_fs.repo.dvcignore.is_ignored_dir(path):


ignore_subrepos is need here.

efiop · 2021-05-12T02:28:43Z

Had a great discussion with @karajan1001 about dvcignore and related things. To summarize the stuff to consider and handle in the followups:

Potential RepoFileSystem and dvcignore decoupling
Scan for potential existing tests that were relying on not using dvcignore (esp regarding subrepos). Those tests are letting us down because of bad previous architecture 🙁 This needs to be solved before the next release.
We should make State use fs instead of os.path and possibly stop passing dvcignore to it into constructor or into separate methods (by possibly wrapping the filesystem with dvcignore before passing the fs to the methods)
dvcignore can be used even more granularly in thngs like stages and outputs (and other). E.g. only when dvc-adding, so we don't waste dvcignore calls for no reason.
We should stop using abspath in dvcignore. This is related to fsspec migration and making our filesystems only work with fspath-s
Stop using PathInfo in fs/dvcignore related applications. Again related to fsspec migration and making our filesystems only work with strings fspaths-s

Merging for now to unblock followups. Not releasing a new dvc version yet, we have some stabilization period to use.

karajan1001 marked this pull request as draft April 14, 2021 07:58

karajan1001 changed the title ~~Decoupling dvcignore and fs~~ [WIP] Decoupling dvcignore and fs Apr 14, 2021

karajan1001 mentioned this pull request Apr 14, 2021

Dependency not consider dvcignore #5605

Closed

2 tasks

efiop added the refactoring Factoring and re-factoring label Apr 14, 2021

efiop reviewed Apr 20, 2021

View reviewed changes

Comment thread dvc/fs/local.py Outdated

efiop reviewed Apr 20, 2021

View reviewed changes

Comment thread dvc/fs/local.py Outdated

karajan1001 force-pushed the decoupling_dvcignore_fs branch 2 times, most recently from ea8262d to 6770760 Compare April 27, 2021 06:26

karajan1001 self-assigned this Apr 28, 2021

karajan1001 changed the title ~~[WIP] Decoupling dvcignore and fs~~ Decoupling dvcignore and fs Apr 28, 2021

karajan1001 marked this pull request as ready for review April 28, 2021 07:35

pared self-requested a review April 28, 2021 10:14

pared suggested changes Apr 30, 2021

View reviewed changes

karajan1001 force-pushed the decoupling_dvcignore_fs branch from 7758d1c to 798abbf Compare May 3, 2021 08:08

karajan1001 requested review from efiop and pared May 3, 2021 09:15

efiop reviewed May 3, 2021

View reviewed changes

Comment thread dvc/fs/repo.py Outdated

efiop reviewed May 3, 2021

View reviewed changes

Comment thread dvc/fs/repo.py Outdated
