WikiLoop Galaxy

An interactive network visualization tool that maps Wikipedia articles and their interconnections using the Wikipedia API. Built with D3.js for dynamic graph rendering and real-time exploration.

🌐 Web App: https://galaxy.wikiloop.org
📁 Source Code: https://github.com/wikiloop/galaxy
📖 Wikipedia Page: [WP:WikiLoop Galaxy]

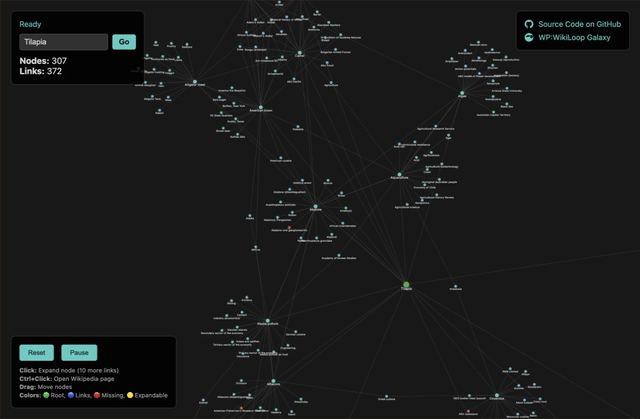

Demo

Full WikiLoop Galaxy Demo on Loom

Features

Core Functionality

• Bidirectional Link Traversal: Explores both outbound links (FROM articles) and inbound links (TO articles)
• Real-time Graph Building: Starts with a root article and progressively builds the network
• Smart Context Menu: Right-click-style menu with options to expand, collapse, open, or set as root
• Priority-Based Crawling: Prioritizes Vital articles (3000), Featured articles (2000), Good articles (1000), and articles by backlink count
• Link Validation: Checks page existence to handle broken Wikipedia links

Visual Design

• Obsidian-style Dark Theme: Clean, modern interface optimized for graph exploration
• Color-coded Nodes:
  • ⚪ White: Root article (starting point) with green border
  • 🟡 Gold: Vital articles (highest priority, larger size)
  • 🟢 Green: Featured articles (high priority)
  • 🔵 Light Blue: Good articles (medium priority)
  • 🔵 Blue/Teal: Regular Wikipedia articles (1st/2nd degree)
  • 🔴 Red: Missing/non-existent pages (red links)
  • 🟡 Yellow Border: Expandable nodes with pulsing animation
• Force-directed Layout: Natural node positioning with physics simulation
• Zoom & Pan: Navigate large graphs with mouse controls

Interaction

• Click: Show context menu with multiple options
• Context Menu Options:
  • 🔗 Open Wikipedia Page: Opens article in new tab
  • 🔄 Collapse: Removes leaf nodes (nodes with only one connection)
  • ➕ Expand: Reveals 10 more inbound + 10 outbound links
  • 🎯 Set as Root: Makes the selected node the new root of the graph
• Drag: Move nodes around the canvas
• Scroll: Zoom in/out of the graph

Technical Architecture

API Integration

• Uses Wikipedia REST API for article links and backlinks
• Fetches article categories and metadata for quality assessment
• Implements proper error handling and rate limiting
• Filters out non-article links (categories, templates, files)
• Validates page existence before adding to graph

Graph Management

• Node Deduplication: Prevents duplicate articles in the network
• Link Direction: Maintains proper directional relationships
• Expansion Tracking: Prevents re-expansion of already processed nodes
• Priority Queue: Processes high-quality articles first (Vital > Featured > Good > Backlink count)
• Context Menu: Smart menu system with disabled states for unavailable actions
• Memory Efficient: Limits link counts to prevent browser overload

Performance

• Lazy Loading: Only fetches data when needed
• Batch Processing: Processes multiple links efficiently
• Visual Feedback: Shows loading states and progress indicators
• Responsive Design: Adapts to different screen sizes

Usage

1. Start: Open index.html in a web browser
2. Explore: The graph begins with "Artificial Intelligence" as the root
3. Interact: Click any node to open the context menu with options:
   • Open Wikipedia page in new tab
   • Expand node with 10 more connected articles
   • Collapse node by removing leaf connections
   • Set node as new root for the graph
4. Navigate: Use mouse to zoom, pan, and drag nodes
5. Prioritization: High-quality articles (Vital/Featured/Good) are processed first

Configuration

Default Settings

• Root Article: "Artificial_intelligence"
• Link Limit: 10 outbound + 10 inbound per expansion
• Traversal Depth: 2 degrees from root (configurable)
• Node Limit: Unlimited (browser memory dependent)

Customization

To change the root article, modify line 188 in index.html:

this.startArticle = "Your_Article_Title";

Console Logging

The application provides detailed console output:

• 🚀 Initialization status
• 📖 Articles being processed
• 🔍 Links discovered and extracted
• ➕ Nodes being added to graph
• 🔗 Links being created
• ⚠️ Missing pages and errors
• 🖱️ User interactions

Browser Compatibility

• Modern Browsers: Chrome, Firefox, Safari, Edge
• Requirements: ES6+ support, SVG rendering
• Dependencies: D3.js v7 (loaded via CDN)

File Structure

├── index.html          # Complete single-file application
├── README.md           # This documentation
└── wiki-graph.html     # (Previous version)

Technical Details

API Endpoints Used

• Outbound Links: https://en.wikipedia.org/w/api.php?action=query&prop=links
• Inbound Links: https://en.wikipedia.org/w/api.php?action=query&list=backlinks
• Page Validation: https://en.wikipedia.org/w/api.php?action=query&titles=
• Article Categories: https://en.wikipedia.org/w/api.php?action=query&prop=categories
• Backlink Count: https://en.wikipedia.org/w/api.php?action=query&list=backlinks&bllimit=max

Data Flow

1. Initialize with root article
2. Fetch outbound + inbound links
3. Validate page existence and fetch metadata
4. Assess article quality (Vital/Featured/Good) and backlink count
5. Add valid pages as nodes with priority scoring
6. Create directional links
7. Sort processing queue by priority (highest first)
8. Update visual representation with quality-based styling
9. Enable context menu interactions for all nodes

Roadmap

1. Wikipedia User Script

Create a Wikipedia user script that hardcore Wikipedians can install directly on Wikipedia pages to instantly visualize article networks without leaving the site.

Features:

• One-click graph generation from any Wikipedia article
• Seamless integration with Wikipedia's interface
• Customizable settings for power users
• Export capabilities for research and analysis

2. Browser Extensions

Develop browser extensions for easy installation by non-technical users across all major browsers:

• Chrome Extension: Available on Chrome Web Store
• Firefox Extension: Available on Mozilla Add-ons
• Edge Extension: Available on Microsoft Edge Add-ons
• Safari Extension: Available on Mac App Store
• DuckDuckGo Extension: Privacy-focused browsing integration

Benefits:

• No technical setup required
• Automatic updates
• One-click installation
• Cross-browser compatibility

3. Performance Optimization with Caching

Implement intelligent caching system to dramatically improve performance and reduce Wikipedia API load.

Caching Strategy:

• Local storage for frequently accessed articles
• Session-based cache for current browsing session
• Intelligent cache invalidation and updates
• Offline capability for previously loaded graphs

Performance Improvements:

• Faster graph loading times
• Reduced API calls to Wikipedia
• Better user experience with instant results
• Bandwidth optimization for mobile users

Future Enhancements

• Search Functionality: Custom root article selection ✅ (Completed)
• Priority-Based Crawling: Vital/Featured/Good articles first ✅ (Completed)
• Context Menu System: Multi-option node interactions ✅ (Completed)
• Export Options: Save graph as image or data
• Filtering: Hide/show specific link types or quality levels
• Clustering: Group related articles by topic or quality
• Performance: Virtual rendering for large graphs
• Mobile: Touch-optimized interactions

License

MIT License - Feel free to use and modify for your projects.
