Make H5MD serialize with pickle by edisj · Pull Request #2894 · MDAnalysis/mdanalysis

edisj · 2020-08-10T08:28:52Z

Fixes #2890

Changes made in this Pull Request:

Added H5PYPicklable class to H5MDReader

PR Checklist

Tests?
Docs?
CHANGELOG updated?
Issue raised/referenced?

pep8speaks · 2020-08-10T08:28:57Z

Hello @edisj! Thanks for updating this PR. We checked the lines you've touched for PEP 8 issues, and found:

In the file package/MDAnalysis/coordinates/H5MD.py:

Line 572:80: E501 line too long (82 > 79 characters)
Line 814:80: E501 line too long (87 > 79 characters)

Comment last updated at 2020-08-11 22:53:49 UTC

edisj · 2020-08-10T08:39:33Z

Hi @orbeckst, hopefully this fixes the pickling issues. I followed the code @yuxuanzhuang gave in #2890 which does allow the tests to pass. I modified it a bit to work with comm arguments as well and added documentation.

It seems to work with some testing:

as in the h5py.File object seems to have all the data in it that it should, but I'm not entirely confident with how pickling works. Please leave any comments/criticisms for changes

codecov · 2020-08-10T09:30:48Z

Codecov Report

Merging #2894 into develop will increase coverage by 5.67%.
The diff coverage is 100.00%.

@@             Coverage Diff             @@
##           develop    #2894      +/-   ##
===========================================
+ Coverage    87.20%   92.87%   +5.67%
===========================================
  Files          167      187      +20
  Lines        21744    24585    +2841
  Branches      3186     3192       +6
===========================================
+ Hits         18961    22834    +3873
+ Misses        2258     1705     -553
+ Partials       525       46     -479

Impacted Files	Coverage Δ
package/MDAnalysis/coordinates/H5MD.py	`94.55% <100.00%> (+70.41%)`	⬆️
package/MDAnalysis/topology/tpr/obj.py	`96.96% <0.00%> (-3.04%)`	⬇️
package/MDAnalysis/core/topology.py	`100.00% <0.00%> (ø)`
package/MDAnalysis/analysis/polymer.py	`100.00% <0.00%> (ø)`
package/MDAnalysis/coordinates/MMTF.py	`100.00% <0.00%> (ø)`
package/MDAnalysis/coordinates/NAMDBIN.py	`100.00% <0.00%> (ø)`
core/__init__.py	`100.00% <0.00%> (ø)`
package/MDAnalysis/analysis/legacy/__init__.py	`0.00% <0.00%> (ø)`
transformations/__init__.py	`100.00% <0.00%> (ø)`
__init__.py	`92.50% <0.00%> (ø)`
... and 116 more

Continue to review full report at Codecov.

Legend - Click here to learn more
Δ = absolute <relative> (impact), ø = not affected, ? = missing data
Powered by Codecov. Last update 563995c...1966ee7. Read the comment docs.

yuxuanzhuang · 2020-08-10T09:42:21Z

The Travis error can be solved by adding mock, like in chemfiles:

try:
    import h5py
except ImportError:
    HAS_H5PY = False

    # Allow building documentation even if h5py is not installed
    import imp

    class MockH5pyFile:
        pass
    h5py = imp.new_module("h5py")
    h5py.File = MockH5pyFile

else:
    HAS_H5PY = True

yuxuanzhuang

Add the file link to the end of package/doc/sphinx/source/documentation_pages/coordinates/pickle_readers.rst

yuxuanzhuang · 2020-08-10T09:45:00Z

package/MDAnalysis/coordinates/H5MD.py

+            driver = self._driver
+            comm = self._comm
+        except AttributeError:  # is this error necessary?
+            driver = None


Will that be a problem if self._driver exists but self._comm not?

You're right I think it would have been a problem. self._driver should have been self.driver as well, since it's pulling the driver from the file object, right? The pickled file wasn't returning the right driver with self._driver, but does with self.driver

package/MDAnalysis/coordinates/H5MD.py

orbeckst · 2020-08-10T14:38:53Z

@yuxuanzhuang thank you for reviewing.

@edisj please ping me when all tests are passing and when you have addressed all of @yuxuanzhuang 's comments. I can then do a final review + approval.

orbeckst · 2020-08-10T21:22:12Z

package/MDAnalysis/coordinates/H5MD.py

+        except AttributeError:
+            driver = None
+
+        return {'name': self.filename,


I am confused: If the comm is not included in __getstate__ then how can it be used in __setstate__?

I see that you had it included in b29e675 but then removed again.

Did you test that a MPI.COMM_WORLD could be pickled on its own, i.e.,

from mpi4py import MPI import pickle comm = MPI.COMM_WORLD comm_p = pickle.loads(pickle.dumps(comm)) assert comm == comm_p

or something similar?

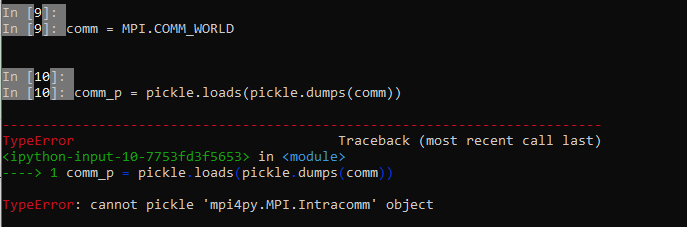

That does not seem to work

I don’t have a working mpi4py in my desktop. But it seems that it cannot be pickled natively.
This might help meanwhile https://bitbucket.org/mpi4py/mpi4py/issues/104/pickling-of-mpi-comm

orbeckst · 2020-08-10T21:22:43Z

package/MDAnalysis/coordinates/H5MD.py

+            self.__init__(name=state['name'],
+                          mode=state['mode'],
+                          driver=state['driver'],
+                          comm=state['comm'])


Where will state['comm'] come from?

I thought it was taking the state dict as argument from

mdanalysis/package/MDAnalysis/coordinates/H5MD.py

Lines 744 to 747 in c7087b8

def __getstate__(self):

state = self.__dict__.copy()

del state['_particle_group']

return state

Maybe I don't understand how pickling works but I assumed that the goal is to make each object picklable by itself, i.e., ,H5PYPicklableFile by itself can be pickled. That's the first thing to check (and add a test for!!). Once this works, H5MDReader can just treat it as one item in its own class dict, as it would a numpy array or a basic Python object. It would be bad program design if H5PYPicklableFile needed the help of H5MDReader because then you could never use it independently from H5MDReader.

I see, that makes sense, thanks for the clarification. I'm doing some testing with comm on the parallel build I have on spudda

orbeckst · 2020-08-10T22:45:56Z

@edisj please see #2897 and switch imp to using importlib.

edisj · 2020-08-11T01:10:09Z

I'm making a lot of commits at the moment because I'm pulling them to my repository on workstation for testing with parallel h5py

orbeckst · 2020-08-11T03:08:52Z

Don't worry, we can squash it all when merging.

edisj · 2020-08-11T06:13:22Z

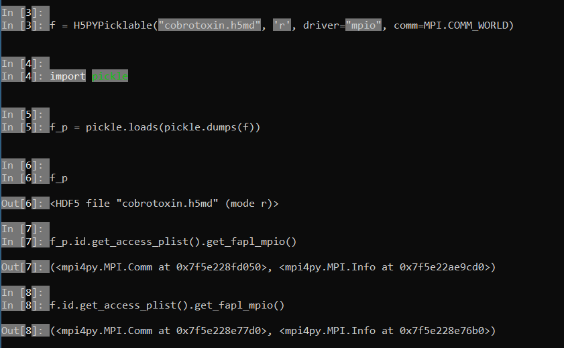

@orbeckst The latest commit successfully pickles h5py.File objects with driver="mpio" and comm=MPI.COMM_WORLD, although I'm still unsure if the correct communicator is being unpickled. I started a conversation in the h5py group and will continue to poke around online in the meantime.

yuxuanzhuang · 2020-08-11T07:41:19Z

I am trying to build a parallel h5py system. You could add a few tests (specifically for H5PYPicklable) inside testsuite/MDAnalysisTests/utils/test_pickleio.py to increase codecov. (add skipif marks for them)

yuxuanzhuang · 2020-08-11T11:43:48Z

I am having trouble to install all that stuffs to make h5py work. But I assume if it is hard to find the "right" comm, you might overwrite the __init__ function to save the input comm with something like

def __init__(self, ...comm):
   self._comm = comm
   super().__init__(...)

orbeckst · 2020-08-11T16:01:55Z

The test failures are pretty annoying for all other PRs. Can we make H5PYPicklable work for serial right now? It would be ok to raise a TypeError (or whatever else is normally raised) if a communicator is present. Add a test that checks that comm != None raises the error.

orbeckst

I suggest you make this PR work in serial so that develop builds cleanly again.

Make H5PYPicklable fail to pickle for parallel (TypeError)
Document the limitation with a note in the docs.

Add tests

test for serial H5PYPicklable (see @yuxuanzhuang 's comment)

test that parallel pickle raises the TypeError (you don't need mpi4py for the tests, just mock it

 from unittest.mock import MagicMock
 MPI_COMM_WORLD = MagicMock()
 f = H5PYPicklable(fname, driver="mpio", comm=MPI_COMM_WORLD)
 with pytest.raises(TypeError):
        _ = pickle.dumps(f)

raise a new issue for pickling parallel h5py files

orbeckst · 2020-08-11T16:06:41Z

package/MDAnalysis/coordinates/H5MD.py

+    def __getstate__(self):
+        driver = self.driver
+        if driver == 'mpio':
+            comm = self.id.get_access_plist().get_fapl_mpio()[0]


If MPI.COMM_WORLD cannot be natively pickled then I don't think that this will work.

orbeckst · 2020-08-11T16:08:43Z

package/MDAnalysis/coordinates/H5MD.py

+
+    def __getstate__(self):
+        driver = self.driver
+        if driver == 'mpio':


In order to move the PR along, make __getstate__ fail (with TypeError) when you have driver mpio and a comm object.

Add a test that specifically checks for the exception being raised. Then open a new issue to make pickling of parallel h5py files work.

The test fails with ModuleNotFoundError because h5py tries to import mpi4py when driver='mpio'. Is there any way around this?

Which test are we talking about?

something like this:

@pytest.mark.skipif(not HAS_H5PY, reason="h5py not installed") def test_H5MD_parallel_pickle(): from unittest.mock import MagicMock MPI_COMM_WORLD = MagicMock() h5md_io = H5PYPicklable(H5MD_xvf, 'r', driver="mpio", comm=MPI_COMM_WORLD) h5md_io_pickled = pickle.loads(pickle.dumps(h5md_io))

will fail before the pickling

Try mocking the mpi4py module, too. The idea is to provide a thing (the mock) that just pretends to be there but doesn't really do anything.

@richardjgowers you have been dubbed in other PR "The King of Mocks" – any suggestions?

I assume it cannot be fixed as it's checked inside h5py code. (https://github.com/h5py/h5py/blob/8cc83410995996330c85867d0e56cbe922b709f8/h5py/_hl/files.py#L43)

Maybe just excluding these lines from coverage for now?

There might be a way to trick h5py into believing that it was built with mpi support (one could patch the call to h5.get_config() https://github.com/h5py/h5py/blob/8cc83410995996330c85867d0e56cbe922b709f8/h5py/_hl/files.py#L24 or just the mpi variable) but that's not worth it for right now so I concur with @yuxuanzhuang to just skip the test (EDIT: i.e., not add a test and exclude lines from coverage). Add a comment summarizing the current issues and move forward.

@orbeckst just pushed commit with the lines excluded from coverage

package/MDAnalysis/coordinates/H5MD.py

orbeckst

Looks good to me. We will continue the question about pickling MPI_COMMUNICATOR in #2865 .

@yuxuanzhuang could you please also review this PR?

orbeckst · 2020-08-12T00:52:32Z

@yuxuanzhuang could you please review this PR within the next day? Sorry for asking for a quick turnaround but @edisj 's project is coming to an end and we would like to have it at a good stopping point, just in case he has other more urgent things to do.

You should be able to leave a approve/request changes review. I will wait with merging until I hear from you.

yuxuanzhuang

lgtm!

orbeckst · 2020-08-12T07:45:16Z

Thank you @edisj and @yuxuanzhuang !

* fix MDAnalysis#2890 * added H5PYPicklable class (works in serial but not with driver="mpio" and MPI comm) * mock h5py so that the docs build even in the absence of h5py * tests (anything related to mpi is excluded from coverage) * update CHANGELOG

added H5PYPicklable class

5bcd6c1

yuxuanzhuang reviewed Aug 10, 2020

View reviewed changes

jbarnoud mentioned this pull request Aug 10, 2020

analyze aggregate size #2822

Closed

5 tasks

edisj added 4 commits August 10, 2020 13:30

added mock h5py and changed __getstate__ attribute error

d220dc5

reverted attribute error

ddfa365

removed comm from __getstate__

b29e675

updated changelog

c7087b8

orbeckst self-assigned this Aug 10, 2020

orbeckst added the NSF REU NSF Research Experience for Undergraduates project label Aug 10, 2020

orbeckst reviewed Aug 10, 2020

View reviewed changes

orbeckst mentioned this pull request Aug 10, 2020

replace deprecated imp with importlib #2897

Closed

edisj added 3 commits August 10, 2020 17:42

testing copyreg MPI things

a40b298

moved 2 lines

94e6d63

removed comm_pickle and comm_unpickle for testing

cfcbc18

edisj added 2 commits August 10, 2020 23:02

testing MPI pickle-able

24c6090

added comma for tuple

9f28df6

orbeckst requested changes Aug 11, 2020

View reviewed changes

edisj added 5 commits August 11, 2020 10:27

removed parallel pickling and added tests

d34628d

added pragma: no cover to 'mpio' driver line with comments

b64501f

added extra pragma

3eb97ae

fixed a couple typos

fdcd0dc

pep8 changes

1966ee7

orbeckst approved these changes Aug 12, 2020

View reviewed changes

orbeckst requested a review from yuxuanzhuang August 12, 2020 00:52

yuxuanzhuang approved these changes Aug 12, 2020

View reviewed changes

orbeckst merged commit a9e749c into MDAnalysis:develop Aug 12, 2020

edisj deleted the issue-2890-h5md-pickle branch August 12, 2020 18:49

fiona-naughton added defect Component-Readers labels Sep 26, 2023
