[Issue335] description_2d propagated and set to 1 by default by Didou09 · Pull Request #336 · ToFuProject/tofu

Didou09 · 2020-01-27T14:38:27Z

Main changes:

The input keyword argument 'description_2d', used to choosed the wall geometry from an imas wall IDS, is now available from all methods of MultiIDSLoader that call to_Config() in the background. These include in particular to_Plasma2D(), to_Cam(), to_Data() and calc_signal()
When not set (description_2d=None), the variable is now automatocally set to 1 if possible (to 0 otherwise)

Example (on IRFM Intra only):

In [1]: import tofu as tf
/Home/DV226270/ToFu_All/tofu_git/tofu/tofu/imas2tofu/__init__.py:83: UserWarning:
You do not seem to be using the latest IMAS version:
'module list' vs 'module av IMAS' suggests:
	- Current version: 3.23.1-4.0.3
	- Latest version : 3.25.0-4.4.0
  warnings.warn(msg)
/Home/DV226270/ToFu_All/tofu_git/tofu/tofu/__init__.py:95: UserWarning:
The following subpackages are not available:
    - tofu.mag
  => see print(tofu.dsub[<subpackage>]) for details.
  warnings.warn(msg)

In [2]: multi = tf.imas2tofu.MultiIDSLoader(ids=['bolometer'], shot=55983, ids_base=True)
Getting ids     [occ]  tokamak  user         version  shot   run  refshot  refrun
--------------  -----  -------  -----------  -------  -----  ---  -------  ------
bolometer       [0]    west     imas_public  3        55983  0    -1       -1
pulse_schedule  [0]    "        "            "        "      "    "        "
wall            [0]    "        "            "        "      "    "        "

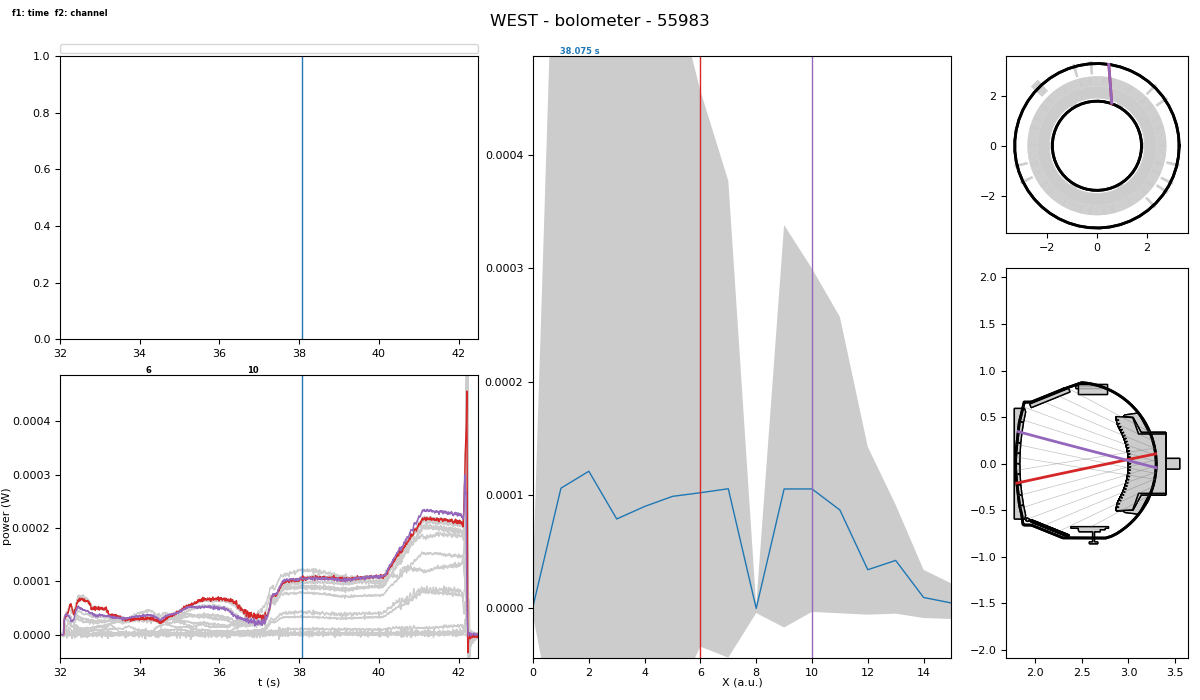

In [3]: bolo = multi.to_Data('bolometer')

In [4]: bolo = multi.to_Data('bolometer', description_2d=0)
/Home/DV226270/ToFu_All/tofu_git/tofu/tofu/imas2tofu/_core.py:2350: UserWarning:
ids wall has same number of limiter / mobile units
	- len(wall.description_2[0].limiter.unit) = 1
	- len(wall.description_2[0].mobile.unit) = 1
  => Choosing limiter by default
  warnings.warn(msg)

Issues:

Fixes, in devel, Issue #335

…_Data(), and set to 1 when possible by default

…(), to_Cam(), to_Data() and calc_signal()

pep8speaks · 2020-01-28T10:04:06Z

Hello @Didou09! Thanks for updating this PR. We checked the lines you've touched for PEP 8 issues, and found:

There are currently no PEP 8 issues detected in this Pull Request. Cheers! 🍻

Comment last updated at 2020-01-28 12:42:09 UTC

lasofivec

Awesome ! :)

lasofivec · 2020-01-28T10:31:20Z

                  description_2d=None, mobile=None, plot=True):
+        """ Export the content of wall ids as a tofu Config object
+
+        Choose the occurence (occ), and index (description_2d, cf. dd_doc) to


what is dd_doc ?

It is an IMAS-specific documentation
Users of IMAS will know it, others won't, but anyway, this sub-package imas2tofu is to be used by IMAS users only, so they will know ;-)

Basically, to get the documentation on IMAS on the ITER clusters for example, you typically type dd_doc in a terminal (with the ritgh modules pre-loaded), and a web browser opens ndirectly on an IMAS documentation page

lasofivec · 2020-01-28T10:34:49Z

+        plot_sig:   None / str
+            shortcut of the signal to be plotted, if any
+        plot_X:     None / str
+            shortcut of the abscissa against which to plot the signal, if any


what does shortcut means here ?

All data fields can be accessed by shortcuts, they are available via the method get_shortcuts() that displays them all, ordered by ids and signal.

For example:

In [1]: import tofu as tf /Home/DV226270/ToFu_All/tofu_git/tofu/tofu/imas2tofu/__init__.py:83: UserWarning: You do not seem to be using the latest IMAS version: 'module list' vs 'module av IMAS' suggests: - Current version: 3.23.1-4.0.3 - Latest version : 3.25.0-4.4.0 warnings.warn(msg) /Home/DV226270/ToFu_All/tofu_git/tofu/tofu/__init__.py:95: UserWarning: The following subpackages are not available: - tofu.mag => see print(tofu.dsub[<subpackage>]) for details. warnings.warn(msg) In [2]: multi = tf.imas2tofu.MultiIDSLoader(ids=['bolometer'], shot=55983, synthdiag=True) Getting ids [occ] tokamak user version shot run refshot refrun -------------- ----- ------- ----------- ------- ----- --- ------- ------ bolometer [0] west imas_public 3 55983 0 -1 -1 core_sources [0] " " " " " " " equilibrium [0] " " " " " " " ual_begin_arraystruct_action: %TREE-W-NNF, Node Not Found (ual_lowlevel.cpp:719) => failed ! pulse_schedule [0] " " " " " " " wall [0] " " " " " " " /Home/DV226270/ToFu_All/tofu_git/tofu/tofu/imas2tofu/_core.py:1200: UserWarning: ERROR: ual_begin_arraystruct_action failed for "grids_ggd" warnings.warn(str(err)) In [3]: multi.get_shortcuts() ids shortcut long version -------------- ------------ ------------------------------------------------------------------------- bolometer etendue channel[chan].etendue bolometer los_pt1Phi channel[chan].line_of_sight.first_point.phi bolometer los_pt1R channel[chan].line_of_sight.first_point.r bolometer los_pt1Z channel[chan].line_of_sight.first_point.z bolometer los_pt2Phi channel[chan].line_of_sight.second_point.phi bolometer los_pt2R channel[chan].line_of_sight.second_point.r bolometer los_pt2Z channel[chan].line_of_sight.second_point.z bolometer los_ptsRZPhi f( los_pt1R, los_pt1Z, los_pt1Phi, los_pt2R, los_pt2Z, los_pt2Phi ) bolometer names channel[chan].name bolometer power channel[chan].power.data bolometer prad power_radiated_total bolometer pradbulk power_radiated_inside_lcfs bolometer t channel[chan].power.time bolometer tpower time core_sources 1dbrem source[identifier.name=bremsstrahlung].profiles_1d[time].electrons.energy core_sources 1dline source[identifier.name=lineradiation].profiles_1d[time].electrons.energy core_sources 1dprad f( 1dbrem, 1dline ) core_sources 1dpsi source[identifier.name=lineradiation].profiles_1d[time].grid.psi core_sources 1drhopn f( 1dpsi ) core_sources 1drhotn source[identifier.name=lineradiation].profiles_1d[time].grid.rho_tor_norm core_sources t time equilibrium 1djT time_slice[time].profiles_1d.j_tor equilibrium 1dpe time_slice[time].profiles_1d.pressure equilibrium 1dphi time_slice[time].profiles_1d.phi equilibrium 1dpsi time_slice[time].profiles_1d.psi equilibrium 1dq time_slice[time].profiles_1d.q equilibrium 1drhopn f( 1dpsi, psiaxis, psisep ) equilibrium 1drhotn time_slice[time].profiles_1d.rho_tor_norm equilibrium 2dB f( 2dBT, 2dBR, 2dBZ ) equilibrium 2dBR time_slice[time].ggd[0].b_field_r[0].values equilibrium 2dBT time_slice[time].ggd[0].b_field_tor[0].values equilibrium 2dBZ time_slice[time].ggd[0].b_field_z[0].values equilibrium 2djT time_slice[time].ggd[0].j_tor[0].values equilibrium 2dmeshFaces grids_ggd[0].grid[0].space[0].objects_per_dimension[2].object[].nodes equilibrium 2dmeshNodes grids_ggd[0].grid[0].space[0].objects_per_dimension[0].object[].geometry equilibrium 2dmeshR time_slice[0].profiles_2d[0].r equilibrium 2dmeshZ time_slice[0].profiles_2d[0].z equilibrium 2dphi time_slice[time].ggd[0].phi[0].values equilibrium 2dpsi time_slice[time].ggd[0].psi[0].values equilibrium 2drhopn f( 2dpsi, psiaxis, psisep ) equilibrium 2drhotn f( 2dphi ) equilibrium 2dtheta f( axR, axZ, 2dmeshNodes ) equilibrium BT0 time_slice[time].global_quantities.magnetic_axis.b_field_tor equilibrium ax f( axR, axZ ) equilibrium axR time_slice[time].global_quantities.magnetic_axis.r equilibrium axZ time_slice[time].global_quantities.magnetic_axis.z equilibrium ip time_slice[time].global_quantities.ip equilibrium psiaxis time_slice[time].global_quantities.psi_axis equilibrium psisep time_slice[time].global_quantities.psi_boundary equilibrium q0 time_slice[time].global_quantities.q_axis equilibrium q95 time_slice[time].global_quantities.q_95 equilibrium qmin time_slice[time].global_quantities.q_min.value equilibrium sep f( sepR, sepZ ) equilibrium sepR time_slice[time].boundary_separatrix.outline.r equilibrium sepZ time_slice[time].boundary_separatrix.outline.z equilibrium strike0 f( strike0R, strike0Z ) equilibrium strike0R time_slice[time].boundary.strike_point[0].r equilibrium strike0Z time_slice[time].boundary.strike_point[0].z equilibrium strike1 f( strike1R, strike1Z ) equilibrium strike1R time_slice[time].boundary.strike_point[1].r equilibrium strike1Z time_slice[time].boundary.strike_point[1].z equilibrium t time equilibrium volume time_slice[time].global_quantities.volume equilibrium x0 f( x0R, x0Z ) equilibrium x0R time_slice[time].boundary.x_point[0].r equilibrium x0Z time_slice[time].boundary.x_point[0].z equilibrium x1 f( x1R, x1Z ) equilibrium x1R time_slice[time].boundary.x_point[1].r equilibrium x1Z time_slice[time].boundary.x_point[1].z pulse_schedule events f( events_names, events_times ) pulse_schedule events_names event[].identifier pulse_schedule events_times event[].time_stamp wall wall f( wallR, wallZ ) wall wallR description_2d[0].limiter.unit[0].outline.r wall wallZ description_2d[0].limiter.unit[0].outline.z

I implemented this because accessing data in an IMAS ids can be cumbersome since the path to it can be long and not always intuitive.
So each long path has a shortcut.
Most are predefined but the user can customize them if he wants to define his/her own shortcuts. Koyo did it for example in issue #218

ok, I imagined it was this but I rather keep a record of the answer. Plus I didn't know shortcuts were also for the abscissa for example

codecov-io · 2020-01-28T10:38:16Z

Codecov Report

Merging #336 into devel will decrease coverage by <.01%.
The diff coverage is 12.5%.

@@            Coverage Diff             @@
##            devel     #336      +/-   ##
==========================================
- Coverage   40.02%   40.02%   -0.01%
==========================================
  Files          79       79
  Lines       24132    24134       +2
==========================================
  Hits         9659     9659
- Misses      14473    14475       +2

Impacted Files	Coverage Δ
tofu/imas2tofu/_core.py	`0.67% <0%> (-0.01%)`	⬇️
tofu/version.py	`100% <100%> (ø)`	⬆️

Continue to review full report at Codecov.

Legend - Click here to learn more
Δ = absolute <relative> (impact), ø = not affected, ? = missing data
Powered by Codecov. Last update 822c9da...5b11c7b. Read the comment docs.

[Issue335] descriptio_2d propagated to to_Plasma2D(), to_Cam() and to…

e4c7c24

…_Data(), and set to 1 when possible by default

Didou09 added the imas interfacing - improve label Jan 27, 2020

Didou09 requested a review from lasofivec January 27, 2020 14:38

Didou09 self-assigned this Jan 27, 2020

lasofivec approved these changes Jan 27, 2020

View reviewed changes

lasofivec suggested changes Jan 27, 2020

View reviewed changes

Comment thread tofu/imas2tofu/_core.py

[Issue335] Added docstr to Multi.get_data(), to_Config(), to_Plasma2D…

375c9f3

…(), to_Cam(), to_Data() and calc_signal()

[Issue335] PEP8 compliance

038ef35

lasofivec approved these changes Jan 28, 2020

View reviewed changes

[Issue335] Typos

5b11c7b

Didou09 merged commit 0840bdc into devel Jan 28, 2020

Didou09 mentioned this pull request Jan 28, 2020

imas2tofu: propagate description2d to Data and calc_signal and choose when possible #335

Closed

Didou09 deleted the Issue335_description2d branch January 28, 2020 13:21

Didou09 mentioned this pull request Jan 30, 2020

tofu 1.4.2 preparation #339

Merged

Didou09 mentioned this pull request Mar 10, 2020

Preparing 1.4.3 #364

Merged
