Add WHCM support for all the form elements by jnurthen · Pull Request #2830 · adobe/react-spectrum

jnurthen · 2022-02-10T02:48:49Z

Closes #2529
Closes #3260

This concludes the high contrast PRs

✅ Pull Request Checklist:

Included link to corresponding React Spectrum GitHub Issue.
Added/updated unit tests and storybook for this change (for new code or code which already has tests).
Filled out test instructions.
Updated documentation (if it already exists for this component).
Looked at the Accessibility Practices for this feature - Aria Practices

📝 Test Instructions:

Turn on WHCM
Run Storybook for the following components:

Date and Time -> Calendar
Date and Time -> Date Range Picker
Checkbox
ColorSlider, ColorThumb, ColorWheel
Picker
Combobox
MenuTrigger
Radio Group
Slider
NumberField
TextField
TextArea
Switch

Screenshots

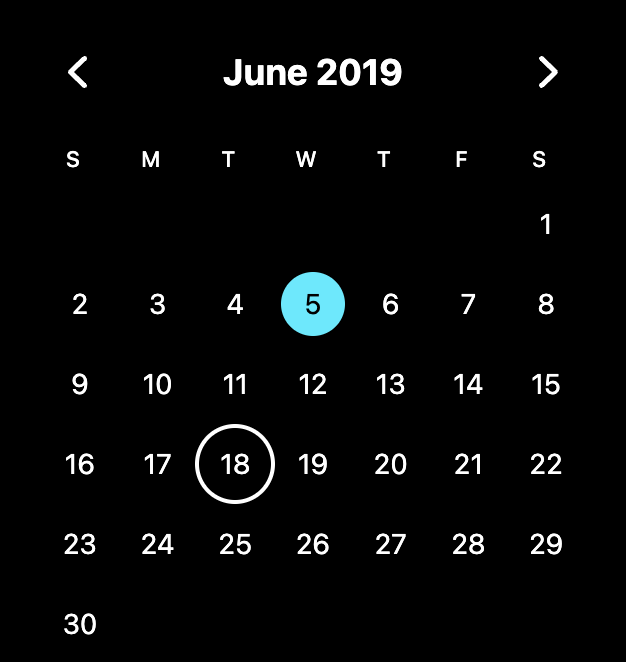

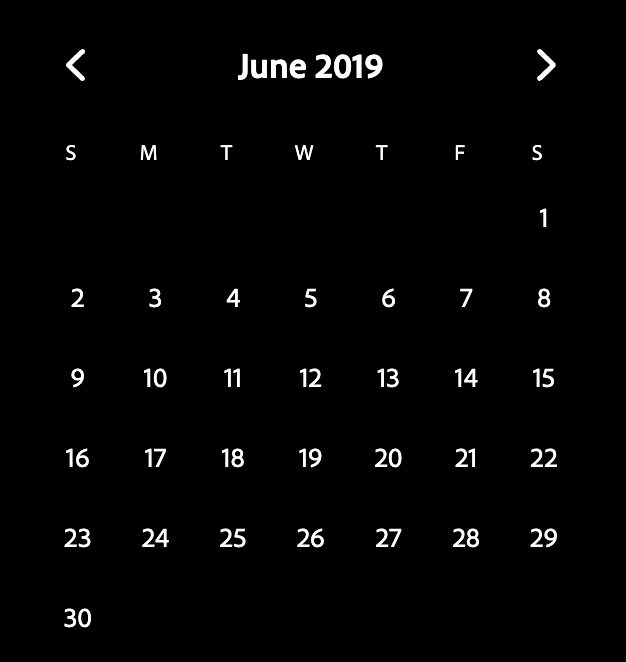

Calendar

Before

#### After

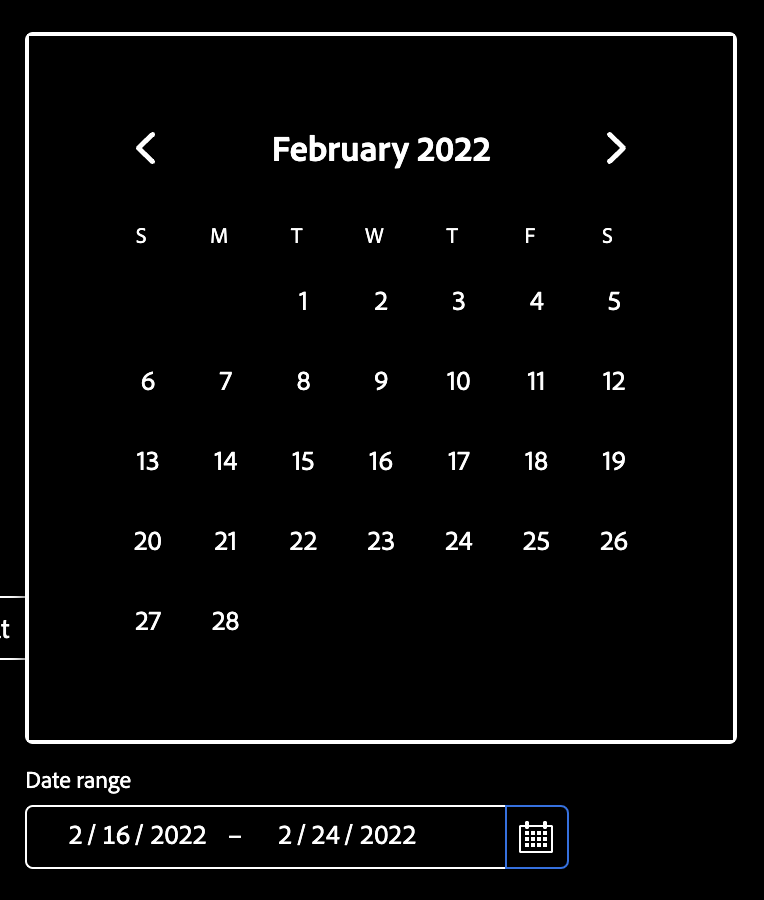

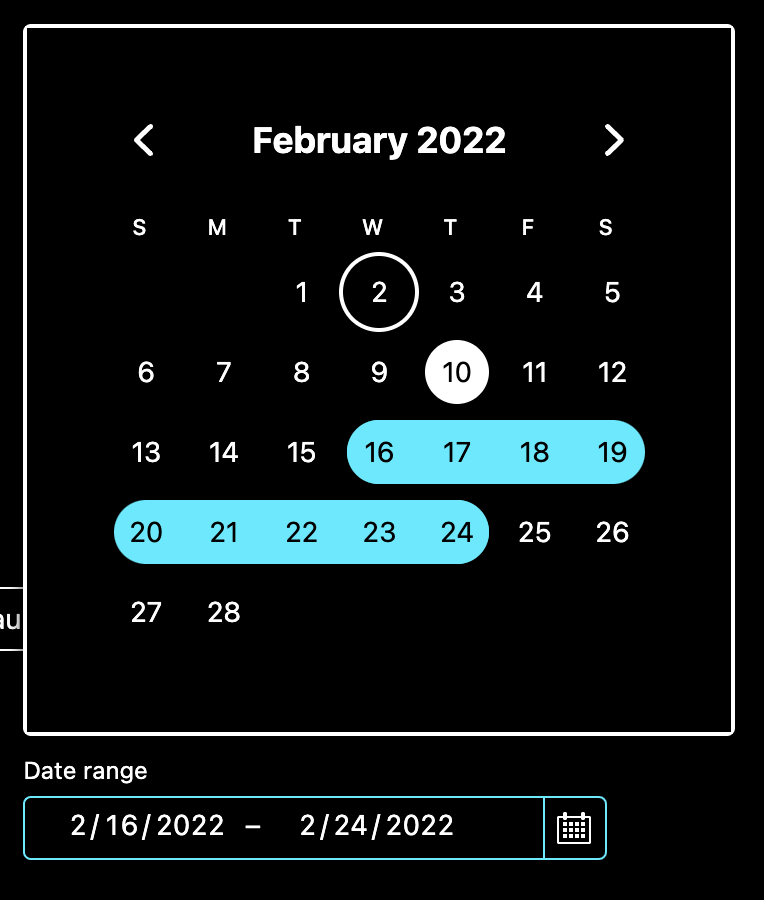

Date Range

Before

#### After

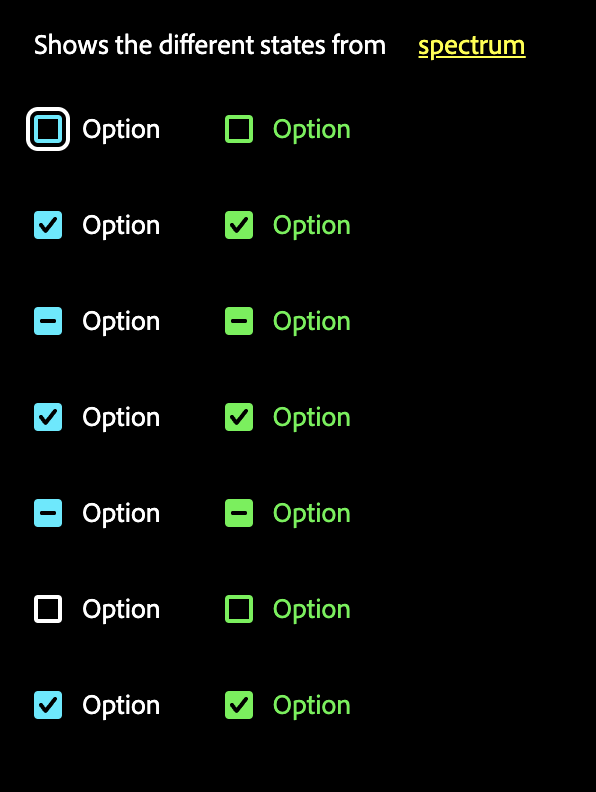

Checkbox

After (compare to XD design)

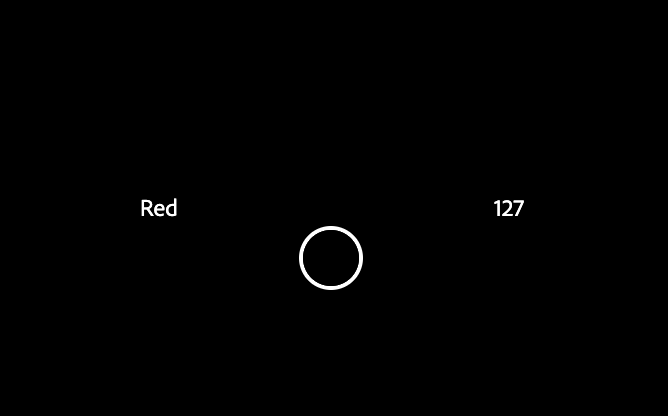

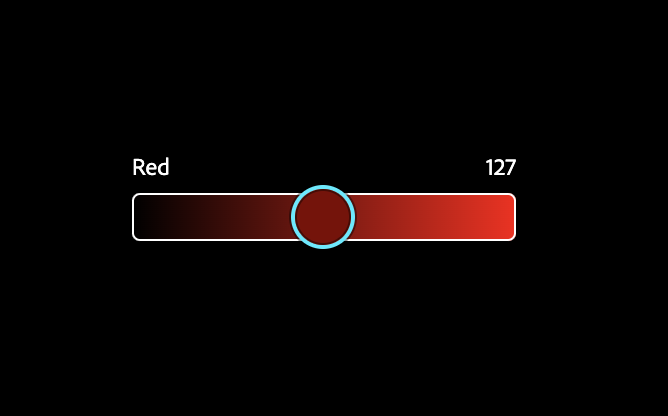

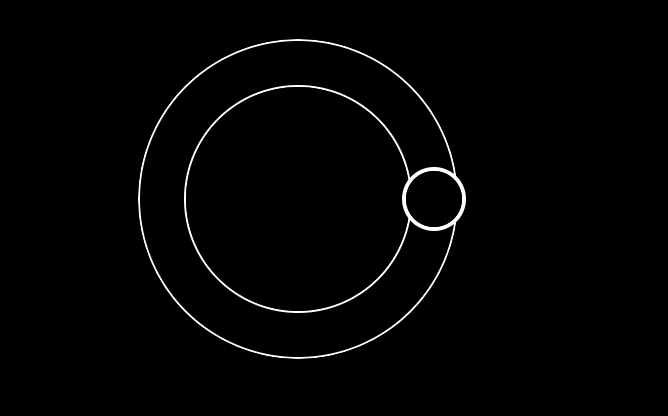

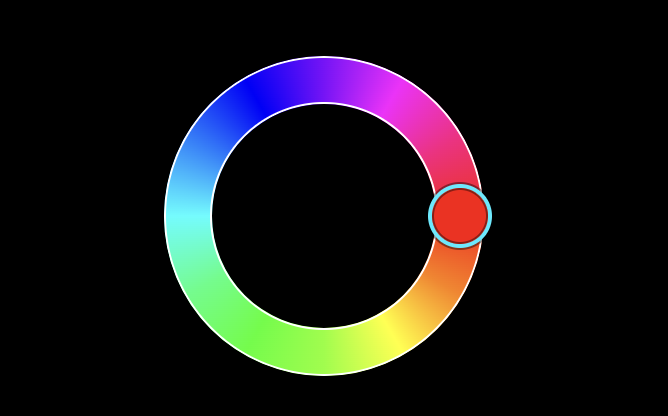

Color Components

Before

#### After

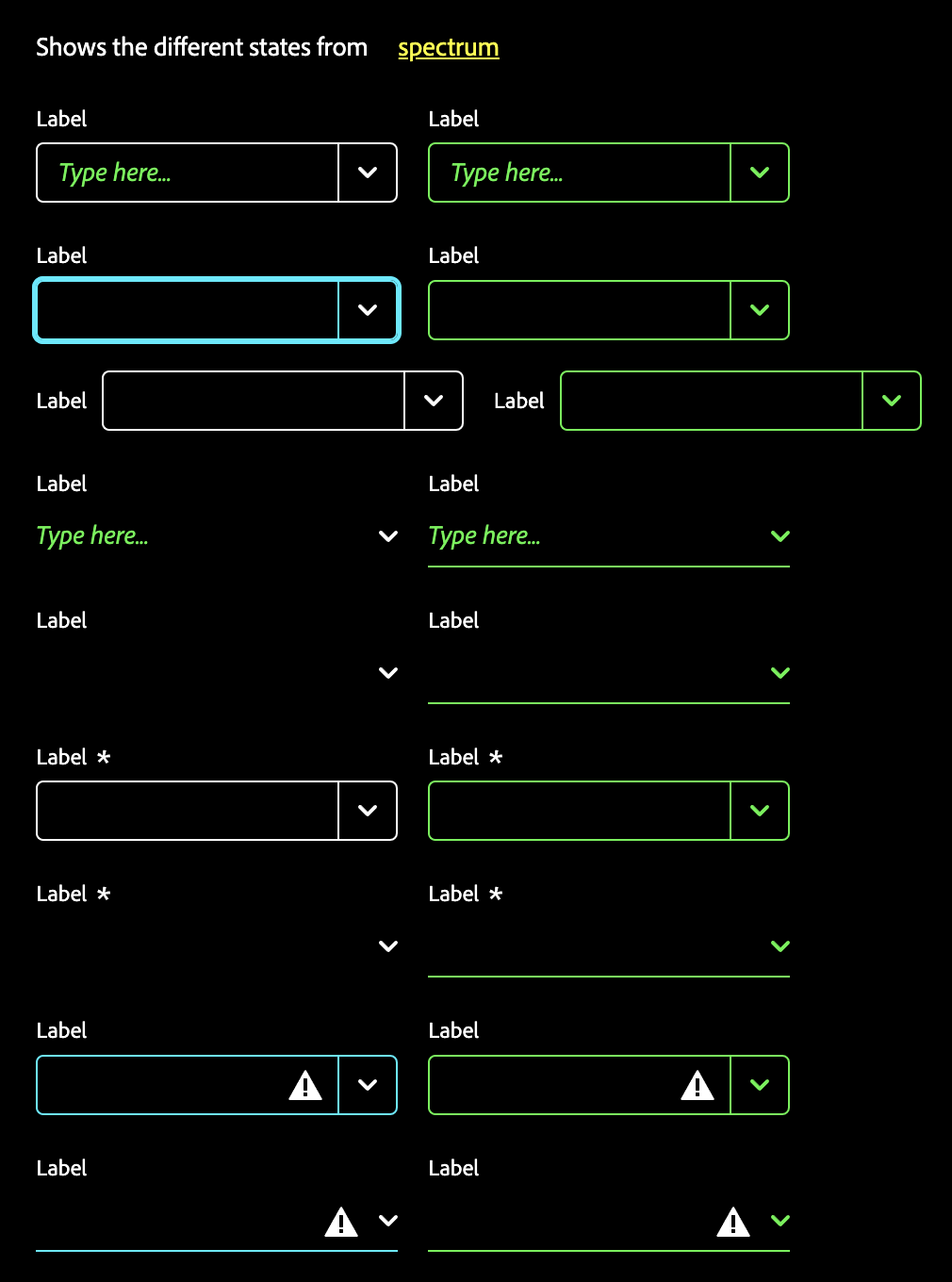

Combobox

After (compare to XD)

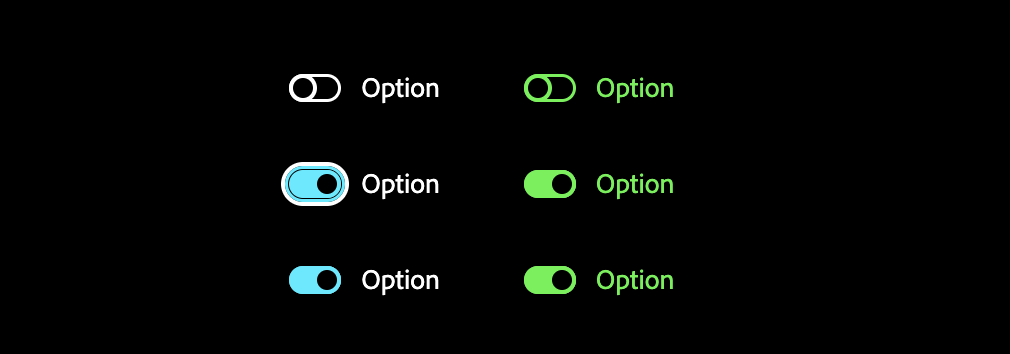

Switch

After (compare to XD)

NumberField

Before

#### After

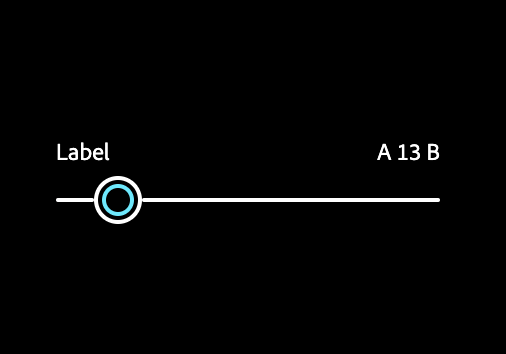

Slider

Before

After

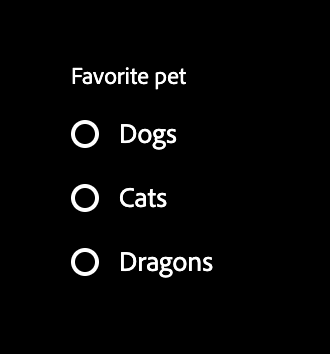

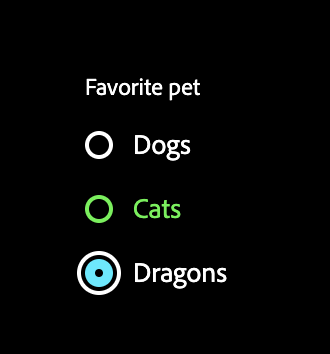

Radio Group

Before

#### After

into WHCM-inputs

devongovett · 2022-03-11T23:45:54Z

+     &.is-invalid {
+      .spectrum-Checkbox-box {
+        &:before {
+          border-color: var(--spectrum-checkbox-box-border-color);


This conflicts with var(--spectrum-checkbox-box-border-color-error) above. Is the intended border color Highlight or ButtonText?

It is intended to be ButtonText when unselected and Highlight when selected according to the XD
Checkbox (Windows high contrast mode) UI kit

devongovett · 2022-03-11T23:46:49Z

+    --spectrum-checkbox-text-color-error-down: FieldText;
+    --spectrum-checkbox-text-color-error-hover: FieldText;
+
+     &.is-invalid {


I'd prefer if we can only override variables and not re-define selectors if possible. I think most of this seems unnecessary because the vars are already overridden above?

The variables as defined assume the same border colour for :checked.
I don't think I can do this without modifying

.spectrum-Checkbox.is-invalid { /* Extra-specific selectors added here to handle checked state */ .spectrum-Checkbox-input:checked + .spectrum-Checkbox-box, .spectrum-Checkbox-box { &:before { border-color: var(--spectrum-checkbox-box-border-color-error); } }

in lines 158-165 where the same colour is used for checked and unchecked.
I could add a new variable there and split that selector. Would that be better?

@devongovett is that the direction you would like me to go?

devongovett · 2022-03-12T00:18:52Z

+    }
+
+
+  }


In Firefox, the disabled state looks wrong. It has a white background. Seems ok in edge/chrome though.

Also, the invalid/valid icons in Firefox are still red/green rather than white.

Firefox doesn't support forced-color-adjust:none at the moment. To be honest I don't think we have a hope of supporting FF in high contrast until they do unless I simplify the spectrum defined high contrast behaviour.

I'm ok with either direction but as far as I know the high contrast usage with FF is not very high.

@devongovett are we looking to support FF in WHCM?

I'm happy to follow your lead there. If it's easy to support, then great, but if it's not possible or a lot of additional work for not much benefit than it's fine with me if we don't. We should just note that so that when we test it's understood which browsers we should be testing.

majornista · 2022-06-20T14:08:13Z

GET_BUILD

LFDanLu · 2022-06-20T22:57:45Z

GET_BUILD

adobe-bot · 2022-06-20T23:08:57Z

Build successful! 🎉

LFDanLu · 2022-06-24T20:55:54Z

Are there XDs for Calendar/DateRange WHCM? I've looked on Spectrum/contributions but couldn't find any. If not thats fine, I've been trying to watch out for any style ambiguities

jnurthen · 2022-06-24T21:00:02Z

Are there XDs for Calendar/DateRange WHCM? I've looked on Spectrum/contributions but couldn't find any. If not thats fine, I've been trying to watch out for any style ambiguities

No. I don't believe there are up to date XDs for non high contrast mode for this component either.

LFDanLu · 2022-06-24T21:07:52Z

GET_BUILD

adobe-bot · 2022-06-24T21:20:47Z

Build successful! 🎉

LFDanLu · 2022-06-24T21:36:16Z

    }
  }
 }
+


Noticed the following when testing the Calendar/DateRangePicker WHCM. Lemme know if these are as expected due to color limitations or if they aren't/won't be handled in this PR:

Can't see that the user is currently focused on the datepicker button:

vs

The current date (aka the 24th) styling is overridden when the range includes it

vs

The invalid colors are inconsistent between the date range, the validation icons, and the border/focus ring of the input field. The invalid color in the calendar in particular are hard to see on the black blackground (perhaps a limitation of WHCM theming since there isn't an error color?)

vs

Working on this.

I think this is an acceptable compromise. With limited colours knowing today is optional IMO. The colour in the default scheme doesn't meet WCAG so if we insist knowing today is required then we need to fix outside high contrast mode too.

These variables were introduced after I created this PR. I'm adding these new invalid variables which will look identical to a selection. The error message is the way you tell that there is an error

LFDanLu

Some additional things from testing, I'd be happy to approve and handle these in a follow up if you'd like. Apologies for the much delayed review and thank you for working on this!

In order to reproduce the overlapping gradients for a ColorArea, the container element .spectrum-ColorArea will have a background-image or background-color over which the .spectrum-ColorArea-gradient renders.

into WHCM-inputs

LFDanLu · 2022-07-18T22:04:11Z

GET_BUILD

adobe-bot · 2022-07-18T22:18:50Z

Build successful! 🎉

LFDanLu

LGTM, tested again in Windows Chrome, thanks for the fixes!

addressed
