fix(ivy): Implement remaining methods for DebugNode

[mhevery]

PR Checklist

Please check if your PR fulfills the following requirements:

• The commit message follows our guidelines: https://github.com/angular/angular/blob/master/CONTRIBUTING.md#commit
• Tests for the changes have been added (for bug fixes / features)
• Docs have been added / updated (for bug fixes / features)

PR Type

What kind of change does this PR introduce?

• Bugfix
• Feature
• Code style update (formatting, local variables)
• Refactoring (no functional changes, no api changes)
• Build related changes
• CI related changes
• Documentation content changes
• angular.io application / infrastructure changes
• Other... Please describe:

What is the current behavior?

Issue Number: N/A

What is the new behavior?

Does this PR introduce a breaking change?

• Yes
• No

Other information

• https://angular-team.atlassian.net/browse/FW-681
• https://angular-team.atlassian.net/browse/FW-719

[mary-poppins]

You can preview bc71ec8 at https://pr27387-bc71ec8.ngbuilds.io/.

[mary-poppins]

You can preview d587162 at https://pr27387-d587162.ngbuilds.io/.

[mary-poppins]

You can preview a42c21c at https://pr27387-a42c21c.ngbuilds.io/.

[alexzuza]

In ViewEngine it is possible to workaround Host restriction by providing viewProvider on host element.
It's widely used in forms(https://www.youtube.com/watch?v=CD_t3m2WMM8&feature=youtu.be&t=2051)

See Stackblitz for example: https://stackblitz.com/edit/angular-inncsy?file=src%2Fapp%2Fapp.component.ts

It was achieved by this code

angular/packages/compiler/src/provider_analyzer.ts

Line 294 in cf0968f

this.viewContext.viewProviders.get(tokenReference(dep.token !)) != null) {

and we also didn't stop traversing the node injector in resolution algorithm since host restriction was on a parser side

angular/packages/core/src/view/provider.ts

Line 359 in 183757d

while (searchView) {

In current implementation of NodeInjector it seems won't work since we leave traversing as soon as we meet host decorator in https://github.com/angular/angular/blob/a42c21c666914df419fb92d77e434ed8ce5656c0/packages/core/src/render3/di.ts#L547

Ivy example can be found here https://alexzuza.github.io/ivy-jit-preview/#hVNNb9swDD1Pv4LoxTHgLPc0K9IvbDusK9BjEaCqzaRCLUugZbdB4J_VH7F_NUqOXacx2ksiUXyPj4.00taQgx1cGj4VWLgErhRh6lSNCfwubMWRf29a0jPH3RZkCf0lgZvNH5NVOade1wy.1so5pAT.Vi4gf5mSf..elb3DfA0NrMloiJay2FS5pFlqCKNToToZNpdubUhfkHkpka62hdQqPcZ1edPHNnGatZlDrj1HK_BrCoaKZW_DZCcASszZCUNziPR2Kq2NEo461B6Lc3jgG8AiUzVsyFT2LNy_LdInlWdni1n73ybNOMsfH0QTC3wNGtNcliWcW9uXhV0jWEY_go8y7kOdVXRE8tPHe9iXNKkpHJn8RmocIbt8fx1QMgXDSkeVZ5ks_WwnMSy76fLZSuIm5h_UxDyMRjSf2RucGndX.R2EgWBwW4s_Thy.upPgqIfVCl9uydQqQyrncB.whzI4tDpu1Rce2C.Czm6tg8x2oTzpwUatfNkMmYakU2xMV3U4z2RERxsb83j_ciDJq_bxR2Mcey8tlxlWOG6JX_c777dg_IuaxN97wn2rPSw.Ff8B

@mhevery @pkozlowski-opensource @kara @JoostK
Is it by design to change this behavior?

[mhevery]

See Stackblitz for example: https://stackblitz.com/edit/angular-inncsy?file=src%2Fapp%2Fapp.component.ts

@alexzuza Thanks for the stackblitz, but when I click on it I have no idea what to do or where to look. Please try to imagine it from my point of view. Instruction which would take me through such links would save me tons of time, instead of reverse engineering it.

Looking at your example I think it should still work with this change. I don't see a breaking change. Also it is not clear from your example which GroupDirective are you expecting? One which is directive or the one declared in viewProviders?

Ivy example can be found here https://alexzuza.github.io/ivy-jit-preview/#hVNNb9swDD1Pv4LoxTHgLPc0K9IvbDusK9BjEaCqzaRCLUugZbdB4J_VH7F_NUqOXacx2ksiUXyPj4.00taQgx1cGj4VWLgErhRh6lSNCfwubMWRf29a0jPH3RZkCf0lgZvNH5NVOade1wy.1so5pAT.Vi4gf5mSf..elb3DfA0NrMloiJay2FS5pFlqCKNToToZNpdubUhfkHkpka62hdQqPcZ1edPHNnGatZlDrj1HK_BrCoaKZW_DZCcASszZCUNziPR2Kq2NEo461B6Lc3jgG8AiUzVsyFT2LNy_LdInlWdni1n73ybNOMsfH0QTC3wNGtNcliWcW9uXhV0jWEY_go8y7kOdVXRE8tPHe9iXNKkpHJn8RmocIbt8fx1QMgXDSkeVZ5ks_WwnMSy76fLZSuIm5h_UxDyMRjSf2RucGndX.R2EgWBwW4s_Thy.upPgqIfVCl9uydQqQyrncB.whzI4tDpu1Rce2C.Czm6tg8x2oTzpwUatfNkMmYakU2xMV3U4z2RERxsb83j_ciDJq_bxR2Mcey8tlxlWOG6JX_c777dg_IuaxN97wn2rPSw.Ff8B

WOW that looks amazing. Except I don't know what it is trying to tell me. Some narrative would be great. Without an explanation of what I am looking at it is just a pretty picture.

[alexzuza]

Looking at your example I think it should still work with this change. I don't see a breaking change. Also it is not clear from your example which GroupDirective are you expecting? One which is directive or the one declared in viewProviders?

@mhevery
Sorry for unclear demonstration.

---

ViewEngine

I changed the demo. https://stackblitz.com/edit/angular-riss8k?file=src/app/app.component.ts

I'm expecting GroupDirective (which is on <div group>) to be injected in ControlNameDirective.

1. If you'll open the demo you will see the error

Template parse errors:
No provider for ControlContainer ("
[ERROR ->]
"): ng:///AppModule/ChildComponent.html@1:4

2. Once you uncomment the line 38

// { provide: ControlContainer, useExisting: GroupDirective }

the error goes away.

That's the case how we can workaround nested forms. (It's shown on @kara's presentation https://www.youtube.com/watch?v=CD_t3m2WMM8&feature=youtu.be&t=2051)

---

Ivy

Now, if you'll open the following ivy demo with the same workaround
https://alexzuza.github.io/ivy-jit-preview/#tVPLbtswEDyXX7HIRRIg23f5ATeO0RRo0gLuLTAQRqIdIpLIrijHhqHP6kf0r7qkLFWOjOTUi0Qud2ZnOUuZaYUGjrBQtMpFbkK4kShiI3cihK.5Liny53fG8YXi5gC8gHYTwv32TiVlSqnLHYGXmTRGYAjfS.OQt6qg7.pF6pVIN1DBBlUG3pzn2zLlOIoVCm_MZCNDp9xsFGbXqF4LgTeHnGcy7uOavMFTnThI6swu14mjFvgxBUHZvL0G_8gACpHSTSiMwMsOA661F1LUiMxiRQSPtAOYJHIHW1Slnrn9p0n8LNNkNhnV_zppRFl2.ciqgIm90xinvCjgs9ZtWThWjLE6vlC5QZXaH5e5QHc2b915q_DBSVg7iRrVTiYCiwgeXPljE4p6tCGUhVjuZWFkvo3gi2Vpi0BF8HVP8pskJ_odZXFd8p5nYu31yBb_TjuUREGwwmBpWfy5nSQ_gHkzS7TWHOnK.h0F1G7FqvfsdM5cdlPamYeOZDAHLaZXRuzNlXPQwnZSvP74z7e8sCI7o8FcT82Tcy3Vw24FnE372kpMBNEgN5KusVHYnbXQRc6V1LFLjpxOziRZ1Tb.pJQhp7imMt0K_Zbo9PQe7cxcfu1.MGwJT622sGAYcxM_.75Asnk6c3OSqLjMqNzwVynwsDq57DdvNhjKnBy4_Xn3DaZAwDHJGrO_
(on demo I use almost last code from angular master branch)

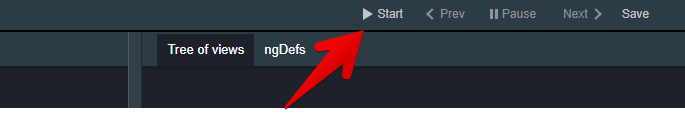

and click on Start button

You will get the error below

Error: NodeInjector: NOT_FOUND [ControlContainer]

[JoostK]

@alexzuza that looks like a bug in ViewEngine. ViewEngine only performs @Host checking during template compiles, but I'm not sure it takes directives into account. In Ivy, the @Host is checked at runtime in the node injector itself during resolving.

In your example, the ControlNameDirective is applied to the <input controlName type="text"> element. That particular element is the directive's host, not the component itself. So, the viewProvider of the container is not actually in scope, hence Ivy throws.

I discovered one more scenario where ViewEngine is able to resolve an @Host decorated param where Ivy is not, namely when dynamically creating a component. My understanding has always been that the element from which the component is created dynamically acts as the host, but Ivy has proven that not to be true. And that makes sense, because even for dynamically created components you'll get an actual host element according to the created component's selector (or ng-component if it has no selector).

In ViewEngine, the @Host decorator is verified in the parent template where the host element originates from. For dynamically created components no such static host element exists so ViewEngine's template parser does not enforce in any way the @Host decorator. ViewEngine would happily traverse the full node injector tree to resolve an @Host token, which is not desirable.

So, in conclusion: yes, you may find that Ivy is unable to resolve @Host annotated providers where ViewEngine was able to, but that actually boils down to a limitation in ViewEngine's checks.

[mhevery]

@alexzuza Let me get your test case into a spec file and see if that works as expected. I will do that in a separate PR as this one is getting large and I want to land it.

[alexzuza]

@JoostK Thank you so much for taking the time sharing your thoughs on this. The Host decorator always confuses me in such scenarios.

@mhevery Thank you for looking at this.

[mhevery]

@JoostK thanks for your comment. I still don't know what the correct behavior is.

In your example, the ControlNameDirective is applied to the <input controlName type="text"> element. That particular element is the directive's host, not the component itself. So, the viewProvider of the container is not actually in scope, hence Ivy throws.

This makes a lot of sense to me, so I would agree with you that this is just a bug in ViewEngine and we should not be replicating the bug in Ivy.

So, in conclusion: yes, you may find that Ivy is unable to resolve @Host annotated providers where ViewEngine was able to, but that actually boils down to a limitation in ViewEngine's checks.

So it sounds to me as if Ivy is working as intended. and we should close #27444

/cc @marclaval

[mary-poppins]

You can preview 50e877b at https://pr27387-50e877b.ngbuilds.io/.

[pkozlowski-opensource]

Thnx @mhevery for addressing my comments, it LGTM now.

[mary-poppins]

You can preview 301e775 at https://pr27387-301e775.ngbuilds.io/.

[kara]

LGTM, aside from symbol test failures

[mary-poppins]

You can preview b7dbd02 at https://pr27387-b7dbd02.ngbuilds.io/.

[mhevery]

http://test/OCL:223876685:BASE:223878820:1543881239357:3860308c

[mary-poppins]

You can preview 959628f at https://pr27387-959628f.ngbuilds.io/.

[mary-poppins]

You can preview 5deae24 at https://pr27387-5deae24.ngbuilds.io/.

[mary-poppins]

You can preview cbd5d0e at https://pr27387-cbd5d0e.ngbuilds.io/.
