METRON-1224: Add time range selection to search control

[iraghumitra]

Contributor Comments

This PR adds a time-range selector for search bar in alerts-ui. The time-range selectors have the following features

• The time range selector is present next to the search box in the UI
• The default value for time-range selector is epoc start to the year 2100

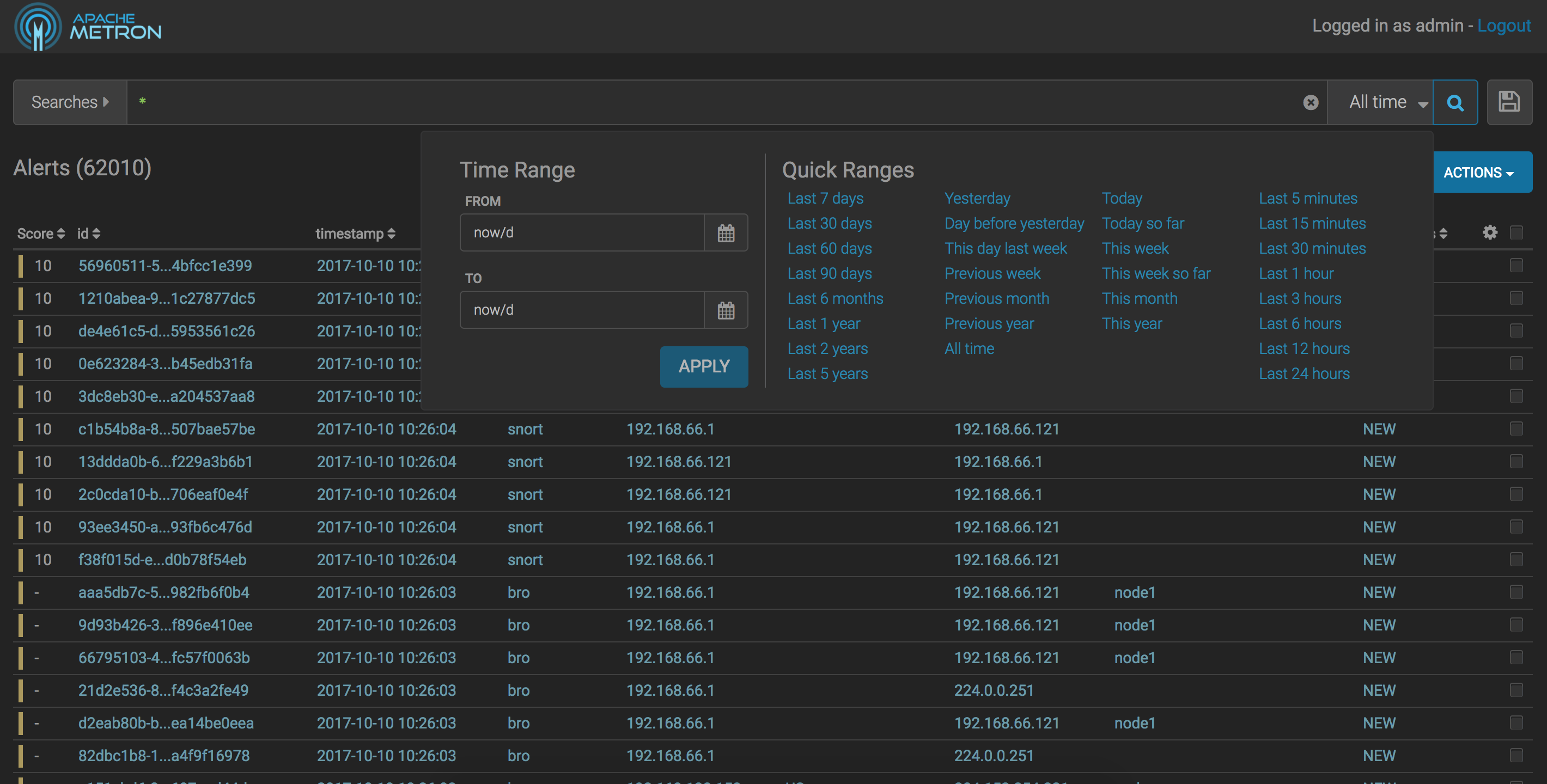

• Selecting the time-range button shows the options to select a 'Time Range' or select 'Quick Presets'
  • Quick Presets allows you select fixed presets

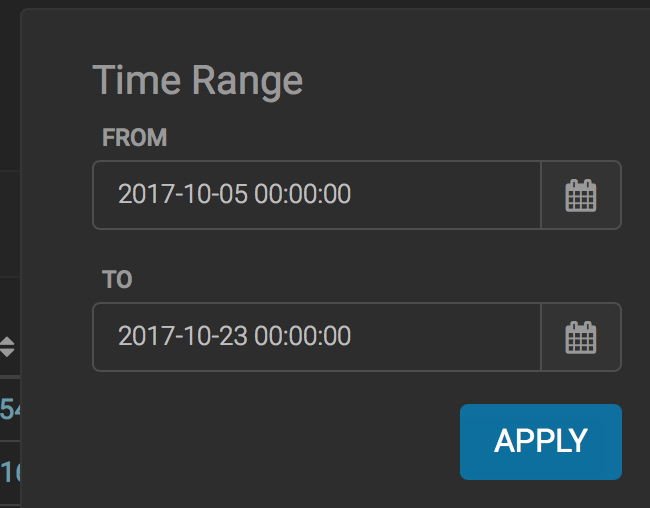

  • Time Range option shows a date time picker where users can select date and time to query for alerts
• Selecting a preset or selecting the 'APPLY' button on Time Range would hide the pane and trigger search

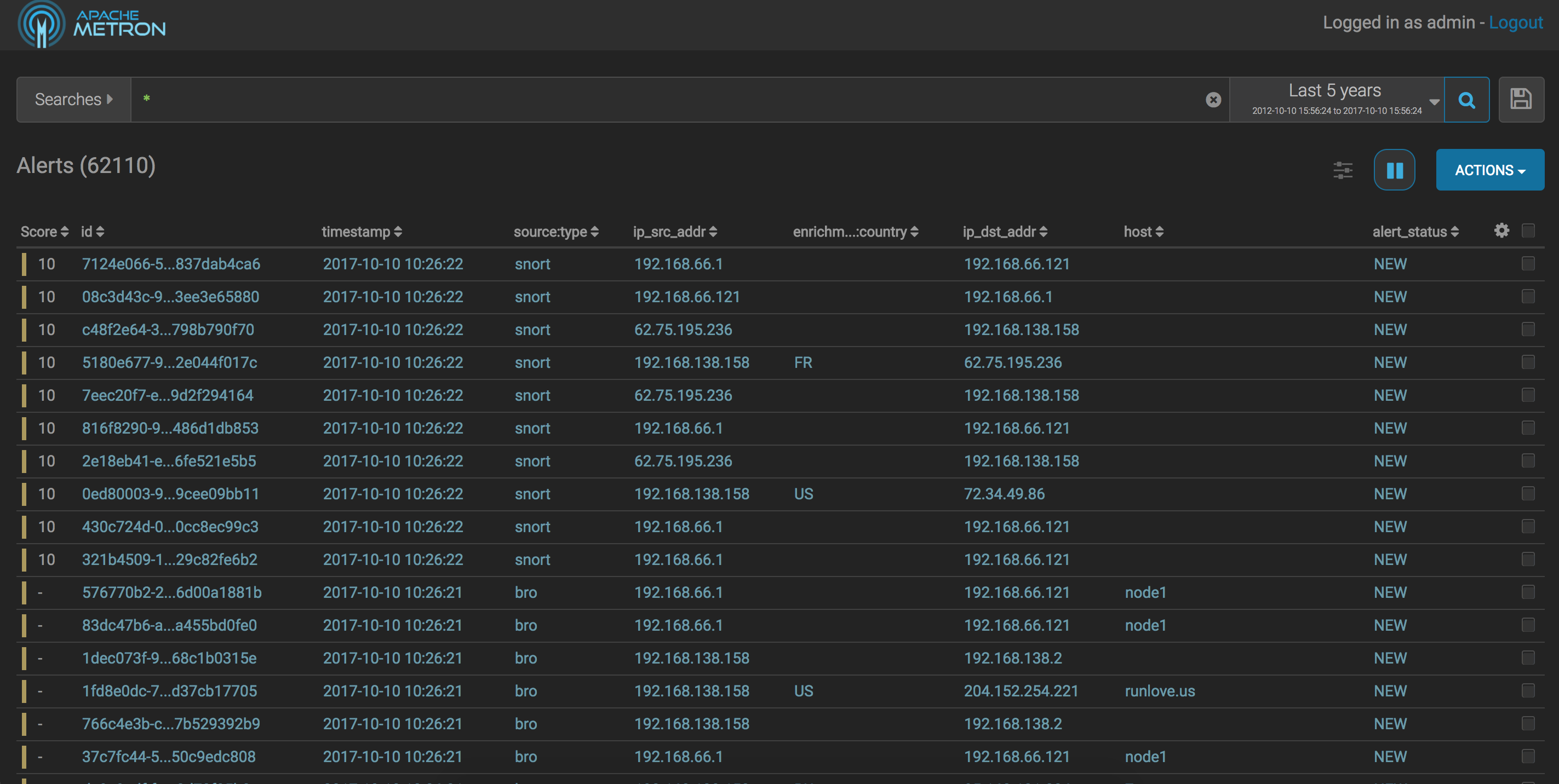

• The Date Time Button next to search button shows the selected time range and the time range that is used for the query
• If user click's on timestamp on the table or enter a timestamp in the search query the Time Range selector is disabled and the selected value is not used in search

Testing

• Launch the UI on full-dev or any other platform, all the above functionality can be tested on it
• E2E tests are available for testing the UI

Pull Request Checklist

Thank you for submitting a contribution to Apache Metron.
Please refer to our Development Guidelines for the complete guide to follow for contributions.
Please refer also to our Build Verification Guidelines for complete smoke testing guides.

In order to streamline the review of the contribution we ask you follow these guidelines and ask you to double check the following:

For all changes:

• Is there a JIRA ticket associated with this PR? If not one needs to be created at Metron Jira.
• Does your PR title start with METRON-XXXX where XXXX is the JIRA number you are trying to resolve? Pay particular attention to the hyphen "-" character.
• Has your PR been rebased against the latest commit within the target branch (typically master)?

For code changes:

• Have you included steps to reproduce the behavior or problem that is being changed or addressed?

• Have you included steps or a guide to how the change may be verified and tested manually?

• Have you ensured that the full suite of tests and checks have been executed in the root metron folder via:

  mvn -q clean integration-test install && build_utils/verify_licenses.sh


• Have you written or updated unit tests and or integration tests to verify your changes?

• If adding new dependencies to the code, are these dependencies licensed in a way that is compatible for inclusion under ASF 2.0?

• Have you verified the basic functionality of the build by building and running locally with Vagrant full-dev environment or the equivalent?

For documentation related changes:

• Have you ensured that format looks appropriate for the output in which it is rendered by building and verifying the site-book? If not then run the following commands and the verify changes via site-book/target/site/index.html:

  cd site-book
  mvn site


Note:

Please ensure that once the PR is submitted, you check travis-ci for build issues and submit an update to your PR as soon as possible.
It is also recommended that travis-ci is set up for your personal repository such that your branches are built there before submitting a pull request.

[ottobackwards]

One thing that would be cool would be if when I clicked on a timestamp in the table, i was able to select from quick ranges related to that timestamp. So 30 minutes either side of Selected, 1 hr leading up to selected, etc etc

[iraghumitra]

@ottobackwards that's a good suggestion can you create a ticket with some more details about new quick filters and any design that you have in mind. I would be happy to pick it up as a follow-on

[james-sirota]

@ottobackwards @iraghumitra i already filed a feature request on that: https://issues.apache.org/jira/browse/METRON-1248

[james-sirota]

I tested the PR. The only issue I see is that when I paste the timestamp or manually type it into the boxes it overwrites it with the calendar entries. So essentially the only way to get the timestamp in is to enter it through the calendar selection. Other than that it works great. I tested the positive case and the negative case. The search functionality works. I am a conditional +1 on this, because I do want to be able to enter the timestamps manually (not through the calendar picker). If you can fix that I think this PR is good to go

[james-sirota]

On my objection about not being able to paste a timestamp, I filed a follow-on Jira so that this PR can go in

https://issues.apache.org/jira/browse/METRON-1253

[merrimanr]

I tested this as well. First a couple things I'm curious about:

• when I open the date/time range picker why does it say "now/d"? I would expect just "now" or "Now"
• when I first navigate to the Alerts UI or select "All time" why do I see a timestamp clause in the query? Why not just leave it out?

I also found some issues. The first is related to time-range selections that include 'Now' as part of the range (Last 7 days, Last 5 minutes, Today so far, etc). This should be a sliding window so I would expect the search query to be different every time the results are refreshed. For example when I select "Last 5 minutes" this is the query that is immediately sent (only query field is shown for simplicity):

{
  "query": "timestamp:(>=1508426193000 AND  <=1508426493000)"
}

After several cycles the query does not change although "Last 5 minutes" is a different time window now:

{
  "query": "timestamp:(>=1508426193000 AND  <=1508426493000)"
}

I would also expect the time range to change in the time range selector dropdown ("2017-10-19 10:16:33 to Now" for example) as well.

I also found the time range selector value isn't populated correctly when loading a saved or recent search. For example when I select a recent or saved search the time range clause is included in the search bar and the searches now return a 500 error:

"query": "timestamp:\\(\\>\\=0 AND :\\ \\<\\=4102444800000\\) AND source\\:type:bro"

Based on how it works normally I would expect there to be no time range clause in the search bar and the time range dropdown to be populated correctly instead.

A couple other minor issues:

• if I select a cell in the table to apply a filter, then remove the filter by hovering over it in the search bar and clicking 'x', the time range dropdown is disabled.
• when I select a Quick Range filter or open the drop down after a , the Time Range inputs are not updated and still say "now/d"
• when I click the 'X' or clear button in the search bar, I would expect the time range selector to be reset to "All time"
• when I open the drop down and change the "FROM" time range, I would expect the "TO" input to still say "now" (it's automatically set to end of the day picked in "FROM")
• when I open the drop down and change either "FROM", "TO" or both, I would expect those inputs to reset if I closed the dropdown without hitting "Apply" (they are still populated when I open the dropdown again)

As far as testing is concerned, this is my understanding of the tests included in this PR:

• verify all the links and time/date inputs are present in the time range selector
• verify the drop down label changes to the correct value when a Quick Range is selected (time range below the label is not tested)
• verify the result count in the table changes when a Time Range is entered

This is a good start but I think we need more to cover the issues I found. I would suggest adding tests to:

• ensure saved/recent searches includes and functions properly when a Time Range/Quick Range is selected
• test all the Quick Range filters to ensure they produce the correct time range (I realize this could be tedious to test using search results so I would compromise and just test that the correct range is populated in the drop down and time range inputs)
• add validations for the time range selector when filters are added/removed in the search bar
• expand tests on setting "FROM" and "TO" inputs to cover the issues noted above

[cestella]

I definitely like the testing section @merrimanr I'd like to see the test in existence in the PR split into the test cases that you suggest. Testing those time range quicklinks turn into sensible timestamp pairs shouldn't even really require an end-to-end test, just a quick set of unit-style tests of the javascript.

[iraghumitra]

@merrimanr plz find my replies

• when I open the date/time range picker why does it say "now/d"? I would expect just "now" or "Now" - Changed to now
• when I first navigate to the Alerts UI or select "All time" why do I see a timestamp clause in the query? Why not just leave it out? - Fixed
• The first is related to time-range selections that include 'Now' as part of the range (Last 7 days, Last 5 minutes, Today so far, etc). This should be a sliding window so I would expect the search query to be different every time the results are refreshed. - Fixed
• I also found the time range selector value isn't populated correctly when loading a saved or recent search. -Fixed
• if I select a cell in the table to apply a filter, then remove the filter by hovering over it in the search bar and clicking 'x', the time range dropdown is disabled. -Fixed
• when I select a Quick Range filter or open the drop-down after a, the Time Range inputs are not updated and still say "now/d" - I felt 'Quick Range' and 'Time Range' should be mutually exclusive. If it is confusing I can fix it.
• when I click the 'X' or clear button in the search bar, I would expect the time range selector to be reset to "All time" - Fixed
• when I open the drop down and change the "FROM" time range, I would expect the "TO" input to still say "now" (it's automatically set to end of the day picked in "FROM") - This is intentional just to ensure that To date is not before From date
• when I open the drop down and change either "FROM", "TO" or both, I would expect those inputs to reset if I closed the dropdown without hitting "Apply" (they are still populated when I open the dropdown again) - If it is not really annoying I would leave this to default behaviour. There are both advantages/disadvantages of clearing the fields and retaining the value

[merrimanr]

Just tried this again and I could not get it to work. I noticed master has not been merged in recently so that could be the cause. Here are the issues I see:

• anytime I select a Time Range or Quick Range, this query is sent and no results are returned:

{
  "query": ""
}

• when I select a Time Range or Quick Range, a query is sent during the next refresh cycle when I would expect it to be sent immediately
• when I change the "FROM" field the "TO" field is automatically set to the end of the day but I don't see a way to change it back to "now"

I suspect something is off so I will pause on reviewing until a search with a time range is working again.

[iraghumitra]

@merrimanr can you clear browser cache and try? There is a change in save query model my bad I missed mentioning it.

[james-sirota]

A few things didn't work for me. First, when I select a time range of (t-x minutes) the start and end time does not fill in per screen shot below.

The time box was initially populated with the word "now", which did not allow me to save. I had to manually enter valid timestamps in order for this to work:

When I click to save a search I get the following exception:

TypeError: path must be absolute or specify root to res.sendFile
at ServerResponse.sendFile (/usr/metron/0.4.1/web/expressjs/node_modules/express/lib/response.js:410:11)
at /usr/metron/0.4.1/web/expressjs/alerts-server.js:71:7
at Layer.handle [as handle_request] (/usr/metron/0.4.1/web/expressjs/node_modules/express/lib/router/layer.js:95:5)
at next (/usr/metron/0.4.1/web/expressjs/node_modules/express/lib/router/route.js:137:13)
at Route.dispatch (/usr/metron/0.4.1/web/expressjs/node_modules/express/lib/router/route.js:112:3)
at Layer.handle [as handle_request] (/usr/metron/0.4.1/web/expressjs/node_modules/express/lib/router/layer.js:95:5)
at /usr/metron/0.4.1/web/expressjs/node_modules/express/lib/router/index.js:281:22
at param (/usr/metron/0.4.1/web/expressjs/node_modules/express/lib/router/index.js:354:14)
at param (/usr/metron/0.4.1/web/expressjs/node_modules/express/lib/router/index.js:365:14)
at Function.process_params (/usr/metron/0.4.1/web/expressjs/node_modules/express/lib/router/index.js:410:3)

[iraghumitra]

@merrimanr @james-sirota There was a bug in handling the recent searches that were in old format can you check it now. Sorry for the trouble

[james-sirota]

@iraghumitra looks like everything has been addressed. I am +1 on my side, but lets have @merrimanr chime in

[merrimanr]

This issue is still not fixed:

• The first is related to time-range selections that include 'Now' as part of the range (Last 7 days, Last 5 minutes, Today so far, etc). This should be a sliding window so I would expect the search query to be different every time the results are refreshed. - Fixed

I submitted a PR against this PR that should address it (also has the latest version of master merged in). Let me know if you think this is the right way to fix it. Seems kind of strange to import a class (QueryBuilder) in alerts-list into a service but I'll let you decide if that is ideal.

Saved search is working now and everything else seems to function correctly. I did notice a regression where if I rename a column, type a query with the friendly name in the query box (ie. sourceType:snort) results are no longer returned. Not sure if that was introduced in this PR or not because I don't think we are testing for it.

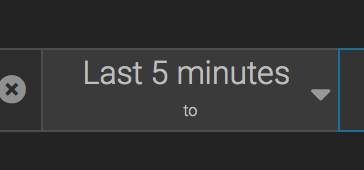

I am still not a fan of how the Time Range selection works. The "now" designation is essentially meaningless because you can't save a range with "now" in either FROM or TO. I still agree with all my previous complaints about this too. If the community feels it is working correctly then I would not hold up this PR over it.

The e2e tests are still insufficient and failing. I gave some recommendations here for your reference.

[iraghumitra]

@merrimanr I have added e2e tests as suggested and merged your PR too. Plz, let me know if I missed anything. I had to omit assertions for a couple of quick ranges as they can cause trouble when we have leap years and 29 day months. I hope it's not an issue.

[merrimanr]

I think the test coverage looks pretty good. I'm +1 conditional on the e2e tests passing.

[james-sirota]

login to application
✓ should display error message for invalid credentials
✓ should login for valid credentials
✓ should logout

metron-alerts App
✓ should have all the UI elements
✓ should have all pagination controls and they should be working
✓ should have all settings controls and they should be working
✓ play pause should start polling and stop polling
✓ should select columns from table configuration
✓ sould have all time-range controls
✗ sould have all time-range included while searching
- Expected 'Alerts (0)' to equal 'Alerts (5)'.

metron-alerts configure table
✓ should select columns from table configuration

metron-alerts Search
✓ should display all the default values for saved searches
✓ should have all save search controls and they save search should be working
✓ should populate search items when selected on table
✓ should delete search items from search box
✓ should delete first search items from search box having multiple search fields
✓ manually entering search queries to search box and pressing enter key should search

metron-alerts tree view
✓ should have all group by elements
✓ drag and drop should change group order
✓ should have group details for single group by
✓ should have group details for multiple group by
✓ should have sort working for group details for multiple sub groups
✓ should have search working for group details for multiple sub groups

metron-alerts facets
✓ should display facets data
✓ should expand all facets
✓ should have all facet values
✓ should collapse all facets

metron-alerts alert status
✓ should change alert status for multiple alerts to OPEN
✓ should change alert status for multiple alerts to DISMISS
✓ should change alert status for multiple alerts to ESCALATE
✓ should change alert status for multiple alerts to RESOLVE
✗ should change alert status for multiple alerts to OPEN in tree view
- Failed: element not visible
(Session info: chrome=61.0.3163.100)
(Driver info: chromedriver=2.33.506106 (8a06c39c4582fbfbab6966dbb1c38a9173bfb1a2),platform=Mac OS X 10.12.6 x86_64)

metron-alerts alert status
✓ should change alert statuses
✓ should add comments for table view
✓ should add comments for tree view

---

•                Failures                    *


---

1. metron-alerts App sould have all time-range included while searching

• Expected 'Alerts (0)' to equal 'Alerts (5)'.

2. metron-alerts alert status should change alert status for multiple alerts to OPEN in tree view

• Failed: element not visible
  (Session info: chrome=61.0.3163.100)
  (Driver info: chromedriver=2.33.506106 (8a06c39c4582fbfbab6966dbb1c38a9173bfb1a2),platform=Mac OS X 10.12.6 x86_64)

[james-sirota]

• 1. Gret job. all pass

login to application
✓ should display error message for invalid credentials
✓ should login for valid credentials
✓ should logout

metron-alerts App
✓ should have all the UI elements
✓ should have all pagination controls and they should be working
✓ should have all settings controls and they should be working
✓ play pause should start polling and stop polling
✓ should select columns from table configuration
✓ should have all time-range controls
✓ should have all time range values populated - 1
✓ should have all time range values populated - 2
✓ should have all time range values populated - 3
✓ should have all time range values populated - 4
✓ should disable date picker when timestamp is present in search
✓ should have now included when to date is empty
✓ should have all time-range included while searching

metron-alerts configure table
✓ should select columns from table configuration
✓ should rename columns from table configuration

metron-alerts Search
✓ should display all the default values for saved searches
✓ should have all save search controls and they save search should be working
✓ should populate search items when selected on table
✓ should delete search items from search box
✓ should delete first search items from search box having multiple search fields
✓ manually entering search queries to search box and pressing enter key should search

metron-alerts tree view
✓ should have all group by elements
✓ drag and drop should change group order
✓ should have group details for single group by
✓ should have group details for multiple group by
✓ should have sort working for group details for multiple sub groups
✓ should have search working for group details for multiple sub groups

metron-alerts facets
✓ should display facets data
✓ should expand all facets
✓ should have all facet values
✓ should collapse all facets

metron-alerts alert status
✓ should change alert status for multiple alerts to OPEN
✓ should change alert status for multiple alerts to DISMISS
✓ should change alert status for multiple alerts to ESCALATE
✓ should change alert status for multiple alerts to RESOLVE
✓ should change alert status for multiple alerts to OPEN in tree view

metron-alerts alert status
✓ should change alert statuses
✓ should add comments for table view
✓ should add comments for tree view

Executed 42 of 42 specs SUCCESS in 5 mins 2 secs.
[01:01:00] I/launcher - 0 instance(s) of WebDriver still running
[01:01:00] I/launcher - chrome #1 passed

[james-sirota]

+1
