Fix wait loop and void cast #24

xiaoxiang781216 · 2020-01-02T15:57:46Z

No description provided.

1.Add semaphore uninterruptible wait function 2.Replace semaphore wait loop with a single uninterruptible wait 3.Replace all sem_xxx to nxsem_xxx Change-Id: Ibde993435b011c5dda967f4445a8e791dba72aa3 Signed-off-by: Xiang Xiao <xiaoxiang@xiaomi.com>

1.Remove void cast for function because many place ignore the returned value witout cast 2.Replace void cast for variable with UNUSED macro Change-Id: Ie94ee2c34141909d06a192e6bf6104e5696bef41 Signed-off-by: Xiang Xiao <xiaoxiang@xiaomi.com>

* Simplify EINTR/ECANCEL error handling 1. Add semaphore uninterruptible wait function 2 .Replace semaphore wait loop with a single uninterruptible wait 3. Replace all sem_xxx to nxsem_xxx * Unify the void cast usage 1. Remove void cast for function because many place ignore the returned value witout cast 2. Replace void cast for variable with UNUSED macro

patacongo · 2020-01-02T18:01:38Z

Removing the (void) cast actually violates the coding standard. Look at:

http://nuttx.org/Documentation/NuttXCCodingStandard.html#retvalues

Checking Return Values. Callers of internal OS functions should always check return values for an error. At a minimum, a debug statement should indicate that an error has occurred. The calling logic intentionally ignores the returned value, then the function return value should be explicitly cast to (void) to indicate that the return value is intentionally ignored. An exception of for standard functions for which people have historically ignored the returned values, such as printf() or close. All calls to malloc or realloc must be checked for failures to allocate memory.

* Simplify EINTR/ECANCEL error handling 1. Add semaphore uninterruptible wait function 2 .Replace semaphore wait loop with a single uninterruptible wait 3. Replace all sem_xxx to nxsem_xxx * Unify the void cast usage 1. Remove void cast for function because many place ignore the returned value witout cast 2. Replace void cast for variable with UNUSED macro

juniskane · 2020-01-08T13:29:18Z

This PR completely breaks usrsock networking for one of our projects. Underlying cause is not clear but creating a revert for commit 6a3c2ad fixed it. I suggest reverting this in any case as merging insanely big PRs like this that confuse several unrelated concepts into single commit make root cause analysis extra hard.

xiaoxiang781216 · 2020-01-08T13:39:48Z

@juniskane could you point out which patch break your networking? or which socket function break?

xiaoxiang781216 · 2020-01-08T13:55:24Z

Please help me identify which patch generate the regression like this:
1.git revert 6a3c2ad
2.download https://github.com/apache/incubator-nuttx/commit/a5aac1fd5515e2447785025da4102c5b04fc6389.patch
3.git am download-file.patch
And run your test case.

xiaoxiang781216 · 2020-01-08T14:10:24Z

Does the error like this:
proxy> ping 127.0.0.1
ERROR: socket() failed: 110
proxy>

jkivilin · 2020-01-08T15:19:52Z

Bug appears to be reproducable with 'usrsocktest' testing application (CONFIG_EXAMPLES_USRSOCKTEST=y).

The config I used for quick test is at https://gist.github.com/jkivilin/7d7558b54a85fd70c8a439d6d8feba5e

With offending commit reverted, I get output:

$ ./nuttx

NuttShell (NSH) NuttX-8.2
MOTD: username=admin password=Administrator
nsh> usrsocktest
Starting unit-tests...
Testing group "CharDev" =>
        Group "CharDev": [OK]
Testing group "NoDaemon" =>
        Group "NoDaemon": [OK]
Testing group "BasicDaemon" =>
        Group "BasicDaemon": [OK]
Testing group "BasicConnect" =>
        Group "BasicConnect": [OK]
Testing group "BasicConnectDelay" =>
        Group "BasicConnectDelay": [OK]
Testing group "NoBlockConnect" =>
        Group "NoBlockConnect": [OK]
Testing group "BasicSend" =>
        Group "BasicSend": [OK]
Testing group "NoBlockSend" =>
        Group "NoBlockSend": [OK]
Testing group "BlockSend" =>
        Group "BlockSend": [OK]
Testing group "NoBlockRecv" =>
        [TEST ASSERT FAILED!]
                In function "Receive":
                line 200: Assertion `memcmp((&remoteaddr), (&addr), (addrlen)) == 0' failed.
        Group "NoBlockRecv": [FAILED]
Testing group "BlockRecv" =>
        [TEST ASSERT FAILED!]
                In function "NoBlockConnect":
                line 268: Assertion `memcmp((&remoteaddr), (&addr), (addrlen)) == 0' failed.
        Group "BlockRecv": [FAILED]
Testing group "RemoteDisconnect" =>
        Group "RemoteDisconnect": [OK]
Testing group "BasicSetSockOpt" =>
        Group "BasicSetSockOpt": [OK]
Testing group "BasicGetSockOpt" =>
        Group "BasicGetSockOpt": [OK]
Testing group "BasicGetSockName" =>
Segmentation fault (core dumped)

There is some other issue that causes test-cases to fail, but when 6a3c2ad is not reverted, the output changes. Now I get different errors, first being at 'Testing group "BasicSend"':

$ ./nuttx

NuttShell (NSH) NuttX-8.2
MOTD: username=admin password=Administrator
nsh>
nsh> usrsocktest
Starting unit-tests...
Testing group "CharDev" =>
        Group "CharDev": [OK]
Testing group "NoDaemon" =>
        Group "NoDaemon": [OK]
Testing group "BasicDaemon" =>
        Group "BasicDaemon": [OK]
Testing group "BasicConnect" =>
        Group "BasicConnect": [OK]
Testing group "BasicConnectDelay" =>
        Group "BasicConnectDelay": [OK]
Testing group "NoBlockConnect" =>
        Group "NoBlockConnect": [OK]
Testing group "BasicSend" =>
        [TEST ASSERT FAILED!]
                In function "ConnectSend":
                line 244: Assertion `(ssize_t)((ret)) == (ssize_t)((datalen))' failed.
                        got value: -1
                        should be: 4
        Group "BasicSend": [FAILED]
Testing group "NoBlockSend" =>
        [TEST ASSERT FAILED!]
                In function "Send":
                line 111: Assertion `(ssize_t)((usrsocktest_daemon_start(dconf))) == (ssize_t)((0))' failed.
                        got value: -120
                        should be: 0
        Group "NoBlockSend": [FAILED]
Testing group "BlockSend" =>
        [TEST ASSERT FAILED!]
                In function "ConnectSend":
                line 112: Assertion `(ssize_t)((usrsocktest_daemon_start(dconf))) == (ssize_t)((0))' failed.
                        got value: -120
                        should be: 0
        Group "BlockSend": [FAILED]
Testing group "NoBlockRecv" =>
        [TEST ASSERT FAILED!]
                In function "Receive":
                line 115: Assertion `(ssize_t)((usrsocktest_daemon_start(dconf))) == (ssize_t)((0))' failed.
                        got value: -120
                        should be: 0
        Group "NoBlockRecv": [FAILED]
Testing group "BlockRecv" =>
        [TEST ASSERT FAILED!]
                In function "ConnectReceive":
                line 114: Assertion `(ssize_t)((usrsocktest_daemon_start(dconf))) == (ssize_t)((0))' failed.
                        got value: -120
                        should be: 0
        Group "BlockRecv": [FAILED]
Testing group "RemoteDisconnect" =>
        [TEST ASSERT FAILED!]
                In function "Unreachable":
                line 115: Assertion `(ssize_t)((usrsocktest_daemon_start(dconf))) == (ssize_t)((0))' failed.
                        got value: -120
                        should be: 0
        Group "RemoteDisconnect": [FAILED]
Testing group "BasicSetSockOpt" =>
        [TEST ASSERT FAILED!]
                In function "Open":
                line 105: Assertion `(ssize_t)((usrsocktest_daemon_start(dconf))) == (ssize_t)((0))' failed.
                        got value: -120
                        should be: 0
        Group "BasicSetSockOpt": [FAILED]
Testing group "BasicGetSockOpt" =>
        [TEST ASSERT FAILED!]
                In function "Open":
                line 105: Assertion `(ssize_t)((usrsocktest_daemon_start(dconf))) == (ssize_t)((0))' failed.
                        got value: -120
                        should be: 0
        Group "BasicGetSockOpt": [FAILED]
Testing group "BasicGetSockName" =>
        [TEST ASSERT FAILED!]
                In function "Open":
                line 110: Assertion `(ssize_t)((usrsocktest_daemon_start(dconf))) == (ssize_t)((0))' failed.
                        got value: -120
                        should be: 0
        Group "BasicGetSockName": [FAILED]
Testing group "WakeWithSignal" =>
        [TEST ASSERT FAILED!]
                In function "do_wake_test":
                line 487: Assertion `(ssize_t)((usrsocktest_daemon_start(&usrsocktest_daemon_config))) == (ssize_t)((0))' failed.
                        got value: -120
                        should be: 0
        Group "WakeWithSignal": [FAILED]
Testing group "MultiThread" =>
        [TEST ASSERT FAILED!]
                In function "usrsocktest_test_MultiThread_OpenClose":
                line 221: Assertion `(ssize_t)((usrsocktest_daemon_start(&usrsocktest_daemon_config))) == (ssize_t)((0))' failed.
                        got value: -120
                        should be: 0
        Group "MultiThread": [FAILED]
Unit-test groups done... OK:6, FAILED:11, TOTAL:17
 -- number of checks made: 786
HEAP BEFORE TESTS:
             total       used       free    largest
Mem:       4194304    1597616    2596688    2596432
HEAP AFTER TESTS:
             total       used       free    largest
Mem:       4194304    1607440    2586864    2586800
nsh>

Maybe above can be used to locate the issue?

jkivilin · 2020-01-08T15:22:40Z

With 6a3c2ad reverted and https://github.com/apache/incubator-nuttx/commit/a5aac1fd5515e2447785025da4102c5b04fc6389.patch applied, usrsocktest output is the same (so problem is not with in a5aac1f):

$ ./nuttx

NuttShell (NSH) NuttX-8.2
MOTD: username=admin password=Administrator
nsh> usrsocktest
Starting unit-tests...
Testing group "CharDev" =>
        Group "CharDev": [OK]
Testing group "NoDaemon" =>
        Group "NoDaemon": [OK]
Testing group "BasicDaemon" =>
        Group "BasicDaemon": [OK]
Testing group "BasicConnect" =>
        Group "BasicConnect": [OK]
Testing group "BasicConnectDelay" =>
        Group "BasicConnectDelay": [OK]
Testing group "NoBlockConnect" =>
        Group "NoBlockConnect": [OK]
Testing group "BasicSend" =>
        Group "BasicSend": [OK]
Testing group "NoBlockSend" =>
        Group "NoBlockSend": [OK]
Testing group "BlockSend" =>
        Group "BlockSend": [OK]
Testing group "NoBlockRecv" =>
        [TEST ASSERT FAILED!]
                In function "Receive":
                line 200: Assertion `memcmp((&remoteaddr), (&addr), (addrlen)) == 0' failed.
        Group "NoBlockRecv": [FAILED]
Testing group "BlockRecv" =>
        [TEST ASSERT FAILED!]
                In function "NoBlockConnect":
                line 268: Assertion `memcmp((&remoteaddr), (&addr), (addrlen)) == 0' failed.
        Group "BlockRecv": [FAILED]
Testing group "RemoteDisconnect" =>
        Group "RemoteDisconnect": [OK]
Testing group "BasicSetSockOpt" =>
        Group "BasicSetSockOpt": [OK]
Testing group "BasicGetSockOpt" =>
        Group "BasicGetSockOpt": [OK]
Testing group "BasicGetSockName" =>
Segmentation fault (core dumped)

xiaoxiang781216 · 2020-01-08T15:32:53Z

Ok, let me repro on simulator with your config

juniskane · 2020-01-09T09:26:20Z

I agree with Jussi, problem is caused by a9ff3e1, not the other commit. I cannot spot the problem by code reading unfortunately.

This is usrsocktest with old upstream merge from December (some of the SHAs here are from our internal repository) running on proprietary STM32L4 board. Something is broken, but not as much as with a9ff3e1:

usrsocktest_Dec16_master_9e3bf44870.txt

Broken master:

usrsocktest_Jan08_devel_5ff90c1aa27.txt

Broken master + this PR reverted (identical with Dec 16 output):

usrsocktest_Jan08_devel_revert_5864cf8e038.txt

Broken master + this PR reverted + add a9ff3e1 (identical with broken master)

usrsocktest_Jan08_devel_revert_and_add_a9ff3e1778d950f7d7.txt

juniskane · 2020-01-09T09:29:11Z

This is unrelated, but why is priv->tx_result ignored here (different than priv->rx_result handling)?

@@ -645,23 +637,7 @@ static void spi_dmarxwait(FAR struct stm32l4_spidev_s *priv)
 #ifdef CONFIG_STM32L4_SPI_DMA
 static void spi_dmatxwait(FAR struct stm32l4_spidev_s *priv)
 {
-  int ret;
-
-  /* Take the semaphore (perhaps waiting).  If the result is zero, then the DMA
-   * must not really have completed???
-   */
-
-  do
-    {
-      ret = nxsem_wait(&priv->txsem);
-
-      /* The only case that an error should occur here is if the wait was
-       * awakened by a signal.
-       */
-
-      DEBUGASSERT(ret == OK || ret == -EINTR);
-    }
-  while (ret == -EINTR || priv->txresult == 0);
+  nxsem_wait_uninterruptible(&priv->txsem);
 }
 #endif

xiaoxiang781216 · 2020-01-09T10:48:58Z

This is unrelated, but why is priv->tx_result ignored here (different than priv->rx_result handling)?

@@ -645,23 +637,7 @@ static void spi_dmarxwait(FAR struct stm32l4_spidev_s *priv)
 #ifdef CONFIG_STM32L4_SPI_DMA
 static void spi_dmatxwait(FAR struct stm32l4_spidev_s *priv)
 {
-  int ret;
-
-  /* Take the semaphore (perhaps waiting).  If the result is zero, then the DMA
-   * must not really have completed???
-   */
-
-  do
-    {
-      ret = nxsem_wait(&priv->txsem);
-
-      /* The only case that an error should occur here is if the wait was
-       * awakened by a signal.
-       */
-
-      DEBUGASSERT(ret == OK || ret == -EINTR);
-    }
-  while (ret == -EINTR || priv->txresult == 0);
+  nxsem_wait_uninterruptible(&priv->txsem);
 }
 #endif

My intention is to remove all result check since only interrupt handler will post semaphore, the check is redundant.

xiaoxiang781216 · 2020-01-09T10:55:30Z

With 6a3c2ad reverted and https://github.com/apache/incubator-nuttx/commit/a5aac1fd5515e2447785025da4102c5b04fc6389.patch applied, usrsocktest output is the same (so problem is not with in a5aac1f):

$ ./nuttx

NuttShell (NSH) NuttX-8.2
MOTD: username=admin password=Administrator
nsh> usrsocktest
Starting unit-tests...
Testing group "CharDev" =>
        Group "CharDev": [OK]
Testing group "NoDaemon" =>
        Group "NoDaemon": [OK]
Testing group "BasicDaemon" =>
        Group "BasicDaemon": [OK]
Testing group "BasicConnect" =>
        Group "BasicConnect": [OK]
Testing group "BasicConnectDelay" =>
        Group "BasicConnectDelay": [OK]
Testing group "NoBlockConnect" =>
        Group "NoBlockConnect": [OK]
Testing group "BasicSend" =>
        Group "BasicSend": [OK]
Testing group "NoBlockSend" =>
        Group "NoBlockSend": [OK]
Testing group "BlockSend" =>
        Group "BlockSend": [OK]
Testing group "NoBlockRecv" =>
        [TEST ASSERT FAILED!]
                In function "Receive":
                line 200: Assertion `memcmp((&remoteaddr), (&addr), (addrlen)) == 0' failed.
        Group "NoBlockRecv": [FAILED]
Testing group "BlockRecv" =>
        [TEST ASSERT FAILED!]
                In function "NoBlockConnect":
                line 268: Assertion `memcmp((&remoteaddr), (&addr), (addrlen)) == 0' failed.
        Group "BlockRecv": [FAILED]
Testing group "RemoteDisconnect" =>
        Group "RemoteDisconnect": [OK]
Testing group "BasicSetSockOpt" =>
        Group "BasicSetSockOpt": [OK]
Testing group "BasicGetSockOpt" =>
        Group "BasicGetSockOpt": [OK]
Testing group "BasicGetSockName" =>
Segmentation fault (core dumped)

I test your config on my simulator, the result isn't stable: BasicSend can pass sometime, but will hit segmentation fault at the later time. The old release can pass BaiscSend stably, but also will hit segmentation fault.

juniskane · 2020-01-09T11:06:46Z

This could be it:

diff --git a/net/usrsock/usrsock_dev.c b/net/usrsock/usrsock_dev.c
index 9359fd0..2bca669 100644
--- a/net/usrsock/usrsock_dev.c
+++ b/net/usrsock/usrsock_dev.c
@@ -1166,7 +1166,7 @@ int usrsockdev_do_request(FAR struct usrsock_conn_s *conn,
 {
   FAR struct usrsockdev_s *dev = conn->dev;
   FAR struct usrsock_request_common_s *req_head = iov[0].iov_base;
-  int ret;
+  int ret = OK;

   if (!dev)
     {

still looking at the patch if there more instances....

jkivilin · 2020-01-09T11:37:52Z

Ok. So, before adding net_lockedwait_uninterruptible, ret was being initialized by

     while ((ret = net_lockedwait(&dev->req.acksem)) < 0)
       {
         DEBUGASSERT(ret == -EINTR || ret == -ECANCELED);
       }

and return value from net_lockedwait was returned for usrsockdev_do_request but that's no longer the case.

juniskane · 2020-01-09T11:46:23Z

There is still something wrong. After this PR and above fix I still get error when doing netcat over cellular connection. DNS is resolved correctly but there is "polling error 12" that was not there before:

[EDITED: archive trace to comment history]

Nevermind, fixed this by increasing CONFIG_NET_USRSOCK_NPOLLWAITERS from 1 to 2.

xiaoxiang781216 · 2020-01-09T12:36:02Z

There is still something wrong. After this PR and above fix I still get error when doing netcat over cellular connection. DNS is resolved correctly but there is "polling error 12" that was not there before:

[EDITED: archive trace to comment history]

Nevermind, fixed this by increasing CONFIG_NET_USRSOCK_NPOLLWAITERS from 1 to 2.

Thanks for finding the tough bug, could you send the patch fix both issues?

xiaoxiang781216 · 2020-01-09T12:41:29Z

This could be it:

diff --git a/net/usrsock/usrsock_dev.c b/net/usrsock/usrsock_dev.c
index 9359fd0..2bca669 100644
--- a/net/usrsock/usrsock_dev.c
+++ b/net/usrsock/usrsock_dev.c
@@ -1166,7 +1166,7 @@ int usrsockdev_do_request(FAR struct usrsock_conn_s *conn,
 {
   FAR struct usrsockdev_s *dev = conn->dev;
   FAR struct usrsock_request_common_s *req_head = iov[0].iov_base;
-  int ret;
+  int ret = OK;

   if (!dev)
     {

still looking at the patch if there more instances....

Good finding, it explain why sometime the test case can pass, but sometime not.

juniskane · 2020-01-09T12:54:46Z

I have not reviewed CONFIG_NET_USRSOCK_NPOLLWAITERS in upstream configs. I'd expect that to be 1 most of time (only one waiting for a given socket) so no patch for that. Users of usersock have to review their projects for this value. We also found similar issues with 'ret' in:

wireless/bluetooth/bt_hcicore.c
drivers/sensors/hc_sr04.c

Details forthcoming...

juniskane · 2020-01-09T13:19:37Z

Likely caused by this PR:

Issue 1: In bt_hci_cmd_send_sync():

Issue 2: (also found by Jussi Kivilinna) In hcsr04_ioctl() with SNIOC_READ_RAW_DATA, uninitialized 'ret' is returned. This ioctl command also looks useless as no read data is returned to caller. Driver author @acassis to comment/fix this?

No patch for these, just want to report bugs.

xiaoxiang781216 · 2020-01-09T18:18:55Z

@acassis here is the fix:
#67
Thanks very much, @juniskane.

acassis · 2020-01-09T18:40:36Z

Done! Thank you Xiao Xiang!

juniskane · 2020-01-10T15:30:01Z

@@ -645,23 +637,7 @@ static void spi_dmarxwait(FAR struct stm32l4_spidev_s *priv)
 #ifdef CONFIG_STM32L4_SPI_DMA
 static void spi_dmatxwait(FAR struct stm32l4_spidev_s *priv)
 {
-  int ret;
-
-  /* Take the semaphore (perhaps waiting).  If the result is zero, then the DMA
-   * must not really have completed???
-   */
-
-  do
-    {
-      ret = nxsem_wait(&priv->txsem);
-
-      /* The only case that an error should occur here is if the wait was
-       * awakened by a signal.
-       */
-
-      DEBUGASSERT(ret == OK || ret == -EINTR);
-    }
-  while (ret == -EINTR || priv->txresult == 0);
+  nxsem_wait_uninterruptible(&priv->txsem);
 }
 #endif

My intention is to remove all result check since only interrupt handler will post semaphore, the check is redundant.

Any reason why this bit of code is now done differently for stm32f7 and stm32f0l0g0 than for other STM32?

xiaoxiang781216 · 2020-01-10T15:53:01Z

@@ -645,23 +637,7 @@ static void spi_dmarxwait(FAR struct stm32l4_spidev_s *priv)
 #ifdef CONFIG_STM32L4_SPI_DMA
 static void spi_dmatxwait(FAR struct stm32l4_spidev_s *priv)
 {
-  int ret;
-
-  /* Take the semaphore (perhaps waiting).  If the result is zero, then the DMA
-   * must not really have completed???
-   */
-
-  do
-    {
-      ret = nxsem_wait(&priv->txsem);
-
-      /* The only case that an error should occur here is if the wait was
-       * awakened by a signal.
-       */
-
-      DEBUGASSERT(ret == OK || ret == -EINTR);
-    }
-  while (ret == -EINTR || priv->txresult == 0);
+  nxsem_wait_uninterruptible(&priv->txsem);
 }
 #endif

My intention is to remove all result check since only interrupt handler will post semaphore, the check is redundant.

Any reason why this bit of code is now done differently for stm32f7 and stm32f0l0g0 than for other STM32?

I will provide a patch to bring back "do {} while (priv->XXresult == 0);".

xiaoxiang781216 · 2020-01-11T09:32:28Z

@juniskane here is the patch:
#77

lukegluke · 2020-02-20T18:10:53Z

Hi @xiaoxiang781216, @jkivilin!

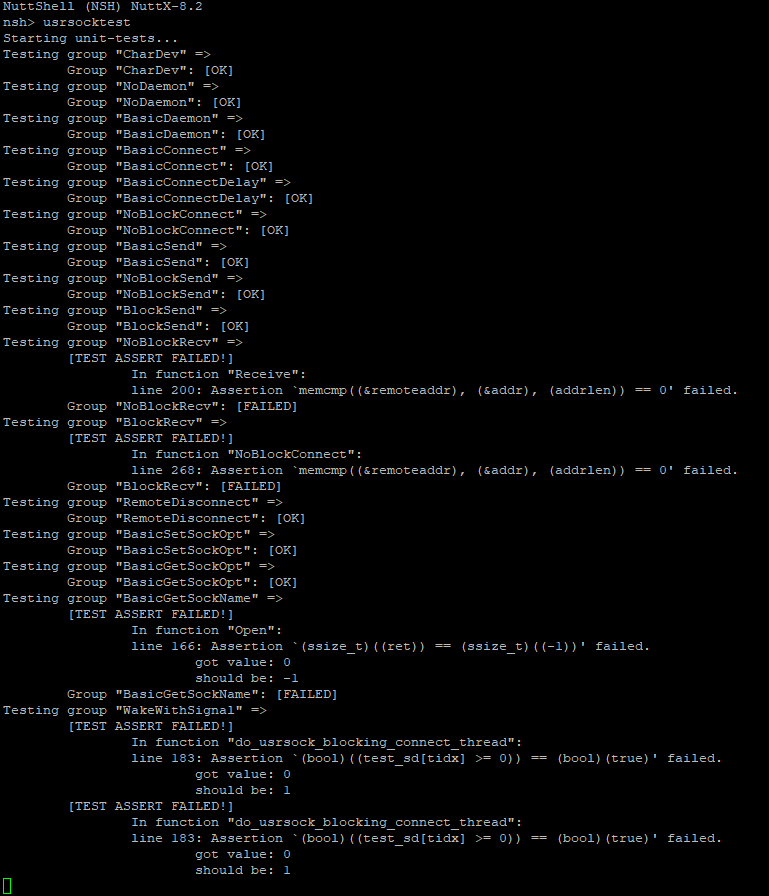

I have some problems running usrsocktest, few of them looks similar to those mentioned in this issue.

I've described my issues in dev@nuttx.apache.org mailing list - topic: "Usrsocktest app example fails"
I think it is not really related to this issue, but I wonder if usrsocktest now runs correctly for you in latest NuttX, without any errors?
Thanks for feedback.

xiaoxiang781216 · 2020-02-21T05:02:29Z

Hi @xiaoxiang781216, @jkivilin!

I have some problems running usrsocktest, few of them looks similar to those mentioned in this issue.

I've described my issues in dev@nuttx.apache.org mailing list - topic: "Usrsocktest app example fails"
I think it is not really related to this issue, but I wonder if usrsocktest now runs correctly for you in latest NuttX, without any errors?
Thanks for feedback.

As I remember there are two test case fail even after this fix, I will look at these two fail today or tomorrow.

xiaoxiang781216 · 2020-02-21T06:41:57Z

@lukegluke , @masayuki2009 create a fix here, please try it:
apache/nuttx-apps#85
#345

lukegluke · 2020-02-21T08:08:07Z

@lukegluke , @masayuki2009 create a fix here, please try it:
apache/incubator-nuttx-apps#85
#345

Thanks, it fix fails in NoBlockRecv and BlockRecv indeed, but there are more complicated errors that (as I think) involve net stack.
Here more detail output with CONFIG_DEBUG_NET_ERROR and CONFIG_DEBUG_NET_WARN.

nsh> Starting unit-tests...
Testing group "CharDev" =>
usrsockdev_open: failed to open
        Group "CharDev": [OK]
Testing group "NoDaemon" =>
usrsock_sockif_setup: WARNING: usrsock daemon is not running
psock_socket: ERROR: socket address family unsupported: 2
socket: ERROR: psock_socket() failed: -106
        Group "NoDaemon": [OK]
Testing group "BasicDaemon" =>
socket: ERROR: psock_socket() failed: -123
socket: ERROR: psock_socket() failed: -123
socket: ERROR: psock_socket() failed: -123
socket: ERROR: psock_socket() failed: -123
socket: ERROR: psock_socket() failed: -24
socket: ERROR: psock_socket() failed: -24
        Group "BasicDaemon": [OK]
Testing group "BasicConnect" =>
        Group "BasicConnect": [OK]
Testing group "BasicConnectDelay" =>
        Group "BasicConnectDelay": [OK]
Testing group "NoBlockConnect" =>
        Group "NoBlockConnect": [OK]
Testing group "BasicSend" =>
psock_send: ERROR: socket si_send() (or usrsock_sendto()) failed: -128
psock_sendto: ERROR:  Family-specific send failed: -128
psock_sendto: ERROR:  Family-specific send failed: -127
psock_send: ERROR: socket si_send() (or usrsock_sendto()) failed: -128
psock_sendto: ERROR:  Family-specific send failed: -128
psock_sendto: ERROR:  Family-specific send failed: -127
        Group "BasicSend": [OK]
Testing group "NoBlockSend" =>
psock_send: ERROR: socket si_send() (or usrsock_sendto()) failed: -11
psock_send: ERROR: socket si_send() (or usrsock_sendto()) failed: -11
psock_send: ERROR: socket si_send() (or usrsock_sendto()) failed: -11
psock_send: ERROR: socket si_send() (or usrsock_sendto()) failed: -11
        Group "NoBlockSend": [OK]
Testing group "BlockSend" =>
psock_send: ERROR: socket si_send() (or usrsock_sendto()) failed: -11
psock_send: ERROR: socket si_send() (or usrsock_sendto()) failed: -11
        Group "BlockSend": [OK]
Testing group "NoBlockRecv" =>
        Group "NoBlockRecv": [OK]
Testing group "BlockRecv" =>
        Group "BlockRecv": [OK]
Testing group "RemoteDisconnect" =>
psock_send: ERROR: socket si_send() (or usrsock_sendto()) failed: -32
psock_send: ERROR: socket si_send() (or usrsock_sendto()) failed: -32
psock_send: ERROR: socket si_send() (or usrsock_sendto()) failed: -32
psock_send: ERROR: socket si_send() (or usrsock_sendto()) failed: -32
psock_send: ERROR: socket si_send() (or usrsock_sendto()) failed: -32
psock_send: ERROR: socket si_send() (or usrsock_sendto()) failed: -32
psock_send: ERROR: socket si_send() (or usrsock_sendto()) failed: -32
psock_send: ERROR: socket si_send() (or usrsock_sendto()) failed: -32
psock_send: ERROR: socket si_send() (or usrsock_sendto()) failed: -32
psock_send: ERROR: socket si_send() (or usrsock_sendto()) failed: -32
psock_send: ERROR: socket si_send() (or usrsock_sendto()) failed: -32
psock_send: ERROR: socket si_send() (or usrsock_sendto()) failed: -32
psock_send: ERROR: socket si_send() (or usrsock_sendto()) failed: -32
psock_send: ERROR: socket si_send() (or usrsock_sendto()) failed: -32
psock_send: ERROR: socket si_send() (or usrsock_sendto()) failed: -32
psock_send: ERROR: socket si_send() (or usrsock_sendto()) failed: -32
psock_send: ERROR: socket si_send() (or usrsock_sendto()) failed: -32
psock_send: ERROR: socket si_send() (or usrsock_sendto()) failed: -32
psock_send: ERROR: socket si_send() (or usrsock_sendto()) failed: -32
psock_send: ERROR: socket si_send() (or usrsock_sendto()) failed: -32
        Group "RemoteDisconnect": [OK]
Testing group "BasicSetSockOpt" =>
        Group "BasicSetSockOpt": [OK]
Testing group "BasicGetSockOpt" =>
        Group "BasicGetSockOpt": [OK]
Testing group "BasicGetSockName" =>
        [TEST ASSERT FAILED!]
                In function "Open":
                line 176: Assertion `(ssize_t)((ret)) == (ssize_t)((-1))' failed.
                        got value: 0
                        should be: -1
        Group "BasicGetSockName": [FAILED]
Testing group "WakeWithSignal" =>
up_assert: Assertion failed at file:semaphore/sem_holder.c line: 128 task: usrsocktest

…ssage_by_application_api xtensa/esp32: Fix ISR send message to queue by application API

* Simplify EINTR/ECANCEL error handling 1. Add semaphore uninterruptible wait function 2 .Replace semaphore wait loop with a single uninterruptible wait 3. Replace all sem_xxx to nxsem_xxx * Unify the void cast usage 1. Remove void cast for function because many place ignore the returned value witout cast 2. Replace void cast for variable with UNUSED macro

- recorganize spi driver Signed-off-by: Runcheng Lu <runcheng.lu@hpmicro.com>

set CONFIG_PRIORITY_INHERITANCE=y set CONFIG_SEM_PREALLOCHOLDERS=0 or CONFIG_SEM_PREALLOCHOLDERS=8 apache#24 0x4dcab71 in __assert assert/lib_assert.c:37 apache#25 0x4d6b0e9 in nxsem_destroyholder semaphore/sem_holder.c:602 apache#26 0x4d80cf7 in nxsem_destroy semaphore/sem_destroy.c:80 apache#27 0x4d80db9 in sem_destroy semaphore/sem_destroy.c:120 apache#28 0x4dcb077 in nxmutex_destroy misc/lib_mutex.c:122 apache#29 0x4dc6611 in pipecommon_freedev pipes/pipe_common.c:117 apache#30 0x4dc7fdc in pipecommon_close pipes/pipe_common.c:397 apache#31 0x4ed4f6d in file_close vfs/fs_close.c:78 apache#32 0x6a91133 in local_free local/local_conn.c:184 apache#33 0x6a92a9c in local_release local/local_release.c:129 apache#34 0x6a91d1a in local_subref local/local_conn.c:271 apache#35 0x6a75767 in local_close local/local_sockif.c:797 apache#36 0x4e978f6 in psock_close socket/net_close.c:102 apache#37 0x4eed1b9 in sock_file_close socket/socket.c:115 apache#38 0x4ed4f6d in file_close vfs/fs_close.c:78 apache#39 0x4ed1459 in nx_close_from_tcb inode/fs_files.c:754 apache#40 0x4ed1501 in nx_close inode/fs_files.c:781 apache#41 0x4ed154a in close inode/fs_files.c:819 apache#42 0x6bcb9ce in property_get kvdb/client.c:307 apache#43 0x6bcd465 in property_get_int32 kvdb/common.c:270 apache#44 0x5106c9a in tz_offset_restore app/miwear_bluetooth.c:745 apache#45 0x510893f in miwear_bluetooth_main app/miwear_bluetooth.c:1033 apache#46 0x4dcf5c8 in nxtask_startup sched/task_startup.c:70 apache#47 0x4d70873 in nxtask_start task/task_start.c:134 apache#48 0x4e04a07 in pre_start sim/sim_initialstate.c:52 Signed-off-by: ligd <liguiding1@xiaomi.com>

set CONFIG_PRIORITY_INHERITANCE=y set CONFIG_SEM_PREALLOCHOLDERS=0 or CONFIG_SEM_PREALLOCHOLDERS=8 #24 0x4dcab71 in __assert assert/lib_assert.c:37 #25 0x4d6b0e9 in nxsem_destroyholder semaphore/sem_holder.c:602 #26 0x4d80cf7 in nxsem_destroy semaphore/sem_destroy.c:80 #27 0x4d80db9 in sem_destroy semaphore/sem_destroy.c:120 #28 0x4dcb077 in nxmutex_destroy misc/lib_mutex.c:122 #29 0x4dc6611 in pipecommon_freedev pipes/pipe_common.c:117 #30 0x4dc7fdc in pipecommon_close pipes/pipe_common.c:397 #31 0x4ed4f6d in file_close vfs/fs_close.c:78 #32 0x6a91133 in local_free local/local_conn.c:184 #33 0x6a92a9c in local_release local/local_release.c:129 #34 0x6a91d1a in local_subref local/local_conn.c:271 #35 0x6a75767 in local_close local/local_sockif.c:797 #36 0x4e978f6 in psock_close socket/net_close.c:102 #37 0x4eed1b9 in sock_file_close socket/socket.c:115 #38 0x4ed4f6d in file_close vfs/fs_close.c:78 #39 0x4ed1459 in nx_close_from_tcb inode/fs_files.c:754 #40 0x4ed1501 in nx_close inode/fs_files.c:781 #41 0x4ed154a in close inode/fs_files.c:819 #42 0x6bcb9ce in property_get kvdb/client.c:307 #43 0x6bcd465 in property_get_int32 kvdb/common.c:270 #44 0x5106c9a in tz_offset_restore app/miwear_bluetooth.c:745 #45 0x510893f in miwear_bluetooth_main app/miwear_bluetooth.c:1033 #46 0x4dcf5c8 in nxtask_startup sched/task_startup.c:70 #47 0x4d70873 in nxtask_start task/task_start.c:134 #48 0x4e04a07 in pre_start sim/sim_initialstate.c:52 Signed-off-by: ligd <liguiding1@xiaomi.com>

When enable CONFIG_STACK_CANARIES, in general, the stack check in the __gcov_fork function is: " return fork(); 18: e59f3020 ldr r3, [pc, #32] @ 40 <__gcov_fork+0x40> 1c: e5932000 ldr r2, [r3] 20: e59d3004 ldr r3, [sp, #4] 24: e0332002 eors r2, r3, r2 28: e3a03000 mov r3, #0 2c: 1a00000 bne 3c <__gcov_fork+0x3c>" r3 is obtained by taking the value of sp offset. But after opening thumb, the second comparison value in "8c6: 4a06 ldr r2, [pc, #24] @ (8e0 <__gcov_fork+0x30>) 8c8: 6811 ldr r1, [r2, #0] 8ca: 687a ldr r2, [r7, #4] 8cc: 4051 eors r1, r2" is obtained through r7. Since r7 stores the stack address at this time, which stores the address of the parent process, the stack out of bounds will occur in the child process Signed-off-by: wangmingrong1 <wangmingrong1@xiaomi.com>

When enable CONFIG_STACK_CANARIES, in general, the stack check in the __gcov_fork function is: " return fork(); 18: e59f3020 ldr r3, [pc, apache#32] @ 40 <__gcov_fork+0x40> 1c: e5932000 ldr r2, [r3] 20: e59d3004 ldr r3, [sp, apache#4] 24: e0332002 eors r2, r3, r2 28: e3a03000 mov r3, #0 2c: 1a00000 bne 3c <__gcov_fork+0x3c>" r3 is obtained by taking the value of sp offset. But after opening thumb, the second comparison value in "8c6: 4a06 ldr r2, [pc, apache#24] @ (8e0 <__gcov_fork+0x30>) 8c8: 6811 ldr r1, [r2, #0] 8ca: 687a ldr r2, [r7, apache#4] 8cc: 4051 eors r1, r2" is obtained through r7. Since r7 stores the stack address at this time, which stores the address of the parent process, the stack out of bounds will occur in the child process Signed-off-by: wangmingrong1 <wangmingrong1@xiaomi.com>

When enable CONFIG_STACK_CANARIES, in general, the stack check in the __gcov_fork function is: " return fork(); 18: e59f3020 ldr r3, [pc, #32] @ 40 <__gcov_fork+0x40> 1c: e5932000 ldr r2, [r3] 20: e59d3004 ldr r3, [sp, #4] 24: e0332002 eors r2, r3, r2 28: e3a03000 mov r3, #0 2c: 1a00000 bne 3c <__gcov_fork+0x3c>" r3 is obtained by taking the value of sp offset. But after opening thumb, the second comparison value in "8c6: 4a06 ldr r2, [pc, #24] @ (8e0 <__gcov_fork+0x30>) 8c8: 6811 ldr r1, [r2, #0] 8ca: 687a ldr r2, [r7, #4] 8cc: 4051 eors r1, r2" is obtained through r7. Since r7 stores the stack address at this time, which stores the address of the parent process, the stack out of bounds will occur in the child process Signed-off-by: wangmingrong1 <wangmingrong1@xiaomi.com>

When enable CONFIG_STACK_CANARIES, in general, the stack check in the __gcov_fork function is: " return fork(); 18: e59f3020 ldr r3, [pc, apache#32] @ 40 <__gcov_fork+0x40> 1c: e5932000 ldr r2, [r3] 20: e59d3004 ldr r3, [sp, #4] 24: e0332002 eors r2, r3, r2 28: e3a03000 mov r3, #0 2c: 1a00000 bne 3c <__gcov_fork+0x3c>" r3 is obtained by taking the value of sp offset. But after opening thumb, the second comparison value in "8c6: 4a06 ldr r2, [pc, apache#24] @ (8e0 <__gcov_fork+0x30>) 8c8: 6811 ldr r1, [r2, #0] 8ca: 687a ldr r2, [r7, #4] 8cc: 4051 eors r1, r2" is obtained through r7. Since r7 stores the stack address at this time, which stores the address of the parent process, the stack out of bounds will occur in the child process Signed-off-by: wangmingrong1 <wangmingrong1@xiaomi.com>

The memory should be unpoisoned for usage and poison after no use. Test: cmake -Bbuild -GNinja -DBOARD_CONFIG=mps3-an547:nsh ninja -C build qemu-system-arm -M mps3-an547 -m 2G -nographic -kernel build/nuttx Before the fix: apache#6 0x0000b95e in _assert (filename=0x47d3c "/arch/arm/src/armv8-m/arm_busfault.c", linenum=115, msg=0x47d34 "panic", regs=0x1006b14) at /home/neo/projects/nuttx/nuttx/sched/misc/assert.c:910 apache#7 0x00001000 in arm_busfault (irq=3, context=0x1006b14, arg=0x0 <up_ndelay>) at /home/neo/projects/nuttx/nuttx/arch/arm/src/armv8-m/arm_busfault.c:115 apache#8 0x0000167a in arm_hardfault (irq=3, context=0x1006b14, arg=0x0 <up_ndelay>) at /home/neo/projects/nuttx/nuttx/arch/arm/src/armv8-m/arm_hardfault.c:97 apache#9 0x0000af74 in irq_dispatch (irq=3, context=0x1006b14) at /home/neo/projects/nuttx/nuttx/sched/irq/irq_dispatch.c:144 apache#10 0x000004b2 in arm_doirq (irq=3, regs=0x1006b14) at /home/neo/projects/nuttx/nuttx/arch/arm/src/armv8-m/arm_doirq.c:111 apache#11 0x000003a6 in exception_common () at /home/neo/projects/nuttx/nuttx/arch/arm/src/armv8-m/arm_exception.S:218 apache#12 0x00009568 in kasan_show_memory (addr=0x60000000 "", size=1, dumpsize=80) at /home/neo/projects/nuttx/nuttx/mm/kasan/hook.c:161 apache#13 0x0000961e in kasan_report (addr=0x60000000, size=1, is_write=false, return_address=0x40d1d <memcmp+28>) at /home/neo/projects/nuttx/nuttx/mm/kasan/hook.c:180 apache#14 0x00009818 in kasan_check_report (addr=0x60000000, size=1, is_write=false, return_address=0x40d1d <memcmp+28>) at /home/neo/projects/nuttx/nuttx/mm/kasan/hook.c:246 apache#15 0x000098a2 in __asan_load1_noabort (addr=0x60000000) at /home/neo/projects/nuttx/nuttx/mm/kasan/hook.c:403 apache#16 0x00040d1c in memcmp (s1=0x60000000, s2=0x53204, n=7) at /home/neo/projects/nuttx/nuttx/libs/libc/string/lib_memcmp.c:47 apache#17 0x0003862a in romfs_fsconfigure (rm=0x1007038, data=0x0 <__asan_store16>) at /home/neo/projects/nuttx/nuttx/fs/romfs/fs_romfsutil.c:976 apache#18 0x000378c0 in romfs_bind (blkdriver=0x1007008, data=0x0 <__asan_store16>, handle=0x1006e58) at /home/neo/projects/nuttx/nuttx/fs/romfs/fs_romfs.c:1192 apache#19 0x00032388 in nx_mount (source=0x53da4 "/dev/ram1", target=0x53d9c "/pic", filesystemtype=0x53d94 "romfs", mountflags=1, data=0x0 <__asan_store16>) at /home/neo/projects/nuttx/nuttx/fs/mount/fs_mount.c:432 apache#20 0x00046b1a in mps3_bringup () at /home/neo/projects/nuttx/nuttx/boards/arm/mps/mps3-an547/src/mps3_bringup.c:90 apache#21 0x00046b6e in board_app_initialize (arg=0) at /home/neo/projects/nuttx/nuttx/boards/arm/mps/mps3-an547/src/mps3_bringup.c:236 apache#22 0x00046a00 in boardctl (cmd=65281, arg=0) at /home/neo/projects/nuttx/nuttx/boards/boardctl.c:370 apache#23 0x0001d0d8 in nsh_initialize () at /home/neo/projects/nuttx/apps/nshlib/nsh_init.c:149 apache#24 0x00016e3e in nsh_main (argc=1, argv=0x1005f48) at /home/neo/projects/nuttx/apps/system/nsh/nsh_main.c:71 apache#25 0x0001a6fc in nxtask_startup (entrypt=0x16e11 <nsh_main>, argc=1, argv=0x1005f48) at /home/neo/projects/nuttx/nuttx/libs/libc/sched/task_startup.c:72 apache#26 0x000137de in nxtask_start () at /home/neo/projects/nuttx/nuttx/sched/task/task_start.c:116 apache#27 0x00000000 in ?? () kasan_report: kasan detected a read access error, address at 0x60000000,size is 1, return address: 0x40d1d kasan_show_memory: Shadow bytes around the buggy address: arm_hardfault: Hard Fault escalation: arm_busfault: PANIC!!! Bus Fault: arm_busfault: IRQ: 3 regs: 0x1006b14 arm_busfault: BASEPRI: 00000080 PRIMASK: 00000000 IPSR: 00000003 CONTROL: 00000000 arm_busfault: CFSR: 00008200 HFSR: 40000000 DFSR: 00000000 BFAR: 5fffffb0 AFSR: 00000000 arm_busfault: Bus Fault Reason: arm_busfault: Precise data bus error dump_assert_info: Current Version: NuttX 12.8.0 381d3fe Feb 12 2025 09:16:55 arm dump_assert_info: Assertion failed panic: at file: /arch/arm/src/armv8-m/arm_busfault.c:115 task: nsh_main process: nsh_main 0x16e11 After: No crash. Change-Id: I743783025aa2e8b77a8439d0e8601ab24bc3e109 Signed-off-by: xuxingliang <xuxingliang@xiaomi.com>

The memory should be unpoisoned for usage and poison after no use. Test: cmake -Bbuild -GNinja -DBOARD_CONFIG=mps3-an547:nsh ninja -C build qemu-system-arm -M mps3-an547 -m 2G -nographic -kernel build/nuttx Before the fix: apache#6 0x0000b95e in _assert (filename=0x47d3c "/arch/arm/src/armv8-m/arm_busfault.c", linenum=115, msg=0x47d34 "panic", regs=0x1006b14) at /home/neo/projects/nuttx/nuttx/sched/misc/assert.c:910 apache#7 0x00001000 in arm_busfault (irq=3, context=0x1006b14, arg=0x0 <up_ndelay>) at /home/neo/projects/nuttx/nuttx/arch/arm/src/armv8-m/arm_busfault.c:115 apache#8 0x0000167a in arm_hardfault (irq=3, context=0x1006b14, arg=0x0 <up_ndelay>) at /home/neo/projects/nuttx/nuttx/arch/arm/src/armv8-m/arm_hardfault.c:97 apache#9 0x0000af74 in irq_dispatch (irq=3, context=0x1006b14) at /home/neo/projects/nuttx/nuttx/sched/irq/irq_dispatch.c:144 apache#10 0x000004b2 in arm_doirq (irq=3, regs=0x1006b14) at /home/neo/projects/nuttx/nuttx/arch/arm/src/armv8-m/arm_doirq.c:111 apache#11 0x000003a6 in exception_common () at /home/neo/projects/nuttx/nuttx/arch/arm/src/armv8-m/arm_exception.S:218 apache#12 0x00009568 in kasan_show_memory (addr=0x60000000 "", size=1, dumpsize=80) at /home/neo/projects/nuttx/nuttx/mm/kasan/hook.c:161 apache#13 0x0000961e in kasan_report (addr=0x60000000, size=1, is_write=false, return_address=0x40d1d <memcmp+28>) at /home/neo/projects/nuttx/nuttx/mm/kasan/hook.c:180 apache#14 0x00009818 in kasan_check_report (addr=0x60000000, size=1, is_write=false, return_address=0x40d1d <memcmp+28>) at /home/neo/projects/nuttx/nuttx/mm/kasan/hook.c:246 apache#15 0x000098a2 in __asan_load1_noabort (addr=0x60000000) at /home/neo/projects/nuttx/nuttx/mm/kasan/hook.c:403 apache#16 0x00040d1c in memcmp (s1=0x60000000, s2=0x53204, n=7) at /home/neo/projects/nuttx/nuttx/libs/libc/string/lib_memcmp.c:47 apache#17 0x0003862a in romfs_fsconfigure (rm=0x1007038, data=0x0 <__asan_store16>) at /home/neo/projects/nuttx/nuttx/fs/romfs/fs_romfsutil.c:976 apache#18 0x000378c0 in romfs_bind (blkdriver=0x1007008, data=0x0 <__asan_store16>, handle=0x1006e58) at /home/neo/projects/nuttx/nuttx/fs/romfs/fs_romfs.c:1192 apache#19 0x00032388 in nx_mount (source=0x53da4 "/dev/ram1", target=0x53d9c "/pic", filesystemtype=0x53d94 "romfs", mountflags=1, data=0x0 <__asan_store16>) at /home/neo/projects/nuttx/nuttx/fs/mount/fs_mount.c:432 apache#20 0x00046b1a in mps3_bringup () at /home/neo/projects/nuttx/nuttx/boards/arm/mps/mps3-an547/src/mps3_bringup.c:90 apache#21 0x00046b6e in board_app_initialize (arg=0) at /home/neo/projects/nuttx/nuttx/boards/arm/mps/mps3-an547/src/mps3_bringup.c:236 apache#22 0x00046a00 in boardctl (cmd=65281, arg=0) at /home/neo/projects/nuttx/nuttx/boards/boardctl.c:370 apache#23 0x0001d0d8 in nsh_initialize () at /home/neo/projects/nuttx/apps/nshlib/nsh_init.c:149 apache#24 0x00016e3e in nsh_main (argc=1, argv=0x1005f48) at /home/neo/projects/nuttx/apps/system/nsh/nsh_main.c:71 apache#25 0x0001a6fc in nxtask_startup (entrypt=0x16e11 <nsh_main>, argc=1, argv=0x1005f48) at /home/neo/projects/nuttx/nuttx/libs/libc/sched/task_startup.c:72 apache#26 0x000137de in nxtask_start () at /home/neo/projects/nuttx/nuttx/sched/task/task_start.c:116 apache#27 0x00000000 in ?? () kasan_report: kasan detected a read access error, address at 0x60000000,size is 1, return address: 0x40d1d kasan_show_memory: Shadow bytes around the buggy address: arm_hardfault: Hard Fault escalation: arm_busfault: PANIC!!! Bus Fault: arm_busfault: IRQ: 3 regs: 0x1006b14 arm_busfault: BASEPRI: 00000080 PRIMASK: 00000000 IPSR: 00000003 CONTROL: 00000000 arm_busfault: CFSR: 00008200 HFSR: 40000000 DFSR: 00000000 BFAR: 5fffffb0 AFSR: 00000000 arm_busfault: Bus Fault Reason: arm_busfault: Precise data bus error dump_assert_info: Current Version: NuttX 12.8.0 381d3fe Feb 12 2025 09:16:55 arm dump_assert_info: Assertion failed panic: at file: /arch/arm/src/armv8-m/arm_busfault.c:115 task: nsh_main process: nsh_main 0x16e11 After: No crash. Signed-off-by: xuxingliang <xuxingliang@xiaomi.com>

xiaoxiang781216 added 2 commits January 2, 2020 23:34

Simplify EINTR/ECANCEL error handling

a9ff3e1

1.Add semaphore uninterruptible wait function 2.Replace semaphore wait loop with a single uninterruptible wait 3.Replace all sem_xxx to nxsem_xxx Change-Id: Ibde993435b011c5dda967f4445a8e791dba72aa3 Signed-off-by: Xiang Xiao <xiaoxiang@xiaomi.com>

Unify the void cast usage

a5aac1f

1.Remove void cast for function because many place ignore the returned value witout cast 2.Replace void cast for variable with UNUSED macro Change-Id: Ie94ee2c34141909d06a192e6bf6104e5696bef41 Signed-off-by: Xiang Xiao <xiaoxiang@xiaomi.com>

patacongo merged commit 73c2d42 into apache:dev Jan 2, 2020

xiaoxiang781216 deleted the fix-wait-loop-and-void-cast branch January 2, 2020 16:57

xiaoxiang781216 mentioned this pull request Jan 11, 2020

arch/stm32 ensure all spi dma handler check the result #77

Merged

xiaoxiang781216 mentioned this pull request Feb 22, 2020

Fix usrsocktest #354

Merged

donghengqaz added a commit to donghengqaz/incubator-nuttx that referenced this pull request Jul 20, 2020

Merge pull request apache#24 from midokura/bugfix/esp-fix_isr_send_me…

3e37044

…ssage_by_application_api xtensa/esp32: Fix ISR send message to queue by application API

chenzhihong007 pushed a commit to hpmicro/nuttx that referenced this pull request Aug 1, 2023

arch: hpmicro: recorganize spi driver apache#23 apache#24

59f5942

- recorganize spi driver Signed-off-by: Runcheng Lu <runcheng.lu@hpmicro.com>

chenzhihong007 pushed a commit to hpmicro/nuttx that referenced this pull request Feb 23, 2024

arch: hpmicro: recorganize spi driver apache#23 apache#24

64c86b6

- recorganize spi driver Signed-off-by: Runcheng Lu <runcheng.lu@hpmicro.com>

jerpelea mentioned this pull request Dec 19, 2024

{bp-15258} gcc/gcov: fix problems with fork #15281

Merged

comejv mentioned this pull request Jul 17, 2025

[HELP] Compilation Failure for ADC Example on Nucleo-H743ZI #16732

Closed

1 task

Fix wait loop and void cast #24

Fix wait loop and void cast #24

Uh oh!

Conversation

xiaoxiang781216 commented Jan 2, 2020

Uh oh!

patacongo commented Jan 2, 2020

Uh oh!

juniskane commented Jan 8, 2020

Uh oh!

xiaoxiang781216 commented Jan 8, 2020

Uh oh!

xiaoxiang781216 commented Jan 8, 2020

Uh oh!

xiaoxiang781216 commented Jan 8, 2020 • edited Loading Uh oh! There was an error while loading. Please reload this page.

Uh oh!

Uh oh!

jkivilin commented Jan 8, 2020

Uh oh!

jkivilin commented Jan 8, 2020

Uh oh!

xiaoxiang781216 commented Jan 8, 2020

Uh oh!

juniskane commented Jan 9, 2020

Uh oh!

juniskane commented Jan 9, 2020 • edited Loading Uh oh! There was an error while loading. Please reload this page.

Uh oh!

Uh oh!

xiaoxiang781216 commented Jan 9, 2020

Uh oh!

xiaoxiang781216 commented Jan 9, 2020

Uh oh!

juniskane commented Jan 9, 2020

Uh oh!

jkivilin commented Jan 9, 2020

Uh oh!

juniskane commented Jan 9, 2020 • edited Loading Uh oh! There was an error while loading. Please reload this page.

Uh oh!

Uh oh!

xiaoxiang781216 commented Jan 9, 2020

Uh oh!

xiaoxiang781216 commented Jan 9, 2020

Uh oh!

juniskane commented Jan 9, 2020

Uh oh!

juniskane commented Jan 9, 2020 • edited Loading Uh oh! There was an error while loading. Please reload this page.

Uh oh!

Uh oh!

xiaoxiang781216 commented Jan 9, 2020

Uh oh!

acassis commented Jan 9, 2020

Uh oh!

juniskane commented Jan 10, 2020

Uh oh!

xiaoxiang781216 commented Jan 10, 2020

Uh oh!

xiaoxiang781216 commented Jan 11, 2020

Uh oh!

lukegluke commented Feb 20, 2020

Uh oh!

xiaoxiang781216 commented Feb 21, 2020

Uh oh!

xiaoxiang781216 commented Feb 21, 2020 • edited Loading Uh oh! There was an error while loading. Please reload this page.

Uh oh!

Uh oh!

lukegluke commented Feb 21, 2020

Uh oh!

Reviewers

Assignees

Labels

Projects

Milestone

Development

Uh oh!

6 participants

xiaoxiang781216 commented Jan 8, 2020 •

edited

Loading

juniskane commented Jan 9, 2020 •

edited

Loading

juniskane commented Jan 9, 2020 •

edited

Loading

juniskane commented Jan 9, 2020 •

edited

Loading

xiaoxiang781216 commented Feb 21, 2020 •

edited

Loading
