[Issue 7372][docs] Add detailed info for retention policy

[Jennifer88huang-zz]

Fixes #7372

Motivation

The retention policy is not clearly documented.

Modifications

Add detailed info on retention policy.
Add default value for "defaultRetentionTimeInMinutes"

[Huanli-Meng]

leave my comments. PTAL.
BTW, the original issue seems to occur in Pulsar 2.6.0, could you please help confirm whether docs in previous releases should be updated two? Thanks.

[Huanli-Meng]

Suggested change

	When you set a size limit of, for example, 10 gigabytes, and set the time limit to `-1`, then the acknowledged messages in all topics in the namespace are retained until the topic size reaches the size limit(10 gigabytes). If you set a time limit of, for example, 1 day, and set the size limit to `-1`, then the acknowledged messages for all topics in the namespace are retained for 1 day.
	When you set a size limit of, for example, 10 GB, and set the time limit to `-1`, then the acknowledged messages in all topics in the namespace are retained until the topic size reaches the size limit (10 GB). If you set a time limit of, for example, 1 day, and set the size limit to `-1`, then the acknowledged messages for all topics in the namespace are retained for 1 day.

[Huanli-Meng]

Suggested change

	The retention settings apply to all messages on topics that do not have any subscriptions, or to messages that have been acked by all subscriptions. The retention policy settings do not affect unacknowledged messages on topics with subscriptions. The unacknowledged messages are controlled by the backlog quota.
	The retention settings apply to all messages on topics that do not have any subscriptions, or to messages that have been acknowledged by all subscriptions. The retention policy settings do not affect unacknowledged messages on topics with subscriptions. The unacknowledged messages are controlled by the backlog quota.

[Huanli-Meng]

change instance-wide to instance-level?

[Huanli-Meng]

Suggested change

	In the following example, size limit is set to 10 gigabytes and time limit is set to 3 hours for the `my-tenant/my-ns` namespace:
	In the following example, the size limit is set to 10 GB and time limit is set to 3 hours for the `my-tenant/my-ns` namespace:

[Huanli-Meng]

Suggested change

	In the following example, time is not limited and size limit is set to 1 terabyte. The size limit determines the retention result.
	In the following example, the time is not limited while the size limit is set to 1 TB. The size limit determines the retention result.

[Huanli-Meng]

Suggested change

	In the following example, size is not limited and time limit is set to 3 hours. The time limit determines the retention result.
	In the following example, the size is not limited and the time limit is set to 3 hours. The time limit determines the retention result.

[ErikJansenIRefact]

Hi,

In general good improvements in describing the behaviour of the retention settings.
I would suggest however that you describe the behaviour when both settings (time and size) have a value > 0. Are the messages now removed if one of the thresholds exceeds or only if both of them are exceeded. So are the settings a "logical and" or a "logical or"?

And is the 0-value treated as a special value? So, if size = 10Gb and time=0 are message now removed if size > 10Gb?
And if size = 10Gb and time = 1d are messages now removed if either the size or the time is exceeded?

[lhotari]

And is the 0-value treated as a special value?

@ErikJansenIRefact
Yes, 0 is a special value. Setting either limit to 0 will disable retention. That's the catch.
PR #8358 introduced new behavior that prevents setting just one of the values to 0 via the Admin API. To disable the retention policy, both values have to be set to 0 when using the Admin API.
The "setting either limit to 0 will disable retention" behavior still applies to existing configurations (after upgrading to 2.7.0 when it's out) and also for defaultRetentionTimeInMinutes and defaultRetentionSizeInMB settings. I wonder how to get this documented?

[lhotari]

I would suggest however that you describe the behaviour when both settings (time and size) have a value > 0. Are the messages now removed if one of the thresholds exceeds or only if both of them are exceeded. So are the settings a "logical and" or a "logical or"?

good points. explaining this would be useful. I believe it's described somewhere. I'm actually unsure of the answer off the top of my head...

[lhotari]

The code tells the truth:

pulsar/managed-ledger/src/main/java/org/apache/bookkeeper/mledger/impl/ManagedLedgerImpl.java

Lines 2075 to 2101 in a8eaeb5

	// skip ledger if retention constraint met
	for (LedgerInfo ls : ledgers.headMap(slowestReaderLedgerId, false).values()) {
	boolean expired = hasLedgerRetentionExpired(ls.getTimestamp());
	boolean overRetentionQuota = isLedgerRetentionOverSizeQuota();
	if (log.isDebugEnabled()) {
	log.debug(
	"[{}] Checking ledger {} -- time-old: {} sec -- "
	+ "expired: {} -- over-quota: {} -- current-ledger: {}",
	name, ls.getLedgerId(), (clock.millis() - ls.getTimestamp()) / 1000.0, expired,
	overRetentionQuota, currentLedger.getId());
	}
	if (ls.getLedgerId() == currentLedger.getId()) {
	log.debug("[{}] Ledger {} skipped for deletion as it is currently being written to", name,
	ls.getLedgerId());
	break;
	} else if (expired) {
	log.debug("[{}] Ledger {} has expired, ts {}", name, ls.getLedgerId(), ls.getTimestamp());
	ledgersToDelete.add(ls);
	} else if (overRetentionQuota) {
	log.debug("[{}] Ledger {} is over quota", name, ls.getLedgerId());
	ledgersToDelete.add(ls);
	} else {
	log.debug("[{}] Ledger {} not deleted. Neither expired nor over-quota", name, ls.getLedgerId());
	break;
	}
	}

The retention happens only when both conditions are met.

@jennifer88huang please check if this is clearly documented.

[Jennifer88huang-zz]

@ErikJansenIRefact

Hi,

In general good improvements in describing the behaviour of the retention settings.
I would suggest however that you describe the behaviour when both settings (time and size) have a value > 0. Are the messages now removed if one of the thresholds exceeds or only if both of them are exceeded. So are the settings a "logical and" or a "logical or"?

And is the 0-value treated as a special value? So, if size = 10Gb and time=0 are message now removed if size > 10Gb?
And if size = 10Gb and time = 1d are messages now removed if either the size or the time is exceeded?

Good question. it's "logical or". However, if you set either to 0, the retention is disabled.
@lhotari Thank you for helping answer the question, and provide the related doc.
I'll add more details here to make it clear.

[Jennifer88huang-zz]

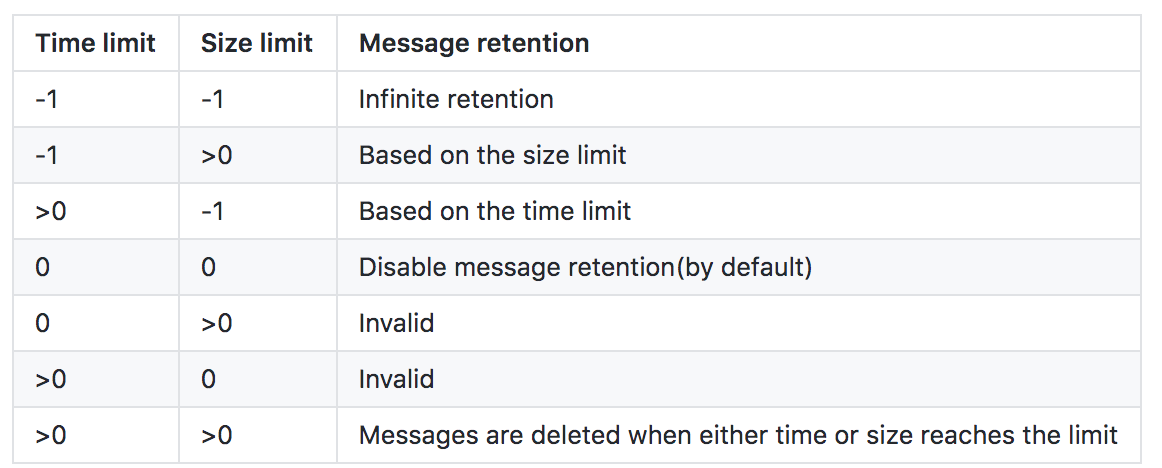

@ErikJansenIRefact I've listed the value settings in a table, is this way much clearer?

[Jennifer88huang-zz]

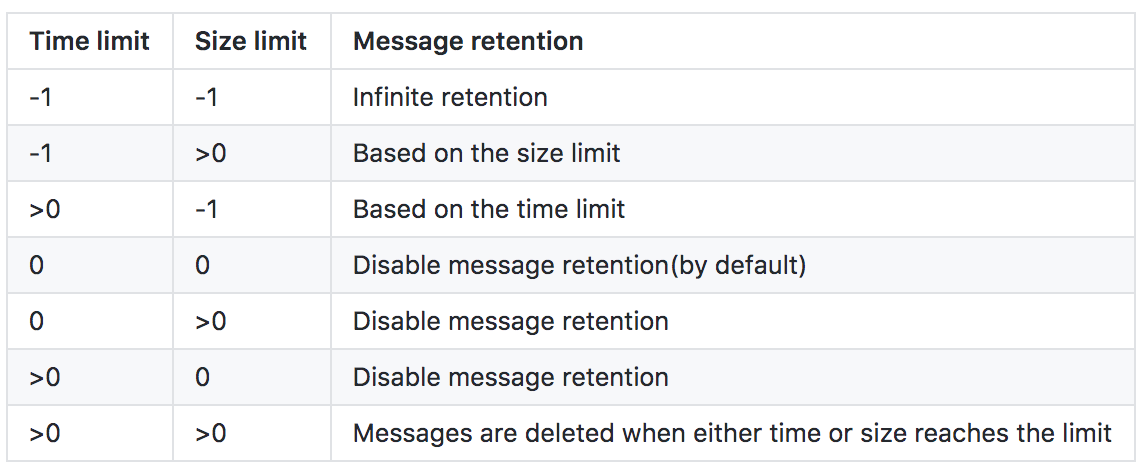

@lhotari according to your comment,

• in 2.6.x, the setting is sth like this


• in 2.7, the setting is sth like this.


Do I grasp your meaning correctly? I've made adjustment in docs for both 2.7 and 2.6.1 accordingly (add the above table and examples). Any issue, feel free to comment.

[lhotari]

Do I grasp your meaning correctly? I've made adjustment in docs for both 2.7 and 2.6.1 accordingly (add the above table and examples). Any issue, feel free to comment.

Yes, perfect. Good work @jennifer88huang

[lhotari]

@jennifer88huang just one minor comment about "Messages are deleted when either time or size reaches the limit". The might lead to misunderstanding that deletion applies for all messages when someone looks at this table and doesn't read the other parts where it's described. I'm not sure how to refer that this only applies to the messages that have been acknowledged or don't have an active subscription at all.

[Jennifer88huang-zz]

@lhotari great, thanks for your reminder. How about replacing "Messages are deleted when either time or size reaches the limit" with one of the followings

• "Acknowledged messages or messages with no active subscription will be deleted"
• "Acknowledged messages or messages with no active subscription will not be retained"

[lhotari]

"Acknowledged messages or messages with no active subscription will not be retained"

+1

[Jennifer88huang-zz]

@lhotari thanks for your quick response. Updated, PTAL again.

[lhotari]

@jennifer88huang I guess the "when either..." part is needed too. Something like "Acknowledged messages or messages with no active subscription will not be retained when either time or size reaches the limit."?

[Jennifer88huang-zz]

@lhotari oops, it's my mistake. I'm sorry I forget to add the condition...
Thank you very much for your reminder.

[lhotari]

I read the document once more and it seems after all that it would be better to simplify the table. One suggestion is to replace "Acknowledged messages or messages with no active subscription will not be retained when either time or size reaches the limit." in the table with "Based on time and size limits" since it would be more consistent with the other rows in the same table.
WDYT?

[Jennifer88huang-zz]

@lhotari Thanks for your feedback.
I'm not sure if we use "Based on time and size limits", whether users are clear about the meaning it conveys.
@ErikJansenIRefact Do you have any opinion on it? Which is more clear to you?
