Conversation

@SpriCoder
Copy link
Contributor

@SpriCoder SpriCoder changed the title upgrade dropwizard-metric from 3.2.5 to 4.2.9(latest) and remain metr… RATIS-1391 and RATIS-1565: upgrade dropwizard-metric from 3.2.5 to 4.2.9(latest) and remain metr… Apr 15, 2022
@SpriCoder
Copy link
Contributor Author

@szetszwo PTAL!

@szetszwo
Copy link
Contributor

@SpriCoder , TestRaftLogMetrics failed in a few re-runs. Could you take a look? See https://github.com/apache/ratis/runs/6035048607?check_suite_focus=true#step:5:511

@SpriCoder
Copy link
Contributor Author

@szetszwo I have already find the reason, that is the implementation of DefaultObjectNameFactory in dropwizard are different between 3.2.5 and 4.2.7. So, I will implement RatisObjectNameFactory.class to compatible with pre-version of ratis.

@SpriCoder
Copy link
Contributor Author

@szetszwo Thanks for your time! I have already fix naming problem.

@SpriCoder
Copy link
Contributor Author

@szetszwo I have already checked CI, it seems like there are some test out of time, can you take a look?

@szetszwo
Copy link
Contributor

@SpriCoder , thanks for update. Just have started re-running the failed jobs.

@szetszwo
Copy link
Contributor

@SpriCoder , TestLeaderElectionMetrics.testOnLeaderElectionCompletion failed again. Could you take a look?

@SpriCoder
Copy link
Contributor Author

@szetszwo I run this test locally and have passed in ten times, so can you help me to rerun this test?

@szetszwo
Copy link
Contributor

@SpriCoder , sure, let's try again.

@SpriCoder
Copy link
Contributor Author

@szetszwo , it's sad that the unit test is failed again. I need your help. What I am confused is that whether the LAST_LEADER_ELECTION_ELAPSED_TIME gauge can be zero?

@szetszwo
Copy link
Contributor

@SpriCoder , not sure. Let's print out the map and the value as below?

diff --git a/ratis-server/src/test/java/org/apache/ratis/server/metrics/TestLeaderElectionMetrics.java b/ratis-server/src/test/java/org/apache/ratis/server/metrics/TestLeaderElectionMetrics.java
index 62707845..af000f3a 100644
--- a/ratis-server/src/test/java/org/apache/ratis/server/metrics/TestLeaderElectionMetrics.java
+++ b/ratis-server/src/test/java/org/apache/ratis/server/metrics/TestLeaderElectionMetrics.java
@@ -23,6 +23,8 @@ import static org.apache.ratis.server.metrics.LeaderElectionMetrics.LEADER_ELECT
 import static org.junit.Assert.assertEquals;
 import static org.junit.Assert.assertTrue;

+import com.codahale.metrics.Gauge;
+import org.apache.ratis.BaseTest;
 import org.apache.ratis.metrics.RatisMetricRegistry;
 import org.apache.ratis.protocol.RaftGroupId;
 import org.apache.ratis.protocol.RaftGroupMemberId;
@@ -30,10 +32,12 @@ import org.apache.ratis.protocol.RaftPeerId;
 import org.junit.BeforeClass;
 import org.junit.Test;

+import java.util.SortedMap;
+
 /**
  * Test for LeaderElectionMetrics.
  */
-public class TestLeaderElectionMetrics {
+public class TestLeaderElectionMetrics extends BaseTest {

   private static LeaderElectionMetrics leaderElectionMetrics;
   private static RatisMetricRegistry ratisMetricRegistry;
@@ -50,9 +54,11 @@ public class TestLeaderElectionMetrics {
   @Test

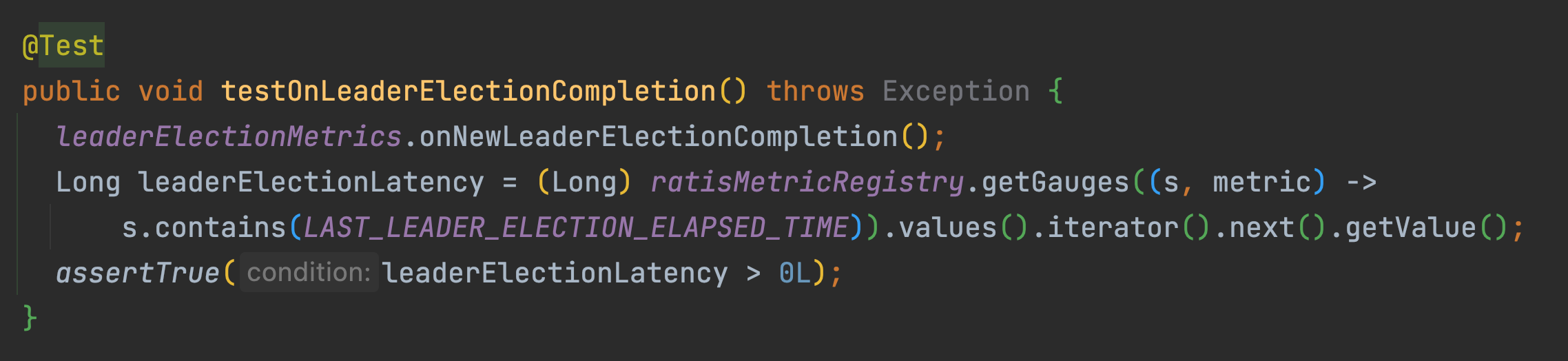

   public void testOnLeaderElectionCompletion() throws Exception {
     leaderElectionMetrics.onNewLeaderElectionCompletion();
-    Long leaderElectionLatency = (Long) ratisMetricRegistry.getGauges((s, metric) ->
-        s.contains(LAST_LEADER_ELECTION_ELAPSED_TIME)).values().iterator().next().getValue();
-    assertTrue(leaderElectionLatency > 0L);
+    final SortedMap<String, Gauge> gauges = ratisMetricRegistry.getGauges(
+        (s, metric) -> s.contains(LAST_LEADER_ELECTION_ELAPSED_TIME));
+    LOG.info("{} gauges: {}", LAST_LEADER_ELECTION_ELAPSED_TIME, gauges);
+    final Long leaderElectionLatency = (Long)gauges.values().iterator().next().getValue();
+    assertTrue("leaderElectionLatency = " + leaderElectionLatency, leaderElectionLatency > 0L);
   }

   @Test

@SpriCoder
Copy link
Contributor Author

@szetszwo Thanks for your suggestion, I have already modified.

@szetszwo
Copy link
Contributor

@SpriCoder , all the tests have passed now. Let's document the incompatibility of this change. I have posted some questions in https://issues.apache.org/jira/browse/RATIS-1391 , please take a look.

@SpriCoder
Copy link
Contributor Author

@szetszwo Great! So is there anything to do before merge?

@szetszwo
Copy link
Contributor

szetszwo commented May 4, 2022

@SpriCoder , unfortunately, there is no response to our questions from the mailing list. We are currently preparing the the 2.3.0 release. Let's merge this once the 2.3.0 has been released.

@szetszwo szetszwo changed the title RATIS-1391 and RATIS-1565: upgrade dropwizard-metric from 3.2.5 to 4.2.9(latest) and remain metr… RATIS-1391. Update library dropwizard.metrics version to 4.x Jun 6, 2022
@szetszwo szetszwo merged commit ec82b04 into apache:master Jun 6, 2022
codings-dan pushed a commit to codings-dan/incubator-ratis that referenced this pull request Jun 25, 2022
codings-dan pushed a commit that referenced this pull request Jun 25, 2022
SzyWilliam pushed a commit to SzyWilliam/ratis that referenced this pull request Jul 2, 2022
kaijchen added a commit to kaijchen/ratis that referenced this pull request Jul 11, 2022
captainzmc added a commit to captainzmc/ratis that referenced this pull request Aug 15, 2022
codings-dan added a commit to codings-dan/incubator-ratis that referenced this pull request Aug 16, 2022
codings-dan added a commit to codings-dan/incubator-ratis that referenced this pull request Aug 16, 2022
codings-dan added a commit to codings-dan/incubator-ratis that referenced this pull request Aug 17, 2022
codings-dan added a commit that referenced this pull request Aug 17, 2022
* Revert "RATIS-1601. Use the shaded dropwizard metrics and remove the dependency (#671)"

This reverts commit c41a60b.

* Revert "RATIS-1391. Update library dropwizard.metrics version to 4.x (#632)"

This reverts commit dbb4ffa

Co-authored-by: dragonyliu <dragonyliu@tencent.com>
chrisdutz added a commit to chrisdutz/ratis that referenced this pull request Sep 21, 2023
symious pushed a commit to symious/ratis that referenced this pull request Mar 5, 2024
RexXiong pushed a commit to apache/celeborn that referenced this pull request May 30, 2024
### What changes were proposed in this pull request?

Bump Ratis version from 2.5.1 to 3.0.1. Address incompatible changes:

- RATIS-589. Eliminate buffer copying in SegmentedRaftLogOutputStream.(apache/ratis#964)
- RATIS-1677. Do not auto format RaftStorage in RECOVER.(apache/ratis#718)
- RATIS-1710. Refactor metrics api and implementation to separated modules. (apache/ratis#749)

### Why are the changes needed?

Bump Ratis version from 2.5.1 to 3.0.1. Ratis has released v3.0.0, v3.0.1, which release note refers to [3.0.0](https://ratis.apache.org/post/3.0.0.html), [3.0.1](https://ratis.apache.org/post/3.0.1.html). The 3.0.x version include new features like pluggable metrics and lease read, etc, some improvements and bugfixes including:

- 3.0.0: Change list of ratis 3.0.0 In total, there are roughly 100 commits diffing from 2.5.1 including:
   - Incompatible Changes
      - RaftStorage Auto-Format
      - RATIS-1677. Do not auto format RaftStorage in RECOVER. (apache/ratis#718)
      - RATIS-1694. Fix the compatibility issue of RATIS-1677. (apache/ratis#731)
      - RATIS-1871. Auto format RaftStorage when there is only one directory configured. (apache/ratis#903)
      - Pluggable Ratis-Metrics (RATIS-1688)
      - RATIS-1689. Remove the use of the thirdparty Gauge. (apache/ratis#728)
      - RATIS-1692. Remove the use of the thirdparty Counter. (apache/ratis#732)
      - RATIS-1693. Remove the use of the thirdparty Timer. (apache/ratis#734)
      - RATIS-1703. Move MetricsReporting and JvmMetrics to impl. (apache/ratis#741)
      - RATIS-1704. Fix SuppressWarnings(“VisibilityModifier”) in RatisMetrics. (apache/ratis#742)
      - RATIS-1710. Refactor metrics api and implementation to separated modules. (apache/ratis#749)
      - RATIS-1712. Add a dropwizard 3 implementation of ratis-metrics-api. (apache/ratis#751)
      - RATIS-1391. Update library dropwizard.metrics version to 4.x (apache/ratis#632)
      - RATIS-1601. Use the shaded dropwizard metrics and remove the dependency (apache/ratis#671)
      - Streaming Protocol Change
      - RATIS-1569. Move the asyncRpcApi.sendForward(..) call to the client side. (apache/ratis#635)
   - New Features
      - Leader Lease (RATIS-1864)
      - RATIS-1865. Add leader lease bound ratio configuration (apache/ratis#897)
      - RATIS-1866. Maintain leader lease after AppendEntries (apache/ratis#898)
      - RATIS-1894. Implement ReadOnly based on leader lease (apache/ratis#925)
      - RATIS-1882. Support read-after-write consistency (apache/ratis#913)
      - StateMachine API
      - RATIS-1874. Add notifyLeaderReady function in IStateMachine (apache/ratis#906)
      - RATIS-1897. Make TransactionContext available in DataApi.write(..). (apache/ratis#930)
      - New Configuration Properties
      - RATIS-1862. Add the parameter whether to take Snapshot when stopping to adapt to different services (apache/ratis#896)
      - RATIS-1930. Add a conf for enable/disable majority-add. (apache/ratis#961)
      - RATIS-1918. Introduces parameters that separately control the shutdown of RaftServerProxy by JVMPauseMonitor. (apache/ratis#950)
      - RATIS-1636. Support re-config ratis properties (apache/ratis#800)
      - RATIS-1860. Add ratis-shell cmd to generate a new raft-meta.conf. (apache/ratis#901)
   - Improvements & Bug Fixes
      - Netty
         - RATIS-1898. Netty should use EpollEventLoopGroup by default (apache/ratis#931)
         - RATIS-1899. Use EpollEventLoopGroup for Netty Proxies (apache/ratis#932)
         - RATIS-1921. Shared worker group in WorkerGroupGetter should be closed. (apache/ratis#955)
         - RATIS-1923. Netty: atomic operations require side-effect-free functions. (apache/ratis#956)
      - RaftServer
         - RATIS-1924. Increase the default of raft.server.log.segment.size.max. (apache/ratis#957)
         - RATIS-1892. Unify the lifetime of the RaftServerProxy thread pool (apache/ratis#923)
         - RATIS-1889. NoSuchMethodError: RaftServerMetricsImpl.addNumPendingRequestsGauge apache/ratis#922 (apache/ratis#922)
         - RATIS-761. Handle writeStateMachineData failure in leader. (apache/ratis#927)
         - RATIS-1902. The snapshot index is set incorrectly in InstallSnapshotReplyProto. (apache/ratis#933)
         - RATIS-1912. Fix infinity election when perform membership change. (apache/ratis#954)
         - RATIS-1858. Follower keeps logging first election timeout. (apache/ratis#894)

- 3.0.1:This is a bugfix release. See the [changes between 3.0.0 and 3.0.1](apache/ratis@ratis-3.0.0...ratis-3.0.1) releases.

### Does this PR introduce _any_ user-facing change?

No.

### How was this patch tested?

Cluster manual test.

Closes #2480 from SteNicholas/CELEBORN-1400.

Authored-by: SteNicholas <programgeek@163.com>
Signed-off-by: Shuang <lvshuang.xjs@alibaba-inc.com>
