Make MemoryBufferWriter a Stream by davidfowl · Pull Request #1907 · aspnet/SignalR

davidfowl · 2018-04-08T10:41:44Z

Get rid of LimitArrayPoolWriteStream and use MemoryBufferWriter in its place in the MessagePackProtocol implementation.
Added tests for MemoryPoolBufferWriter and fixed a bug in CopyToAsync
Added CopyTo(IBufferWriter<byte>)
Changed MemoryBufferWriter to fill the underlying arrays that back segments, the segment size is now a minimum.

Latest Results

                Method |          Input | HubProtocol |        Mean |      Error |     StdDev |        Op/s |  Gen 0 | Allocated |
---------------------- |--------------- |------------ |------------:|-----------:|-----------:|------------:|-------:|----------:|
    WriteSingleMessage |   FewArguments |     MsgPack |  1,353.7 ns |  19.034 ns |  17.804 ns |   738,701.2 | 0.0134 |     472 B |
 OldWriteSingleMessage |   FewArguments |     MsgPack |  1,278.2 ns |  19.146 ns |  16.973 ns |   782,370.4 | 0.0153 |     520 B |
    WriteSingleMessage | LargeArguments |     MsgPack | 17,249.9 ns | 108.451 ns |  96.139 ns |    57,971.5 | 2.0447 |   61848 B |
 OldWriteSingleMessage | LargeArguments |     MsgPack | 16,273.1 ns | 185.642 ns | 164.566 ns |    61,450.9 | 2.0447 |   61896 B |
    WriteSingleMessage |  ManyArguments |     MsgPack |  2,494.1 ns |  29.492 ns |  26.144 ns |   400,941.9 | 0.0229 |     744 B |
 OldWriteSingleMessage |  ManyArguments |     MsgPack |  2,407.0 ns |  30.682 ns |  27.199 ns |   415,459.0 | 0.0229 |     792 B |
    WriteSingleMessage |    NoArguments |     MsgPack |    552.6 ns |   6.188 ns |   5.485 ns | 1,809,472.5 | 0.0067 |     224 B |
 OldWriteSingleMessage |    NoArguments |     MsgPack |    536.0 ns |   6.296 ns |   5.581 ns | 1,865,671.5 | 0.0086 |     272 B |

Broadcast json, 1000 connections

Before

            Method | Connections | Protocol |     Mean |     Error |    StdDev |   Median |  Op/s |  Gen 0 | Allocated |
--------------- |------------ |--------- |---------:|----------:|----------:|---------:|------:|-------:|----------:|
 SendAsyncGroup |        1000 |     json | 1.618 ms | 0.0337 ms | 0.0839 ms | 1.586 ms | 618.1 | 1.9531 |  97.78 KB |
   SendAsyncAll |        1000 |     json | 1.465 ms | 0.0117 ms | 0.0109 ms | 1.463 ms | 682.8 | 1.9531 |  65.72 KB |

After

         Method | Connections | Protocol |     Mean |     Error |    StdDev |  Op/s |  Gen 0 | Allocated |
--------------- |------------ |--------- |---------:|----------:|----------:|------:|-------:|----------:|
 SendAsyncGroup |        1000 |     json | 1.541 ms | 0.0153 ms | 0.0143 ms | 648.8 | 1.9531 |  98.67 KB |
   SendAsyncAll |        1000 |     json | 1.502 ms | 0.0176 ms | 0.0147 ms | 666.0 | 1.9531 |  77.62 KB |

Previous runs

Before

             Method |          Input | HubProtocol |        Mean |      Error |     StdDev |        Op/s |  Gen 0 | Allocated |
------------------- |--------------- |------------ |------------:|-----------:|-----------:|------------:|-------:|----------:|
 WriteSingleMessage |   FewArguments |     MsgPack |  1,347.5 ns |  25.898 ns |  24.225 ns |   742,109.1 | 0.0153 |     520 B |
 WriteSingleMessage | LargeArguments |     MsgPack | 17,434.4 ns | 342.015 ns | 432.539 ns |    57,357.9 | 2.0447 |   61896 B |
 WriteSingleMessage |  ManyArguments |     MsgPack |  2,488.1 ns |  42.467 ns |  39.724 ns |   401,920.6 | 0.0229 |     792 B |
 WriteSingleMessage |    NoArguments |     MsgPack |    548.6 ns |   5.932 ns |   5.549 ns | 1,822,692.4 | 0.0086 |     272 B |

After

             Method |          Input | HubProtocol |        Mean |      Error |     StdDev |        Op/s |  Gen 0 | Allocated |
------------------- |--------------- |------------ |------------:|-----------:|-----------:|------------:|-------:|----------:|
 WriteSingleMessage |   FewArguments |     MsgPack |  1,627.8 ns |  25.531 ns |  23.882 ns |   614,328.8 | 0.0134 |     472 B |
 WriteSingleMessage | LargeArguments |     MsgPack | 20,891.9 ns | 302.379 ns | 268.051 ns |    47,865.4 | 2.0752 |   61848 B |
 WriteSingleMessage |  ManyArguments |     MsgPack |  3,008.5 ns |  39.299 ns |  34.837 ns |   332,394.7 | 0.0229 |     744 B |
 WriteSingleMessage |    NoArguments |     MsgPack |    732.9 ns |   8.135 ns |   7.609 ns | 1,364,499.2 | 0.0067 |     224 B |

It's slower and allocates a little bit less. Going to profile it. Small note, we don't get the benefit of the thread static caching in this test because WriteToArray already passes in a MemoryPoolBufferWriter to the MessagePackProtocol.

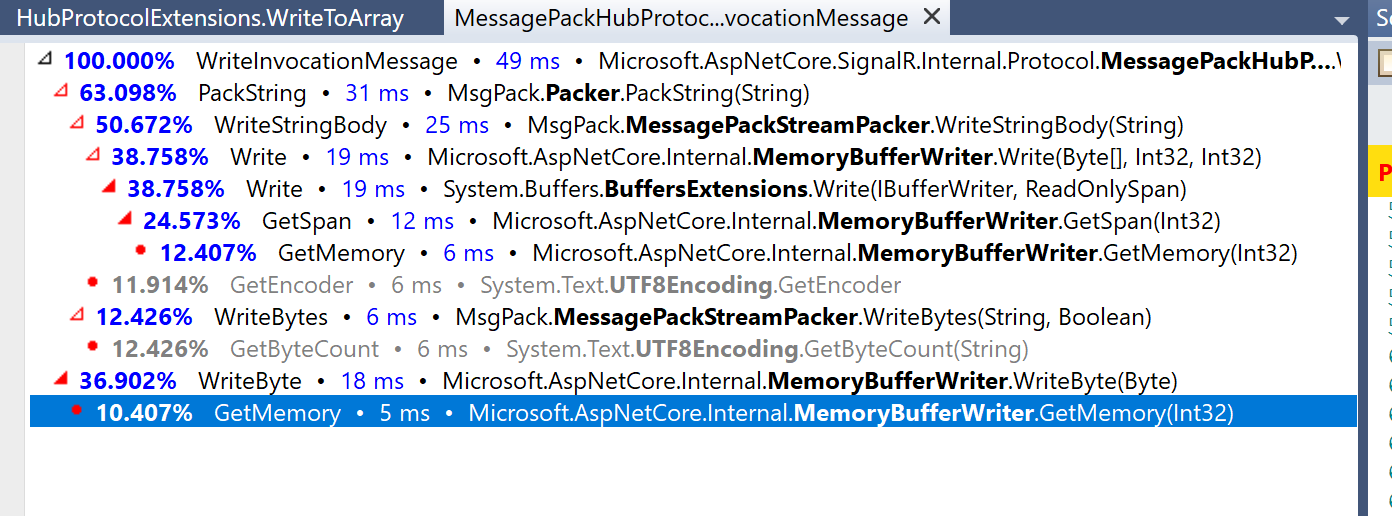

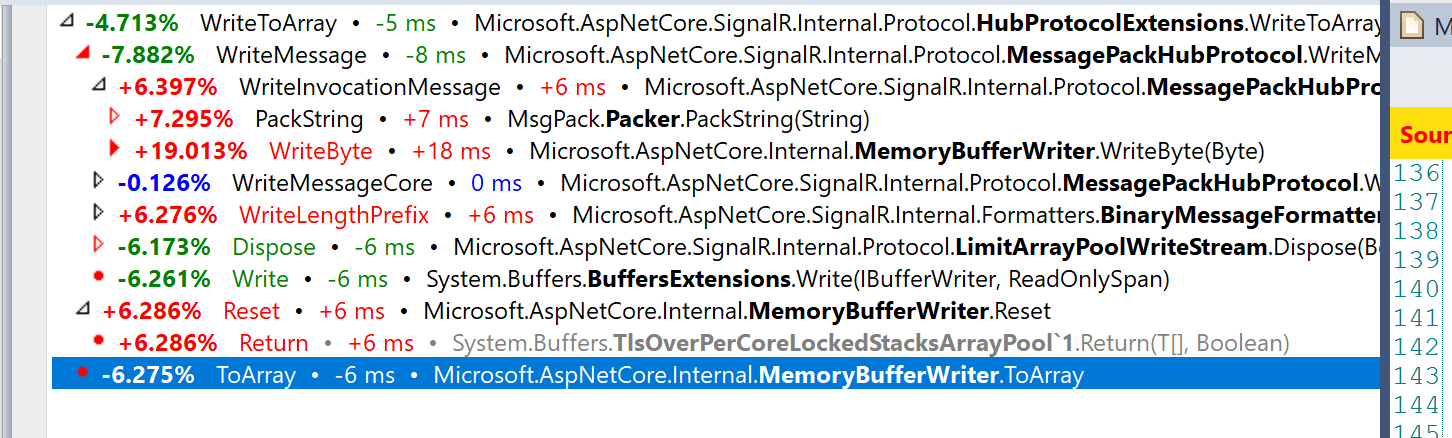

Looks like Write and WriteByte are just generally slower:

Old:

New:

Code

public class Program
{
    public static void Main(string[] args)
    {
        int messages = 100000;
        Console.WriteLine($"Waiting to serialize {messages} hub messages");
        Console.ReadLine();

        var hubMessage = new InvocationMessage(target: "Target", argumentBindingException: null);
        var hubProtocol = new MessagePackHubProtocol();

        for (int i = 0; i < messages; i++)
        {
            byte[] buffer = hubProtocol.WriteToArray(hubMessage);
        }

        Console.WriteLine("Done");
        Console.ReadLine();
    }
}

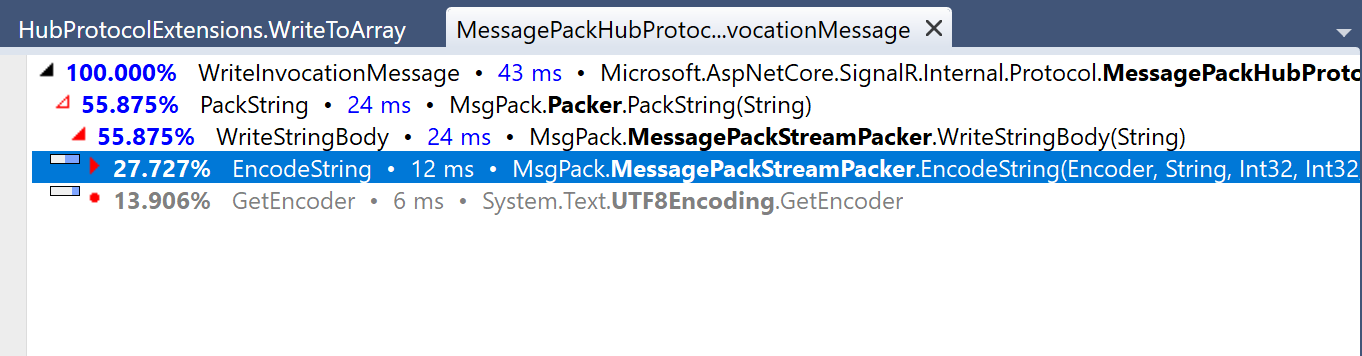

After optimizations

             Method |          Input | HubProtocol |        Mean |     Error |    StdDev |        Op/s |  Gen 0 | Allocated |
------------------- |--------------- |------------ |------------:|----------:|----------:|------------:|-------:|----------:|
 WriteSingleMessage |   FewArguments |     MsgPack |  1,423.3 ns |  30.92 ns |  54.16 ns |   702,612.5 | 0.0134 |     472 B |
 WriteSingleMessage | LargeArguments |     MsgPack | 18,500.8 ns | 359.45 ns | 318.64 ns |    54,051.8 | 2.0447 |   61848 B |
 WriteSingleMessage |  ManyArguments |     MsgPack |  2,607.8 ns |  51.76 ns |  53.16 ns |   383,471.4 | 0.0229 |     744 B |
 WriteSingleMessage |    NoArguments |     MsgPack |    582.0 ns |  11.67 ns |  20.13 ns | 1,718,105.7 | 0.0067 |     224 B |

- Fixed a bug with CopyTo and CopyToAsync

benaadams · 2018-04-08T11:02:08Z

Override FlushAsync as the default impl will use Task.StartNew

public virtual Task FlushAsync(CancellationToken cancellationToken)
{
    return Task.Factory.StartNew(state => ((Stream)state).Flush(), this,
        cancellationToken, TaskCreationOptions.DenyChildAttach, TaskScheduler.Default);
}

benaadams · 2018-04-08T11:32:52Z

        public void WriteMessage(HubMessage message, IBufferWriter<byte> output)
        {
-            using (var stream = new LimitArrayPoolWriteStream())
+            var writer = MemoryBufferWriter.Get();


Does this write everything to array pool buffers just to get a length for prefix, then copies everything out of the buffers to the output after writing the prefix?

Yep. We discussed ways to improve this but haven't enacted any concrete plan yet. The problem is the length is variable sized https://github.com/aspnet/SignalR/blob/dev/specs/HubProtocol.md#varint

benaadams · 2018-04-08T16:49:28Z

+            }
+            else
+            {
+                EnsureCapacity(1);


No need to recheck conditions

AddSegment() _currentSegment[0] = value; _position = 1;

benaadams · 2018-04-08T16:53:20Z

+
+        public override void WriteByte(byte value)
+        {
+            if (_currentSegment != null && _position < _currentSegment.Length)


Skip bounds checks

var currentSegment = _currentSegment; var position = _position; if (currentSegment != null && (uint)position < (uint)currentSegment.Length) { currentSegment[position] = value; _position = position + 1; }

This actually seemed to make things slower... Trying again.

You need both the array and index in a local rather than working off a memory location (this._currentSegment) for it to work; otherwise the Jit won't assume the values are the same when you use them to do the indexing.

It was better for arrays that were memory references at one stage; but then it was made worse 😢 dotnet/coreclr#15756

Yea, it's worse

benaadams · 2018-04-08T16:54:09Z

+            }
+
+            _bytesWritten++;
+            _position++;


Remove

_position++;

As dealt with in two branches of if

benaadams · 2018-04-08T17:00:25Z

@@ -161,7 +202,7 @@ public byte[] ToArray()
                {
                    _fullSegments[i].CopyTo(result, totalWritten);


Take array to local, save on double List lookup

var segment = _fullSegments[i]; segment.CopyTo(result, totalWritten); totalWritten += segment.Length;

benaadams · 2018-04-08T17:02:29Z

+
+        public override void Write(byte[] buffer, int offset, int count)
+        {
+            if (_currentSegment != null && _position + count < _currentSegment.Length)


Avoid overflow (argument checking aside)

_position < _currentSegment.Length - count

benaadams · 2018-04-08T17:05:48Z

+            if (_fullSegments != null)
+            {
+                // Copy full segments
+                for (var i = 0; i < _fullSegments.Count; i++)


Isn't array, so take property to register

var count = _fullSegments.Count; for (var i = 0; i < count; i++)

Otherwise it will pull it from stack memory each loop

benaadams · 2018-04-08T17:09:50Z

+
+        public override void Write(byte[] buffer, int offset, int count)
+        {
+            if (_currentSegment != null && _position + count < _currentSegment.Length)


Use _position lots so take to local/register so it isn't always reading from stack memory

var position = _position; if (_currentSegment != null && position < _currentSegment.Length - count) { Buffer.BlockCopy(buffer, offset, _currentSegment, position, count); _position = position + count;

JamesNK · 2018-04-08T20:31:49Z

+#if NETCOREAPP2_1
+        public override void Write(ReadOnlySpan<byte> span)
+        {
+            if (_currentSegment != null && span.TryCopyTo(_currentSegment.AsSpan().Slice(_position)))


AsSpan takes arguments to do the slice at the same time.

But then I have to pass the length

_position is already length?

_currentSegment.AsSpan(0, _position)

Ah, _position is where you start.

_currentSegment.AsSpan(_position, _currentSegment.Length - _position)? GetSpan, GetMemory do this.

I didn't want to do that but I can.

JamesNK · 2018-04-08T20:35:05Z

 namespace Microsoft.AspNetCore.Internal
 {
-    internal sealed class MemoryBufferWriter : IBufferWriter<byte>
+    internal sealed class MemoryBufferWriter : Stream, IBufferWriter<byte>


The name doesn't fit anymore. How about MemoryWriter?

I was waiting for you to request a rename.

Why doesn't the name fit? MemoryStreamWriter? Should it encapsulate everything it's implementing? 😄

Also renaming a shared source file is a bit of a chore so I'd like to avoid it as part of this PR (plus the name is fine).

MemoryStreamBufferWriter? I don't care that much 🤷‍♂️

Should I added pooled in there too (I'm trolling BTW).

JamesNK · 2018-04-08T23:00:23Z

I think BufferExtensions.Write is where the slow down is coming from. If we copied its code into the class and made it use the internal array data structure and _position directly rather than calling interface methods on IBufferWriter<byte> there would be a perf improvement.

davidfowl · 2018-04-08T23:02:34Z

I think BufferExtensions.Write is where the slow down is coming from. If we copied its code into the class and made it use the internal array data structure and _position directly rather than calling interface methods on IBufferWriter there would be a perf improvement.

Agreed, I looked at doing that but the performance different is so minimal now, I didn't bother.

JamesNK

Happy for AsSpan and BufferExtensions.Write optimizations to be done in the future.

davidfowl · 2018-04-08T23:10:59Z

@JamesNK the future is now. Coming up after this PR.

benaadams · 2018-04-08T23:14:32Z

I think BufferExtensions.Write is where the slow down is coming from.

It should be marked as AgressiveInline; its already split into Write and WriteMultiSegment for this sort of purpose; and then hopefully the Jit would also devirtualize the writer via the inline as they are non-virtual methods (and anyway its a sealed class)

benaadams · 2018-04-08T23:24:21Z

Inlines dotnet/corefx#28928

benaadams · 2018-04-09T14:45:32Z

I think BufferExtensions.Write is where the slow down is coming from.

It should be marked as ...

Perhaps is better as you suggest @JamesNK as it is simplier #1918
